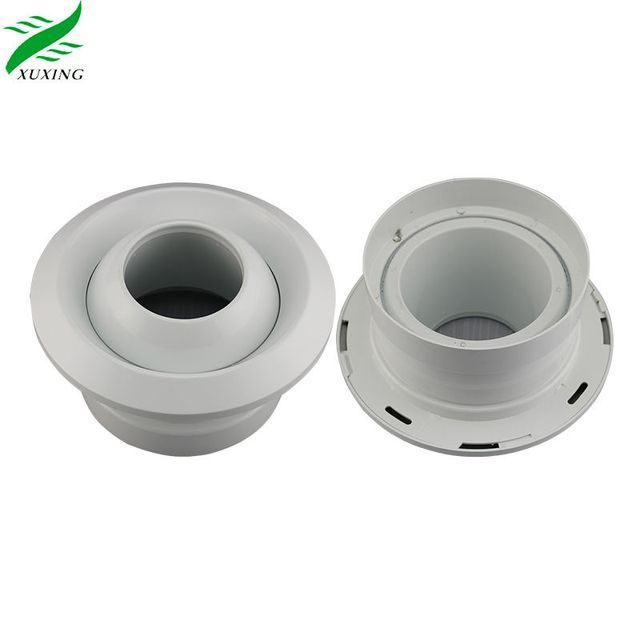

Air conditioning ventilation adjustable ABS nozzle spray nozzle air diffuser
-
$12.68 / 10 - 99 pieces
$9.74 / 100 - 499 pieces
$7.79 / >=500 pieces - 10 pieces
- Foshan Xuxing Ventilation Co., Ltd.
- Guangdong, China
- Ms Elly Chen
Product Detail
| application: | Office Building | Free Samples: | usable |
| Minimum Order Quantity: | 10 | Warranty: | 1 year |
| Origin: | Guangdong, China | sample: | usable |
| Supply capacity: | 100,000 pieces per month | Material: | Anti-lock Braking System |
| After-sales service: | Online technical support, other | Packaging Details: | Aluminum Air Nozzle Diffuser Aluminum Nozzle Packing: Inner PVC independent packing, outer strong carton packing, extra pallet optional |
| Project solving capabilities: | Graphic design, 3D model design, overall project solution | Standard colors: | RAL9019,9010 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | other colours: | usable |
| Material Thickness: | 1.3 mm | model: | JD to BP |
| port: | Guangzhou/Shenzhen | size: | Any size is available |
| Customer Design: | Available for .cool registration. | Installation Location: | Walls, ceilings |
| brand: | Rising Star | design style: | Modern |
Air conditioning ventilation adjustable ABS nozzle spray nozzle air diffuser
Fdescribe:

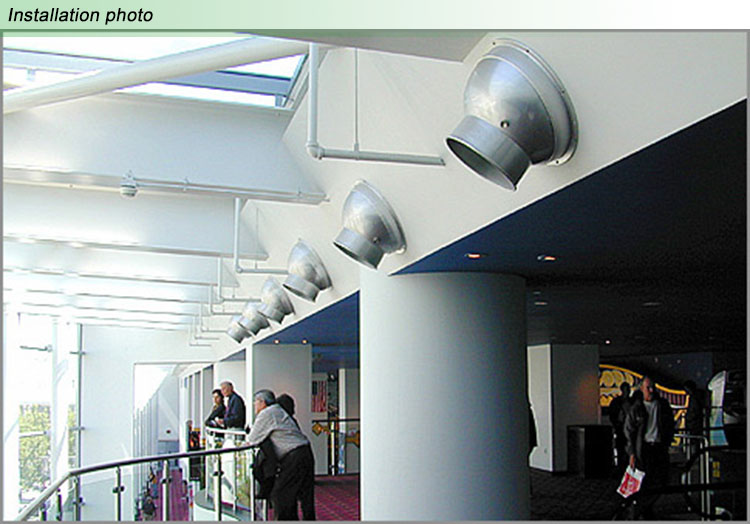

- The air supply nozzles are designed for large tall areas such as concert halls, dance halls, theaters, museums and shopping malls.
- Thanks to its aerodynamic design, it achieves a long air stroke and low noise levels even at high outlet velocities.
Completeness:
- standardPowder coated 9010 / 9016 white finish. The painted surface will be painted with enamel paint and baked in the oven to prevent scratches.
- Anodizing is also available upon request
- Click for more technical information and gallery.
|

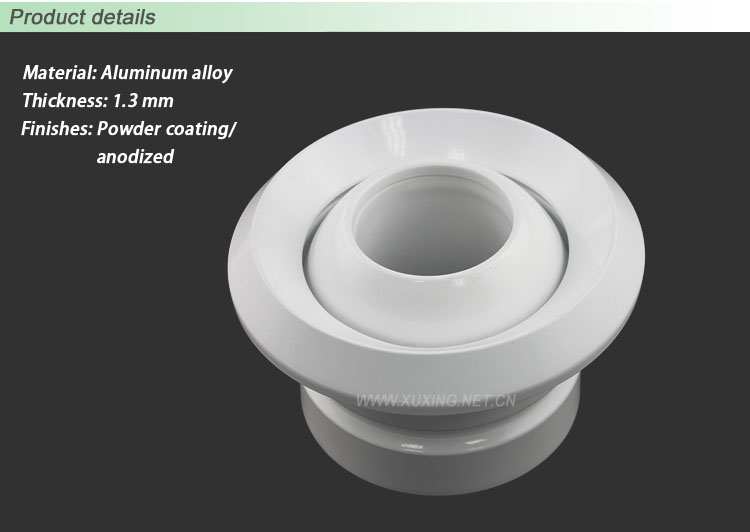

Material: |
Aluminum Alloy |
|
thickness: |
1.3 mm |
|
type: |
Spinning |
|
Origin: |
Chinese mainland |
|
Neck circumference: |

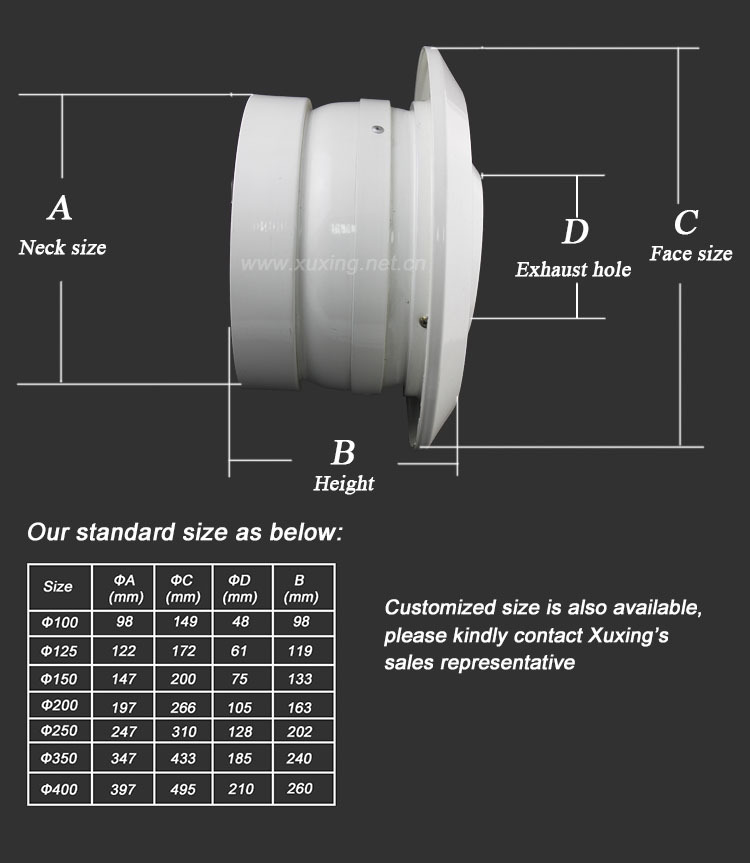

Diameter 150, 200, 250, 300, 350, 400, 450 mm |
|
Completed: |
Anodizing, powder coating or finishing |
Click for more technical information and gallery

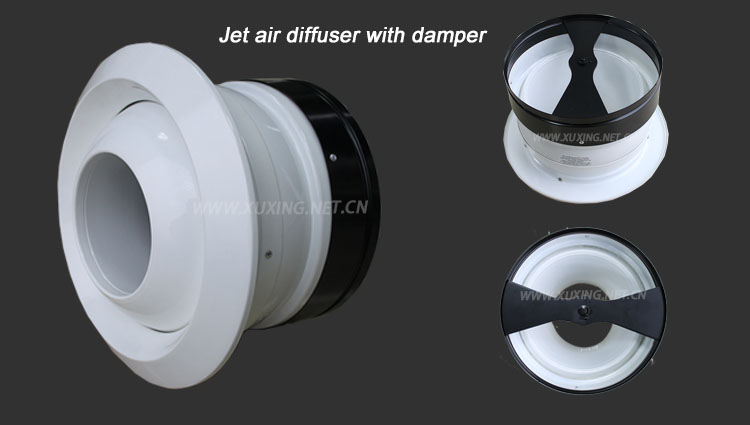

Jet Air Diffuser
Packaging and Shipping
Air Diffuser
injection
VIEW MORE
