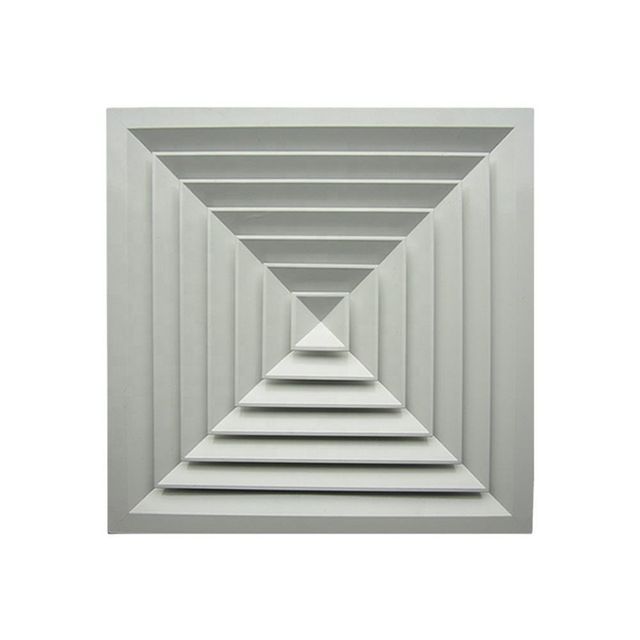

Aluminum diffuser for the air supply of air for the ventilation system
-
$5.88 / 10 - 99 pieces
$4.70 / 100 - 499 pieces
$3.53 / 500 - 999 pieces
$2.74 / >=1000 pieces - 10 pieces
- Foshan Vairtech Ventilation Co., Ltd.
- Guangdong, China
- Ms Elly Chan
Product Detail
| Material Thickness: | Standard 1.0mm | Completed: | powder coated or anodized |
| application: | ceiling fan, hotel | Accessories: | air damper |
| MOQ: | 10 | Supply capacity: | 100000 pieces per month |
| Warranty: | 1 year | design style: | modern |
| port: | Foshan, Guangzhou, Shenzhen | payment terms: | L/C, Western Union, T/T |
| Material: | aluminum alloy | Free samples: | usable |
| color: | Standard white or anodized silver | model: | SD-A3 |
| size: | custom size | Packaging Details: | Standard packing: 1. Plastic corner protectors to protect corners 2. Poly film, anti-scratch 3. Outer carton packing 4. Pallet packing is optional |
| brand: | Wiltek | Install: | ceiling |
| Project Solution Capabilities: | Graphic design, 3D model design, overall project solution | After-sales service: | online technical support, other |
| Origin: | Guangdong, China |
Product Description
product name | Aluminum HVAC supply air diffuser for ventilation system |
Material | aluminum alloy |

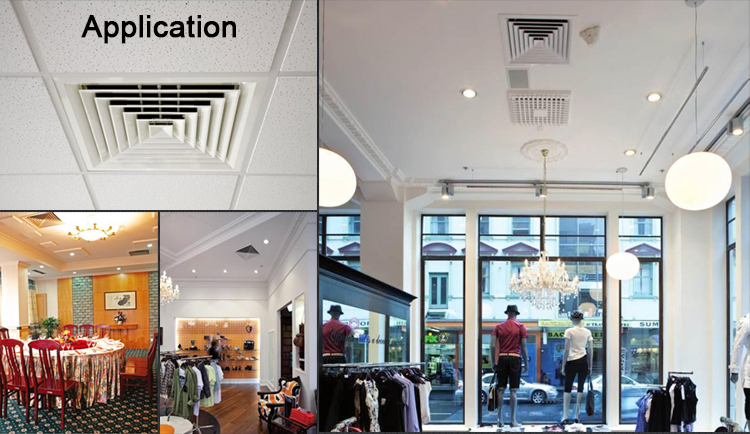

Function | walls and ceilings |
customs code | 7616999000 |
describe:
The frame and blades are constructed of high-quality extruded aluminum profiles, which have the advantages of corrosion resistance and rigidity. The shutter cores are secured to the frame by aluminum pins fitted with steel springs. Cores can be easily removed and interchanged for maximum flexibility in installation, maintenance and damping adjustments.

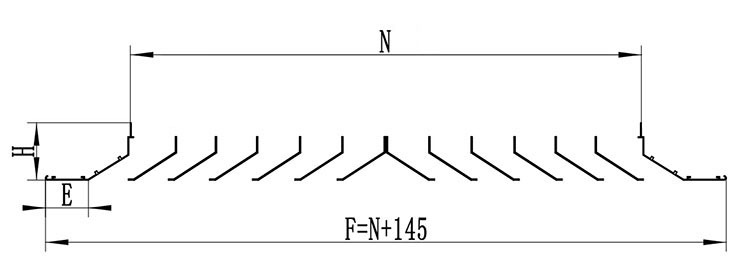

project code | Neck size(mm) | Surface size (mm) |
SD-A3-150 | 150x150 | 300x300 |
SD-A3-225 | 225x225 | 375x375 |
SD-A3-300 | 300x300 | 450x450 |
SD-A3-375 | 375x375 | 525x525 |
SD-A3-450 | 450x450 | 600x600 |

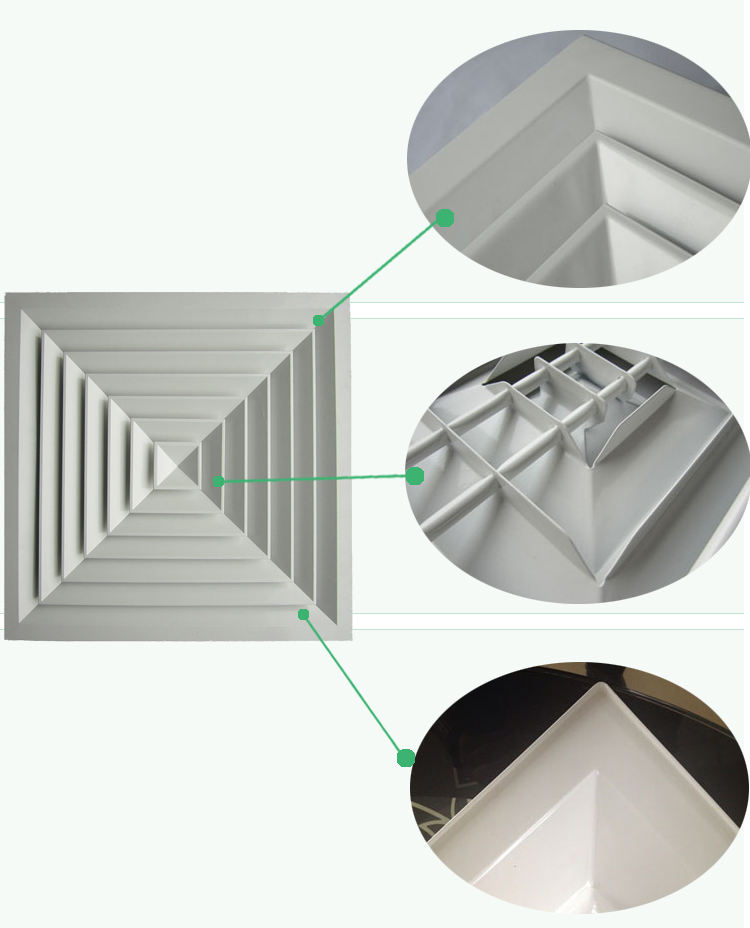

detailed picture
Advantage
