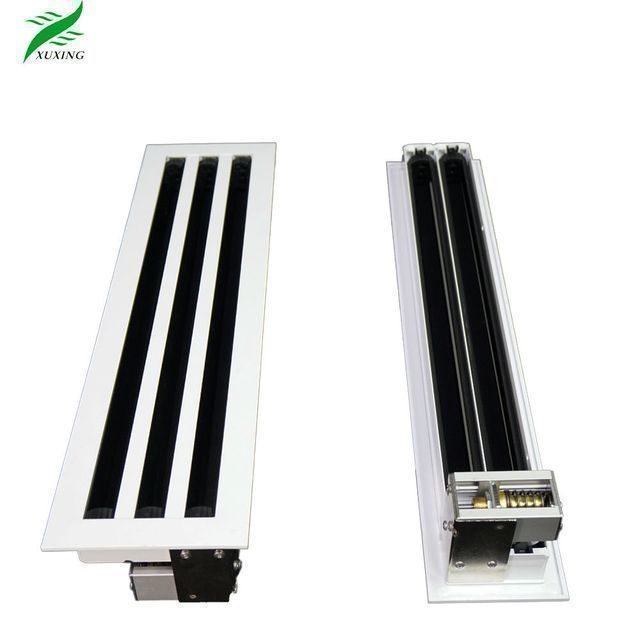

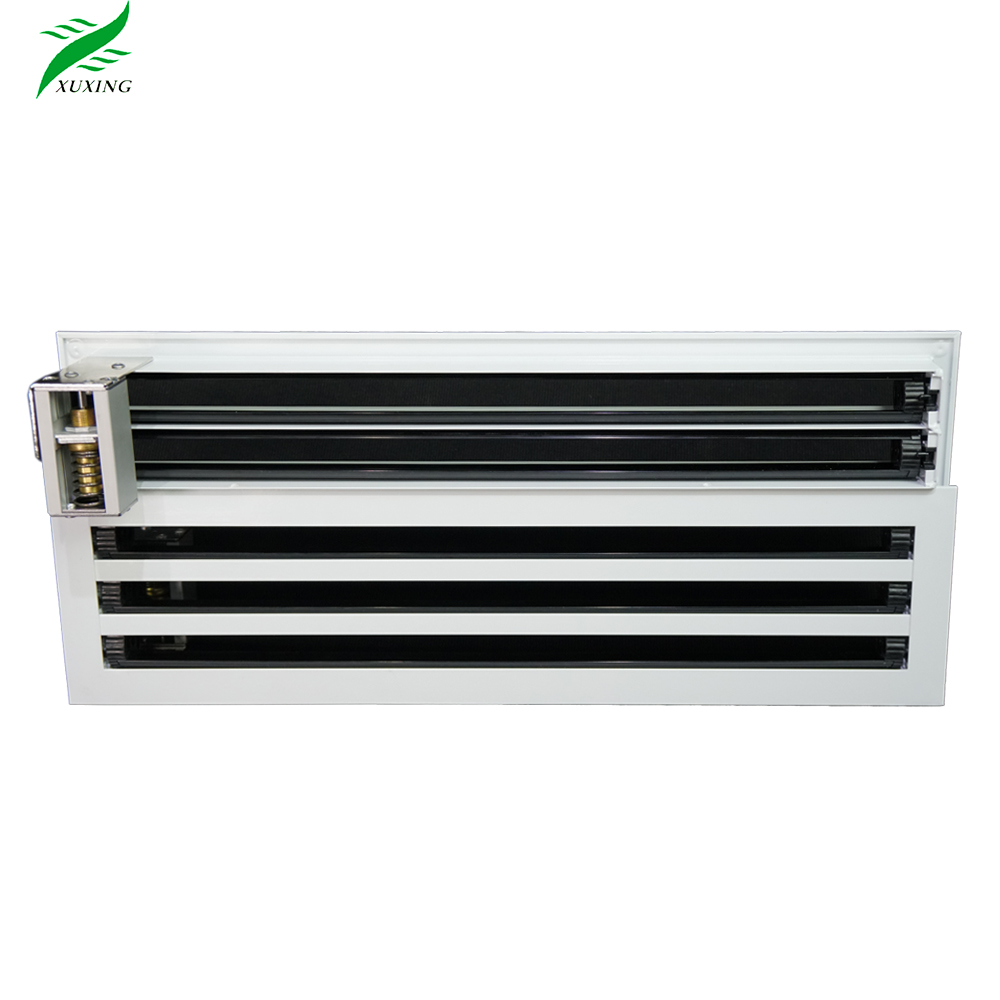

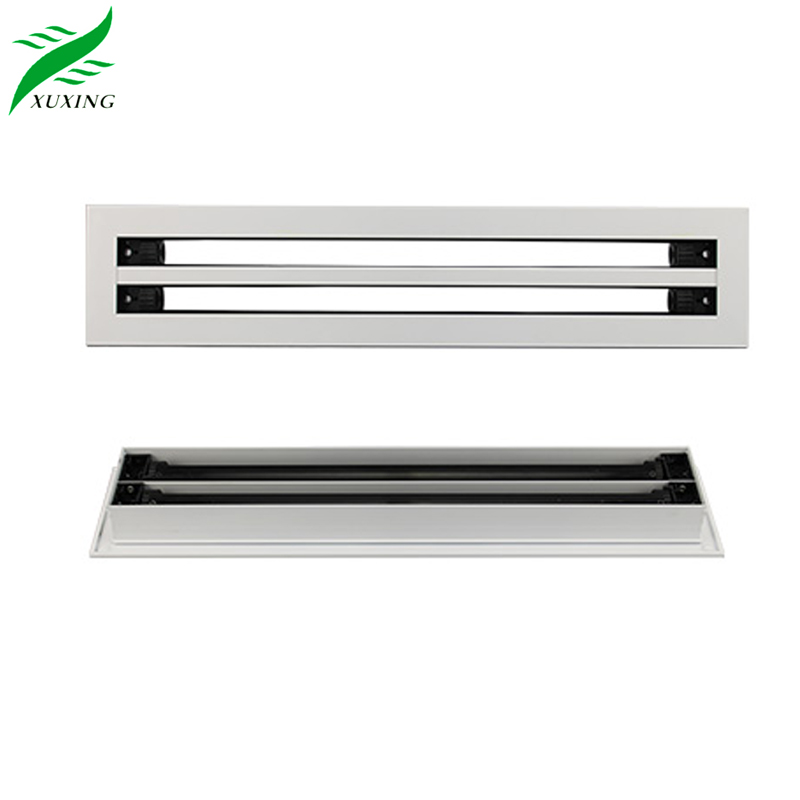

Aluminum ceiling slot air diffuser Linear slot diffuser for HVAC ventilation system
-
$4.89 / 10 - 199 pieces
$4.39 / 200 - 499 pieces
$3.89 / >=500 pieces - 10 pieces
- Foshan Xuxing Ventilation Co., Ltd.
- Guangdong, China
- Ms Elly Chen
Product Detail
| place of origin; place of origin: | Guangdong, China | Accessories: | PB (pressurized box) |
| Original Design Manufacturer/Original Equipment Manufacturer: | acceptable | Packaging Details: | Inner PVC bag + outer strong carton + extra pallet/wooden box for air conditioner diffuser ceiling air diffuser HVAC |
| Warranty: | 1 year | frame: | 1.3mm |
| blade: | 1.0mm | application: | Hotel/Lobby/Shopping Mall,Mall |
| design style: | modern | color: | RAL9016, 9010 |
| Project solution ability: | graphic design, other | brand: | Xu Xing |
| size: | custom made | Groove width: | 21mm |
| Material: | aluminum | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| model: | LS-C | After-sales service: | online technical support |
| pack: | Five-layer carton |
Product Description
put up:
* Frame and blade: High quality extruded aluminum alloy (A6063) profile with 28mm flange.
* Groove width: 21mm
* Length: Up to 4 meters in one piece
* Frame and blade: High quality extruded aluminum alloy (A6063) profile with 28mm flange.
* Groove width: 21mm
* Length: Up to 4 meters in one piece
describe:
* The frame and blade are constructed of high-quality extruded aluminum profiles, which have the advantages of corrosion resistance and rigidity.
* Air distribution can be changed vertically or horizontally by deflecting the vanes without changing the air velocity. The black blade is fully adjustable from the face opening.
*Any total length can be combined with a bridge without ends.
* The frame and blade are constructed of high-quality extruded aluminum profiles, which have the advantages of corrosion resistance and rigidity.
* Air distribution can be changed vertically or horizontally by deflecting the vanes without changing the air velocity. The black blade is fully adjustable from the face opening.
*Any total length can be combined with a bridge without ends.
Surface treatment:
* Powder-coated color finishes according to RAL colors
* Standard color: RAL9016, 9010
* Natural anodized aluminum finish
* Powder-coated color finishes according to RAL colors
* Standard color: RAL9016, 9010
* Natural anodized aluminum finish
Material Thickness:
* Frame: 1.3mm
* Blade: 1.0mm
* Frame: 1.3mm
* Blade: 1.0mm

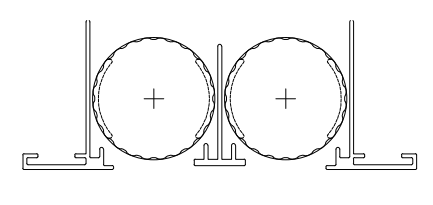

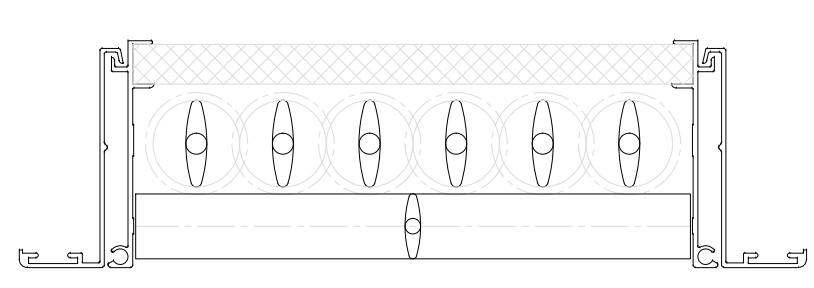

project code | Slot machine | Neck circumference =B(mm) | face shape =A(mm) | Groove width = W1 (mm) | ||||
LS-C | 1 | 35 | 67 | twenty one | ||||
LS-C | 2 | 69 | 101 | twenty one | ||||
LS-C | 3 | 102 | 134 | twenty one | ||||
LS-C | 4 | 136 | 168 | twenty one | ||||
LS-C | 5 | 170 | 202 | twenty one | ||||
LS-C | 6 | 204 | 236 | twenty one | ||||
size: any size available Over face size = neck circumference + 32mm | ||||||||
