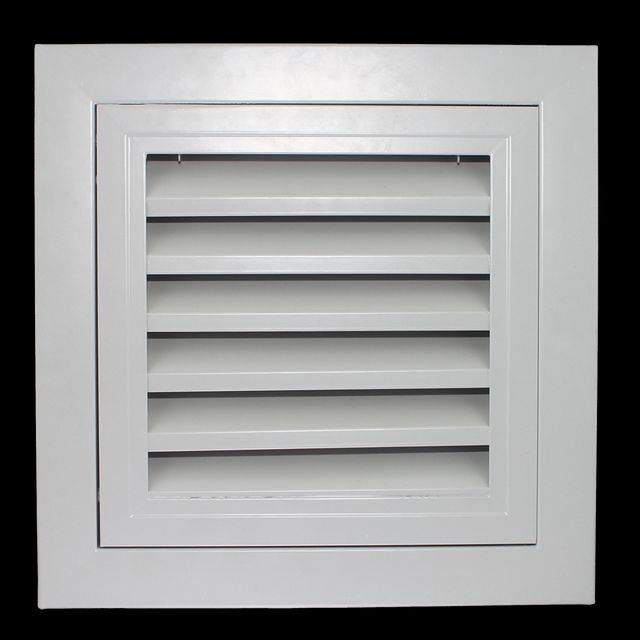

Ceiling air conditioner return air inlet grille

Ceiling air conditioner return air inlet grille

feature_______________________

put up:

• Frame: High quality extruded aluminum alloy (A6063) profile, standard flange is 30mm.
• Blades: 45° aluminum profile airfoil blades
• Blade spacing: standard 25mm
• Support tube: 8mm diameter aluminum tube

describe:

• The frame and blades are constructed of high-quality extruded aluminum profiles, which have the advantages of corrosion resistance and rigidity.

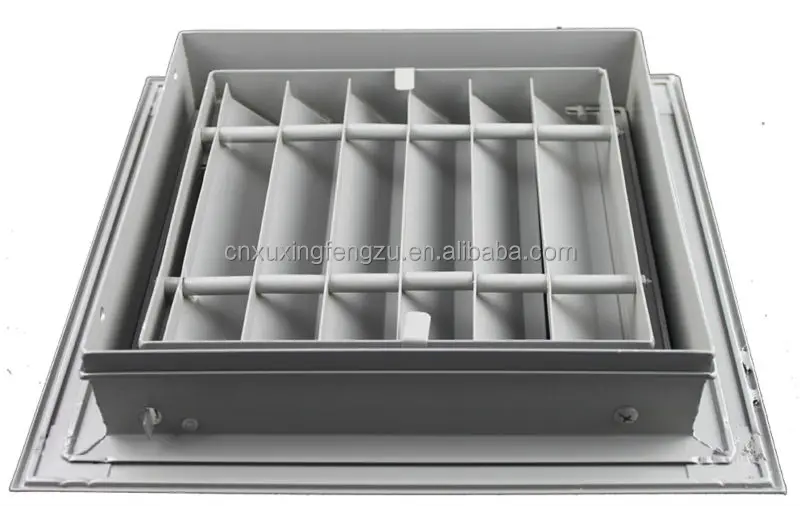

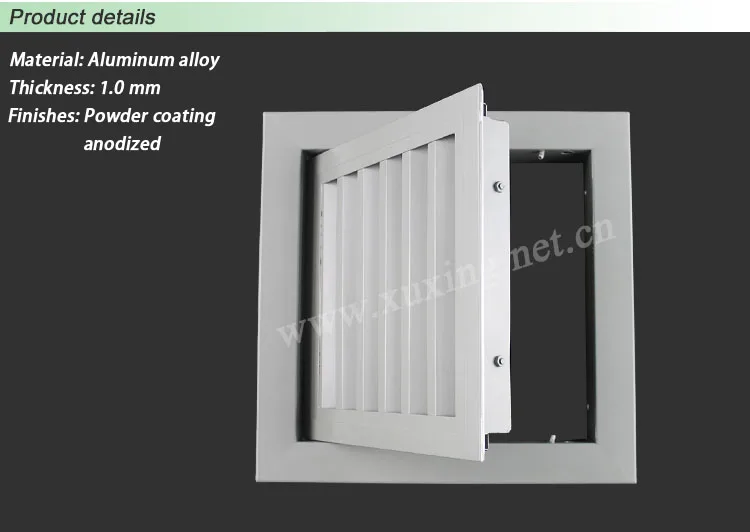

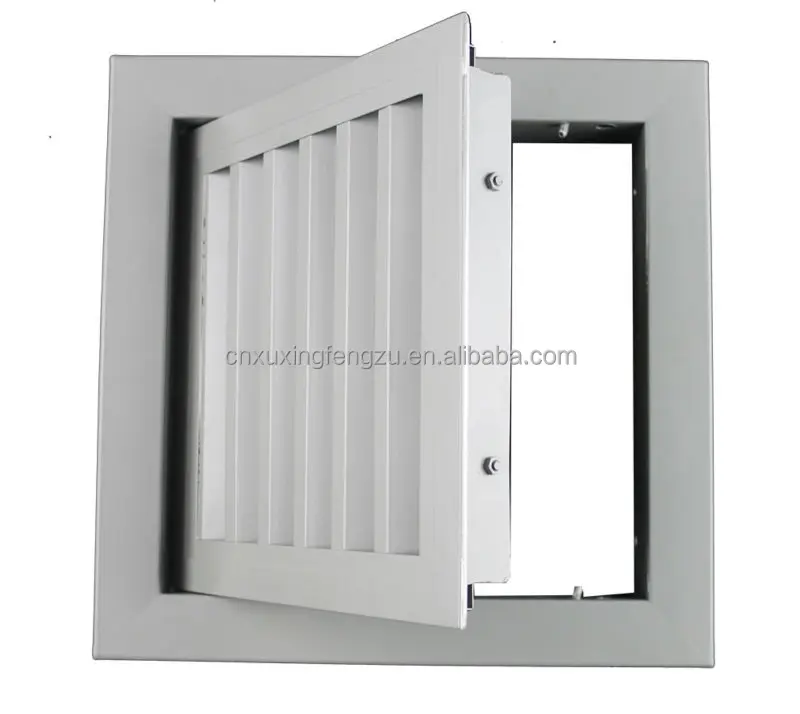

• One side of the inner core frame is fixed to the outer frame through hinges, and the other side is fixed to the outer frame through screws. The core can be easily opened for maximum flexibility in installation and maintenance.
• The blades are set at a 45° angle with a spacing of 25mm and are fixed to the inner frame through rivets and support tubes.

Surface finish:

• Powder coating color conforms to RAL color
• Standard colors: RAL9016, 9010
• Natural anodized aluminum finish

Material thickness:

0.8mm, 1.0mm, 1.2mm available

.

Standard size____________________

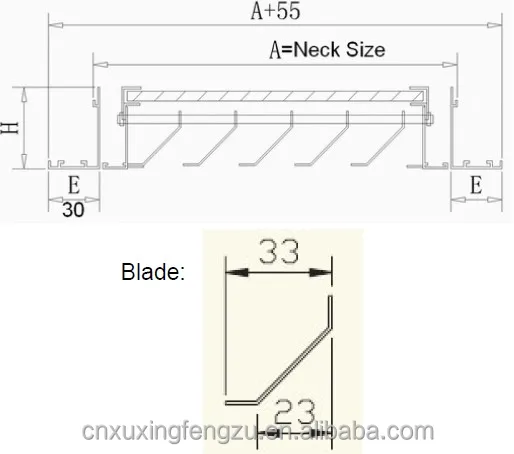

Overall face size = neck size + 55mm = A + 55mm

Standard size

.

All other sizes available on request

.

Application areas__________________

Ventilation/air conditioning system

These recessed diffusers are ideal for residential and commercial reverse cycle air conditioning supply air applications.

.

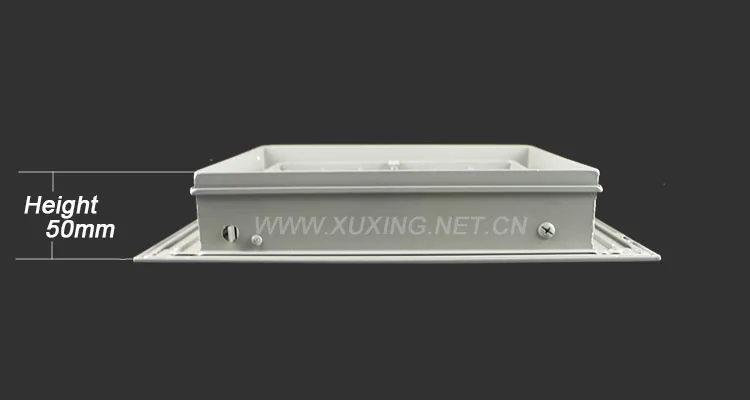

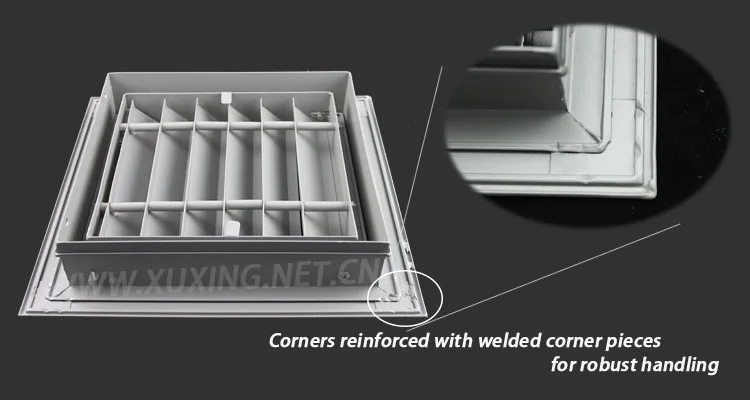

Detailed pictures __________________

.

We care about all details in the product process.

Since aluminum has soft properties and is easily deformed, we focus on safe packaging for different transportation methods.
