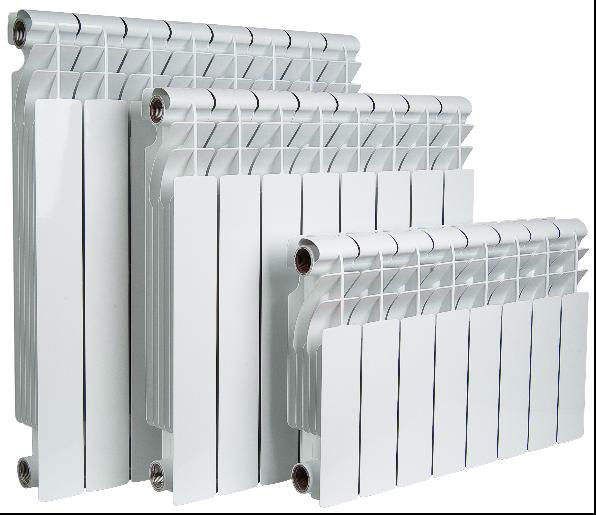

Water-to-air heat exchange radiator
- $4.00 / >=1000 pieces
- 1000 pieces
- Jiangsu Unbeatable Energy Group Co., Ltd.
- Jiangsu, China
- Ms Jane Cao
Product Detail
| Supply capacity: | 500,000 monthly water-air heat exchange radiator | brand: | incomparable |
| Work pressure: | 1.6Mpa | pack: | Thermal film, master carton |
| Center distance: | 300,350,500,600mm | payment terms: | L/C, T/T |
| Packaging Details: | Unrivaled water-air heat exchange radiator thermal film, outer box, 6/8/10/12 knots per box | Shipping Details: | 20 days after receiving the water air heat exchange deposit |
| port: | China Shanghai | Certificate: | CE (EN442), national standard |
| Test pressure: | 2.4Mpa | color: | White/RAL9016 |
| model: | UR1000 series | Material: | High Purity Aluminum |
| painting: | Electrophoretic paint, powder spraying | type: | heat sink |
| Origin: | Jiangsu, China | Install: | Wall-mounted |
| product: | Water to air heat exchange radiator |
Water to Air Heat Exchange Radiator/Hot Water Radiator/Room Heater/CE GOST
Specification:
| model | Dimensions (height x width x depth) (mm) | Center distance(mm) | Water capacity (liter) | Thermal outlet (T=64.5°C) (watts) | Weight (kg) |
| UR1001-300 | 380×80×85 | 300 | 0.27 | 140 | 0.93 |

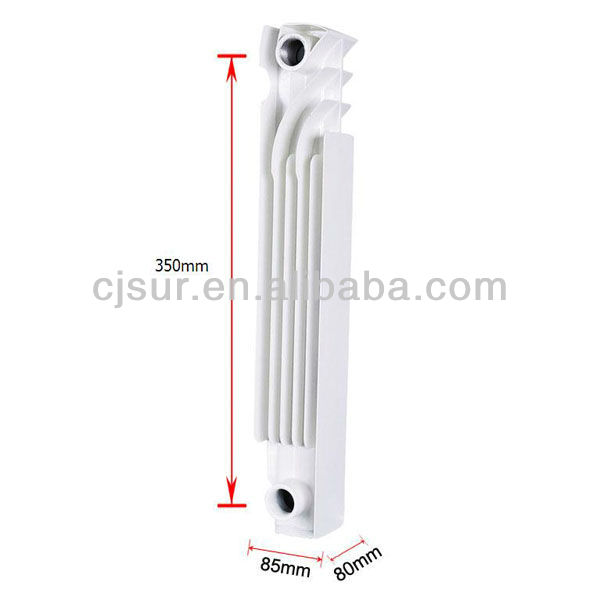

| UR1001-350 | 432×80×85 | 400 | 0.31 | 158 | 1.01 |

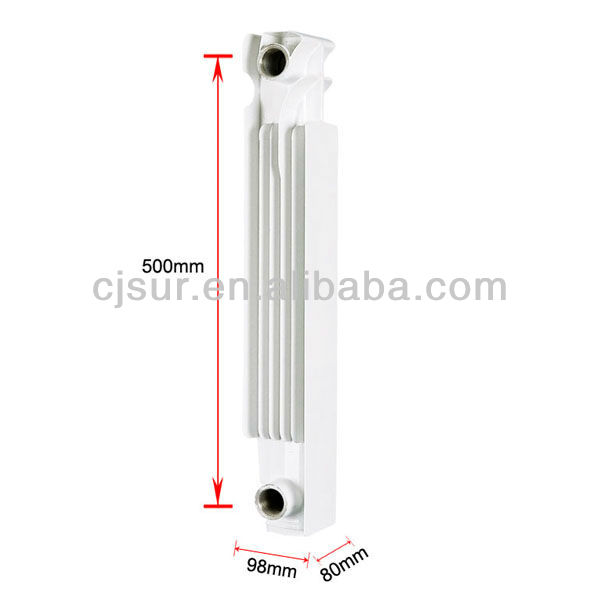

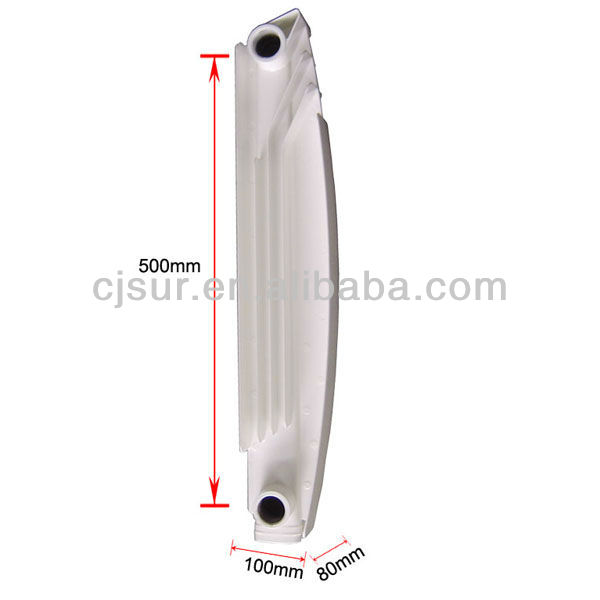

| UR1001-500 | 582×80×85 | 500 | 0.36 | 196 | 1.24 |
| UR1001-600 | 685×80×90 | 600 | 0.39 | 216 | 1.52 |
| UR1002-500 | 582×80×100 | 500 | 0.37 | 189 | 1.39 |
| UR1004-500 | 582×80×98 | 500 | 0.38 | 191 | 1.43 |
| UR1005-500 | 585×80×100 | 500 | 0.37 | 189 | 1.38 |
| UR1007-500 | 573×80×96 | 500 | 0.38 | 184 | 1.50 |
Features:
1. Stylish high-purity aluminum panel, efficient and fast heat dissipation
2. High-strength all-aluminum alloy die-cast cooling plate, no risk of water leakage
3. German BASF electrophoretic coating line
4.24bar test pressure, test 3 times before packaging
5. Machine welding
6. Automatic thermal film sealing system for packaging
