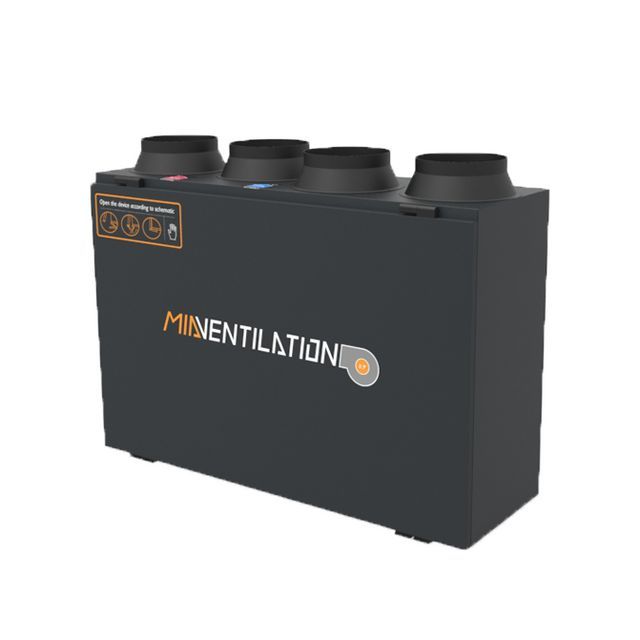

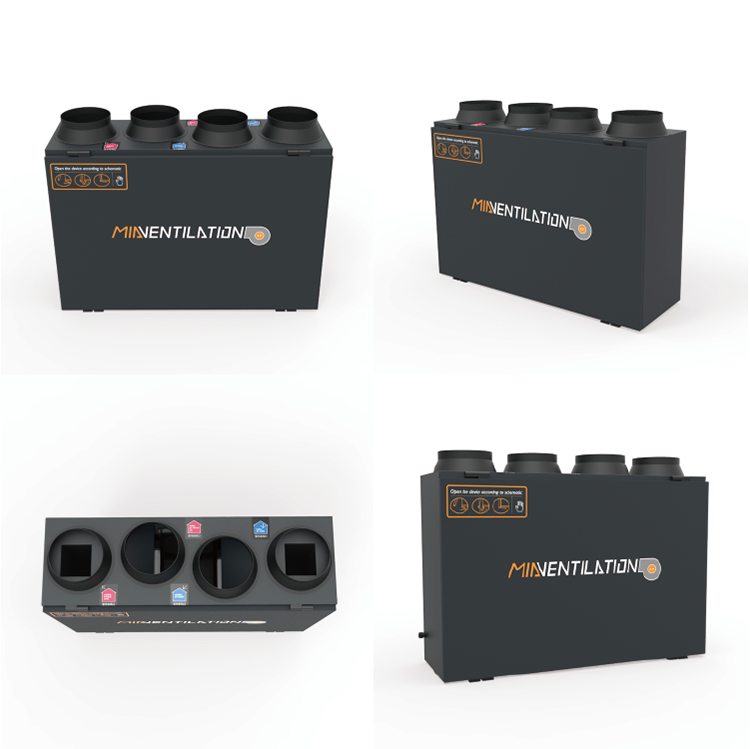

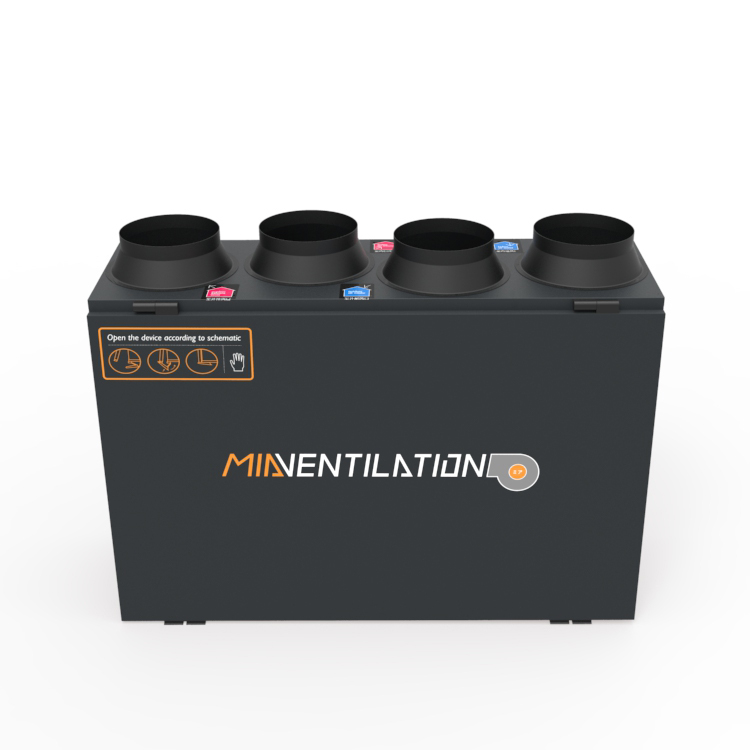

DC Motor HRV Ventilation System Vertical Air Heat Exchanger with Wall Mount Bracket Optional for Closet or Maintenance Room Wall Mount
-
$900.00 / 1 - 99 sets
$780.00 / >=100 sets - 1 set
- Suzhou Mia Intelligent Technology Co., Ltd.
- Jiangsu, China
- Ms Nannette MIA
Product Detail
| Project solution ability: | Graphic design, 3D model design, R&D, production, OEM, ODM, testing, inspection | strength: | 173W |
| payment terms: | wire transfer | noise: | 31~32dB(A) |
| Certificate: | CE SAA ISO ROHS | brand: | MIA/ MIA Ventilation/ MIA Brand/ MIA Model |
| After-sales service: | Online technical support, free spare parts, return and exchange, factory training, selection guide | size: | 825*270*551mm |
| volume: | 250CMH | Package preview: | |
| Warranty: | over 5 years | port: | Shanghai Port, China |
| Voltage: | 220~240V | application: | Kitchen Bathroom Home Office Living Room Bedroom |
| model: | MIA-AHE25CGJDB/C | Supply capacity: | 1,000,000 sets per year |
| design style: | Mid-Century Farmhouse Scandinavian Post-Modern | Origin: | Jiangsu, China |
| Packaging Details: | From the inside to the outside, two different packaging materials: 1. Inner carton packaging 2. Export standard fumigation-free wooden box/frame packaging outside for your choice to prevent damage during transportation (wooden frame packaging: cheap, 60%~70 % area packaging, more complete protection for equipment, wooden box packaging: efficient, 100% area packaging, perfect protection for equipment, anti-fall and anti-friction) | Heat recovery rate: | 85%~88% |
| Air outlet size: | 150mm | pressure: | 280Pa |
notes
The page only showsfactory pricePrices and Distribution Prices. Please contact us to confirm the total payment (shipping and other charges) before placing an order!
Welcome to contact:
WeChat:cqa09336
website:CDC
Product Details

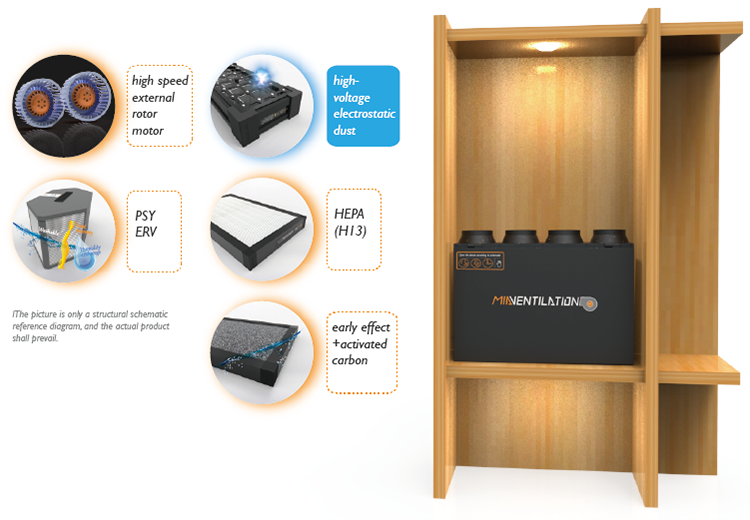

Vertical/Cabinet ERV Ventilation System
(AC external rotor fan/DC brushless fan)
MIA-AHExxCGLB, MIA-AHExxCGJB/C, MIA-AHExxCGJDB, MIA-AHExxCGJDB/C
(xx stands for 25, 35, 50, means 250m3/h, 350m3/h, 500m3/h)
1. Primary activated carbon two-in-one filter: filter dust particles, remove odor and formaldehyde.
2. European standard H13 high-efficiency filter: PM2.5 purification rate ≥ 99.97%.
3. PSY high thermal conductivity molecular material, ultra-high heat recovery efficiency, and at the same time exchange heat energy through water molecules, the consumables can be soaked in clean water, effectively preventing mold and bacteria.
4. 87648 hours super long warranty period!
1. Primary activated carbon two-in-one filter: filter dust particles, remove odor and formaldehyde.
2. European standard H13 high-efficiency filter: PM2.5 purification rate ≥ 99.97%.
3. PSY high thermal conductivity molecular material, ultra-high heat recovery efficiency, and at the same time exchange heat energy through water molecules, the consumables can be soaked in clean water, effectively preventing mold and bacteria.
4. 87648 hours super long warranty period!

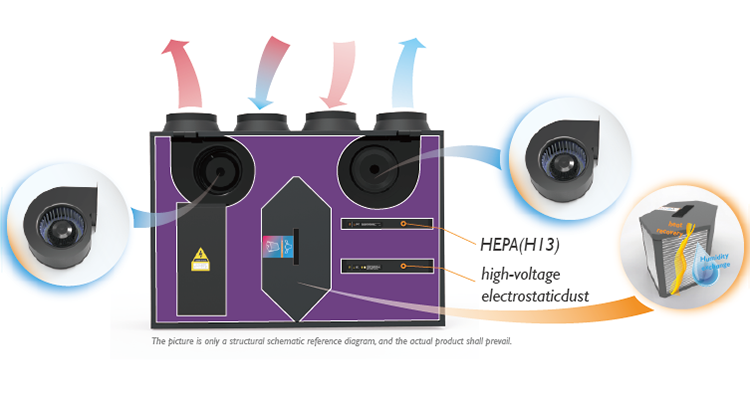

detail

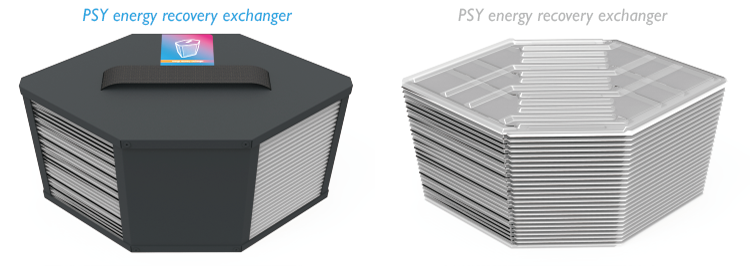

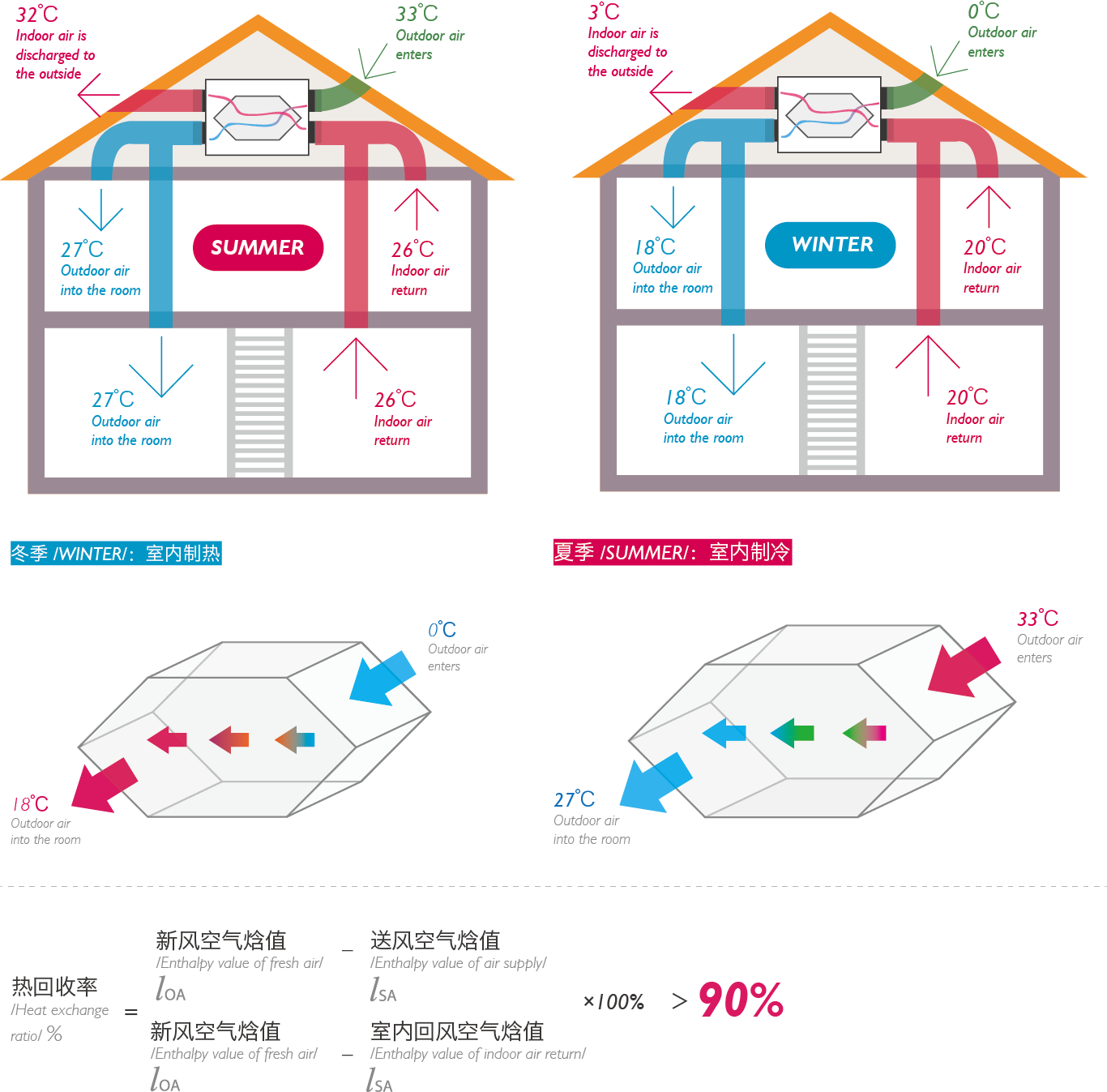

energy recovery exchanger
The PSY high thermal conductivity molecular material developed by the Japanese DR team has high heat recovery efficiency. It can penetrate the water molecules in the heat exchange process; with the washable material, it can also avoid the problems caused by bacteria and mold.
The PSY high thermal conductivity molecular material developed by the Japanese DR team has high heat recovery efficiency. It can penetrate the water molecules in the heat exchange process; with the washable material, it can also avoid the problems caused by bacteria and mold.
Primary effect + activated carbon filter
High voltage electrostatic precipitator
Using plastic edge banding, the sealing performance is far superior to paper edge banding. Composite fiber filter element, sprayed with activated carbon powder, efficiently filters dust particles, and the wind resistance is extremely small. Evenly distributed activated carbon power can maximize the effect of activated carbon. thiswashableThe filter is reusable, two-in-one, primary effect + activated carbon, greatly reducing the total cost of consumables.
HEPA filter
Using plastic edge banding, the sealing performance is far superior to paper edge banding. In order to ensure health and pollution-free, we use environmentally friendly imported sealant, which is colorless and odorless. The filters we use are3M high efficiency air filter, conforming to European Standard-H13, PM2.5 removal rate can beUp to 99.97%, this large dust holding capacity contributes to total cost savings.
High voltage electrostatic precipitator
Using the needle discharge method, the high-voltage electrostatic precipitator can replace the traditional tungsten wire high-voltage electrostatic precipitator. The thickness is only 4cm, suitable for various models. The removal rate of PM2.5 is as high as 98%, which can effectively kill bacteria and prevent infection. it iswashable, It can also be cleaned with a brush without increasing the cost of use.

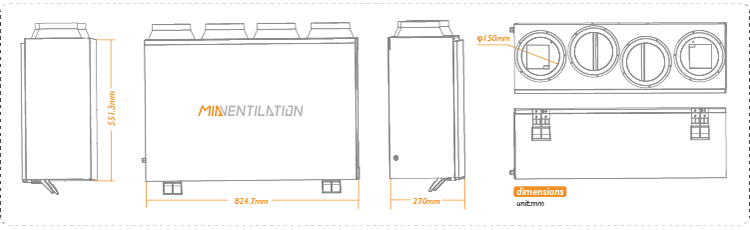

Technical Parameters & Dimensions

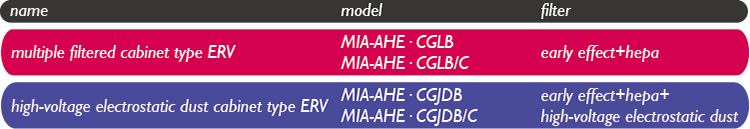

How to choose air volume and filter?
AC external motor fan:
1.Mia Acher.CGLB: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filterandH13 HEPA filter
2.MIA-AHE.CGJDB: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filter,H13 HEPA filterandHigh voltage electrostatic precipitator
DC brushless fan:
1.Mia Ah. CGLB/C: Cabinet recovery ventilatorPrimary effect + activated carbon filterandH13 HEPA filter
2.Mia Aher.CGJDB/C: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filter,H13 HEPA filterandHigh voltage electrostatic precipitator
AC external motor fan:
1.Mia Acher.CGLB: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filterandH13 HEPA filter
2.MIA-AHE.CGJDB: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filter,H13 HEPA filterandHigh voltage electrostatic precipitator
DC brushless fan:
1.Mia Ah. CGLB/C: Cabinet recovery ventilatorPrimary effect + activated carbon filterandH13 HEPA filter
2.Mia Aher.CGJDB/C: Cabinet Heat Recovery VentilatorPrimary effect + activated carbon filter,H13 HEPA filterandHigh voltage electrostatic precipitator

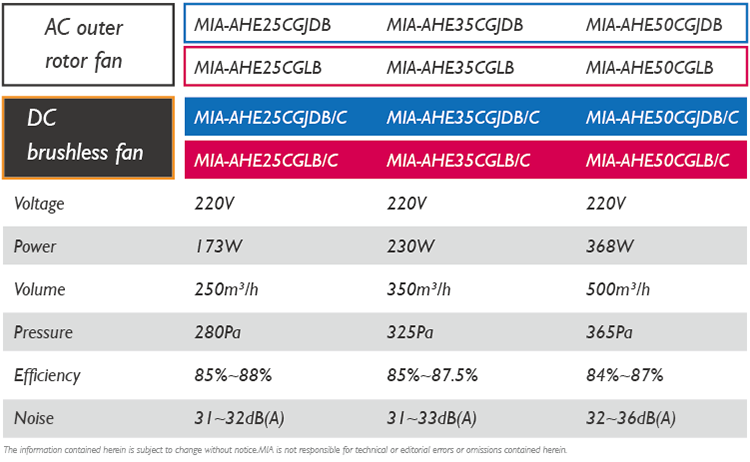

Model | Voltage (AC) | Power (watts) | Volume (m3/h) | pressure (Pa) | Noise (decibel) | efficiency | Filter(s) | motor |
MIA-AHE25CGLB | 220 | 173 | 250 | 280 | 31~32 years old | 85%~88% | 2 | air conditioner |
MIA-AHE25CGJDB | 220 | 173 | 250 | 280 | 31~32 years old | 85%~88% | 3 | air conditioner |
MIA-AHE25CGLB/C | 220 | 173 | 250 | 280 | 31~32 years old | 85%~88% | 2 | direct current |
MIA-AHE25CGJDB/C | 220 | 173 | 250 | 280 | 31~32 years old | 85%~88% | 3 | direct current |
MIA-AHE35CGLB | 220 | 230 | 350 | 325 | 31~33 years old | 85%~87.5% | 2 | air conditioner |
MIA-AHE35CGJDB | 220 | 230 | 350 | 325 | 31~33 years old | 85%~87.5% | 3 | air conditioner |
MIA-AHE35CGLB/C | 220 | 230 | 350 | 325 | 31~33 years old | 85%~87.5% | 2 | direct current |
MIA-AHE35CGJDB/C | 220 | 230 | 350 | 325 | 31~33 years old | 85%~87.5% | 3 | direct current |
MIA-AHE50CGLB | 220 | 368 | 500 | 365 | 32~36 years old | 84%~87% | 2 | air conditioner |
MIA-AHE50CGJDB | 220 | 368 | 500 | 365 | 32~36 years old | 84%~87% | 3 | air conditioner |
MIA-AHE50CGLB/C | 220 | 368 | 500 | 365 | 32~36 years old | 84%~87% | 2 | direct current |
MIA-AHE50CGJDB/C | 220 | 368 | 500 | 365 | 32~36 years old | 84%~87% | 3 | direct current |
Please contact us to choose the right controller!
