Aviation obstacle light on the vertical edges of the waterproof LED heliport runway
-
$110.00 / 2 - 49 pieces
$100.00 / 50 - 99 pieces
$95.00 / >=100 pieces - 2 pieces
- Chengdu Geelian Safety Co., Ltd.
- Sichuan, China
- Mr Sunny YANG
Product Detail
| Supply capacity: | 1500 pieces per week | Lamp luminous efficiency (lm/w): | 120 |
| Protection standards: | IP65 | Package preview: | |
| light source: | lead | brand: | Jillian |
| Warranty period (years): | 3 years | Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, LitePro DLX layout, Agi32 layout, automatic CAD layout, on-site metrology, project installation |
| port: | Shenzhen/Hong Kong/Ningbo/Guangdong/Qingdao | Beam angle (°): | 360 horizontal beam angle |
| Place of origin: | Sichuan Province, China | Packaging details: | Carton 1 piece/box 3-15 days |
| can choose colour: | aviation red | Lamp body material: | Aluminum alloy |
| Protection level: | IP65 | Lifespan (hours): | 50000 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Operating mode: | Always on mode or flashing mode (20-60 times/minute) |
| Beam angle (°): | 360 horizontal beam angle | Product weight (kg): | 3 |
| Support dimmer: | Yes | energy consumption: | 4W |
| Input voltage (V): | DC 12V (solar power supply) | Operating Voltage: | AC220V (optional voltage, such as AC120V, AC110V, DC48V) |
| weight: | 2KG | brightness: | ≥32.5cd (optional 10cd, 50cd, 80cd, 100cd) |
| Glow color: | Red | Overall dimensions (mm): | 258B*136*320 |
| product name: | Low intensity aviation obstruction lights | type: | Aviation obstruction lights |
| Color rendering index (Ra): | 100 | Color rendering index (Ra): | 80 |
| Lamp luminous flux (lm): | Red 2,000cd ±25% | Color temperature (correlated color temperature): | Red |
| Working hours (hours): | 50000 |
Product Description
Features:
electric
Ultra-high intensity CREE LED light source, saving power consumption and maintenance
physical
UV- and vibration-resistant polycarbonate lens for focusing light
Independent, no external power supply required, saving cable costs and wiring work, no wiring work required, beautiful and easyInstall
4-sided monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon
Battery: VRLA (valve regulated lead acid battery)
system design
Solar panel photocell day and night working mode (dusk to dawn mode)
The interface ON/OFF button is more reliable and easier to control locally
Elective
GPS sync
GSM mobile phone monitoring
Using NVG to provide pilots with infrared LEDs
Remote control on/off
External battery charging port
Ultra-high intensity CREE LED light source, saving power consumption and maintenance
physical
UV- and vibration-resistant polycarbonate lens for focusing light
Independent, no external power supply required, saving cable costs and wiring work, no wiring work required, beautiful and easyInstall
4-sided monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon
Battery: VRLA (valve regulated lead acid battery)
system design
Solar panel photocell day and night working mode (dusk to dawn mode)
The interface ON/OFF button is more reliable and easier to control locally
Elective
GPS sync
GSM mobile phone monitoring
Using NVG to provide pilots with infrared LEDs
Remote control on/off
External battery charging port
typical application
Ocean buoy---ocean cage culture
Seaport or pier---Ocean engineering
Aviation Obstacle Marking---Tower/Chimney
High-rise buildings---roadblock signs
Fence Warning---Construction Warning
Mining area signs---danger warning
Wind turbine---safety lighting
Road Warning---Vehicle Warning
Airport night navigation---airport perimeter lighting
Seaport or pier---Ocean engineering
Aviation Obstacle Marking---Tower/Chimney
High-rise buildings---roadblock signs
Fence Warning---Construction Warning
Mining area signs---danger warning
Wind turbine---safety lighting
Road Warning---Vehicle Warning
Airport night navigation---airport perimeter lighting
Specification
describe | scope |
model | GL-TS/L |
light intensity | ≥32.5cd (optional 10cd, 50cd, 80cd, 100cd) |
flash rate | Always on mode or flashing mode (20-60 times/minute) |
Two lamp working mode | Main (working)-standby mode: two lights flash, two lights flash at the same time or two lights flash at an interval of 1.5 seconds. Flash mode, three ways) main (working) - backup mode two lights work, two lights work at the same time. (Stabilizing combustion method, two methods) |
light source | lead |
LED service life | ≥100,000 hours |
Operating Voltage | AC220V (optional voltage, such as AC120V, AC110V, DC48V) |
energy consumption | 4W |

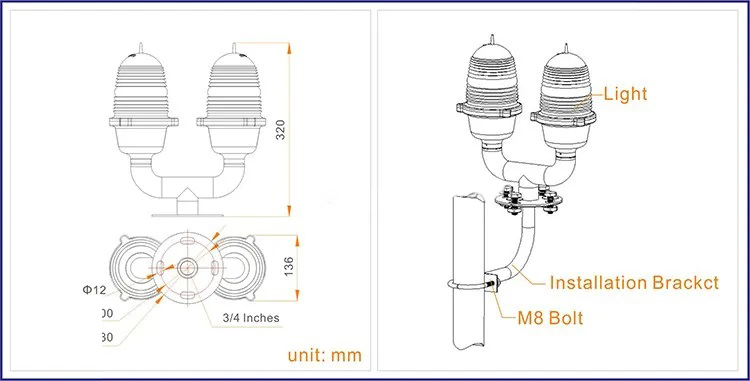

Overall dimensions (mm) | 258×136×320 |
Installation dimensions | 3/4 inch or 1 inch |
Verticality | ≥10° |
levelness | 360° |
Material: | aluminum |
housing | personal computer |
according to | die cast aluminum |
weight | 2KG |
Glow color | aviation red |
ambient temperature | -40℃~+70℃ |
wind load | 80 meters/second |
Protection standards | IP65 |
