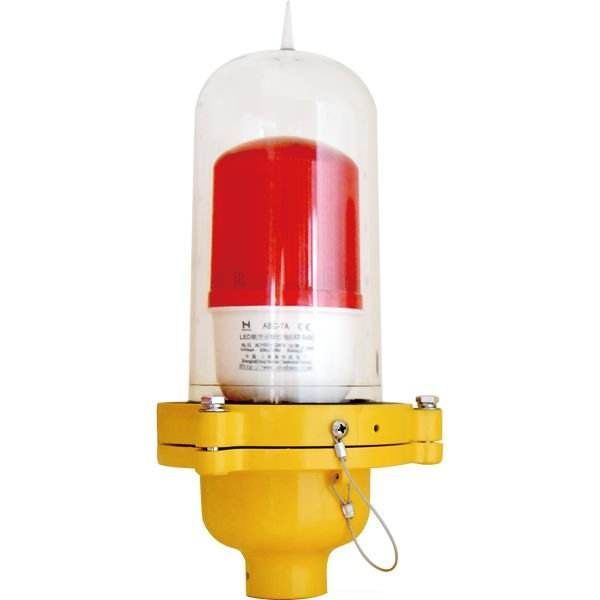

ABC-7L NANHUA Obstacle LED Aircraft Flashing Warning Light
- $1.00 /pair
- 1 pair
- Shanghai Nanhua Electronics Co., Ltd.
- Shanghai, China
- Ms Jojo Zhu
Product Detail
| International standard: | ICAO (Airport Annex 14) Low Intensity; FAA-L810 | type: | Aviation obstruction lights |
| Visible distance: | >3.5KM(AT=0.85) | payment terms: | L/C, T/T |
| weight: | 1.25 kg | Beam Angle(°): | 10° |
| light source: | to lead | product name: | ABC-7L Nanhua Obstruction Light |
| Life: | 100,000 hours | Origin: | China Shanghai |
| Supply capacity: | 3000 sets of ABC-7L NANHUA obstruction lights per month | Light body material: | aluminum alloy |
| Lighting Solutions Services: | Lighting and Circuit Design | Input voltage: | AC110V~AC240V/DC12V/DC24V (other voltages can be customized) |
| energy consumption: | 5W | Warranty period (years): | 3 years |
| brand: | South China | Input voltage (V): | AC110V~AC240V/DC12V/DC24V |
| Protection class: | IP65 | Packaging Details: | ABC-7L Nanhua Obstruction Light requires carton or wooden box |
| Material: | Base: aluminum alloy; Shell: PC | port: | Shanghai |
| Lamp Luminous Efficiency (lm/w): | 120 | Certification: | CE, EMC, LVD |
| strength: | >10cd | color: | Red, Amber, Green, Blue, White (optional) |
Product Description
ABC-7L Single aviation obstruction light for marking towers (telecom, GSM), cranes, cranes, chimneys, buildings, wind turbines and any other obstructions that are potentially dangerous to air traffic.

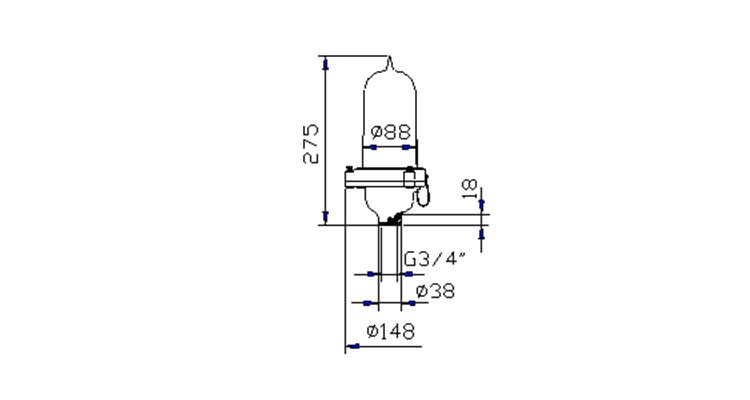

Product Size

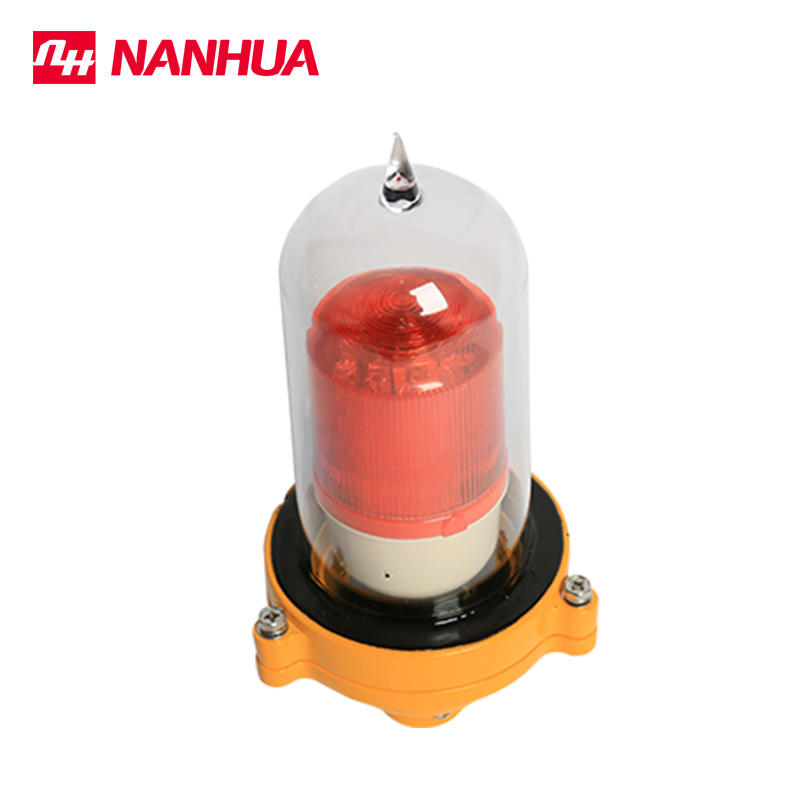

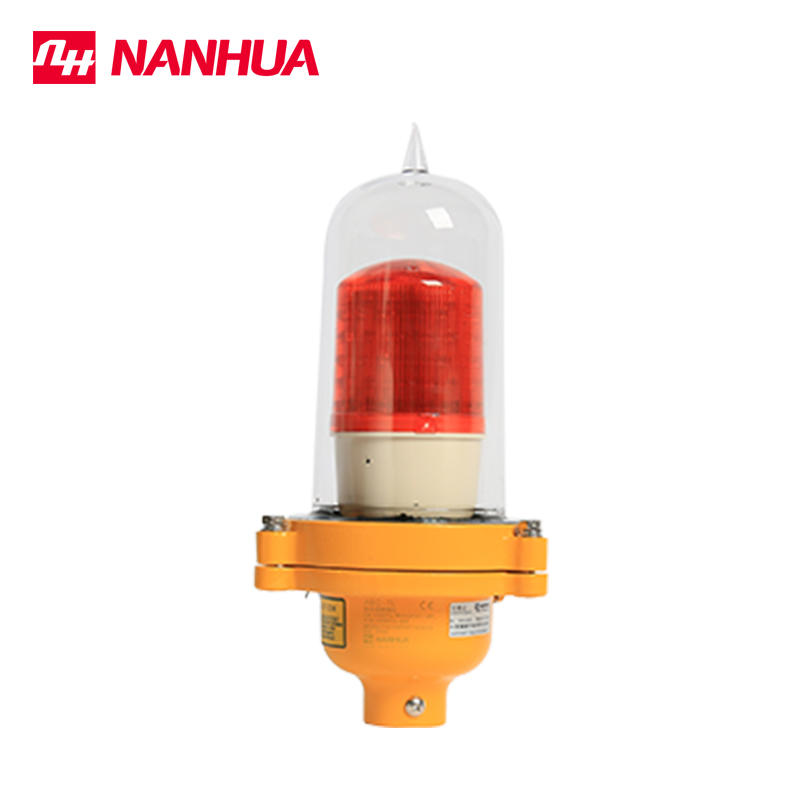

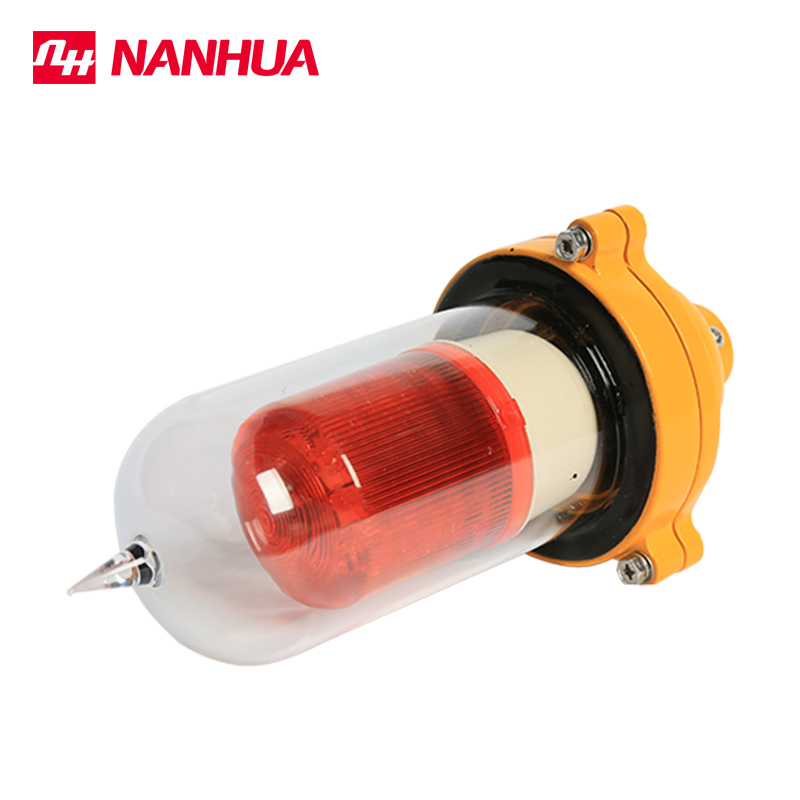

product display
General Specifications
optics | ||||||
light source | to lead | Verticality | ≥10° | |||
light color | Red, Amber, Green, Blue, White (optional) | Way of working | Steady or flashing (optional) | |||
LED lifetime | ≥100,000 hours | strength | >10cd | |||
levelness | 360° | |||||
electrical | ||||||
Operating Voltage | AC110V~AC240V/DC12V/DC24V/DC48V | |||||
energy consumption | 5W | |||||
mechanical | ||||||
ambient temperature | -30℃ ~ +70℃ | Material | Base: Aluminum Alloy Case: PC | |||
Relative humidity | 10% ~ 95% (non-condensing) | weight | 1.25 kg | |||
* The base is made of die-cast aluminum alloy, which is lightweight and corrosion-resistant.
* ABC-7A(LED) light bulb adopts ultra-high brightness LED with a service life of more than 100,000 hours.
* ABC-7A(LED) bulb adopts PC cover, which has good strength, thermal stability and good finish.
* The lamp housing and the upper lamp holder are sealed with structural glue to ensure good water tightness of the product.* Anti-bird spikes are provided on the top to prevent birds from falling.
*Built-in photocell, which can automatically switch the light on and off at dawn and night. (optional)
Certificate
Nanhua Quality Strategy
Build trust, pursue excellent quality, and provide products and services that exceed customer expectations Nanhua is committed to developing high-quality products, and we are proud of being able to provide highly reliable products used in extreme environments.category | Model | Civil Aviation Administration of China | ICAO | FAA | CE | other |
low intensity | LS710 | √ | √ | √ | ||
LS810 | √ | √ | √ | South African Bureau of Standards | ||
medium intensity | LM101 | √ | √ | √ | ||
LM100 | √ | √ | √ | √ | saba | |
LM40 | √ | √ | √ | South African Bureau of Standards | ||
LM102 | √ | |||||
LM403 | √ | |||||
high strength | LH88 | √ | √ | √ | South African Bureau of Standards |
