JCL630 LED rotating aerial beacon
- $50.00 / >=2 pieces
- 2 pieces
- Shanghai Lansing Electronics Co., Ltd.
- Shanghai, China
- Ms Zeng Agatha
Product Detail
| power supply: | 200VA to 240VA 50/60Hz | Beam Angle(°): | 360°horizontal beam angle |
| Input voltage (V): | 200VA to 240VA 50/60Hz | Warranty period (years): | 5 years |
| Lighting Solutions Services: | Lighting and circuit design, engineering installation | Color temperature (correlated color temperature): | Red |
| Total power: | 165W | Certification: | CE |
| type: | Aviation obstruction lights | Origin: | China Shanghai |
| payment terms: | L/C, Western Union, T/T, Paypal | brand: | Lansing |
| light source: | to lead | Light body material: | aluminum alloy |
| Luminous color: | Red | Supply capacity: | 2000 pieces per month |
| port: | Shanghai port |

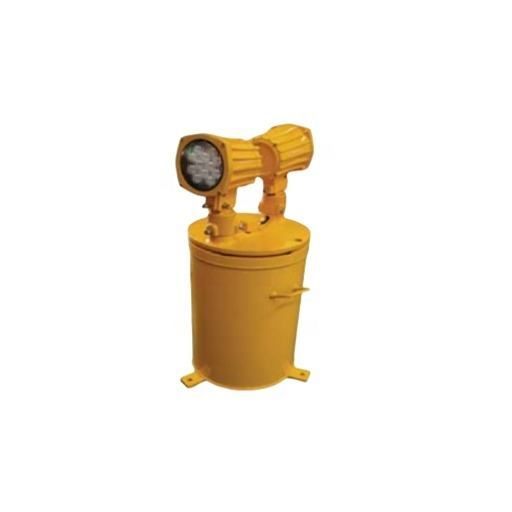

JCL630 LED rotating aerial beacon
describe:
Product model: JCL630
Ambient temperature: -40° to +55°
Power supply: 200VA to 240VA 50/60Hz
Total power: 165W
Blink Rate: 25 to 37.5 F/min
Drive motor torque: 40N.m
Light source: LED light source 2×l2x3W
Beam color:
CY = clear and yellow
CG = clear and green
CYG = clear, yellow and green
Application: Beacon lights for heliports and civil airports
feature:
• Chromaticity and brightness comply with ICAO Annex 14
• LED constant bright lighting, long life, energy saving, maintenance-free, bringing huge economic benefits to customers
• Strict LED color management ensures excellent color consistency
• Standard drive motor, high strength, long life, low noise, 20-30 flashes per minute
• LED drive circuit modular design, easy maintenance
• Drive circuit integrates surge protection function and overheating protection module to improve reliability
• EMI complies with FAA requirements, certified by FCC Part15 Class A standard
• Compact structure, beautiful shape, small windward area, can resist wind speed up to 160 km/h
• The surface of the main body is anti-corrosion, and all fasteners are made of stainless steel, suitable for harsh environment applications

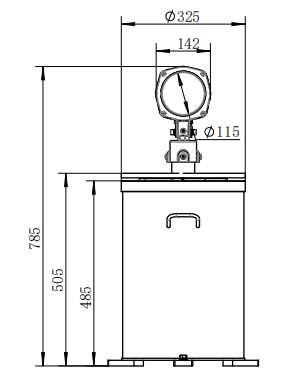

structure diagram
