FAA L810 Construction Aircraft Aviation Obstruction Lights, Chimney LED Aviation Obstruction Warning Lights
-
$55.00 / 1 - 49 sets
$49.00 / 50 - 99 sets
$45.00 / >=100 sets - 1 set
- Shenzhen Green Source Light Equipment Co., Ltd.
- Guangdong, China
- Ms Jenny Liu
Product Detail
| weight: | 1 kg | Working hours (hours): | 100000 |
| Wind resistance: | 120 m/s | FAA Classification: | L-810 |
| Luminous color: | Red | Lighting Solutions Services: | Lighting and Circuit Design |
| Color rendering index (Ra): | 80 | port: | Shenzhen |
| Packaging Details: | Every 8 obstruction lights are packed in a carton. | Supply capacity: | 5000 pieces per month |
| Color rendering index (Ra): | 80 | Operating mode: | Steady burning/flickering |
| Certification: | CE, RoHS | Protection class: | IP65 |
| Lamp luminous flux (lm): | 300 | Light source service life: | ≥20 years |
| Supported dimmers: | No | light source: | to lead |
| payment terms: | T/T, Western Union, MoneyGram, Credit Card | Beam Angle(°): | 360 degrees |
| Lifespan (hours): | 100000 | brand: | green source |
| Color temperature (correlated color temperature): | Cold white | Lighting Solution Services: | AC/DC Aviation LED Signal Light |
| Origin: | Guangdong, China | Lamp Luminous Efficiency (lm/w): | 100 |
| Input voltage (V): | AC220V AC110V DC48V or others | Base Type: | 2G11 |
| type: | Aviation obstruction lights | Vertical divergence: | ≥3° |
| Light body material: | aluminum alloy | Ambient temperature: | -40℃~70℃ |
| brightness: | 32.5cd | Power frequency: | 50Hz~60Hz |
| Luminous efficiency (lm/w): | 100 | Warranty period (years): | 2 years |
Product Description
Product Details

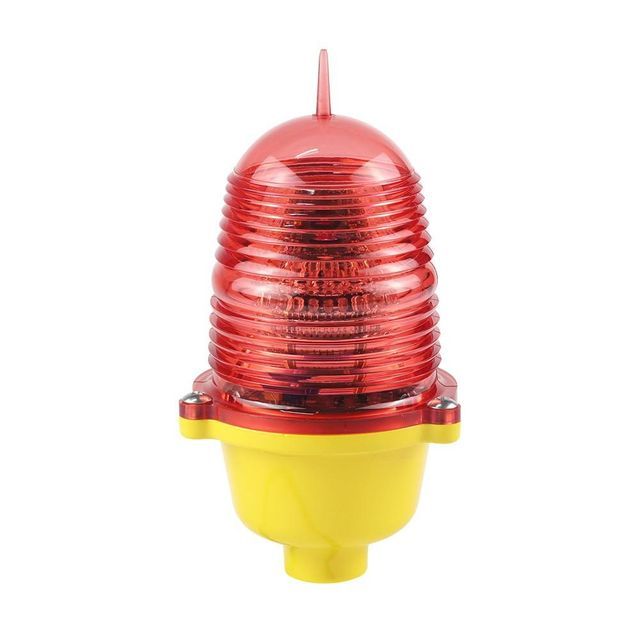

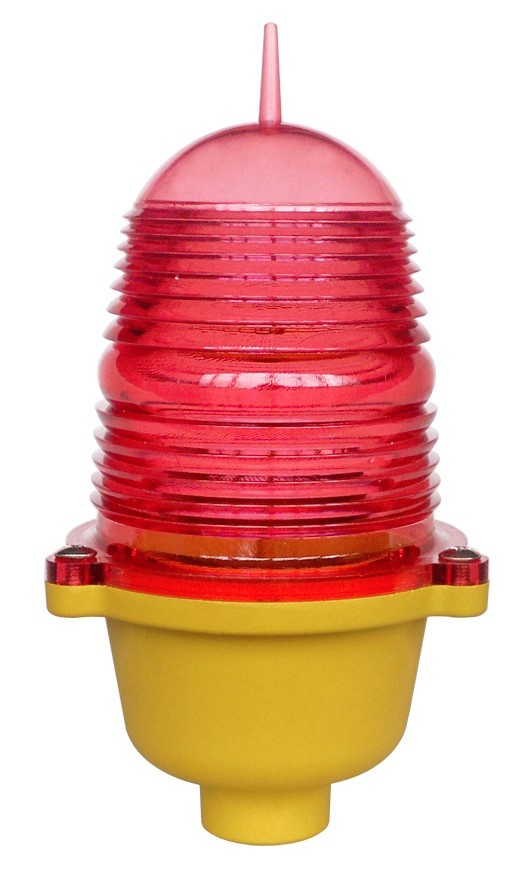

FAA l 810 Construction Aircraft Aviation Obstruction Lights, Chimney LED Aviation Obstruction Warning Lights
The light source adopts self-developed special LED chip, which has the characteristics of low power consumption and long life. The lampshade is made of PC material, which has the characteristics of corrosion resistance, UV resistance and impact resistance.
The management circuit has a strong lightning protection capability and is equipped with a surge protection device, which can adapt to extremely harsh working environments. This light has a light control function, which can be turned on when the light intensity is lower than 50LUX, and can be turned off when the light intensity is higher than 50Lux.
Specification
light | ||||||
effective strength | 32.5cd | |||||
conform to | FAA L810, ICAO Type B | |||||
glow color | Red (optional: yellow amber, green blue, white) | |||||
operating mode | Steady Burn/Flash Mode | |||||
vertical divergence | >3° | |||||
horizontal output | 360° | |||||
light source | to lead | |||||
lamp life | >100,000 hours | |||||
power supply | ||||||
Voltage | AC220V AC120V DC48V DC24V DC12V | |||||
power supply frequency | 50HZ-60HZ | |||||
energy consumption | ≤3W | |||||
LED lifetime | >100000 hours | |||||
light intensity | 32.5cd | |||||
structure | ||||||
lens | personal computer | |||||
Body | aircraft aluminum, die-cast | |||||
temperature range | -40℃~70℃ | |||||
wind load | 120 m/s | |||||
Dimensions (mm) | 136×136×210 | |||||
Installation size (mm) | 3/4 inch or 1 inch | |||||
waterproof | IP65 | |||||
weight | 1 kg | |||||
Application field
Indian high-rise building projects

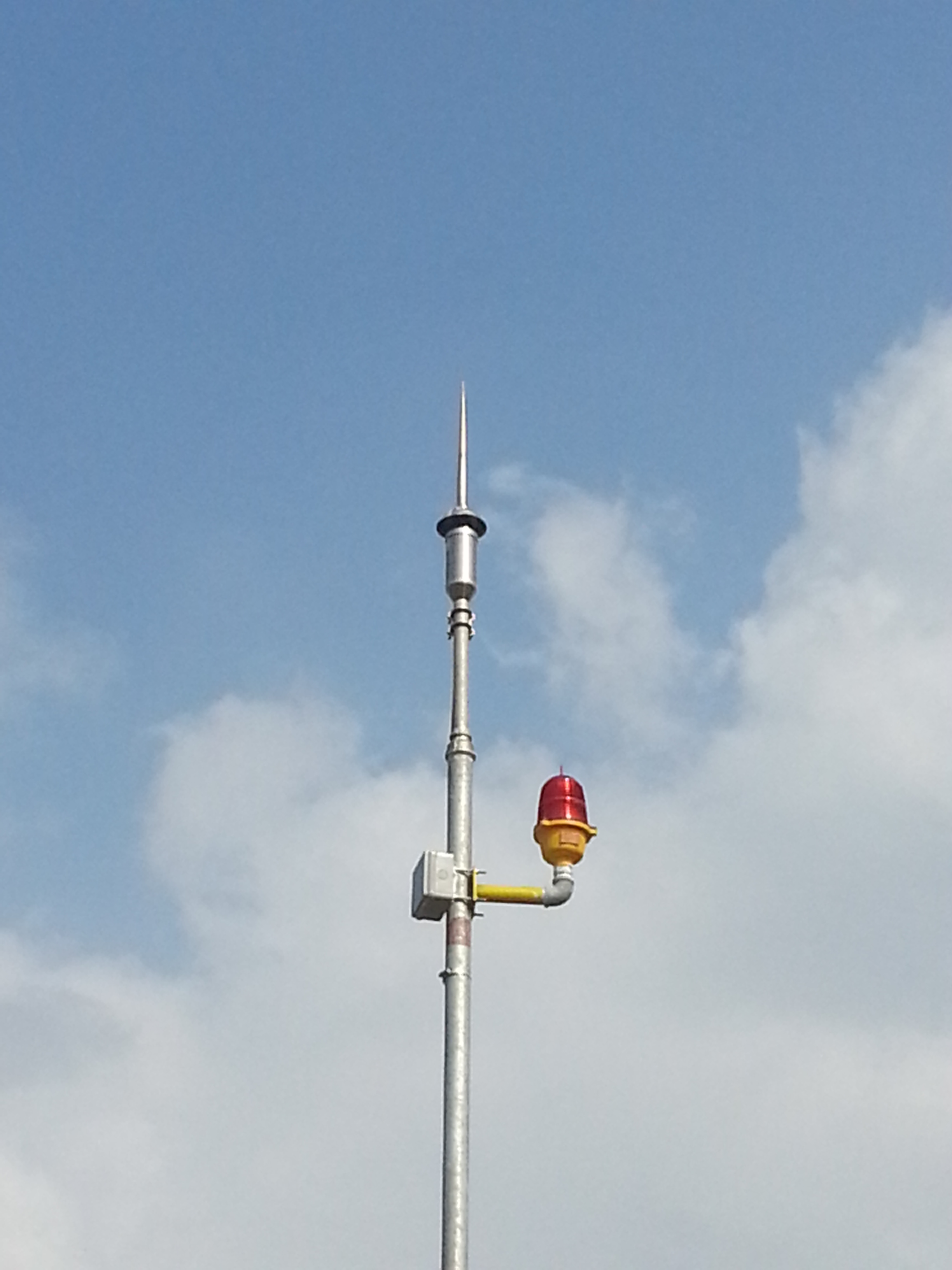

Our Indian customer installed low intensity aviation obstruction lights on top of tall buildings.
