L810 Low Intensity FAA Type Obstruction Light
- $18.00 /piece
- 1 piece
- Shanghai Nanhua Electronics Co., Ltd.
- Shanghai, China
- Ms Jojo Zhu
Product Detail
| Warranty (year): | 2 years | strength: | Type A: ≥10cd; Type B: ≥32.5cd |
| Luminous color: | Red | brand: | South China |
| light source: | to lead | Package preview: | |
| Lifespan (hours): | 100000 | Supply capacity: | 3000pcs/month L810 Obstruction Light |
| product name: | L810 Obstruction lights | Certification: | ce |
| payment terms: | L/C, T/T | Packaging Details: | Carton or wooden box required by L810 obstruction lights |
| Protection class: | IP66 | Color temperature (CCT): | Invalid |
| Working hours (hours): | 100000 | Operating mode: | Steady burning or flickering |
| port: | Shanghai port | Beam Angle(°): | Verticality: ≥10°; Horizontality: 360° |
| Light body material: | aluminum alloy | Lamp Luminous Efficiency (lm/w): | Invalid |
| Operating temperature: | -40°C ~ +55°C | Lamp luminous flux (lm): | Invalid |
| type: | Aviation obstruction lights | Origin: | China Shanghai |
| 2: | VDE certification | Certification: | ICAO Annex 14 Volume 6 Low Intensity Type A |
| Color Rendering Index (Radium): | 30 | Input voltage (V): | AC 100~240V/ DC 12~48V |
| 1: | electromagnetic compatibility | Material: | Base: die-cast aluminum Housing: PC |
| Product weight (kg): | 0.3 | LED color: | Red (other colors can be customized) |
| Lighting Solutions Services: | Lighting and Circuit Design |

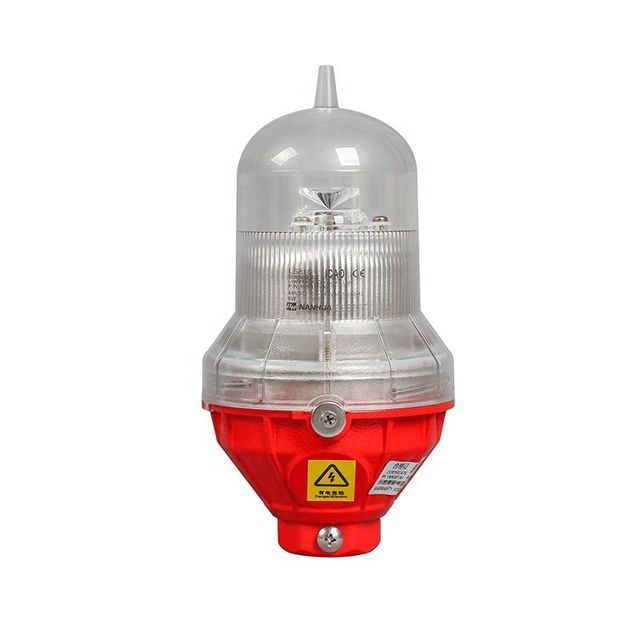

LS810 Low Intensity Obstruction Light
Product Description
- ICAO Low Intensity A&B&E Type Obstruction Lights
- FAA L-810& L-810(F) Steady Red Obstruction Lights & Flashing Red Obstruction Lights
- Applications: Telecommunication towers, chimneys, high-rise buildings, large bridges, port machinery and wind turbines
Main functions and features
- Professional metering lens design to effectively keep the beam within the desired range.
- Based on the latest LED technology, the power consumption is extremely low and the efficiency is high.
- Outdoor use, waterproof, windproof and anti-corrosion.
- No electromagnetic or audio interference.
- G3/4" threaded pipe installation, easy to install.
- EMC compliance. Extend LED life with a constant current driver.
- Built-in photocell (customizable) and fault alarm signal output.
- Equipped with fall arrest device.
- Constant light or flashing type is optional, and the flashing rate is adjustable.
- Two external M20X1.5 waterproof glands can be customized.
Specification
|
standard |
Compliant with ICAO (Airport Annex 14) and FAA-L810 |
Verticality |
≥10° |
|
light source |
to lead |
levelness |
360° |
|
LED color |
aviation red |
flicker rate |
Steady or flashing (flashing rate selectable) |
|
Operating Voltage |
AC110V~AC240V (DC48V) DC12-DC24 |
LED lifetime |
≥100,000 hours |
|
energy consumption |
4W |
On/off level |
500Lux |
|
strength |
Type A: ≥10cd; Type B: ≥32.5cd |
|
|
|
|
|||
|
Operating temperature |
-40°C ~ +55°C |
Intellectual Property Protection |
IP66 |
|
Relative humidity |
10% ~ 95% (non-condensing) |
weight |
0.3 kg |
|
Material |
Base: die-cast aluminum Housing: PC |
||
Installation and Operation
- Check that the mains voltage matches the rated voltage of the lamp.
- Feed the power cords through the bottom of the lamp holder and connect to the terminals inside the lamp holder respectively.
- Follow the connection diagram to set up the working model. (Remarks: DIP switch ON---1, number---0).
- Tighten the screws between the lamp housing and the base.

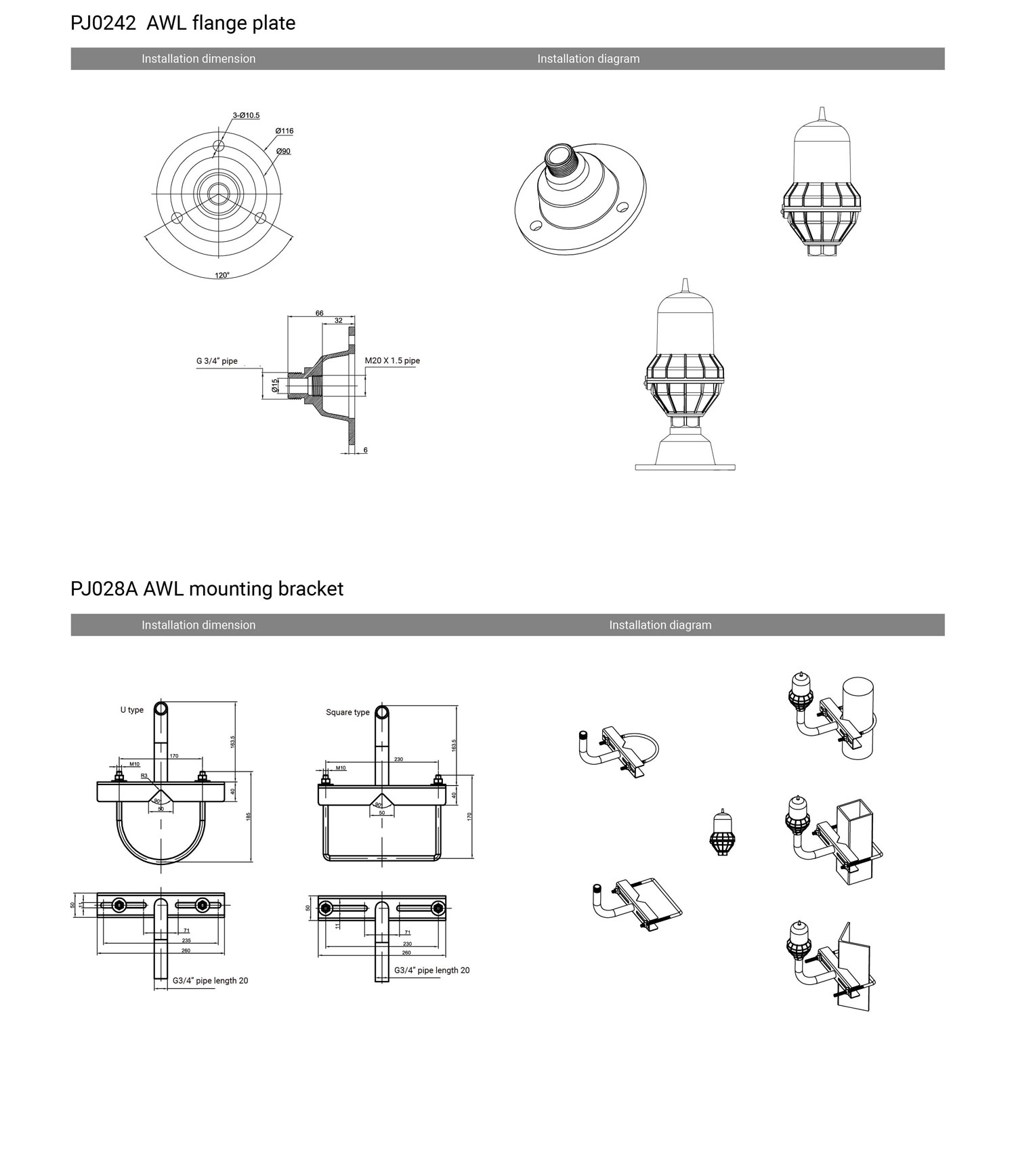

- Screw the lamp onto the mounting bracket, which shall be fixed on a smooth surface of sufficient mechanical strength. Or you can choose our mounting brackets: PJ024, PJ028 and PJ030 (installation diagram), special brackets can be customized.
- Turn on the power, then the light works.
Notice
- Part of the product is made of PC (such as lampshade, lamp housing), and cannot be directly or indirectly contacted with organic solvents, such as denatured alcohol, banana oil, isopropanol, carbon tetrachloride, cyclohexanone, etc., otherwise, the product will be corroded.
