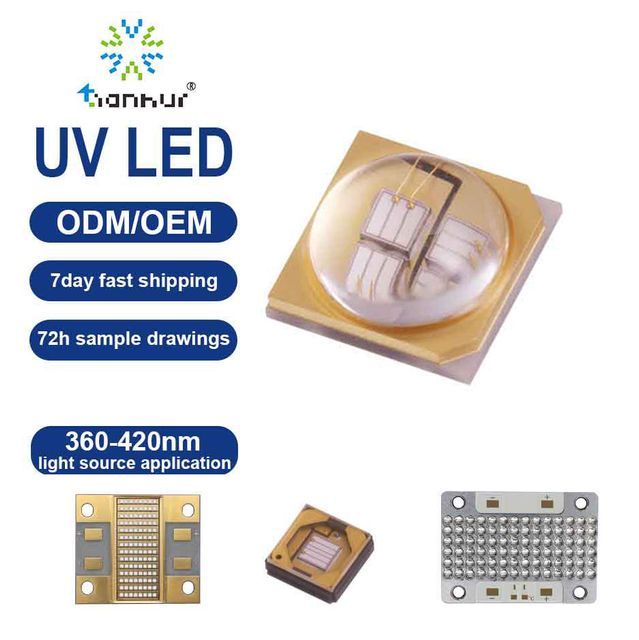

Seoul Viosys SVC UV LED SMD 6868 High Power 10W 365nm 385nm 395nm 405nm 420nm Printing Glue Curing UVA LED
- $3.00 / >=3 pieces
- 3 pieces
- Zhuhai Tianhui Electronic Co., Ltd.
- Guangdong, China
- Mr Anderson Qu
Product Detail
| Spectral half-width: | 9nm | Viewing angle (°): | 80 |
| Gross weight per piece: | 0.002kg | Color rendering index (Ra): | nitrogen |
| Product weight (kg): | 0.002 | Working temperature (℃): | -30-60 |
| Chip material: | Yinggen | Power consumption: | 43.5 |
| Radiated power: | 400mW~580mW | Sales unit: | Single product |
| Junction temperature: | 50℃ | Viewing angle: | 80 |
| Package preview: | Single pack size: | 20X20X11 cm | |
| Lighting Solutions Services: | Lighting and circuit design, engineering installation | Luminous efficiency (lm/w): | 0.54 |
| type: | UV LED | strength: | 1.9W |
| Peak wavelength: | 365±5nm | Packaging Details: | Tape and reel, 500 pieces per reel. |
| Input voltage (V): | 7.5V~7.8V | Operating temperature: | -30~+60℃ |
| Color temperature: | 365-420nm | Storage temperature (℃): | -40-100 |
| Warranty period (years): | 1 | Storage temperature: | -40~+100℃ |
| Light attenuation (%): | 50 | Support dimmer: | Yes |
| Lifespan (hours): | 50000 | Forward Voltage: | 7.5V~7.8V |
| Luminous color: | UV rays | product name: | Stone identification 365nm UV LED diode 3535 SMD |
| Color temperature (correlated color temperature): | 365-420nm | light intensity: | 400mW~580mW |
| Radiation intensity (mW/Sr): | 1000 | brand: | Seoul Viosys SVC |
| Working hours (hours): | 30000 | Forward current: | 500mA |
| Origin: | South Korea | wavelength: | 365nm,380nm,400nm,420nm,395nm |
Seoul Viosi SVC UV LED SMD3535 10W 365 385 395 405 420nmUVA LED plant growth light
340nm
340nm deep UV LED products
| Part Number | Product Image | Product packaging | peak wavelength | Output optical power | application |

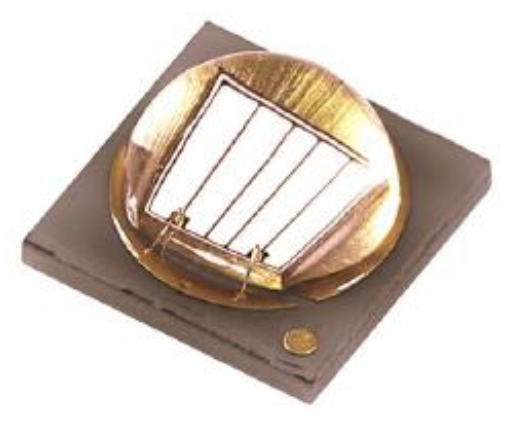

| CUN4GF1B |  |
SMD3535, quartz glass lens, 250mA, 3.8~4.8V Viewing angle: 115° Aluminum nitride ceramics |
340~347nm | 30~70mW@250mA | Medical testing, biochemical testing, blood testing analysis, reagent testing, molecular diagnosis, Viarus analysis, analytical instruments |

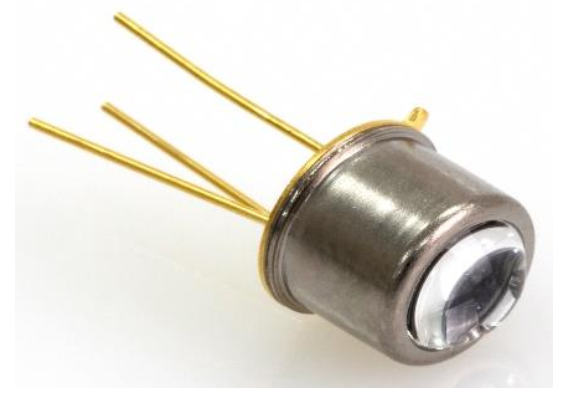

| CUD49H1A |  |
Metal DIP TO39, quartz glass lens, 20mA, 3.5~4.5V Viewing angle: 5.1° |
340~347nm | 1.0~2.0mW@20mA | Medical testing, biochemical testing, blood testing analysis, reagent testing, molecular diagnosis, Viarus analysis, analytical instruments |
365nm
365nm UV LED products
| Part Number | Product Image | Product packaging | peak wavelength | Output optical power | application |
|

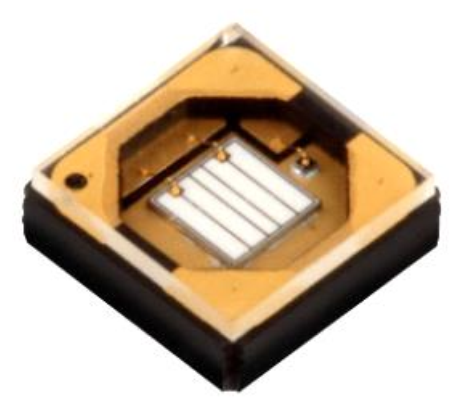

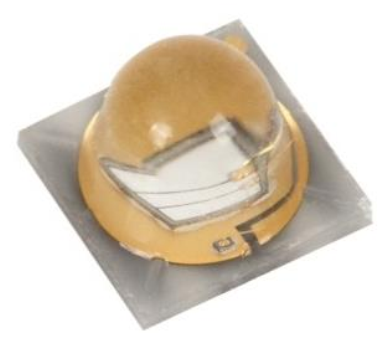

CUN66A1B 3W |
 |
SMD3535, silicone lens, 500mA, 3.4~3.8V Viewing angle: 120° Aluminum nitride ceramics |
365±5nm | 920~1300mW@500mA | Fluorescent UV torch, leak detection, medical detection, jewelry and jade detection, UV curing, currency detection and anti-counterfeiting |
|

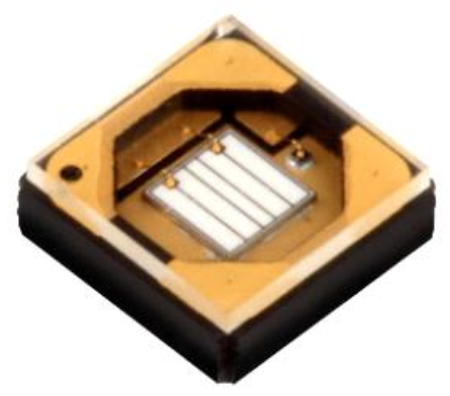

CUN66B1B 3W |
 |
SMD3535, silicone lens, 500mA, 3.5~3.8V Viewing angle: 45° Aluminum nitride ceramics |
365±5nm | 920~1330mW@500mA | Fluorescent UV torch, leak detection, medical detection, jewelry and jade detection, UV curing, currency detection and anti-counterfeiting |
|

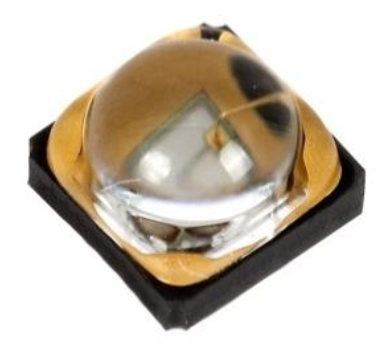

CUN6UB1A 3W |
 |
SMD3535, quartz glass lens, 700mA, 3.5~3.8V Viewing angle: 60° |
365±5nm | 830~1100mW@700mA | UV curing, UV printing, UV detection |
|
CUN6GB1A 5W |
 |
SMD3535, quartz glass lens, 1000mA, 3.5~3.8V Viewing angle: 65° aluminum nitride metal |
365±5nm | 1330~1600mW@1000mA | UV curing, UV printing, UV coating, UV adhesive drying, anti-counterfeit detection, security, UV flashlight, fluorescent photography, dental curing, crime detection, oil leak detection |
|
CUN6GF1A 5W |
 |
SMD3535, quartz glass lens, 1000mA, 3.5~3.8V Viewing angle: 115° aluminum nitride metal |
365±5nm | 1330~1600mW@1000mA | UV curing, UV printing, UV coating, UV adhesive drying, anti-counterfeit detection, security, UV flashlight, fluorescent photography, dental curing, crime detection, oil leak detection |
|
CUN66A1G 5W |
 |
SMD3535, silicone lens, 1000mA, 3.5~3.8V Viewing angle: 120° |
365±5nm | 1760~2140mW@1000mA | Fluorescence detection UV torch, leak detection, anti-counterfeiting detection |
|

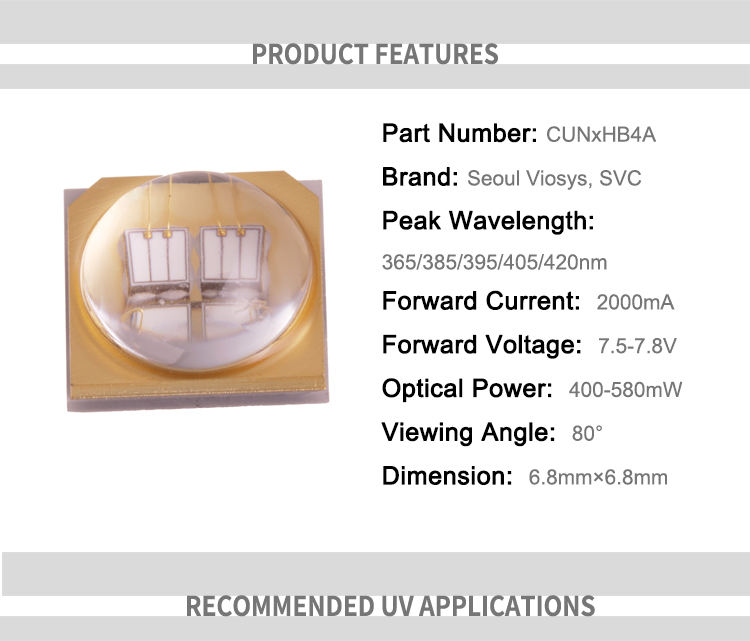

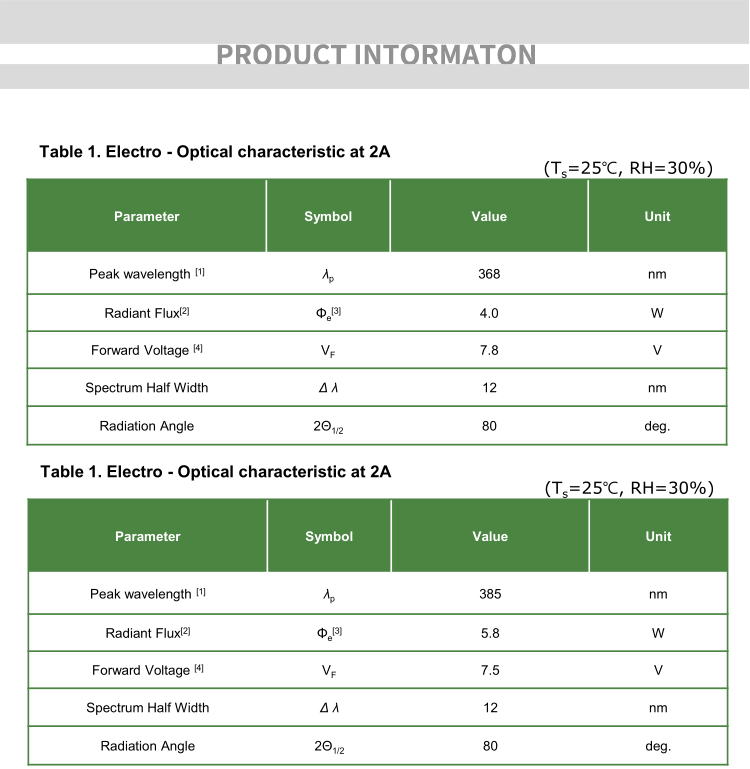

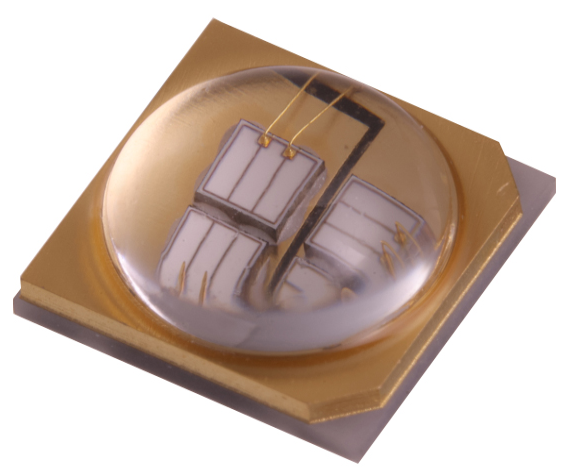

CUN6HB4A 15W |
 |
SMD6868, quartz glass lens, 2000mA, 7.8V Viewing angle: 80° |
365±5nm | 4000mW@2000mA | UV curing, UV printing, UV coating, UV adhesive drying, UV torch, dental curing |
CUA 340-400nm
Recommended UV Applications
Printing and Glue Curing/Printing Ink Curing/Plant Growth Lights/Mosquitoes and
Insect Traps/Biological Agents/Fluorescent Lights/Counting Money and
Verification Equipment/Currency Verification Fluorescence Detection/Flaw Detection/
Jewelry and jade testing/medical testing/biological reagents/beauty and manicure
Enhanced/Purple Flashlight LED...
