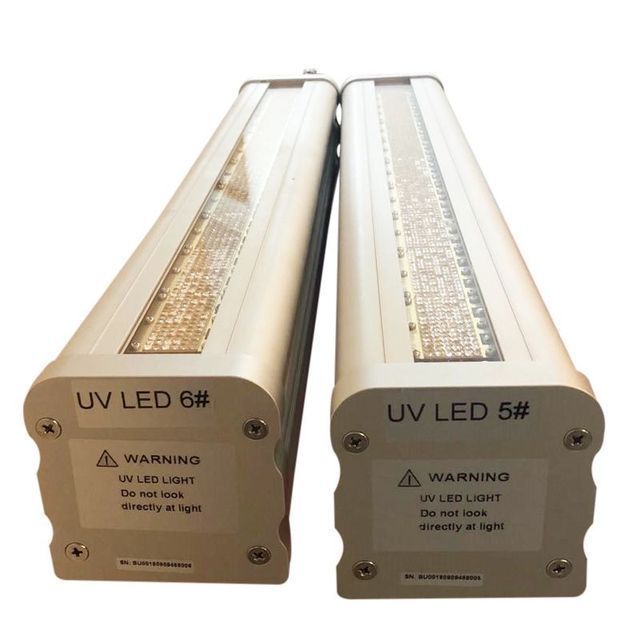

High Power 395nm UV LED Light Curing System Dryer For Sheetfed Offset Press
- $1000.00 /set
- 1 set
- Forcate Technology Company Limited
- Guangdong, China
- Ms Judy Tan
Product Detail
| Working hours (hours): | 50000 | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | Carton/wooden box | size: | custom made |
| cooling method: | water cooling | Product Keywords: | Uva LED Module |
| Function: | Curing UV glue | Lighting Solutions Services: | Engineering installation |
| type: | ultra violet light | Bale: | wooden box |
| Input voltage (V): | AC 220V(±10%) | Supported dimmers: | Do not |
| payment terms: | Western Union, T/T | Color temperature (CCT): | 6500K |
| Warranty (year): | 1 year | strength: | 0-30w/cm2 |
| port: | Shenzhen | Supply capacity: | 1000 sets per month |
| Luminous color: | purple | product name: | UV LED Curing Lamp |
| application: | Lifespan (hours): | 20000 | |
| Key words: | UV LED chip | wavelength: | 395 nm |
| Certification: | CE, RoHS |
High Power 395nm UV LED Light Curing System Dryer For Sheetfed Offset Press
UV LED curing system has been applied in many fields, the controller and chiller are all in one design.
One can use it to test UV LED inks, adhesives, coatings, wood finishes, printing presses, coating machines, etc.
main feature
1) LG LED chip, the best quality COB package, special structure design for good heat dissipation, very strong light intensity
2) 0-10V automatic control and manual control can be selected, and the light intensity can be changed according to the light intensity
3) UV LED bad warning and over temperature warning
4) Provide RS485 communication and ports
| Applications | |||||
| Model | Luminous area (MM) | Wavelength (nm) | Light intensity (W/CM2) | cooling method | electricity |
| FWF260*20 | 260*20 | 395 | 30 | water cooling | 2000W |
| FWF312*20 | 312*20 | 395 | 30 | water cooling | 2400W |
| FWF364*20 | 364*20 | 395 | 30 | water cooling | 2800W |
| FWF468*20 | 468*20 | 395 | 30 | water cooling | 3600W |
| FWF520*20 | 520*20 | 395 | 30 | water cooling | 4000W |
| FWF676*20 | 676*20 | 395 | 30 | water cooling | 5200W |
| FWF884*20 | 884*20 | 395 | 30 | water cooling | 6800W |
| FWF1092*20 | 1092*20 | 395 | 30 | water cooling | 8400W |
| FWF1456*20 | 1456*20 | 395 | 30 | water cooling | 11200W |
| FWF1508*20 | 1508*20 | 395 | 30 | water cooling | 11600W |

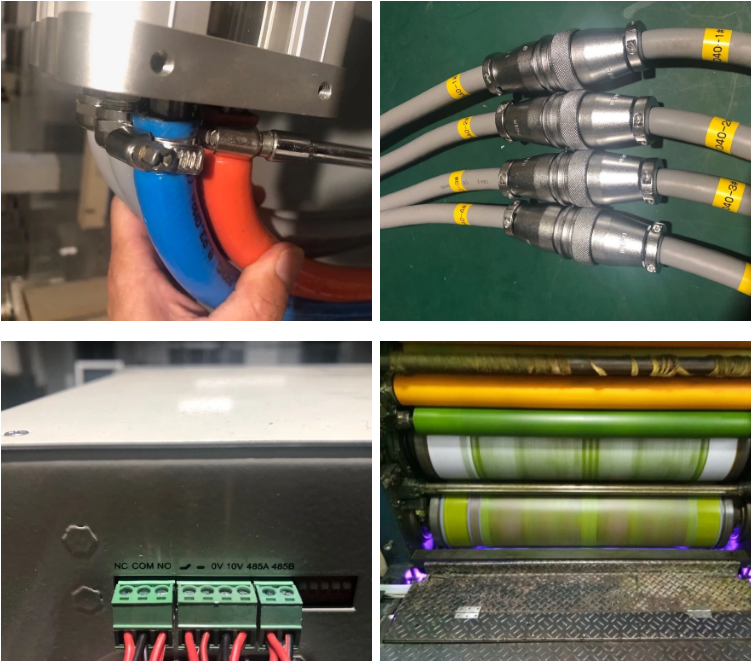

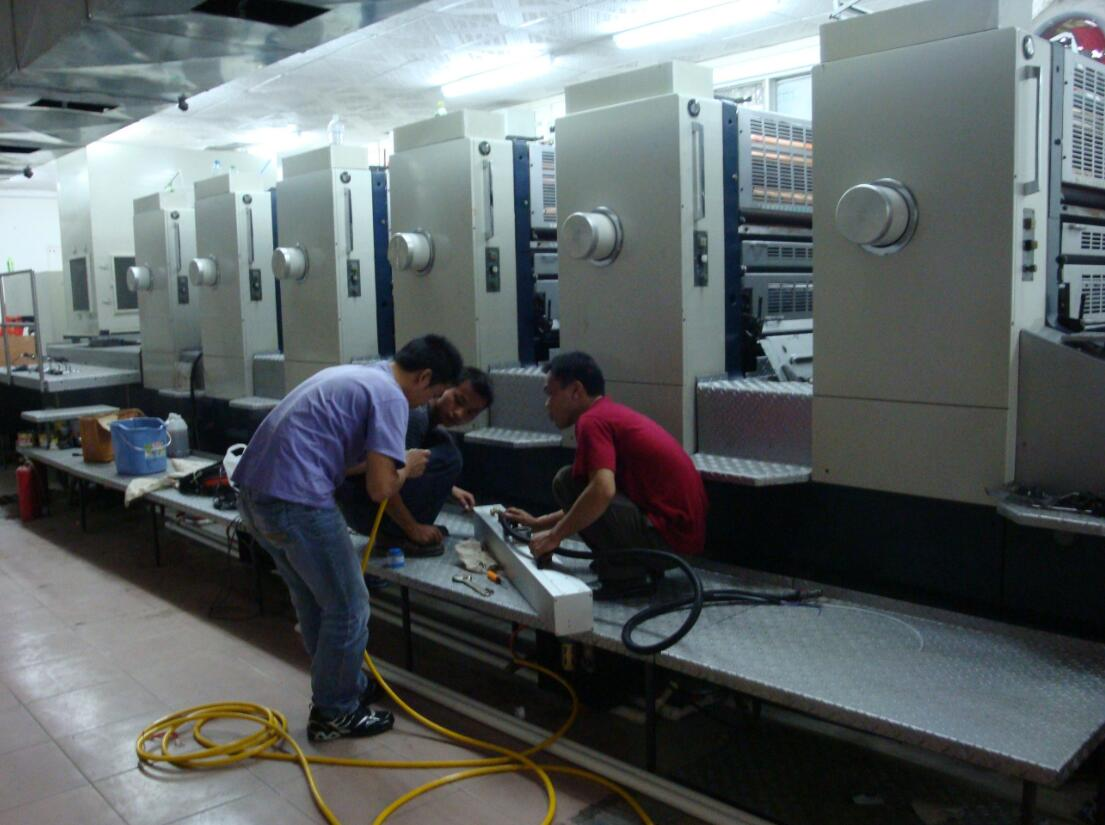

Installation process
Forcate is a factory located in Shenzhen, China. After 10 years of development, we have rich experience in printing industry, adhesives and wood curing.
We offer strong UV curing systems online
In the early days of Forcate, we insisted on two rules: one is quality first and never send poor quality products to customers, and the other is never stop developing new products.
In order to meet market demand, we have very powerful UV light curing system with intensity of 0-30W/CM2, suitable for sheetfed offset printing machine, high speed flexo printing machine, gravure printing machine and web offset printing machine, all systems can be controlled by PLC control.

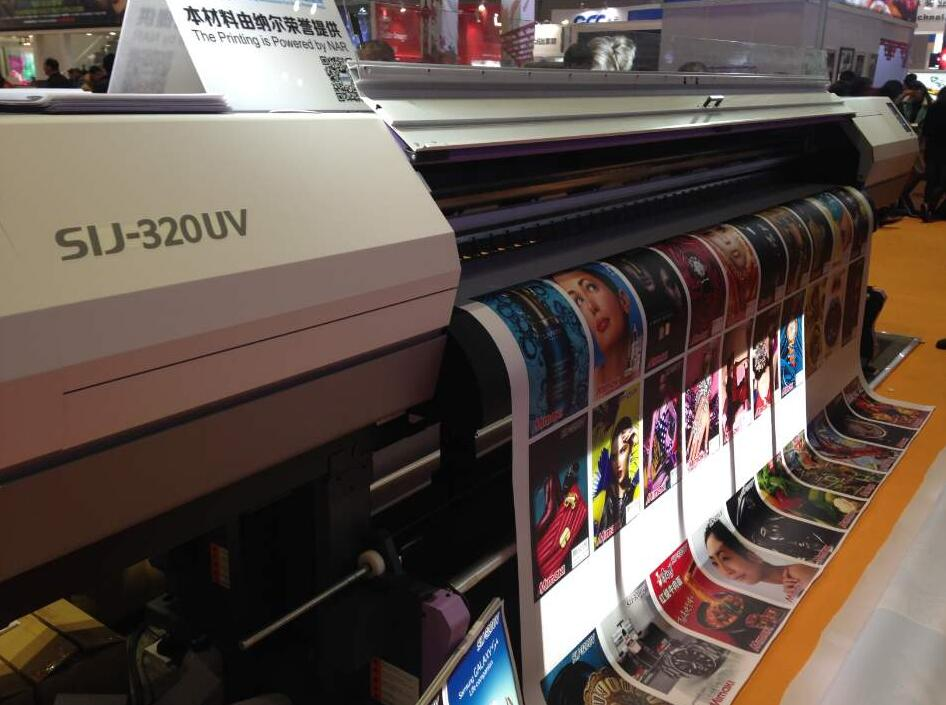

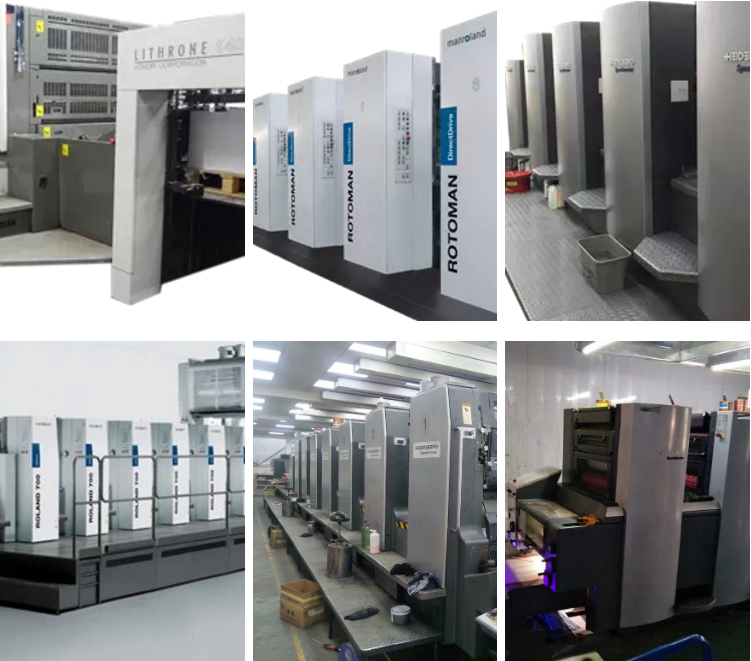

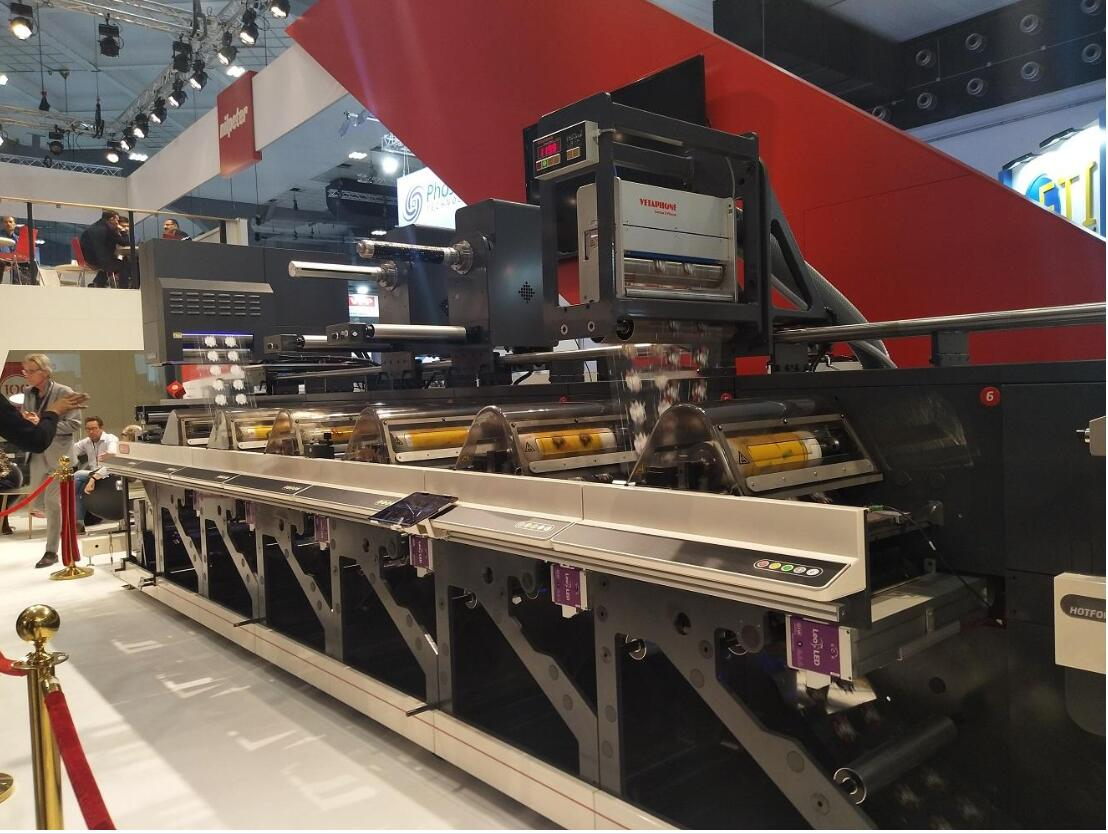

application
company information
FAQ
Q1: What does the whole UV LED curing system include?
A1: The whole UV LED curing system includes UV LED lamp + UV LED driver + electric cabinet and control system + chiller
Q2. Can I buy chiller in local market?
A2: Yes, after confirming the model you want, I will suggest you the capacity of the chiller.
Q3. Can I use my own PLC and electrical cabinet?
A3: Yes, of course. Our UV LED drivers provide RS485 communication.
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for UV LED curing system?
A5: Let us know your requirements or applications first.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and pays a deposit for the formal order.
Fourth, we arrange production.
Q6. Is it possible to print my logo on the UV LED curing system?
A6: Yes. Please inform us formally before our production and confirm the design based on our samples first.
Q7: Do you provide warranty and installation service for the products?
A7: Yes, we provide 20000HRS service and 1 year free warranty. Installation service can be provided, but need to pay according to different countries and different systems.
Q8: How to deal with failure?
A8: First of all, our products are produced under strict quality control system, and the defective rate will be less than 0.2%.
Secondly, during the warranty period, we will send new parts with new order with small quantity. For defective batch products, we will repair and resend to you, or we can discuss the solution
Including re-invoking as the case may be.
