Good Price High Light Intensity UV Curing Lamp UV LED Curing System

Product Detail

cooling method:water coolingtype:ultra violet light
Function:Curing UV gluePackaging Details:Carton/wooden box
product name:UV LED Curing Lamppayment terms:Western Union, T/T
Lighting Solutions Services:Engineering installationWorking hours (hours):50000
Key words:UV LED chipPackage:wooden box
Luminous color:purplewavelength:395 nm
application:printOrigin:Guangdong, China
strength:0-30w/cm2size:custom made
Supply capacity:1000 sets per monthColor temperature (CCT):6500K
Warranty (year):1 yearSupported dimmers:No
Product Keywords:Uva LED ModuleLifespan (hours):20000
port:ShenzhenInput voltage (V):AC 220V(±10%)

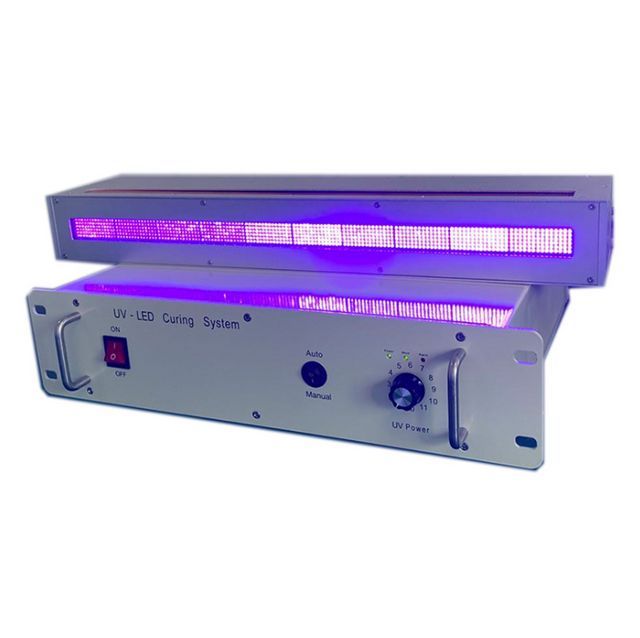

Affordable High Light Intensity UV LED Curing System











UV LED curing system has been applied in many fields, the controller and chiller are all in one design.
One can use it to test UV LED inks, adhesives, coatings, wood finishes, printing presses, coating machines, etc.



main feature


1) LG LED chip, the best quality COB package, special structure design for good heat dissipation, very strong light intensity
2) 0-10V automatic control and manual control can be selected, and the light intensity can be changed according to the light intensity
3) UV LED bad warning and over temperature warning
4) Provide RS485 communication and ports



Applications
Model Luminous area (MM) Wavelength (nm) Light intensity (W/CM2) cooling method electricity
FWF260*20 260*20 395 30 water cooling 2000W
FWF312*20 312*20 395 30 water cooling 2400W
FWF364*20 364*20 395 30 water cooling 2800W
FWF468*20 468*20 395 30 water cooling 3600W
FWF520*20 520*20 395 30 water cooling 4000W
FWF676*20 676*20 395 30 water cooling 5200W
FWF884*20 884*20 395 30 water cooling 6800W
FWF1092*20 1092*20 395 30 water cooling 8400W
FWF1456*20 1456*20 395 30 water cooling 11200W
FWF1508*20 1508*20 395 30 water cooling 11600W



Installation process

Forcate is a factory located in Shenzhen, China. After 10 years of development, we have rich experience in printing industry, adhesives and wood curing.
We offer strong UV curing systems online
In the early days of Forcate, we insisted on two rules: one is quality first and never send poor quality products to customers, and the other is never stop developing new products.
In order to meet market demand, we have very powerful UV light curing system with intensity of 0-30W/CM2, suitable for sheetfed offset printing machine, high speed flexo printing machine, gravure printing machine and web offset printing machine, all systems can be controlled by PLC control.

application





company information





FAQ

Q1: What does the whole UV LED curing system include?
A1: The whole UV LED curing system includes UV LED lamp + UV LED driver + electric cabinet and control system + chiller





Q2. Can I buy chiller in local market?
A2: Yes, after confirming the model you want, I will suggest you the capacity of the chiller.





Q3. Can I use my own PLC and electrical cabinet?
A3: Yes, of course. Our UV LED drivers provide RS485 communication.





Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.





Q5. How to proceed an order for UV LED curing system?
A5: Let us know your requirements or applications first.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and pays a deposit for the formal order.
Fourth, we arrange production.





Q6. Is it possible to print my logo on the UV LED curing system?
A6: Yes. Please inform us formally before our production and confirm the design based on our samples first.





Q7: Do you provide warranty and installation service for the products?
A7: Yes, we provide 20000HRS service and 1 year free warranty. Installation service can be provided, but need to pay according to different countries and different systems.





Q8: How to deal with failure?
A8: First of all, our products are produced under strict quality control system, and the defective rate will be less than 0.2%.
Secondly, during the warranty period, we will send new parts with new order with small quantity. For defective batch products, we will repair and resend to you, or we can discuss the solution
Including re-invoking as the case may be.
