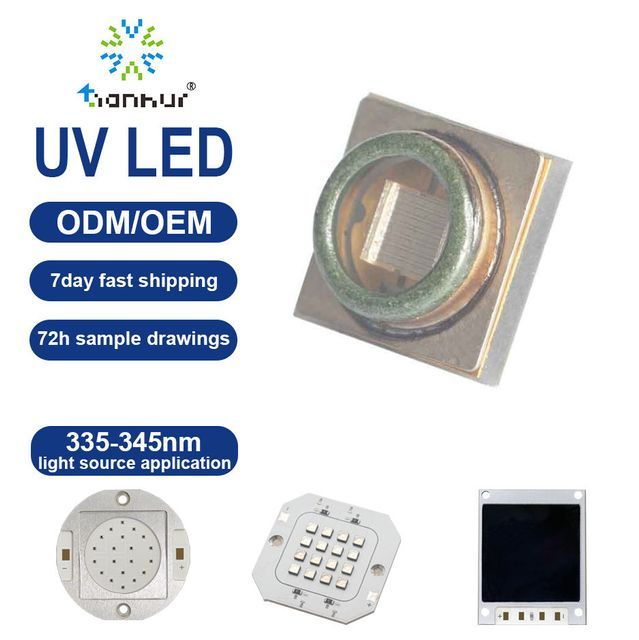

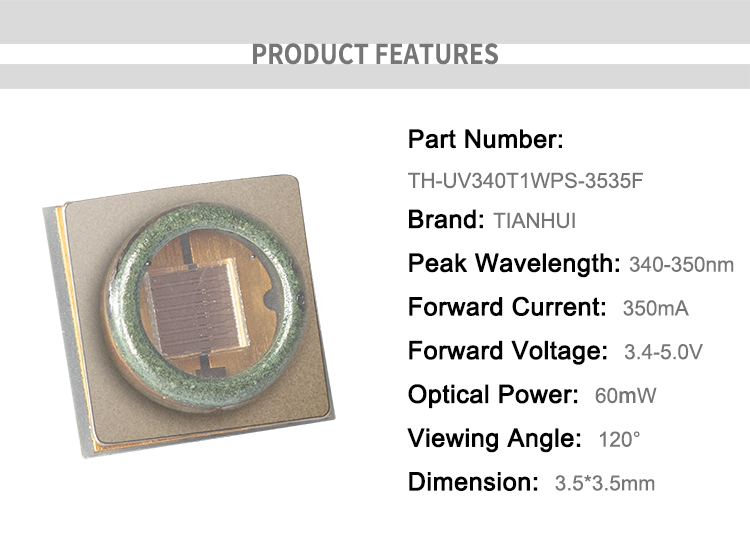

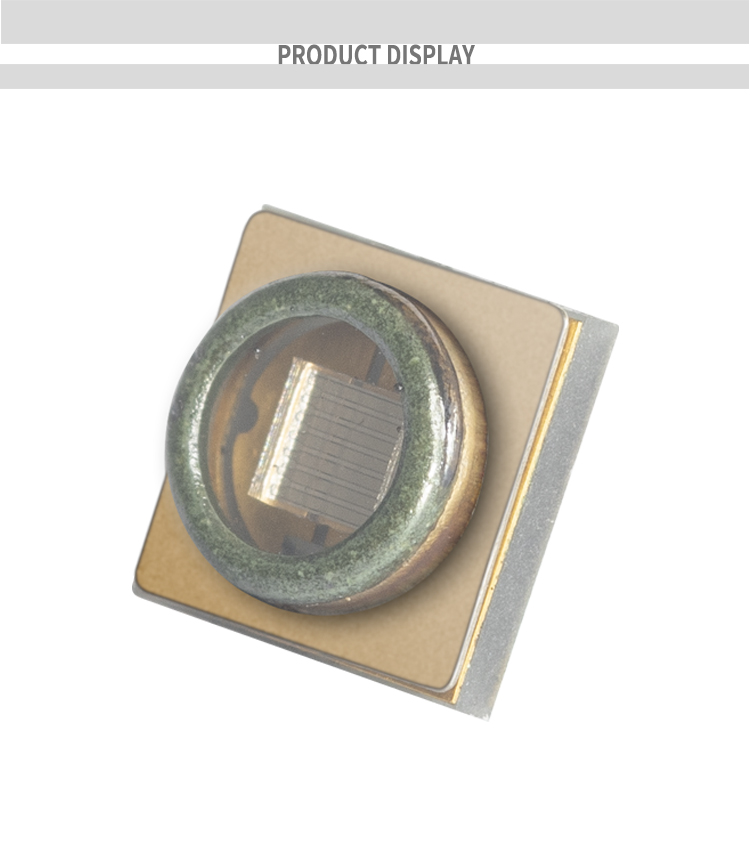

Tianhui high power 340nm UV LED SMD 3535 UVA LED lamp beads for blood analysis phototherapy scientific application
- $11.90 / >=10 pieces
- 10 pieces
- Zhuhai Tianhui Electronic Co., Ltd.
- Guangdong, China
- Mr Anderson Qu
Product Detail
| Luminous efficiency (lm/w): | 0.04 | Chip material: | Argonne |
| Working temperature(℃): | -40 - 100 | Angle of view: | 120 degrees |

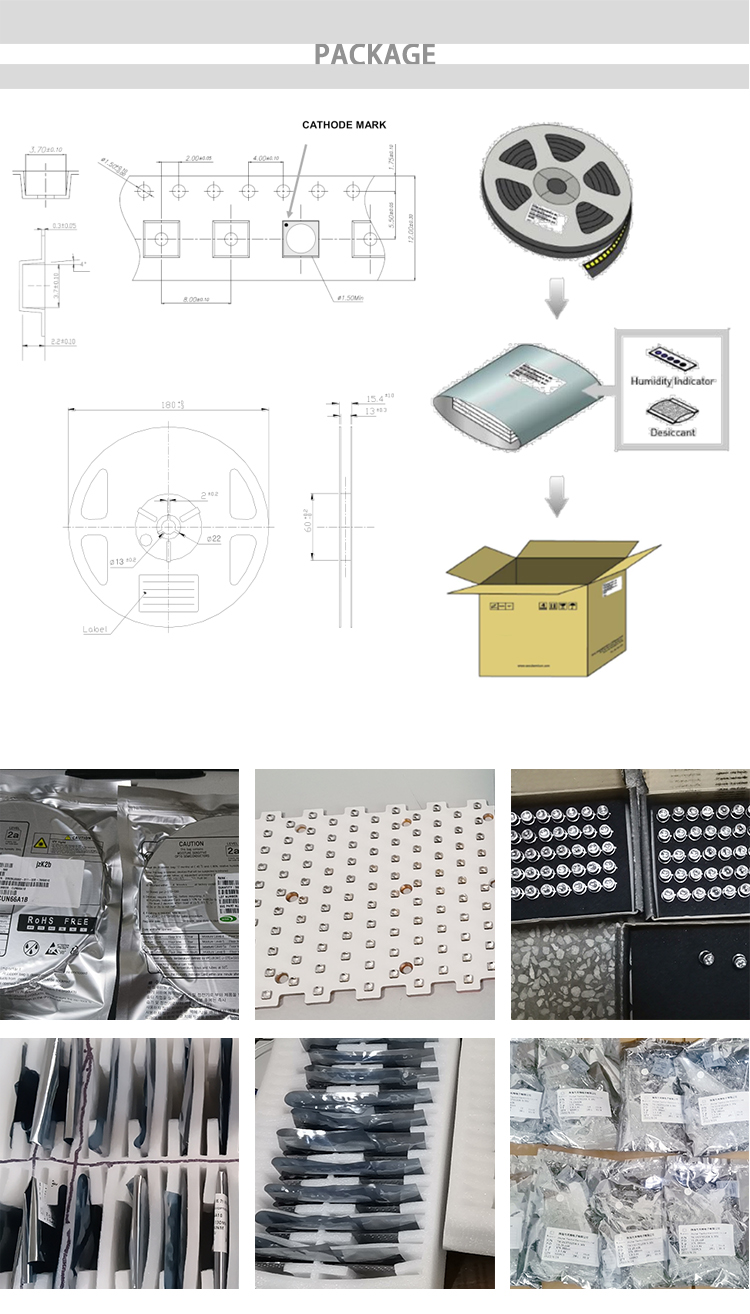

| Packaging Details: | UV LED 340nm, tape and reel, 1000 pcs/reel | application: | UV LED 340nm for blood analysis and phototherapy |
| Radiation intensity (mW/Sr): | 0.04 | Working hours (hours): | 10000 |
| Origin: | Guangdong, China | Lighting Solutions Services: | Lighting and circuit design, engineering installation |
| brand: | Tianhui | Input voltage (V): | 4.3V |
| Spectral half width: | 10 nanometers | Supported dimmers: | Yes |
| Power Consumption: | 1.51 | wavelength: | 340nm |
| Storage temperature: | -40-100℃ | Viewing Angle (°): | 120 |
| Light attenuation (%): | 50 | Lifespan (hours): | 10000 |
| Product weight (kg): | 0.01 | Peak wavelength: | 340±5nm |
| Color temperature (correlated color temperature): | 340nm | Storage temperature(℃): | -40 - 100 |
| Luminous color: | UV LED | type: | UV LED |
| port: | Zhuhai | light intensity: | 60 mW |
| Warranty period (years): | 1 year | Color rendering index (Ra): | not applicable |
| Forward Voltage: | 4.3V | product name: | UV LED 340nm |
| Supply capacity: | 10000 pieces per month | Forward current: | 350mA |
| strength: | 1.19~1.75W | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Color temperature: | 340nm | Radiation power: | 60 mW |
Tianhui high power 340nm UV LED SMD 3535 UVA LED lamp beads for blood analysis phototherapy scientific application
340nm
340nm deep ultraviolet LED products
| Part Number | Product Image | Product packaging | peak wavelength | output optical power | application |

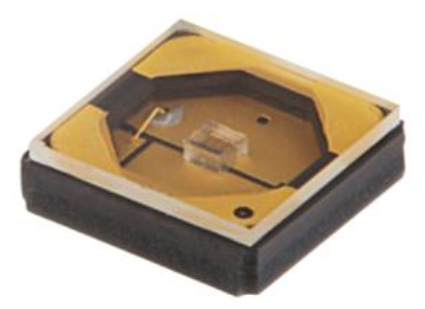

| CUN4GF1B |  |
SMD3535, quartz glass lens, 250mA, 3.8~4.8V Viewing angle: 115° Aluminum Nitride Ceramics |
340~347nm | 30~70mW@250mA | Medical testing, biochemical testing, blood testing analysis, reagent testing, molecular diagnosis, Viarus analysis, analytical instruments |
| CUD49H1A |  |
Metal DIP TO39, quartz glass lens, 20mA, 3.5~4.5V Viewing Angle: 5.1° |
340~347nm | 1.0~2.0mW@20mA | Medical testing, biochemical testing, blood testing analysis, reagent testing, molecular diagnosis, Viarus analysis, analytical instruments |
275nm/310nm
275nm/310nm deep ultraviolet LED products
| Part Number | Product Image | Product packaging | peak wavelength | output optical power | application |

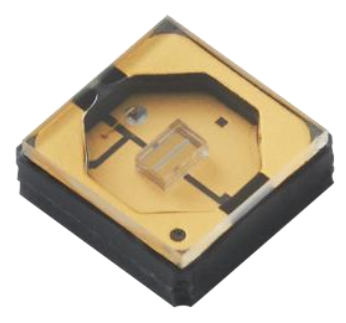

| CUD7GF1A |  |
SMD3535, quartz glass lens, 40~60mA, 5.0~7.5V Viewing angle: 120° |
270~278nm | 3.0~6.0mW@40mA 4.0~8.0mW@50mA 5.0~9.0mW@60mA |
Sterilization/disinfection of medical products, water and air purification, medical laboratory analysis, DNA detection and identification |
| CUD7GF1B 1W |
 |
SMD3535, quartz glass lens, Viewing angle: 125° |
270~278nm |
10.0~18.0mW@100mA 14.0~22.0mW@150mA 18.0~26.0mW@200mA |
Sterilization/disinfection of medical products, water and air purification, medical laboratory analysis, DNA detection and identification |
| CUD7GF2B 3W |
 |
SMD3535, quartz glass lens, 350mA, 7.3V Viewing angle: 120° |
270~278nm | 30mW@350mA | Sterilization/disinfection of medical products, water and air purification, medical laboratory analysis, DNA detection and identification |

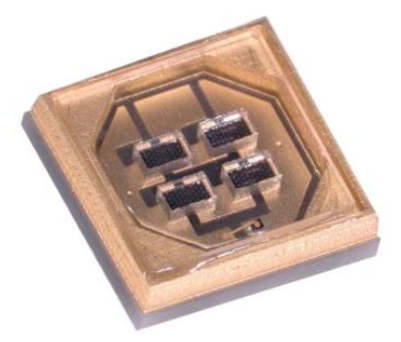

| CUD73F4A 5W |
 |
SMD5050, quartz glass lens, 300mA, 10.0~15.0V Viewing angle: 120° |
270~278nm | 50~100mW@300mA | Sterilization/disinfection of medical products, water and air purification, medical laboratory analysis, DNA detection and identification |
| CUD1GF1A |  |
SMD3535, quartz glass lens, 20~40mA, 5.0~7.5V Viewing angle: 120° |
310±5nm |
1.0-2.5mW@20mA 1.5-3.5mW@30mA 2.0-4.5mW@40mA |
Skin treatment (vitiligo, psoriasis), DNA testing, analysis and identification, genetic engineering, perspective testing, physiotherapy (vitamin D supplementation), plant growth, pet lights |
| CUD1GF1B |  |
SMD3535, quartz glass lens, 100mA, 5.0~7.0V Viewing angle: 120° |
310±5nm | 4.0~12.0mW@100mA | Skin treatment (vitiligo, psoriasis), DNA testing, analysis and identification, genetic engineering, perspective testing, physiotherapy (vitamin D supplementation), plant growth, pet lights |
Long wave ultraviolet 340-400nm
Recommended UV Applications
Printing and glue curing/printing ink curing/plant growth light source/mosquito and
Insect traps/biological reagents/fluorescent lights/money counting and
Verification equipment/Currency verification Fluorescence detection/Flaw detection/
Jewelry and jade testing/medical testing/biological reagents/cosmetic manicure
Enhanced/Purple Torch LED…
