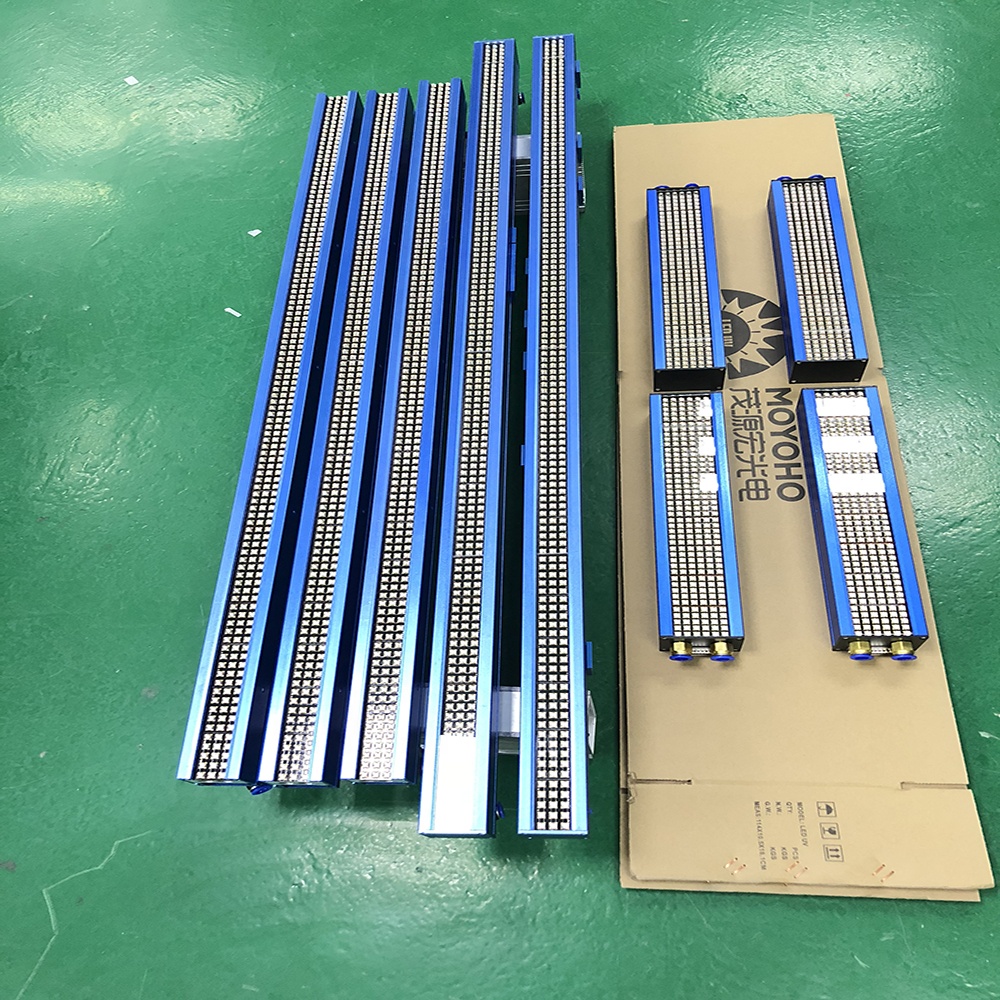

uv led curing lamp uv led curing system for uv paint paint glue

Product Detail

Warranty (year):2 yearsPower Consumption:100-8000W (depending on size)
Curing time (speed):0.1-2s (depends on uv material)Origin:Guangdong, China
Viewing angle(°):30/60/120Dimensions (water cooling A):72x76XL (L=1-2500mm)
Power Consumption:1000Supply capacity:200 pieces per month
Chip material:IngenPackage preview:
application:Printing/exposure/ink/paint uv material curingColor temperature:custom made
Lighting Solutions Services:Engineering installationUV intensity MW/CM:1-22W/c㎡(0-100%)
light intensity:0-22W/cm2(0-100%)Luminous color:purple
brand:MOYOHO (or customized available)port:Shenzhen
type:ultra violet lightDimensions (water-cooled B):55x55XL (L=1-2500mm)
strength:100-10000W (depends on uv materialLuminous flux (lm):/
LED chips:LG/Seoulpayment terms:L/C, D/A, D/P, T/T, Western Union, PayPal
Storage temperature(℃):-25 - 65Working temperature(℃):-15 - 55
Materials used for packaging:Cartons and plywood boxesFunction:UV ink coating paint glue curing

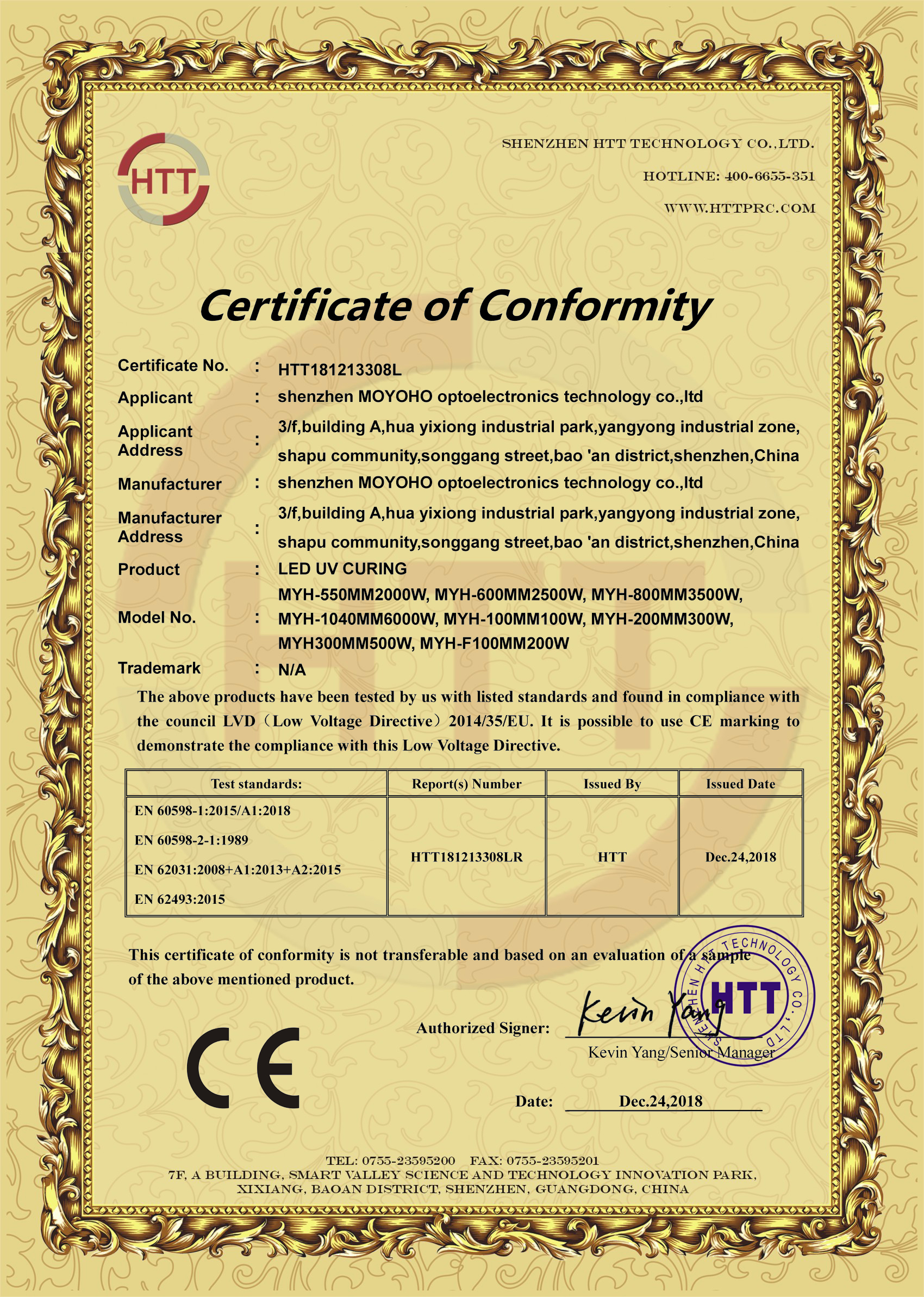

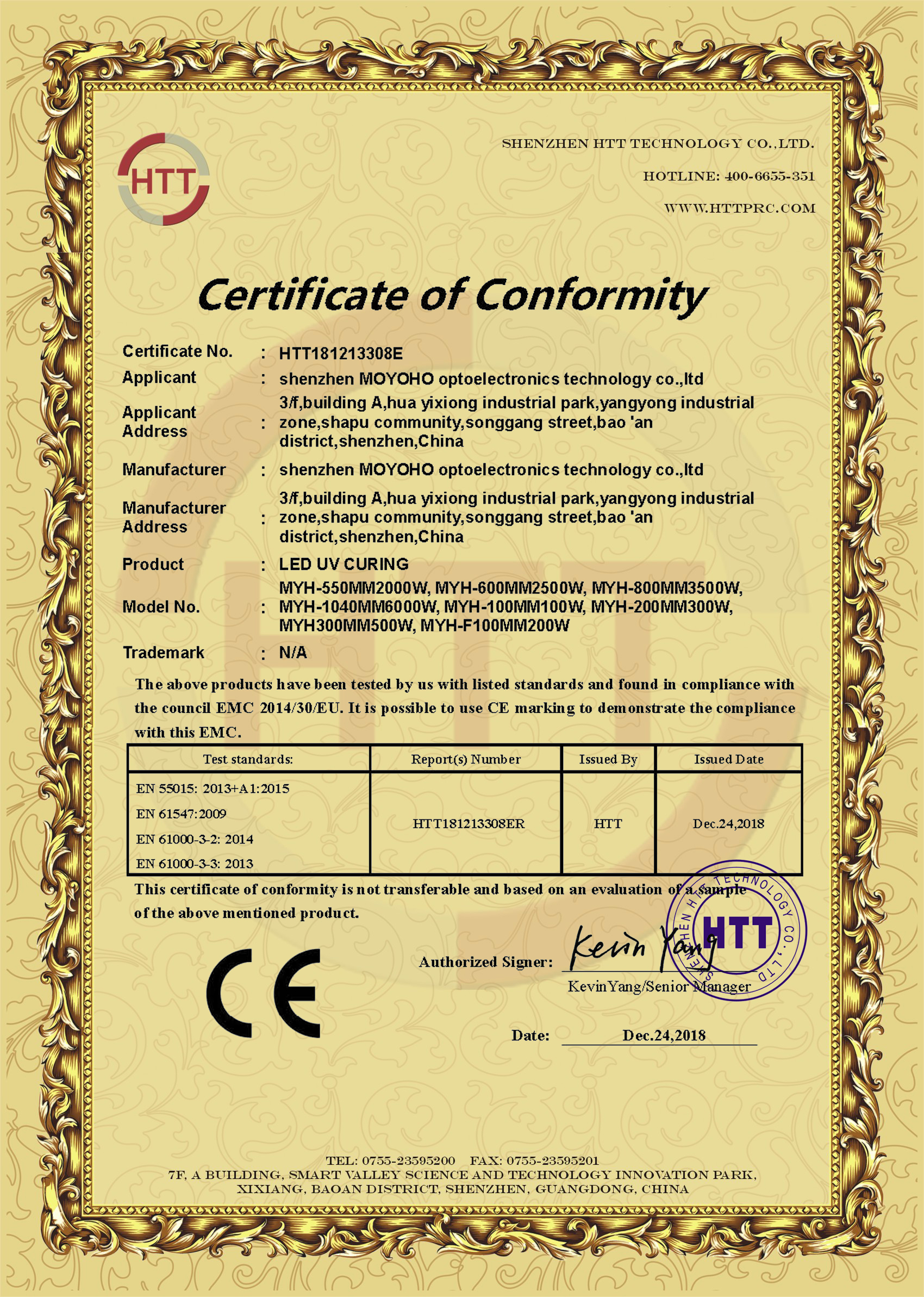

Certification:CE, RoHSLight attenuation (%):5



Product Description



feature:

1. Low energy consumption, about 30%-50% of traditional models.

2. Long service life and low operating cost.

3. Environmental protection: single violet wavelength, free of lead and Hg (mercury) elements.

4. Easy to install and operate, high performance, high cost performance.

5. Smaller size.

6. Cold light, no heat radiation, no infrared radiation, no heat on the illuminated surface.

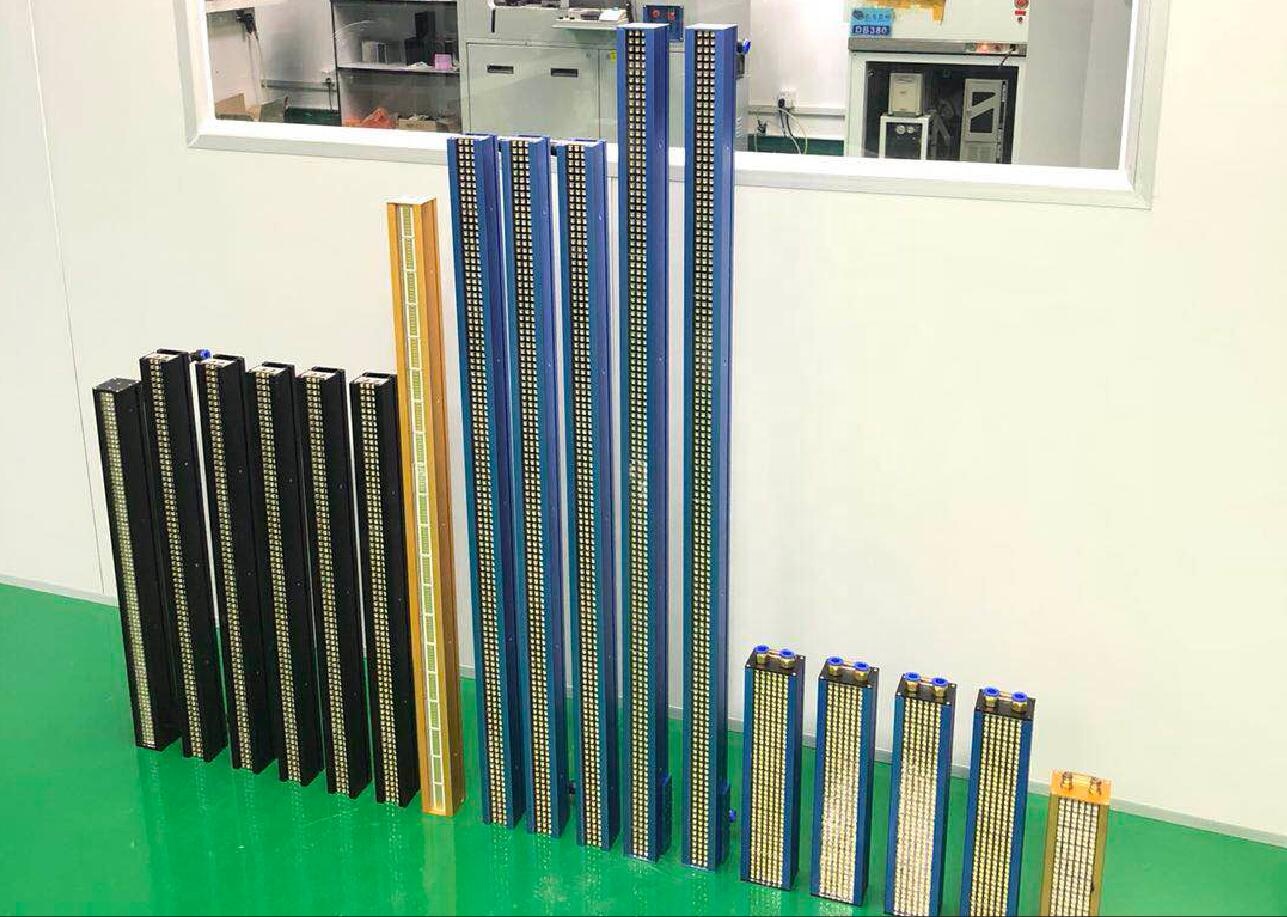

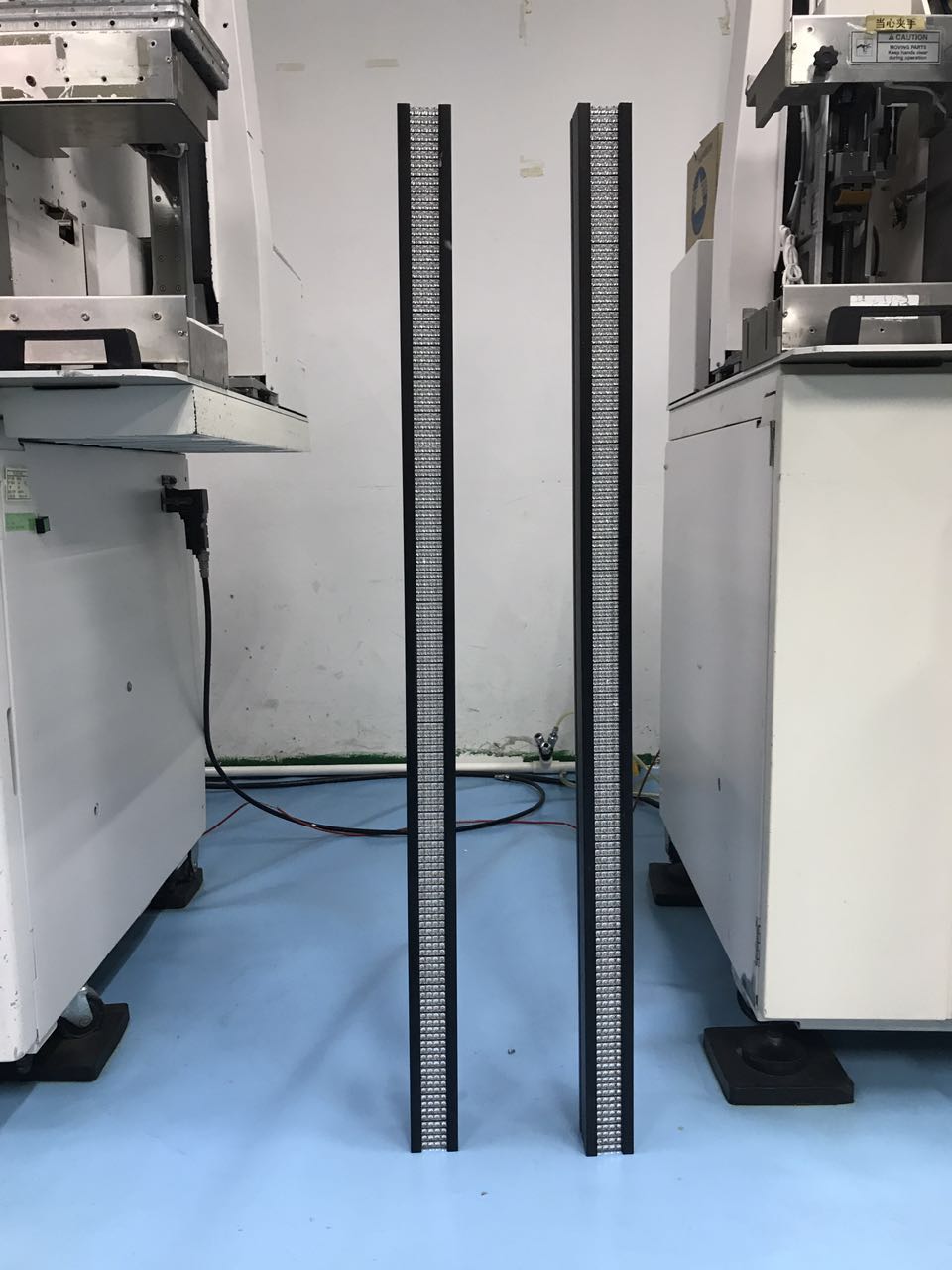

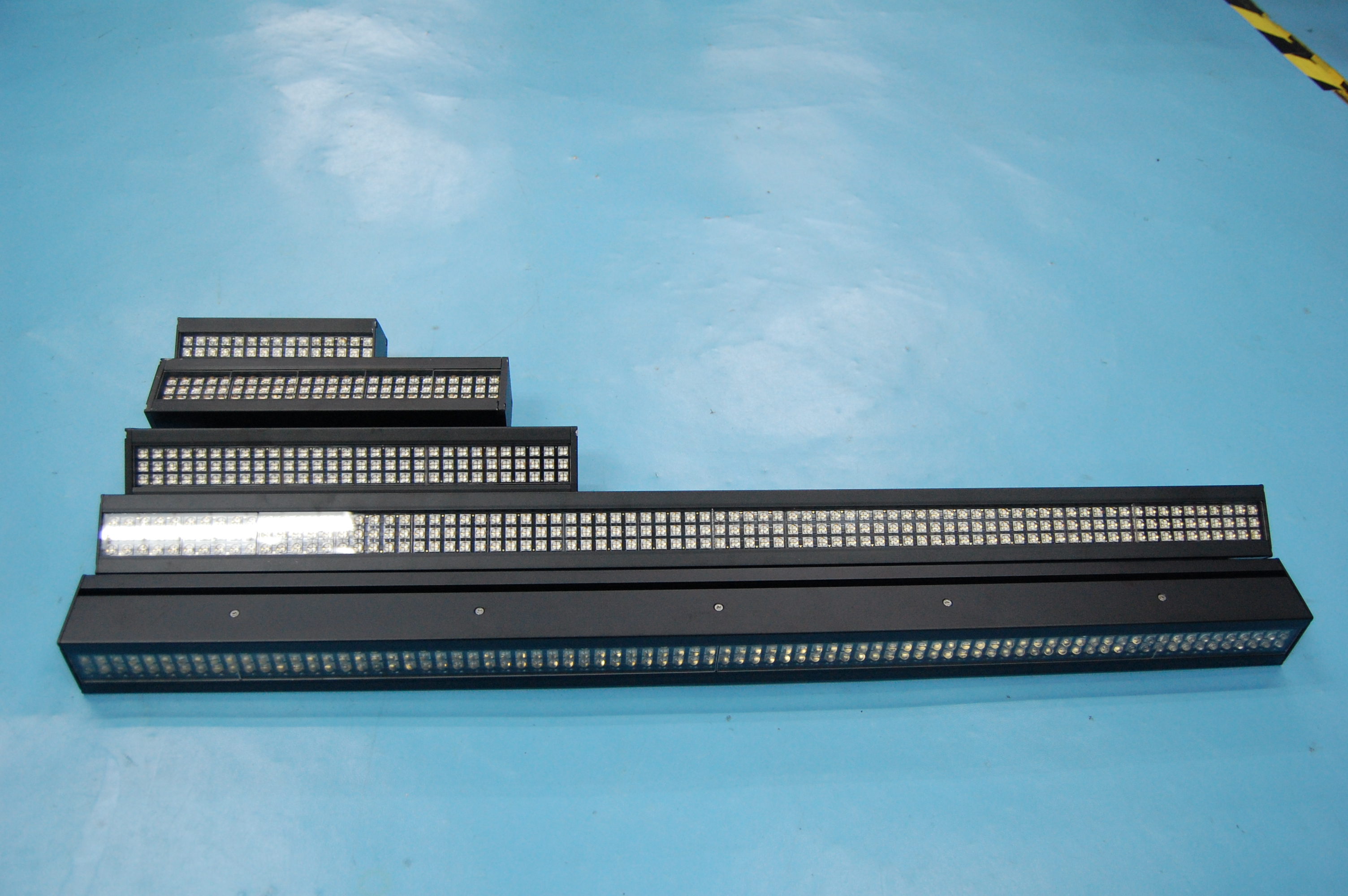

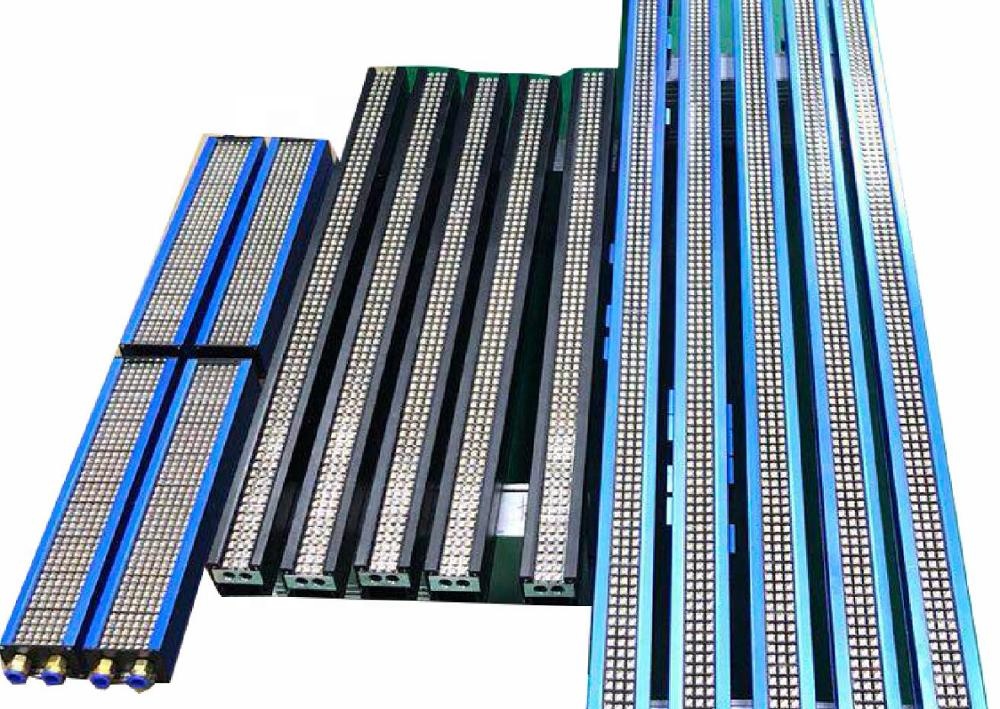

Technical parameters of uv led lamp head (for flexographic printing curing)
Wavelength (±2.5nm) 365nm /385nm/395nm/405nm single wavelength or mixed wavelength

Curing area (bright area)

500mm/600mm/700mm/800mm/ other sizes available

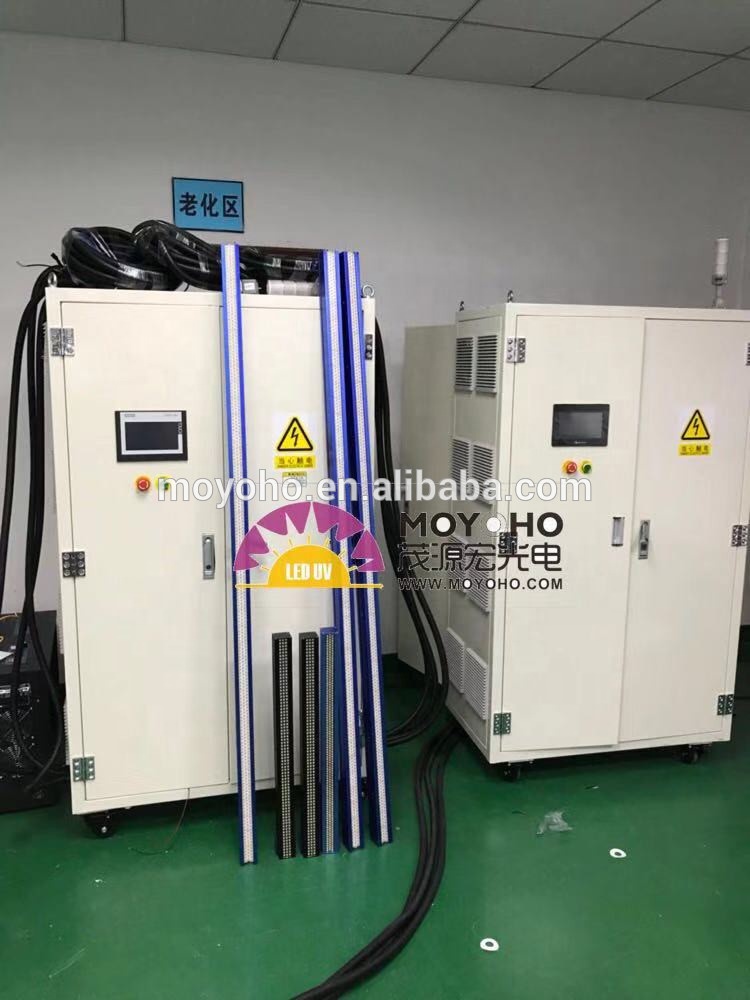

electronic power supply 1000-4000W (othercustom made/)
Input voltage Input: AC110/220V, 50/ 60HZ
The output voltage DC36/48/54
cooling method water-cooled or air-cooled
Life >30000 hours
Conveyor speed (curing time) 500-2000mm/min adjustable
Irradiation distance 10-100mm adjustable
radiation intensity 0-18w/cm2(10mm irradiation distance)
Recommended irradiation distance 10-30mm
Control Method ON/OFF, PWM, 0-10V, R232
warranty period The light source is more than two years, the control and power supply is more than five years

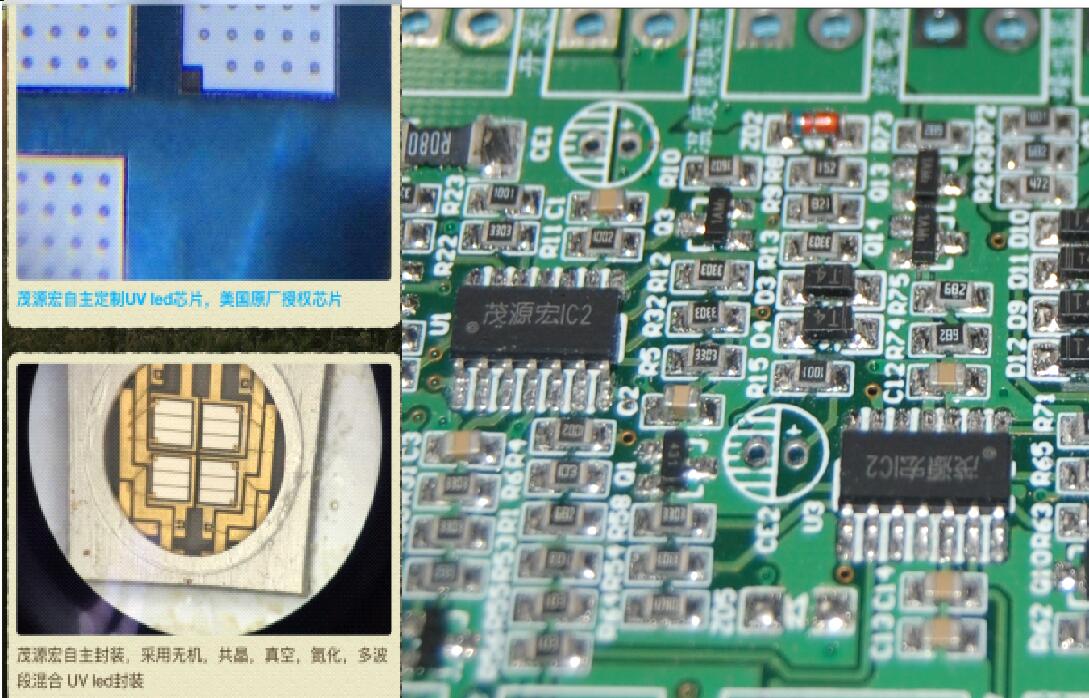

LED chips LG/Seoul
strength meaning is



advantage:

1. Low energy consumption, about 55%-80% of traditional models. It can reduce costs.

2. Ultra-long life can reach more than 25,000 hours;

3. Environmental protection: no lead and Hg (mercury) elements, friendly to the environment

4. No warm-up time;

5. Low temperature. Easy to install and operate.
