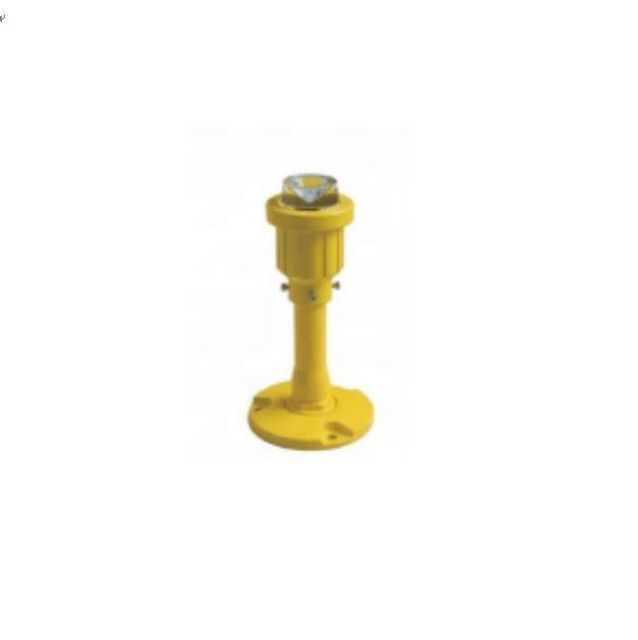

JCL90 Elevated Runway Edge Light (Led)

JCL90 elevated taxiway edge lights (LED)

describe:

Product model: JCL90 Elevated, omni-direction, blue

Light source: LED

Rated power: 5W

Rated current: 2.8-6.6A

Application: Type I-III airport taxiways, exit taxiways, apron boundary markers

Minimum service life of light source at rated power: 50,000h

Weight: 2kg

Main functions and features

• Patented inverted cone prism structure, high light efficiency;

• Strictly control the light output angle of 0°~6°, so that the pilot will not be dizzy at close range;

• Adopt international top brand LED, effectively control the lamp temperature, and the service life reaches the limit of LED design;

• Remarkable energy saving, the light ring load is below 3KVA; 50W isolation transformer can be used for the original car lights;

• The narrowing of LED selectable color temperature area ensures the consistency and purity of the guide logo color;

• Consistent with the dimming curve of halogen lamps, and used uniformly with the existing halogen lamps at the airport;

• The corresponding power supply system has a long service life, effective energy saving, maintenance-free, low power consumption, and brings huge economic benefits to customers.

• The light body is blue, which can be easily identified by pilots without lighting it up during the day;

• The edge of the prism adopts a unique taper design, which can effectively prevent snow and sand;

• Horizontal instruments can be placed directly on the lampshade;

• The prism is made of tempered glass, anti-wind erosion;

• Stainless steel fasteners, strong and durable, anti-corrosion;

• Aluminum alloy lamp body, more portable and portable;

• Light circuit board modular design, easy maintenance
