LED red aviation warning light has been certified by ICAO FAA DGCA
- $100.00 /piece
- 1 piece
- Sien Electronics (shanghai) Co., Ltd.
- Shanghai, China
- Ms Lincy zhang
Product Detail
| Luminous color: | Red | Package preview: | |
| application: | telecommunication tower, stack, chimney, tower crane, construction | Warranty time: | 5 years |
| Lamp luminous flux (lm): | not any | Certification: | CE, EMC, LVD, RoHS |
| Lighting Solutions Services: | Engineering installation | International standard: | ICAO (Aerodromes Annex 14) Medium Intensity Lamp |
| Beam Angle(°): | 360° horizontally. | light source: | to lead |
| Lamp Luminous Efficiency (lm/w): | Post-90s | Warranty (year): | 3 years |
| Protection class: | IP66 | brand: | Sean |
| Operating mode: | Steady on/blinking | place of origin; place of origin: | China Shanghai |
| standard: | FAA Advisory Circular AC150/5370-2F L864 | Color temperature (CCT): | Red |

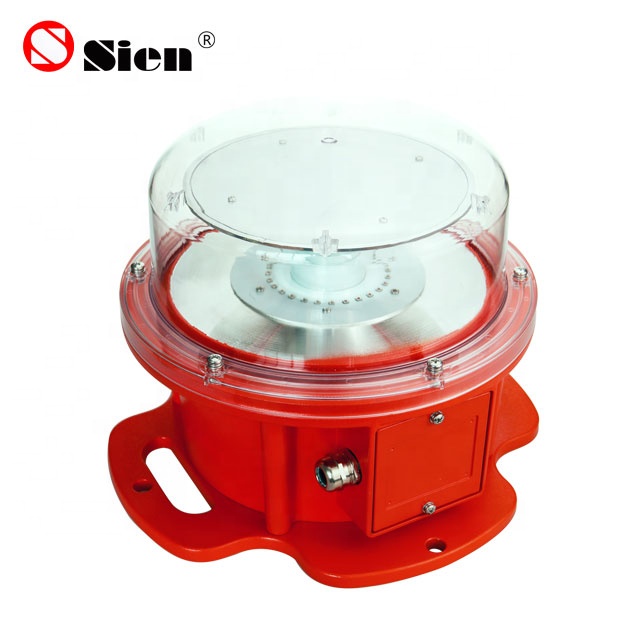

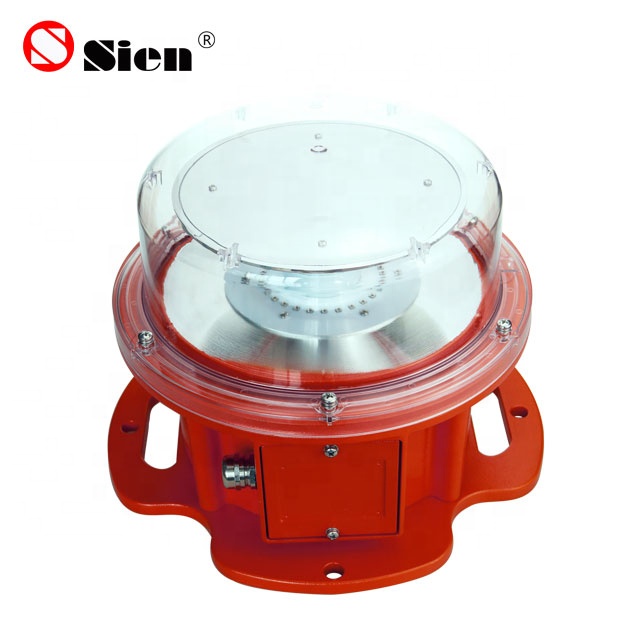

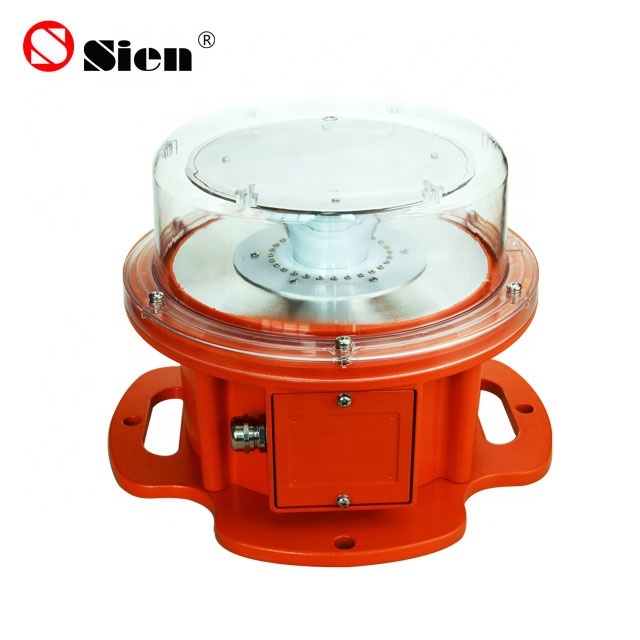

| product name: | LED Medium Intensity Obstruction Light | Base type: | LED panel |
| type: | Aviation obstruction lights | Supply capacity: | 500 pieces per month |
| Color Rendering Index (Radium): | 100 | Input voltage (V): | 85~265VAC 50/60Hz |
| strength: | 2000cd | Light body material: | aluminum alloy |
| Visible range: | >10km | port: | Shanghai port or other ports in China |
| Packaging Details: | 1) Inner layer: foam box 2) Outer layer: 5-layer carton 3) All packages have passed the breakage test. | payment terms: | L/C, Western Union, T/T, Paypal |
introduce
aircraft warning lightsIt is a high-intensity lighting device installed on high-rise buildings as an anti-collision measure. These devices make buildings easier to see for passing aircraft and are usually used at night, although they may also be used during the day. These lights need to be bright enough to be seen for miles around the building.
The lights we produce are maintenance-free and comply withICAO and FAA International Standards.The light can be used to mark obstacles that pose a threat to aircraft, such as telecommunication towers, buildings, wind turbines, transmission towers, airports and general aviation warning purposes.
Specification
main specifications | ||
product | single medium intensity light | |
strength | 2000cd | |
visible range | >10km | |
light source | Cree High Power LEDs | |
light color | aviation red | |
strength | 30W | |
waterproof | IP66 | |
Operating Voltage | 110~240VAC | |
Warranty | 5 years | |
Product Description
Product Details This light is a special maintenance-free obstacle light for aviation warning. It meets the international standards of ICAO and FAA. The light can be used to mark obstacles that pose a threat to aircraft such as telecommunication towers, buildings, wind turbines, transmission towers, airports and general aviation alerting purposes. | ||
Its advanced high-power LEDs with optimized optical design achieve the lowest power consumption and highest light intensity based on only one LED. Energy saving compared to incandescent lighting technology. At the same time safety is increased thanks to the low-failure LED technology. Our LED obstruction lights offer ultra-brightness, energy efficiency, reliability and maintenance free meaning our lights will save you money over time! | ||
feature
➢Cree LED, 100,000 hours lifespan. High light efficiency and energy saving.
➢The large curved reflector limits the light beam within the effective range, reduces light pollution and improves light efficiency.
➢LED constant current drive technology and aluminum heat dissipation technology are adopted to maximize the life of LED.
➢The lighthouse is made of PC material. It has UV resistance, good impact strength, heat stability and flame retardancy.
➢High reliability sealing design, meeting IP66.
➢With an integrated junction box, it is convenient for customers to connect.
➢Reverse polarity protection (DC type).
➢Optional feature: Light sensor (photocell) for day/light operation
Optional steady burning or flashing.
Optional fault alarm output
Optional GPS synchronization
Specification | |
lighting model | Military 2KS |
light source | Cree LED |
strength | >2000cd±25%cd |
visible range | >10 km |
Horizontal output (degrees) | 360 |
Vertical output (degrees) | 10 |
LED color | Red is standard. Other colors are available upon request. |
electrical characteristics | |
Operating Voltage | 110~240VAC, 48VDC, 24VDC |
energy consumption | 30~48W |
drive mode | Constant current |
mechanical properties | |
body material | die cast aluminum |
building materials | PC UV protection |
weight | 7.00KG |
aspect | see chart |
Install | flat mount |
Operating temperature | -40℃~+70℃ |
humidity | 10% ~95% |
wind speed | Up to 150 mph (240 km/h) |
waterproof | IP66 |
Applications
Certificate
our service
We offer a 5-year warranty on our products. Please review the following important tips before placing an order: 1. Inquiry-Professional quotation. Please tell us your application for this product (application for towers/wind turbines/cranes/buildings/chimneys/etc). Our sales will give you a professional quotation according to your application. 2. Confirm the price, lead time, artwork, payment term, etc. 3. Our sales send Proforma Invoice with our stamp. 4. Customer pays the deposit and sends us the bank receipt. 5. Production - Product photos and samples for mass production will be sent to you for approval. You can also arrange third-party inspections. 6. The customer pays the balance and delivers the goods, informs the waybill number and checks the status for the customer. 7. When you receive the goods and are satisfied, you can say "Complete" the order. 8. Feedback to us about quality, service, market feedback and suggestions. And we can do better.
