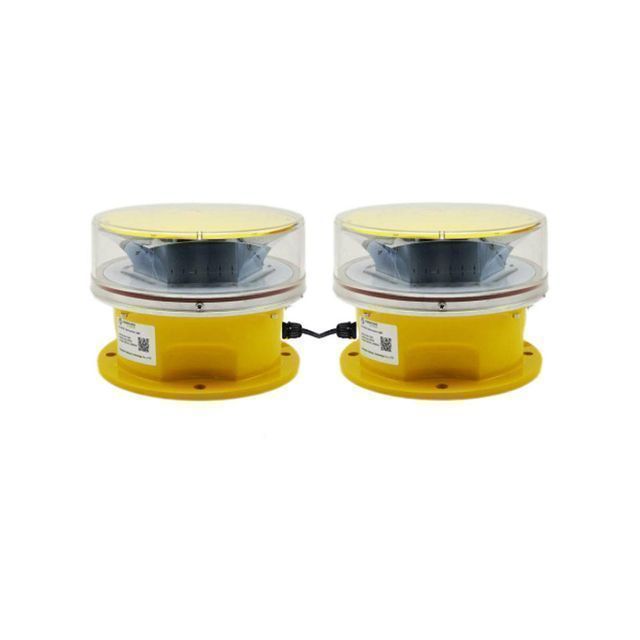

Dual Red Medium Intensity LED Aviation Obstruction Light
- $500.00 /piece
- 1 piece
- Shenzhen Anhang Technology Co., Ltd.
- Guangdong, China
- Ms Alice Hou
Product Detail
| Warranty (year): | 1 year | Lifespan (hours): | 50000 |
| Product weight (kg): | 2.5 | Color temperature (CCT): | Red |
| Horizontal output (degrees): | 360 | light source: | light emitting diode |
| Types of: | Aviation obstruction lights | can choose colour: | red (night) |
| Working hours (hours): | 50000 | Vertical divergence (degrees): | 3 |
| Lighting Solutions Services: | Lighting and circuit design, engineering installation | brand: | Anhang |
| Substrate: | powder-coated die-cast aluminum | Light body material: | UV-resistant polycarbonate |
| Supply capacity: | 2000 pieces per month | Circuit Protection: | Fusion |
| LED life experience (hours): | >100,000 | Packaging Details: | Carton in plastic bag. |
| Intensity (cd): | ≥2000cd (at night) | Beam Angle(°): | 360° horizontally. |
| Supported dimmers: | No | payment terms: | Western Union, T/T |
| Lamp Luminous Efficiency (lm/w): | Post-90s | place of origin; place of origin: | China |
| Luminous color: | Red | Color rendering index (Ra): | Post-90s |
| Operating mode: | Dusk to dawn mode, day off | Instantaneous power (W): | 40W |
| Protection class: | IP66 | port: | Shenzhen or Hong Kong |
This LED dual red medium intensity aviation obstruction light is on at night and off during the day. it'Specifically designed for marking the top of obstacles with a height of more than 45 meters. Active-backup mode ensures that obstacles are always marked even if one light fails. Because when the main light fails, the backup light will automatically turn on.
obey
l ICAO Annex 14 Volume 1, Seventh Edition, 2016, Table 6.3 Moderate Intensity Type B/C Obstruction Lights
l FAA L-864, FAA L-885
l CAAC MH6012-2015 Aviation Obstruction Lights, MH 5001-2013 Airport Technical Standards
feature
electric
l CREE ultra-high brightness LED is used as the light source, saving electricity and maintenance compared with incandescent lamps
l The power supply can be DC (12V, 24V, 48V) or AC (110-240VAC)
physical
l Unique polycarbonate design and UV-resistant polycarbonate mirror
l Bright yellow base color of UV resistant powder coating for better visibility
l The base material is die-cast aluminum, which has strong corrosion resistance, shock and vibration protection
l There is a special vent at the bottom of the base to ensure that air passes through but no water enters, so that the temperature of the entire lamp body is not high, and high-pressure steam is prevented from entering.
system design
l Built-in photocell for day/night operation (dusk to dawn operation)
l Surge and lightning protection
l Built-in GPS flashes synchronously
l Active/standby mode
Elective
l Dry contact alarm output for remote monitoring
l Other flashing frequencies (20, 30, 40, 60, constant light mode)
l The pilot uses the infrared LED of the NVG
l Internet of things monitoring
application
l When the height of obstacles is 45-45, the top of high-rise buildings, high chimneys, sign towers (telecom, GSM, microwave & TV), high poles, tower cranes, wind turbines, etc. use double medium light intensity of 105 meters, most of the time in Install low-intensity lights at a lower position.
|
Specification |
to lead double redModerate- Strong Navigation Obstruction Lights |
|
light characteristics |
|
|
light source |
CREE High Intensity LEDs |
|
can choose colour |
red (night) |
|
strength (cd) |
≥2000cd (at night) |
|
Horizontal output (degrees) |
360 |
|
Vertical divergence angle (degrees) |
3 |
|
Flash Features |
20-60FPM - Type B (factory setting: 20FPM) |
|
|
Stabilization Mode - Type C
|
|
operating mode |
Dusk to dawn mode, day off |
|
LED life experience (hours) |
>100,000 |
|
electrical characteristics |
|
|
Operating Voltage |
DC(12V, 48VDC) or AC(110-240VAC) or others |
|
Instantaneous power (W) |
40W |
|
Average power (W) |
5W(20fpm) |
|
lightning surge |
IEC61000-4-5 L-N ±3kV IEC61000-4-5 L-PE ±6kV IEC61000-4-5 N-PE ±6kV
|
|
static electricity |
IEC61000-4-2 contact discharge 8kV |
|
circuit protection |
Fusion |
|
physical properties |
|
|
body material |
UV-resistant polycarbonate |
|
Substrate |
powder-coated die-cast aluminum |
|
Install |
190×190×θ12 - 2 lights |
|
Dimensions (mm) |
229×229×168- 2 lights |
|
Weight (kg) |
2.5*2
|
|
Product life expectancy |
over 10 years |
|
envirnmental factor |
|
|
Ambient temperature (℃)
|
-40~55 |
|
Storage temperature (℃) |
-55~70 |
|
humidity |
10%-95%RH (no condensation) |
|
wind speed |
240km/h |
|
waterproof |
IP66 |
|
obey |
|
|
ICAO |
Annex 14, Volume 1, “Aerodrome design and |
|
|
"Operation" Seventh Edition 2016, Table 6.3 |
|
|
Medium Intensity Type B/C Obstruction Light |
|
FAA |
L-864, L-885 |
|
available options |
|
|
|
flicker rate |
|
|
NVG (Night Vision Goggle) Compatible LED |
|
|
Dry contact alarm (NO COM NC) |
|
|
RS485 communication |
|
|
Bird Nails |
|
|
Internet of things monitoring |
