Video Grabber Video Grabber Record Box USB 2.0 HD Video Capture for PS4 Game DVD Camcorder Camera Recording

feature:
1. Support maximum input resolution 3840x2160@30Hz;
2. Support maximum output resolution 1920x1080@30Hz;
3. Support 8/10/12 bit color depth;
4. When using a standard AWG26 cable, the input transmission distance can reach 15m (1080P and below resolution);
5. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
6. Support windows, Android and Mac OS;
7. Comply with USB video UVC specification;
8. Comply with the USB audio UAC specification;
9. No need for external power supply, compact and portable.

Specification:
HDTV resolution: up to 3840x2160 @ 30Hz
Video input format: 8 / 10 / 12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1920x1080@30Hz
Support audio format: L-PCM
Input cable length: ≤15m, AWG26 HDTV standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (-10 to +55°C)
Size: 64x28x13mm/2.52x1.1x0.51in

Connection operation:
1: Use a HDTV cable to connect the UHD signal source and the HDTV input port of the USB capture card
2: Insert the USB male head of the USB capture card into the computer USB port
3: Acquisition operation steps (OBS): Open the software - add a new source - select "Video Capture Device" - set the screen size -
Select "Studio Mode" (dual window) - click "Start Recording"

Computer hardware configuration requirements:
CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G memory

packing list:
1*capture card
1*How to use

notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style will be the same as shown in the pictures.
2. Due to manual measurement and different measurement methods, please allow 1-3cm deviation. thanks

Sales unit: single product

Single package size: 13.3*9.2*2.3cm

Single gross weight: 50g

Single net weight: 21g

Packaging type: plastic bag packaging.

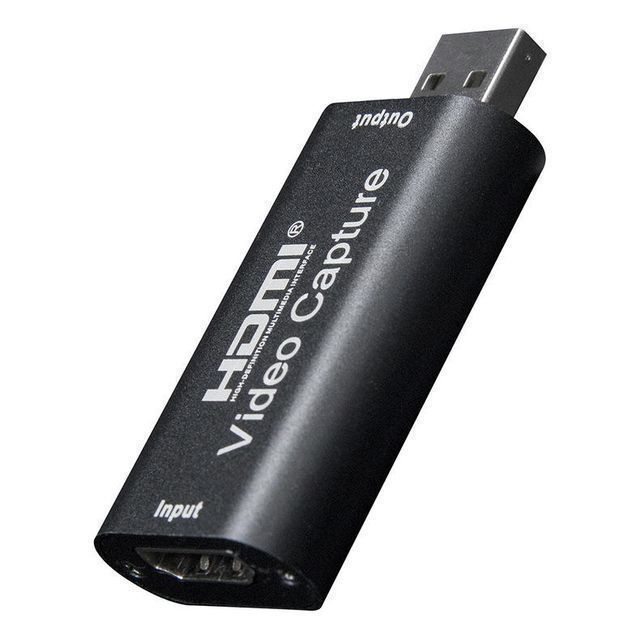

Image example:

We accept OEM ODM
