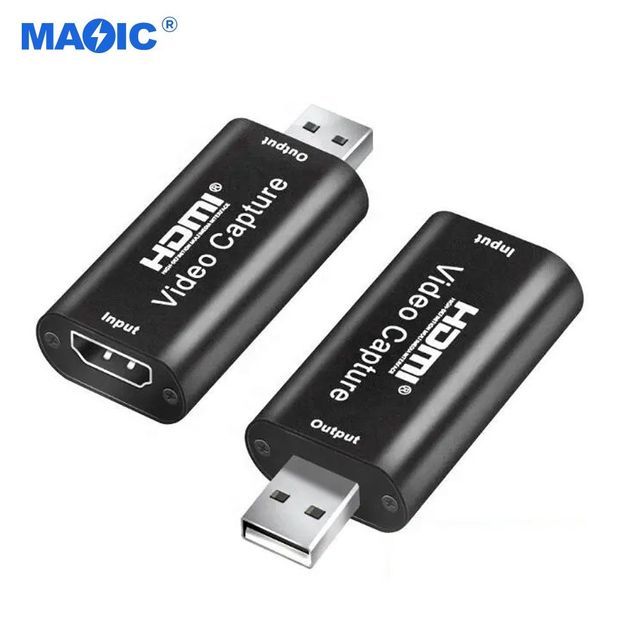

USB2.0 to HDMI video capture 1080P 60Hz 1 channel input 4K HDMI audio and video Chapture Live RecordBox supports HDMI capture card

Product Detail

enter:4K@30HzSales unit:single product
Key words:hdmi capture card, capturecard, video capture cardcolor:Black
Single package size:10X3X2 cmproduct name:USB2.0 to HDMI video capture card 4K 1080P 1ch
Version:HDMI 2.0Cable Type:male to male
Material:copper clad steelsolve:1080P@60Hz
brand:Magic/OEMPackaging Details:retail color box
application:Computers, TVs, MonitorsGross weight per piece:0.120 kg
Video compression format:JPEG formatlength:1 meter
channel:1 channelOrigin:Guangdong, China
This is a select product with strong availability. The quality is good and the price is right. welcomeVIPCustomers perform mass customization. All selected products click here
Product Description
feature:
* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using a standard AWG26 cable, the input transmission distance can reach 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* No need for external power supply, small size, easy to carry.

This USB 2.0 capture card can simultaneously capture HDMI video and HDMI audio, and can transmit audio and video signals to a
Computer and smartphone for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

application:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through an HDMI cable
2: Insert the USB head of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): Open the software → add a new source → select 'Video Acquisition Device' → set the screen size →
Select 'Studio Mode' (dual window) → click 'Start Recording' as shown in the example below
1. Add new source and select "Video capture device" 2. Set screen size
3. Select 'Studio Mode' (dual windows), and the above settings are completed.

detail:
HDMI resolution................................................ . . . . The maximum input can support 4K
Video input format ................................................ .......................................... 8/10/12 bit color depth
Video output mode ................................................ .......................................... YUV, JPEG
Video output resolution................................................ .......Maximum output resolution 1080P
Supported audio formats ................................................ .......................................... L-PCM
Input cable length...................................≤15m, AWG26 HDMI standard cable
Maximum operating current................................................ .......................................... 0.4A/5VDC
range of working temperature............................................... .......................... (-10 to +55°C)
size................................................. ..........64x28x13 (mm)
weight................................................. ...................21.4 grams
Packing size: 0.038-0.05kg/pc
Note: computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G memory

bag accessories:
1. Capture card
2. User Manual
custom packaging
Custom packaging mockups are optional, and the pictures are for reference only.
custom craft
cutting edge
* Please consult customer service before placing an order. Prices may fluctuate. We will give you the best price.

* For customized products, please provide your brand logo source files, such as AI, PDF, CDR, PSD. If not, at least provide a high-resolution logo image, and we will try to convert it into a printable format. For customized packaging, you can choose our original packaging, of course you can also provide your packaging design files.

* If you only need samples in stock, we suggest to order more samples. Right now, freight rates are going up. The correct order quantity will save your purchasing cost. At the same time, more samples can test the real quality of the product. For other products, please provide photos. We'll check the internal network and try to find them for you.
Our advantage
・We have been specializing in the production of electronic products related to video and audio data cables. Such as HDMI / TYPE-C / DP / DVI / VGA / AUX / USB / SATA. ・We have a history of ten years. ・Our founder comes from the Panasonic R&D department and has the genes of Panasonic Corporation. ・Our factory has the strength of mass production and strict quality inspection system. ・We have strong OEM customization experience. ・We have strong relationships with key component suppliers.
Our products have obtained many international certifications.
