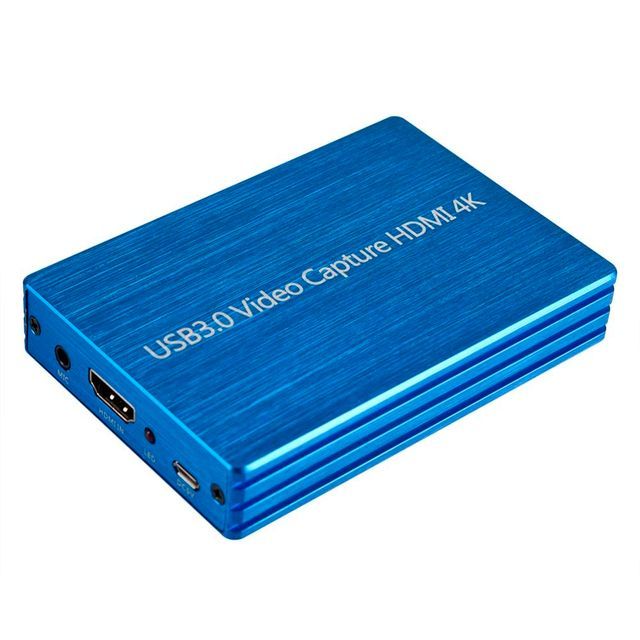

4K HDMI to USB 3.0 Capture Card Dongle 1080P Output HDMI Loop Video Recorder Grabber for OBS Capture Game Live

  • $22.00 / 2 - 49 pieces
    $18.00 / 50 - 199 pieces
    $17.00 / 200 - 999 pieces
    $16.00 / >=1000 pieces
  • 2 pieces
  • Shenzhen Just Link Tech Co., Ltd.
  • Guangdong, China
  • Mr Anthony He

Product Detail

channel:4,8Gross weight per piece:0.400 kg
Packaging Details:100pcs/boxOutput resolution:1920x1080@60hz
brand:StrapdownInput resolution:3840x2160@60hz, 30hz
Video compression format:H.264,H.265Sales unit:single product
Single package size:21X13X5 cminterface:HDMI, USB3.0
Origin:Guangdong, China

4K HDMI to USB 3.0 Video Capture Card Dongle 1080P 60fps HD Video Recorder Grabber for OBS Capture Game Live


Product Description:
HDMI to USB3.0 video capture, easy to carry, with excellent performance, superior compatibility, simple installation and many other functions.
It captures HDMI 4K 30Hz input signal; compatible with Windows, Linux, Mac OS X and USB 3.0 interface, compatible with many USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 through USB 3.0 interface; HDMI video The acquisition complies with UVC and UAC standards, no need to install drivers and settings, and it is truly plug-and-play.

feature:
1. No need to install drivers, real plug and play.
2. Compatible with Windows, Linux, OS X operating systems.
3. USB3.0, speed 300-350MB/s, compatible with USB 2.0.
4. The video and audio processing is completed by the dongle, which does not occupy the CPU.
5. It can collect single-channel high-definition HDMI video signal.
6. It can automatically detect the input video format, and automatically adjust the set output size and frame rate.
7. Input and output video signal up to 1080p/60 Hz.
8. Compatible with UVC video capture and YUV 422 video output.

Specification:
Host interface: USB3.0, 300-350MB/s, USB2.0, 40MB/s
Input interface: HDMI interface
DMI input format: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080P24/25/30/60
Supported resolutions:
640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440/1600x1200/1680x1050/1 920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame rate: 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
Audio and video capture standards for UVC and UAC
Supported operating systems Windows 7 Windows Server 2008 R2 Linux (kernel version 2.6.38 and later) OS X (10.8 and later)
Software Compatibility: For Windows Media Encoder (Windows) / Adobe Flash / Media Live Encoder (Windows, OS X) / Real Producer Plus (Windows) / VLC (Windows, OS X, Linux) / QuickTime Broadcaster (OS X ) / QuickTime playback (OS X) / Wirecast (Windows, OS X) / Potplayer (Windows) etc.
Interface compatibility: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Power consumption: ≤2.5W
Working temperature: 0℃~50℃
Storage temperature: -20°C ~ 70°C
Storage humidity: 5%-90%
Product size: 102*70*19mm/4.16*2.76*0.75in
