4 channel SDI broadcast video vmix streaming media 4 SDI capture card
- $490.00 / >=2 pieces
- 2 pieces
- TCHD Digital Video Technology Development (Beijing) Ltd.
- Beijing, China
- Mr Leo Chen
Product Detail
output: | HTTP/RTMP/RTSP | Video encoding: | H.264 |
Supply capacity: | 500 pieces per month | payment terms: | Wire transfer, PayPal |
type: | PCIe 4U | Software Development Kit: | SDK support |
Compression method: | software compression | Packaging Details: | carton |
solve: | 1920x1080P60 | Origin: | Beijing China |
Video compression format: | H.264 | application: | Live broadcast, webcast, video conferencing, game screenshots |
Operating system support: | Windows, Linux | channel: | 4 |
nature: | 1080P60 live broadcast | brand: | TCHD |
enter: | SDIx4 |
SDI SDK supports video conferencing 1080p video capture card

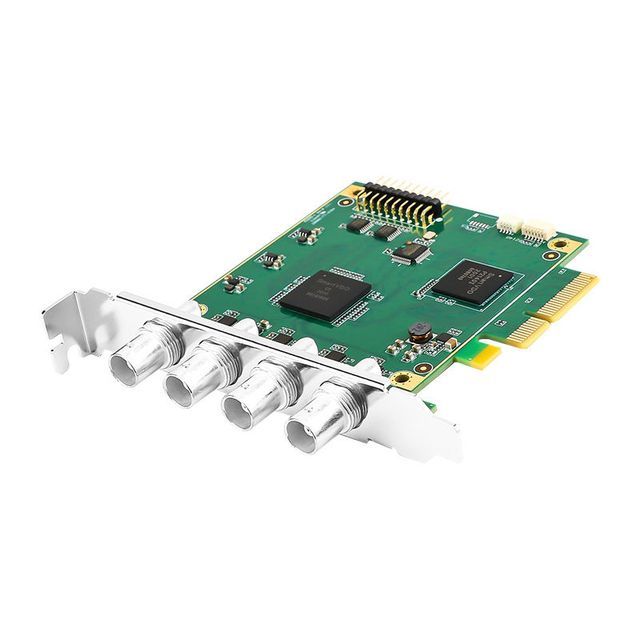

TC400N4SDIIt has 4 SDI inputs, supports 1080p/720p/480p/480i, 1080i full HD full-screen real-time preview and capture without distortion, and can be connected to digital TV set-top boxes, MOD, BD Blu-ray players, HDV digital cameras, Xbox and PS3, etc. You can connect another PC display card to record directly.
Model |
400N4 SDI |
Maximum Input Resolution |
Input 1920×1080p@60/50 → Output 1920×1080p@60/50 |
recording mode |
Software compression, real-time mode |
aspect |
93.98×91.5 mm |
interface |
PCIe×4 (Gen 2) |
video input |
4 x SDI |
Video Raw Data Format |
YV12, NV12, YUY2, RGB24, RGB32, P010, |
Video Raw Data Resolution |
3G-SDI HD-SDI Standard Definition SDI |
Recording video format |
H.264 (software compression) |
color format |
capture/preview |
video processing |
Video, audio and VANC capture Video cropping and scaling Automatic Signal Detection deinterlacing engine Multiple instances |
audio input |
4 x stereo embedded audio |
audio format |
Stereo/16 bit/32000~48000Hz |
software support |
Vmix/OBS/ZOOM/Skype/Teams/Discord/Slack/Cisco Webex/GoTo Meetings *DirectShow/V4L2 compatible software |
System Requirements |
|
operating system support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10 / Windows 11 Linux 4.8 or later (32-bit and 64-bit) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
