Video Capture Capture Card Easy cap USB 2.0 Audio Video Capture Adapter

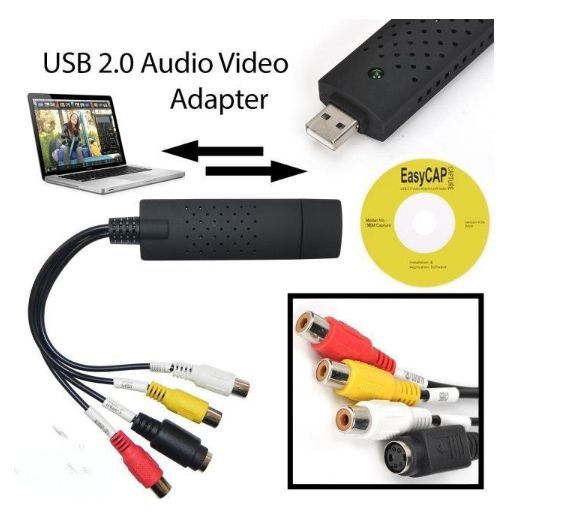

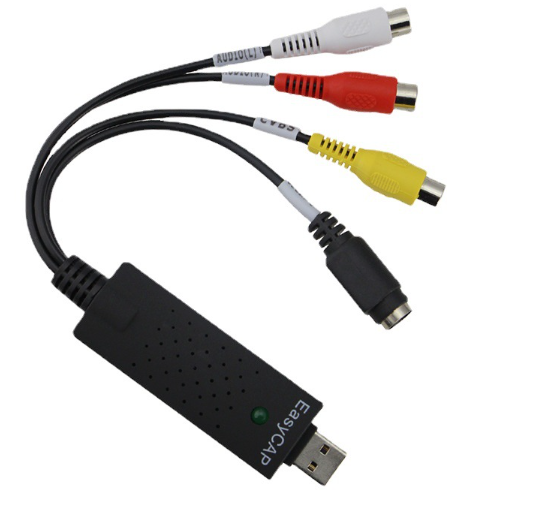

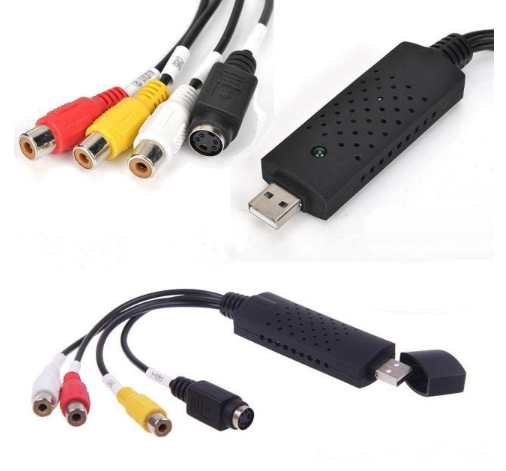

USB 2.0 video adapter with audio capture

Overview:

USB 2.0 video adapter with audio, can capture high-quality video and audio files directly through the USB 2.0 interface, no need for a sound card. However, installation is very simple and requires no external power supply. For the notebook computer solution, we attach the professional video editing software Ulead Video Studio 8.0 SE DVD, which will provide you with the best editing functions. Video Studio is a video editing software that makes editing your movie as fun as shooting it. The new Video Studio Movie Wizard helps novice users in just three steps. Share finished projects on DVD, tape, web, and mobile devices. High-speed rendering and real-time performance means less time waiting and more time creating. By the way, you can create many special effects and cut video files... ETC.

Main features:

* Contains professional and easy-to-learn video editing software: Ulead Video Studio SE DVD

* Popular USB2.0 interface, no other power supply required

* Capture high-quality video and audio via USB2.0 interface

* Support brightness, contrast, hue and saturation control

* Suitable size, easy to carry

* Capture audio without a sound card

* High plug and play

* Supports all formats: recording to DVD+/-R/RW, DVD+/-VR and DVD-Video

* Suitable for web conferencing / web conferencing

Specification:

* Conforms to Universal Serial Bus Specification Rev.2.0

* Support NTSC, PAL, SECAM, video formats

* Video input: 1 channel RCA composite, 1 channel S-Video

* Audio Input: Stereo Audio (RCA)

* aspect

(length) 88mmx (width) 28mmX (height) 18mm

* USB bus powered

* Support high quality video resolution

NTSC: 720X480@30fps

PAL: 720X576@25fps

System Requirements:

* USB: Compatible with USB2.0 free port

* Operating system: Windows 2000, XP/Vista

* CPU: PentiumIII 800 or above

* HD: 600MB available hard disk space for program installation, 4GB+ hard disk space for video capture and editing

* Memory: 256MB RAM

* Monitor: Windows compatible monitor with at least 1024x768 resolution

* Sound card: Compatible with Widows-sound card

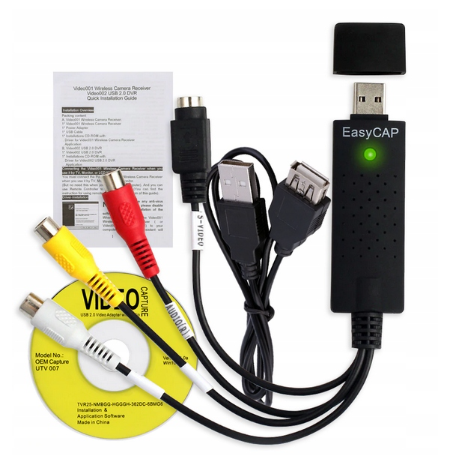

Package Contents:

* USB 2.0 video adapter with audio

* USB cable

* CD-ROM software (including drivers and applications), Quick Installation Guide

feature:

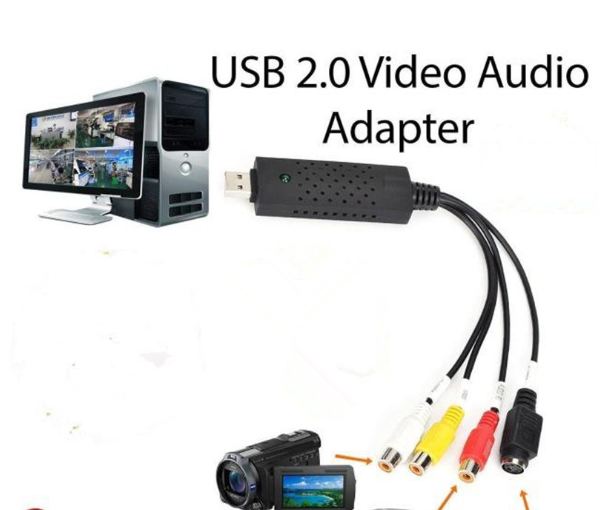

Send video to your PC via USB port

Record video in DVD/VCD/MP3/4 format and save in hard disk

Watch video on desktop/laptop monitor screen

Equipped with professional and easy-to-use video editing software: Ulead Video Studio 10.0 SE DVD

Video to DVD Converter

Video and audio recording are always in sync

Support S-Video & Composite RCA Video multiple video input

Turn your PC into a full-featured video recording and editing workstation

Super easy to set up in minutes

Capture a still image of an album

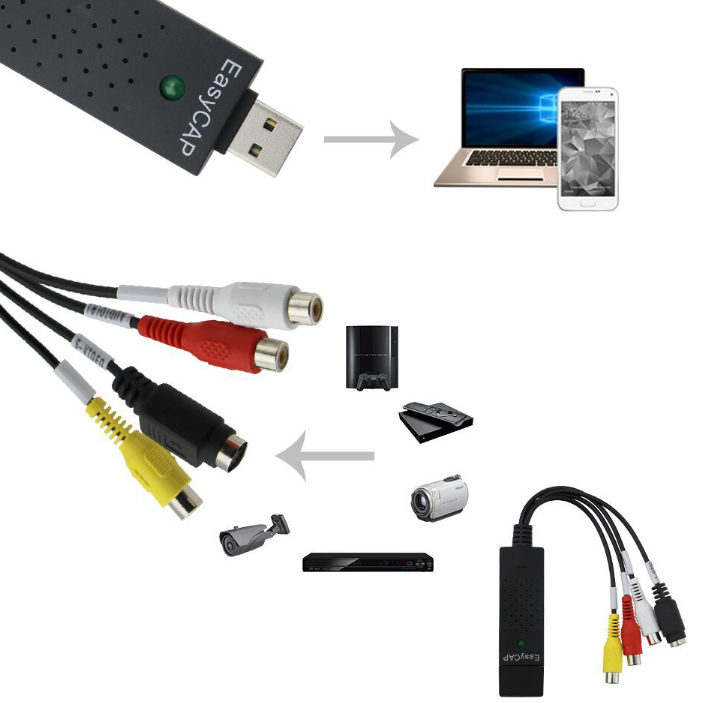

Not just watch videos on your laptop or desktop, you can also record full motion video or take snapshot/still frame images from different devices such as DV camcorders, VCR/DVD players, video surveillance for existing security surveillance system or play video games on PC for various video entertainment

Superior video selector/switcher: Instantly and smoothly switch video sources between PC, composite video input or S-Video input

Supports worldwide video systems including NTSC, PAL and SECAM

Snapshot button for saving still pictures as BMP or JPEG files

Adjustable video window size to full screen display

Compatible with WDM: Conforms to the WDM standard and can be used with all video software compatible with this standard

Fully compatible with Microsoft DirectShow

Video Surveillance Interface: Any security CCTV surveillance camera or camcorder can be connected to this device so you can turn your computer into a video surveillance system/monitor

High-quality video conferencing interface:

1. You can host a video conference by streaming live audio and video feeds from a camcorder or any camera via this unit to your computer and broadcast via an internet connection.

2. Broadcast video to the outside world using your favorite messaging service or webcam software

Compatible with messaging applications: NetMeeting, MSN Messenger, Yahoo Messenger, ICQ.

Video conferencing software is not included but can be downloaded for free from the Internet

Specification:



Green LED power indicator

Dimensions: 88mm x 28mm x 18mm

Full screen video resolution input:

* With USB 2.0 connection: output resolution will be full screen DVD-Video resolution up to 720x480 (30 fps) in NTSC format and up to 720 x 576 (25 fps) in PAL format

* With USB 1.1 connection: NTSC video resolution up to 320x240 (30 fps), PAL video resolution up to 25 fps 320x288

Video input: 1 S video input and RCA type composite video input

Supported video formats: NTSC, PAL and SECAM

Supports all video capture/record formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV

High MPEG bitrate scaling up to 10000K bps

Supports color adjustments, including brightness, contrast, saturation, hue, and sharpness controls

USB powered operation. No power adapter required

Power Consumption: 5VDC, 250mA (max) via USB port


1 x USB Video Audio Capture Adapter VHS to DVD HDD TV Card

1 user manual

1 CD-ROM

1 X USB extension cable
