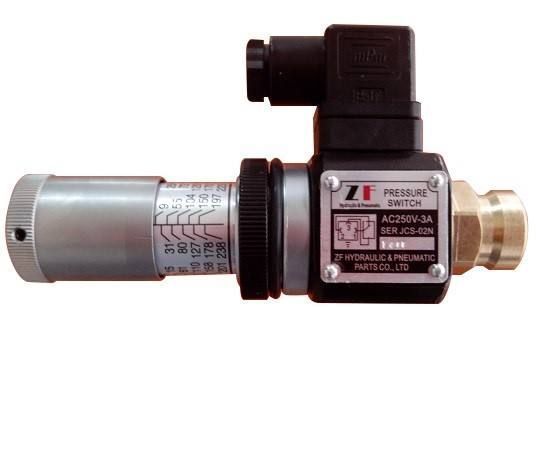

JCS-02H JCS-02N JCS-02NL JCS-02NLL copper oil filter adjustable hydraulic pressure switch
- $4.00 /piece
- 1 piece
- Shenzhen Zf Hydraulic And Pneumatic Parts Co., Ltd.
- Guangdong, China
- Mr William Xiong
Product Detail
| Packaging Details: | export standard | Certification: | CE certification |
| brand: | ZF Hydraulics | maximum. Work pressure: | 230 bar |
| model: | JCS-02H | maximum. current: | 5A |
| port: | Shenzhen | Supply capacity: | 10000 pieces per quarter |
| payment terms: | L/C, Western Union, T/T, MoneyGram | place of origin; place of origin: | Guangdong, China |
| maximum. Voltage: | AC250V |
JCS-02H JCS-02N JCS-02NL JCS-02NLL copper oil filter adjustable hydraulic pressure switch
Specification:
|
Model |
preset pressure |
greatest pressure |
weight |
|
JCS-02N |
20-210 kg/cm² |
230 kg/cm² |
1.0 kg |
|
JCS-02NL |
15-60 kg/cm² |
230 kg/cm² |
1.0 kg |
|
JCS-02NLL |
5-40 kg/cm² |
60 kg/cm2 |
1.0 kg |
|
JCS-02H |
20-500 kg/cm2 |
600 kg/cm² |
1.0 kg |
|
Maximum voltage/current |
Minimum voltage/current |
|
250V/3A 125V/5A |
DC 24V/ 160mA |

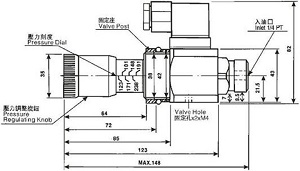

External dimensions:
