Dry-running protection and automatic reset water supply automatic pump control
- $9.50 /piece
- 1 piece
- Ningbo Chuheng Electric Co., Ltd.
- Zhejinag, China
- Mr Dennis Tong
Product Detail

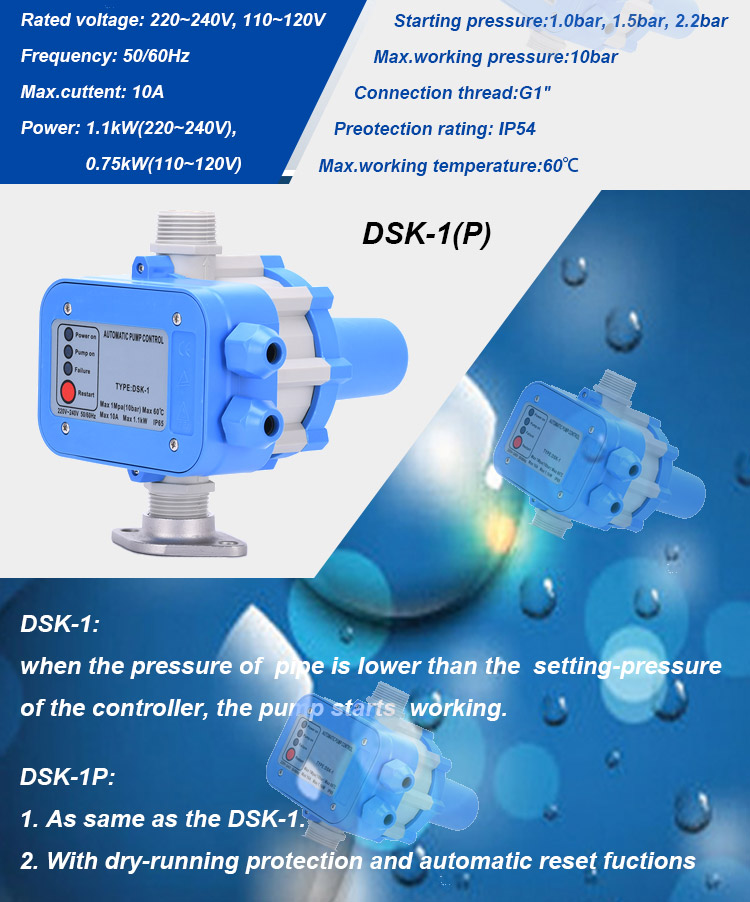

| Maximum working pressure: | 10 bar | Packaging Details: | 12 tablets per box |
| maximum. Voltage: | 240V | frequency: | 50Hz/60Hz |
| Origin: | Zhejiang, China | payment terms: | L/C, T/T, Western Union |
| Wire: | G1" | brand: | taylor |
| Starting pressure: | 1.0bar 1.5bar 2.2bar | port: | Ningbo |
| maximum. current: | 10A | Maximum current: | 10A |
| model: | DSK-1(P) | Protection class: | IP54 |
| Supply capacity: | 50000pcs per month 50000pcs pressure controller per month | Shipping Details: | Ships within 40 days after payment |
| maximum. Work pressure: | 10 bar | Certificate: | EU ROHS |
| Maximum working temperature: | 60℃ | Rated voltage: | 220V-240V 110V-120V 110V-240V |

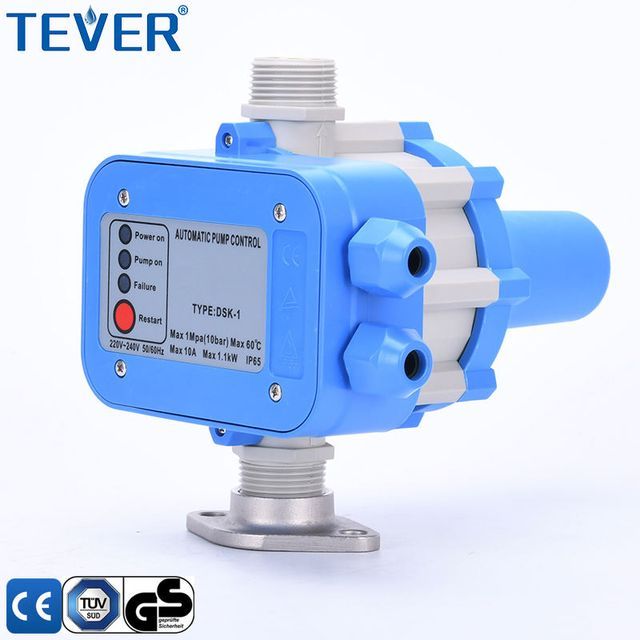

DSK-1(P) water pump automatic pump control

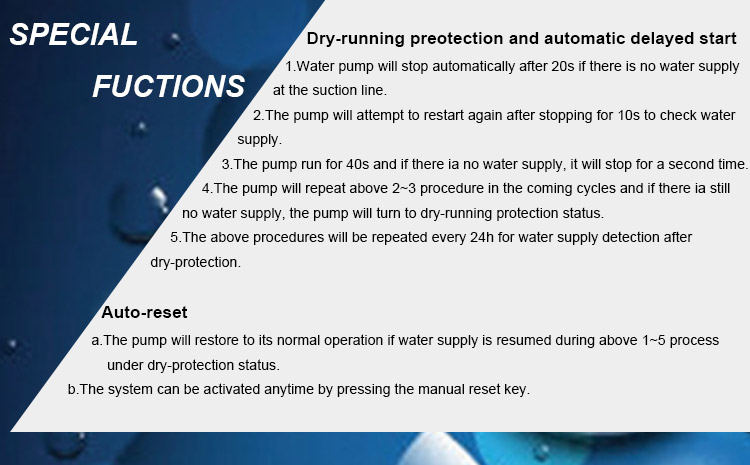

Idling pre-protection and automatic delay start
1. If there is no water supply in the suction line, the water pump will stop automatically after 20 seconds.
2. After the water pump stops for 10 seconds, it will try to restart to check the water supply.
3. The water pump runs for 40s, if there is no water supply, it will stop for the second time.
4. The water pump will repeat the above 2~3 steps in the next cycle. If there is still no water supply, the water pump will enter the dry running protection state.
5. Repeat the above procedure every 24 hours for water supply testing after anti-dry burning.
Automatic reset
a. In the dry burning protection state, the water supply will be restored during the above 1~5 process, and the water pump will resume normal operation.
b. Press the manual reset button to start the system at any time.
