LEFOO LF08 HVAC/R Normally Closed High and Low Voltage Control Switch

  • $10.00 / 5 - 49 pieces
    $6.00 / 50 - 499 pieces
    $5.50 / 500 - 999 pieces
    $5.00 / >=1000 pieces
  • 5 pieces
  • Zhejiang Lefoo Controls Co., Ltd.
  • Zhejiang, China
  • Mr Andy Xue

Product Detail

Substrate:brass, plated steelapplication:Refrigeration system, water dispenser, air conditioner
Burst pressure:5000psipayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Rated voltage:120VAC/240VACPackaging Details:LEFOO brand carton
media:Non-hazardous gases, air, water, engine oil, transmission oilSupply capacity:50000 pieces per month
maximum. Work pressure:5000psiOrigin:Zhejiang, China
port:Shanghai/Ningbo/Guangzhou portmodel:LF08-20200526
maximum. Voltage:240VacPackage preview:
maximum. current:40.2Aconnect:1/8NPT, 1/4NPT, G1/8, G1/4
Whether smart:Nocircuit:SPST-NC, SPST-NO, SPDT
brand:Love
Product Description

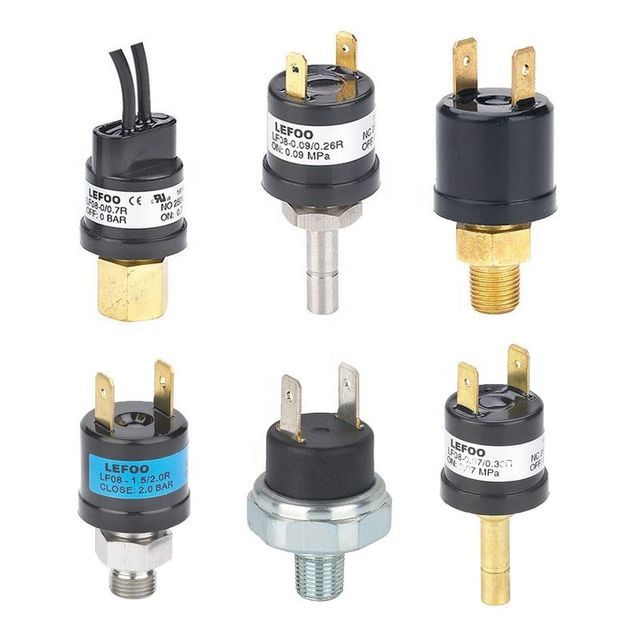

thisLF08The switch is a fixed set point, factory calibrated pressure switch. Automatic reset, can be normally open or normally closed contact. All metal wetted parts make the LF08 switch compatible with a wide variety of chemicals in liquid or gaseous form.
It offers many types of electrical terminals, from push-in terminals of different sizes and styles to lead wires with leads
A range of standard industrial connectors.
In-house machining capabilities allow Lefoo to offer a wide range of pressure fittings, from different thread types and sizes to units with internal air bleeders and copper tubing for sawing operations.
Typical Applications: Air Conditioning Units (Residential, Commercial and Automotive)
refrigeration
CO2 air conditioning, CO2 refrigeration
heat pump
High pressure cut off, low pressure cut off
Air Brakes (Trucks and Commercial Equipment)
fuel pressure monitoring
engine control
agricultural equipment
industrial control
Marine engines/equipment.
number
circuit
Substrate
connect
Electrical connections
1
SPST CNC
brass
1/8 NPT
6.35×0.8
2
SPST NO
galvanized steel
1/4 NPT
4.8×0.8
3
SPDT
/
R1/8
18AWG lead wire
4
/
/
R1/4
/
5
/
/
G1/8
/
6
/
/
G1/4
/
7
/
/
1/4 copper pipe
/
8
/
/
7/16UNF Male
/
9
/
/
7/16UNF Female
/
10
/
/
7/16UNF internal thread with deflector
/
Specification
Model
LF08
media
Air, water, motors, lubricants, transmission oils, hydrocarbon media, coolants
pressure range/
tolerant/
withstand voltage
pressure range
tolerant
withstand voltage
0.2~6bar (low pressure)
±0.5 bar
15 bar
6~10 bar
±0.7 bar
35 bar
11~20 bar
±1 bar
45 bar
21~30 bar
±1.5 bar
31~45 bar
±1.5 bar
burst pressure
5000psi
range of working temperature
Ambient temperature: low pressure: -30~65℃, high pressure: -35~120℃
Medium temperature: -50~120℃
switch type
SPST (normally closed or none); SPDT
power rating
120Vac 6FLA,40.2LRA;240Vac 4FLA,26LRA 120/240Vac 375VA;36Vdc 3A
endurance
100000
Conversion: 1bar=14.5psi 1MPa=10bar
