LEFOO LF08 small HVAC high pressure air conditioner constant pressure fan pressure switch, suitable for liquefied petroleum gas 0.2~45bar
-
$10.00 / 5 - 49 pieces
$6.00 / 50 - 499 pieces
$5.50 / 500 - 999 pieces
$5.00 / >=1000 pieces - 5 pieces
- Zhejiang Lefoo Controls Co., Ltd.
- Zhejiang, China
- Mr Andy Xue
Product Detail
| Burst pressure: | 5000 psi | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| maximum. Work pressure: | Consult the seller | connect: | 1/8NPT, 1/4NPT, R1/8, R1/4, G1/8, etc. |
| maximum. current: | 15A | port: | Shanghai, Ningbo |
| Packaging Details: | 200pcs/box | Electrical connections: | 6.35*0.8 or 4.8*0.8 |
| application: | heat pump | Is it smart: | No |
| Origin: | Zhejiang, China | Supply capacity: | 50000 pieces per month |
| media: | Air, water, motor oil, etc. | color: | Black |
| Substrate: | brass or plated steel | Certification: | CE CQC ROHS |
| brand: | Love | circuit: | SPST-NC, SPST-NO, SPDT |
| model: | LF08 | delivery time: | Usually 15 working days |
| maximum. Voltage: | 250VAC |
Product Description

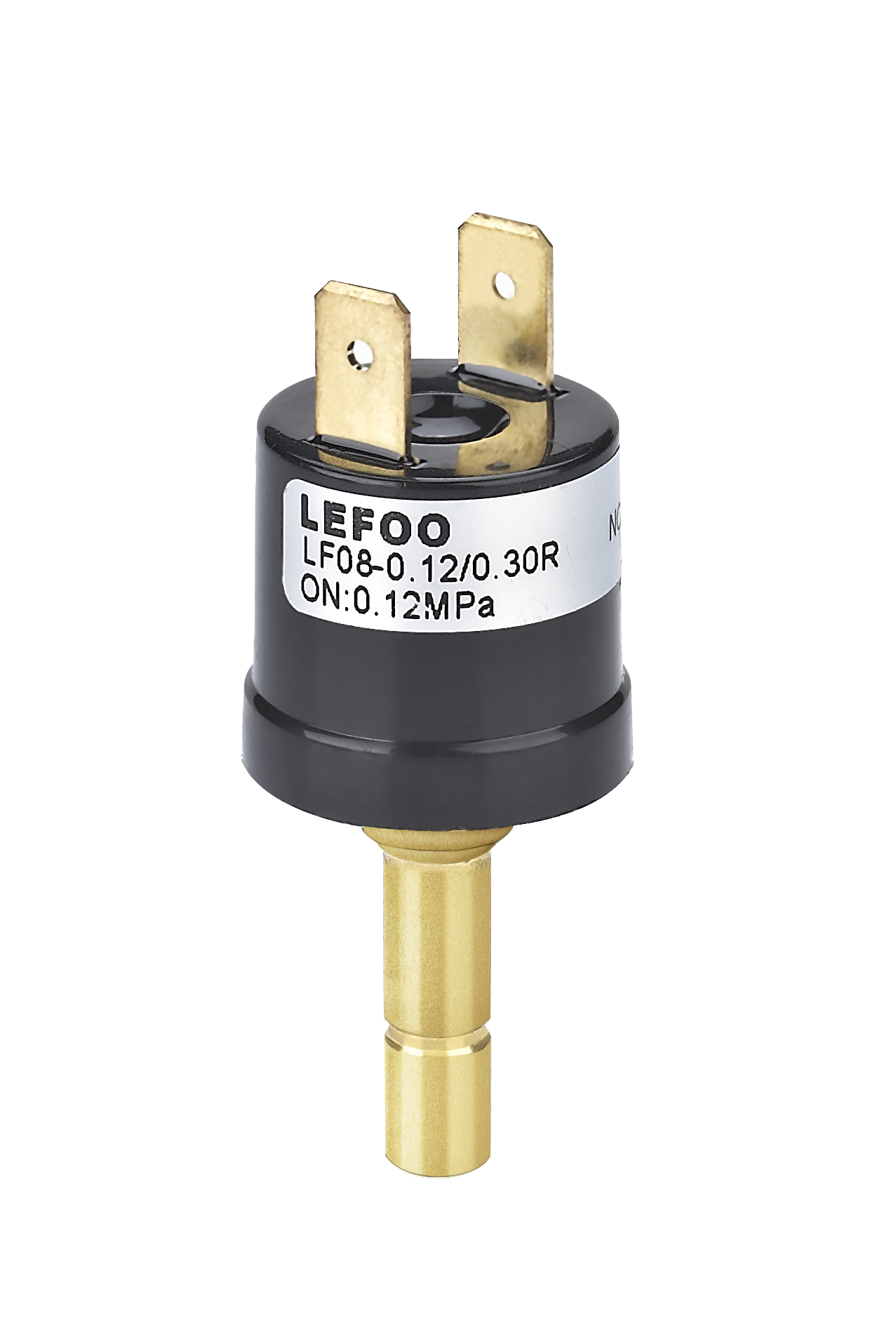

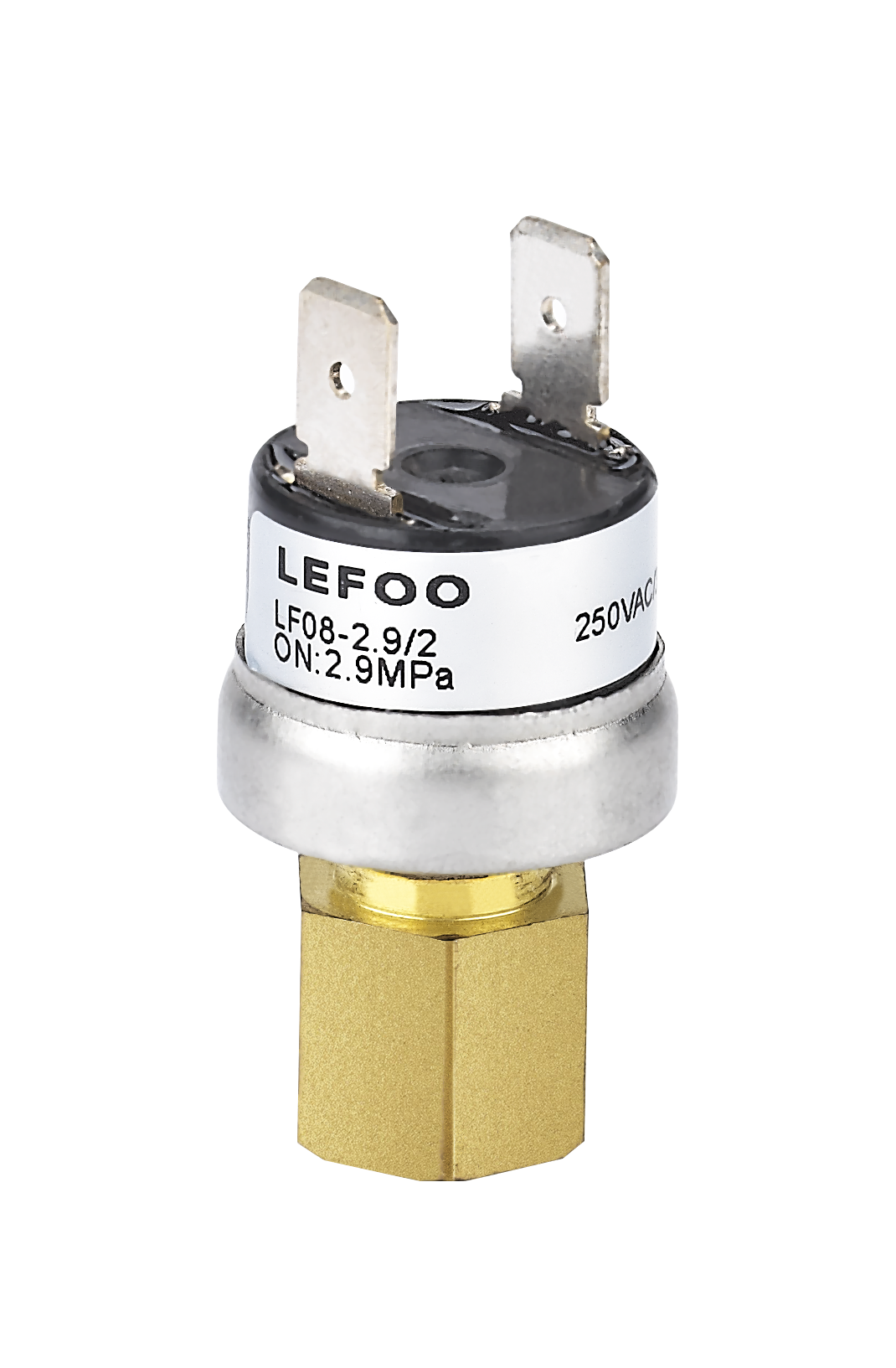

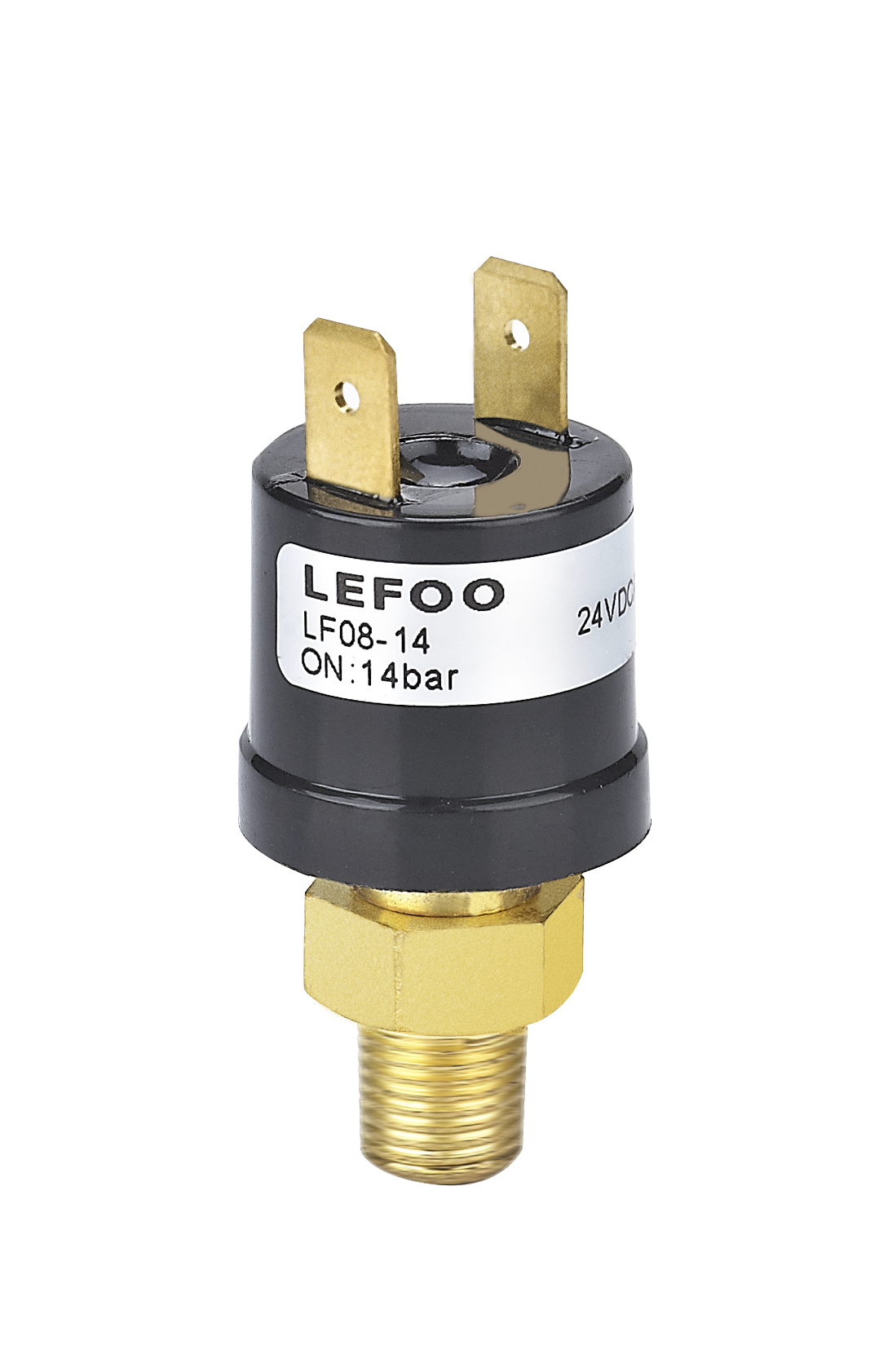

thisLF08Switches are fixed set point, factory calibrated pressure switches. It is self-resetting and can be a normally open or normally closed contact. All metal wetted parts make the LF08 switch compatible with a wide variety of chemicals in liquid or gaseous form.

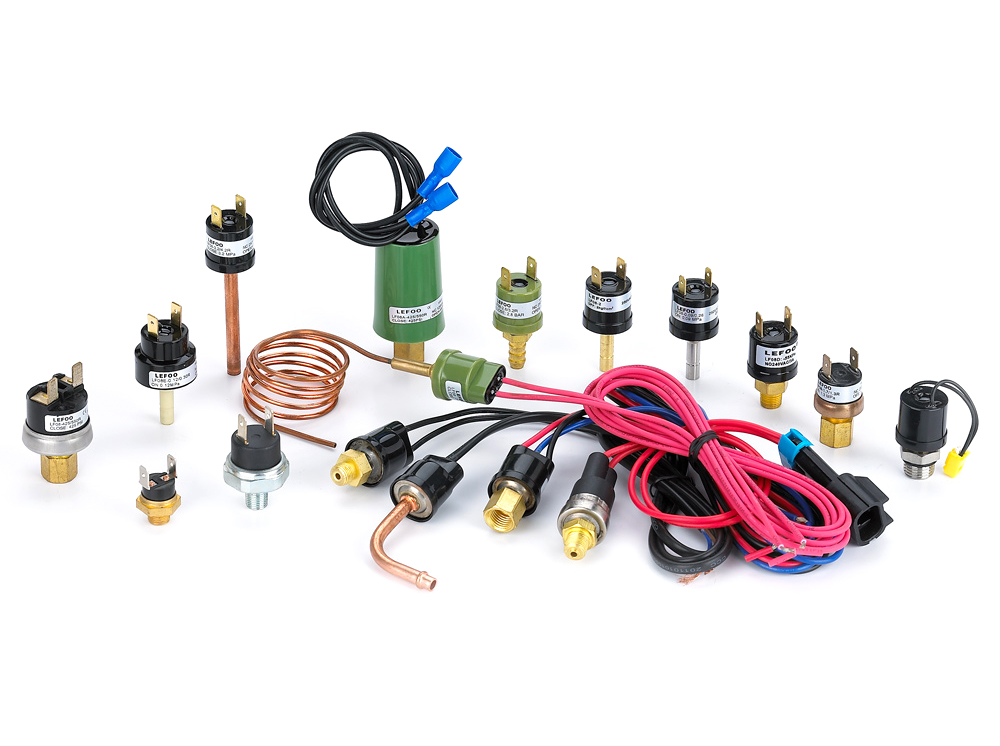

It offers many types of electrical terminations, from push-in terminals in different sizes and styles to wires with a range of standard industrial connectors.
In-house machining capabilities allow Lefoo to offer a wide range of pressure fittings, from different thread types and sizes to units with internal bleeders and copper tubing for sawing operations.
It offers many types of electrical terminations, from push-in terminals in different sizes and styles to wires with a range of standard industrial connectors.
In-house machining capabilities allow Lefoo to offer a wide range of pressure fittings, from different thread types and sizes to units with internal bleeders and copper tubing for sawing operations.

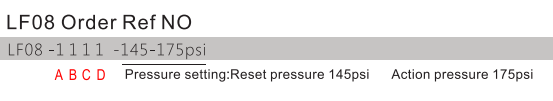

number | circuit | Substrate | connect | Electrical connections |
1 | SPST-NC | brass | 1/8 NPT | 6.35×0.8 |
2 | SPST-NO | galvanized steel | 1/4 NPT | 4.8×0.8 |

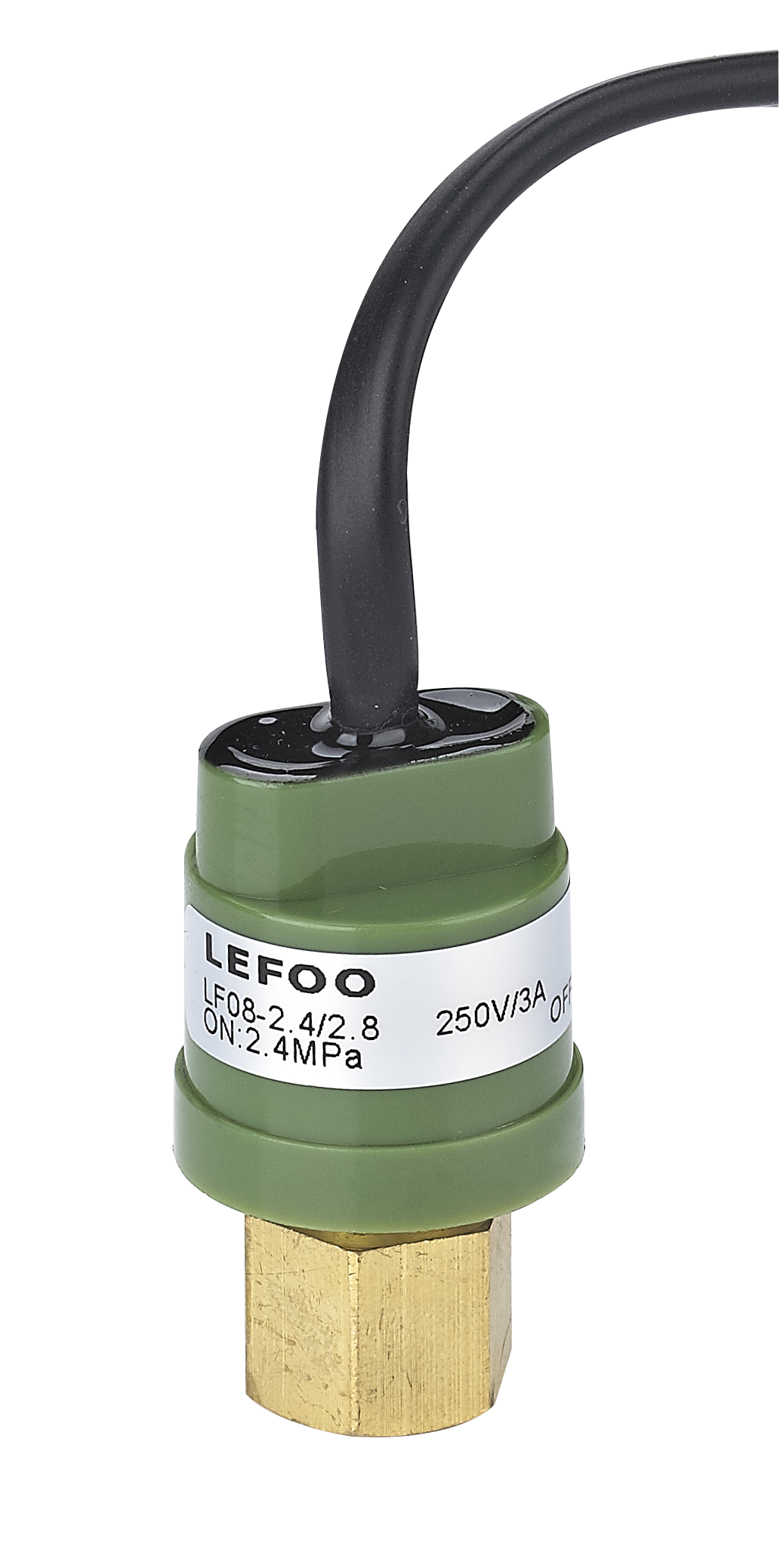

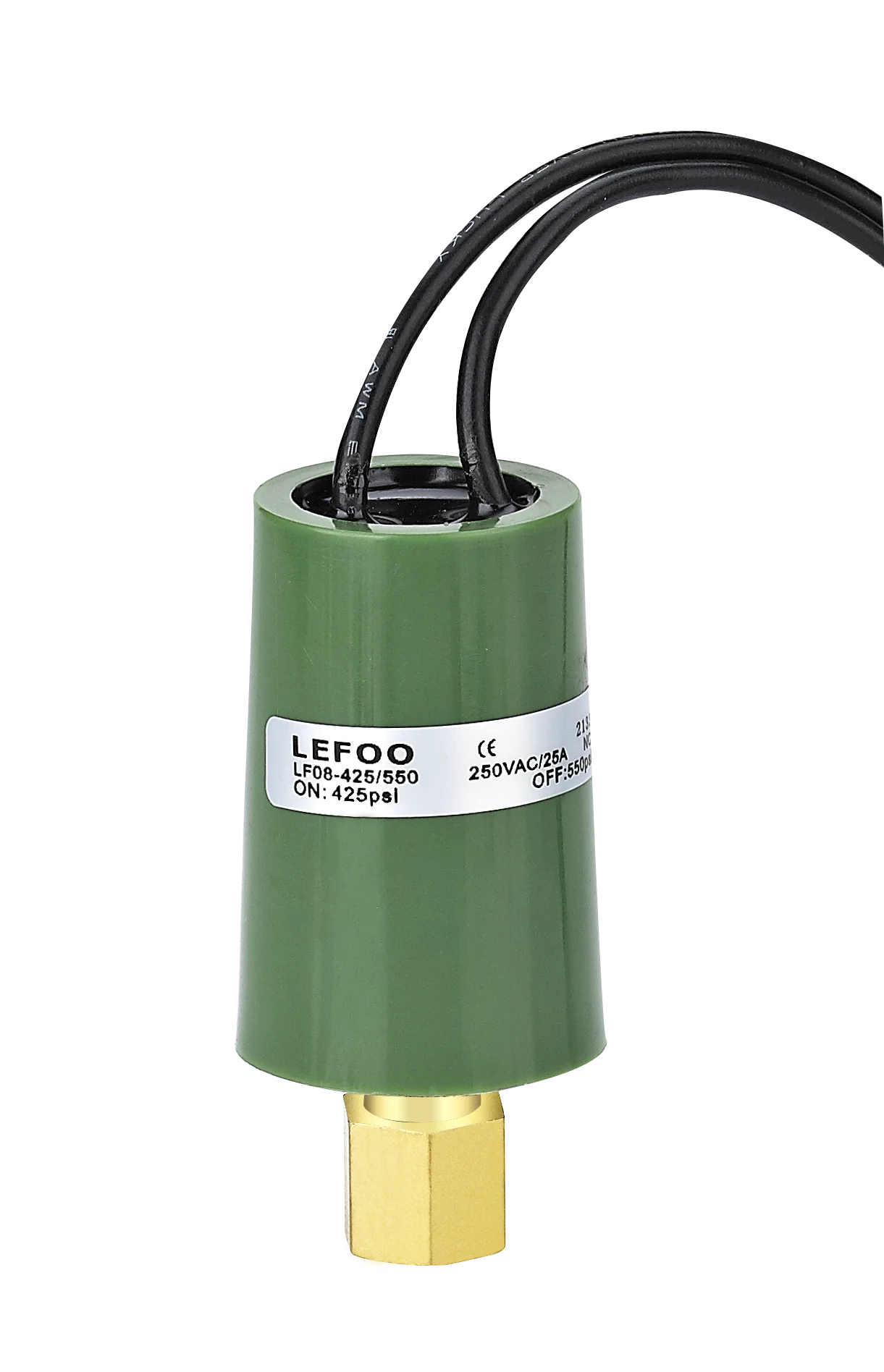

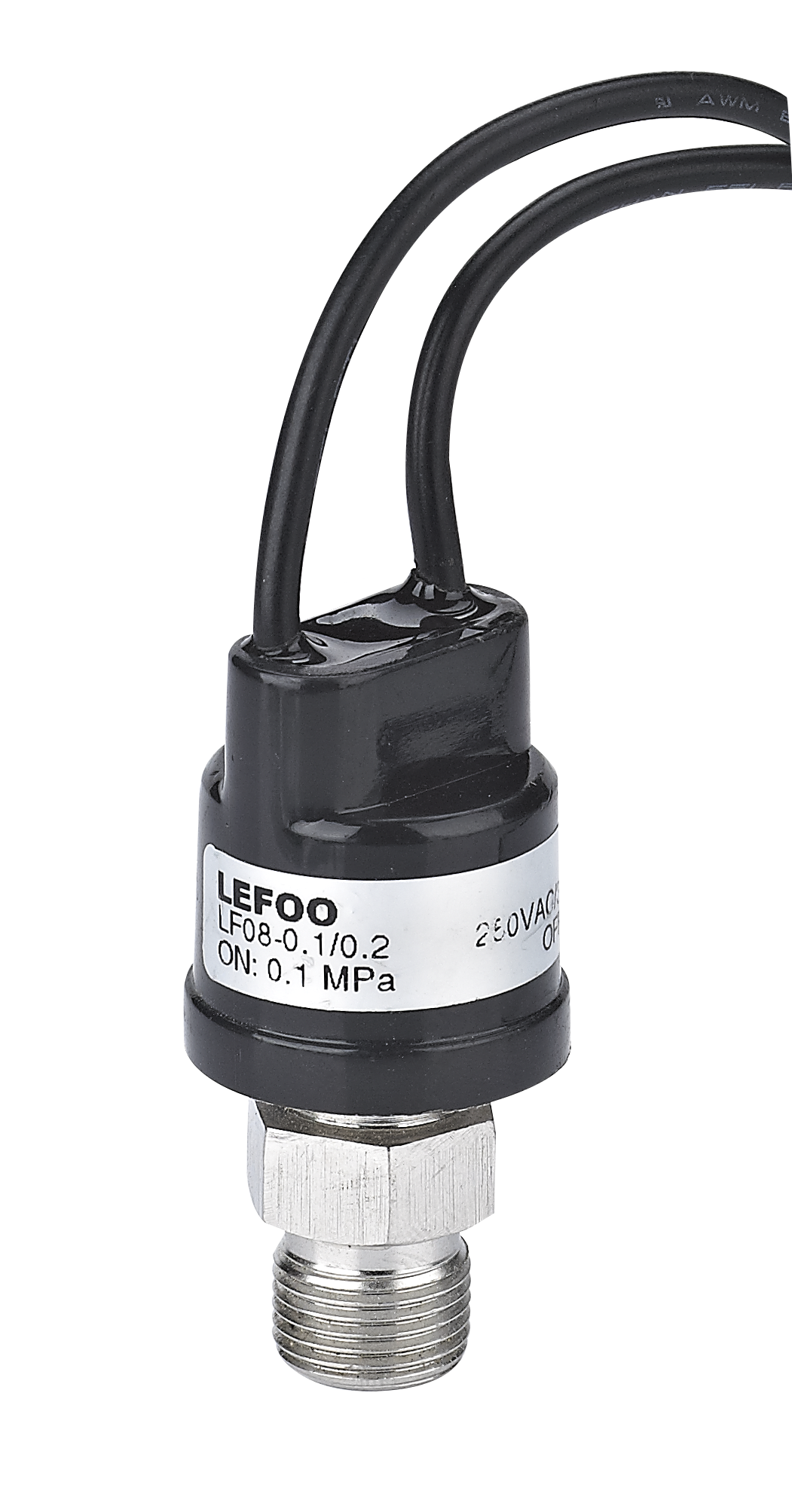

3 | SPDT | / | R1/8 | 18AWG wire |
4 | / | / | R1/4 | / |
5 | / | / | G1/8 | / |
6 | / | / | G1/4 | / |

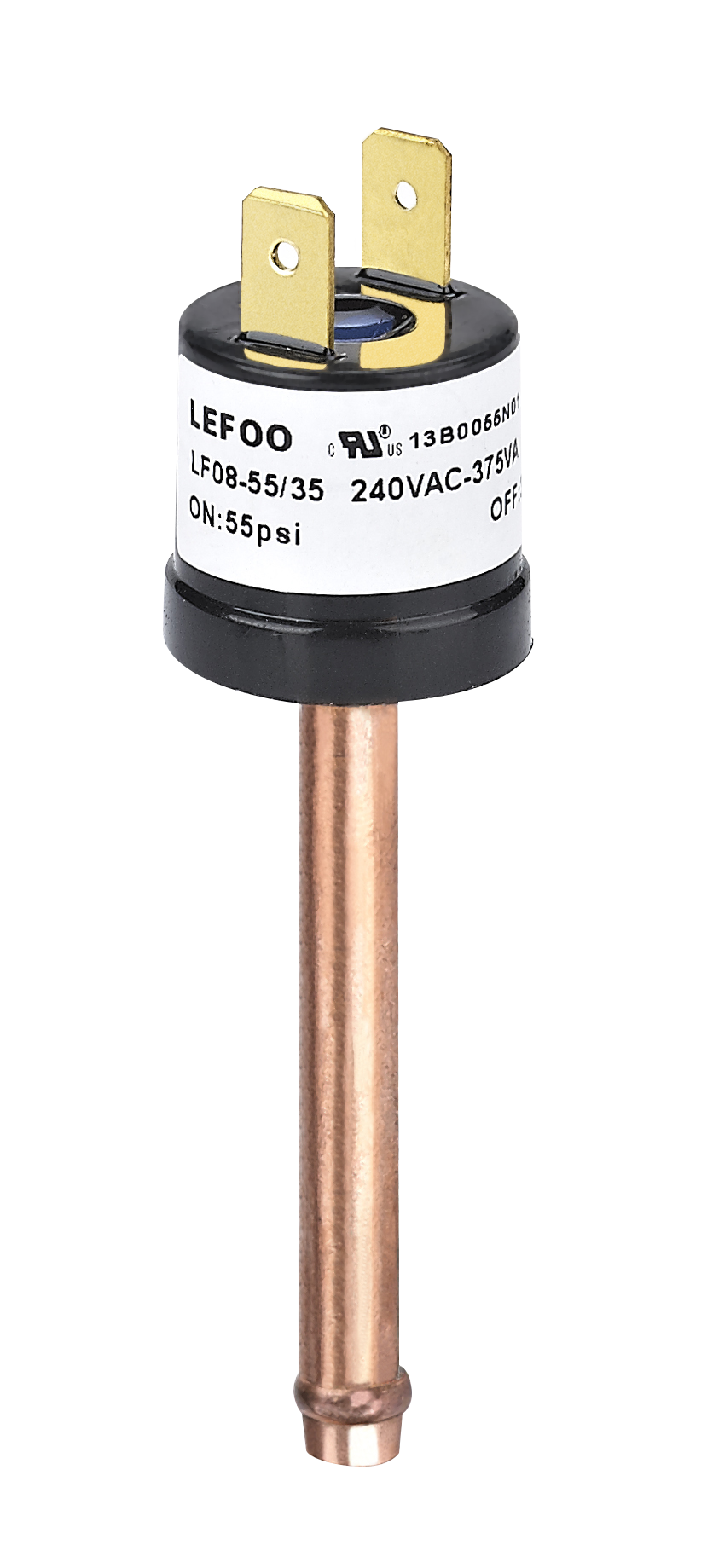

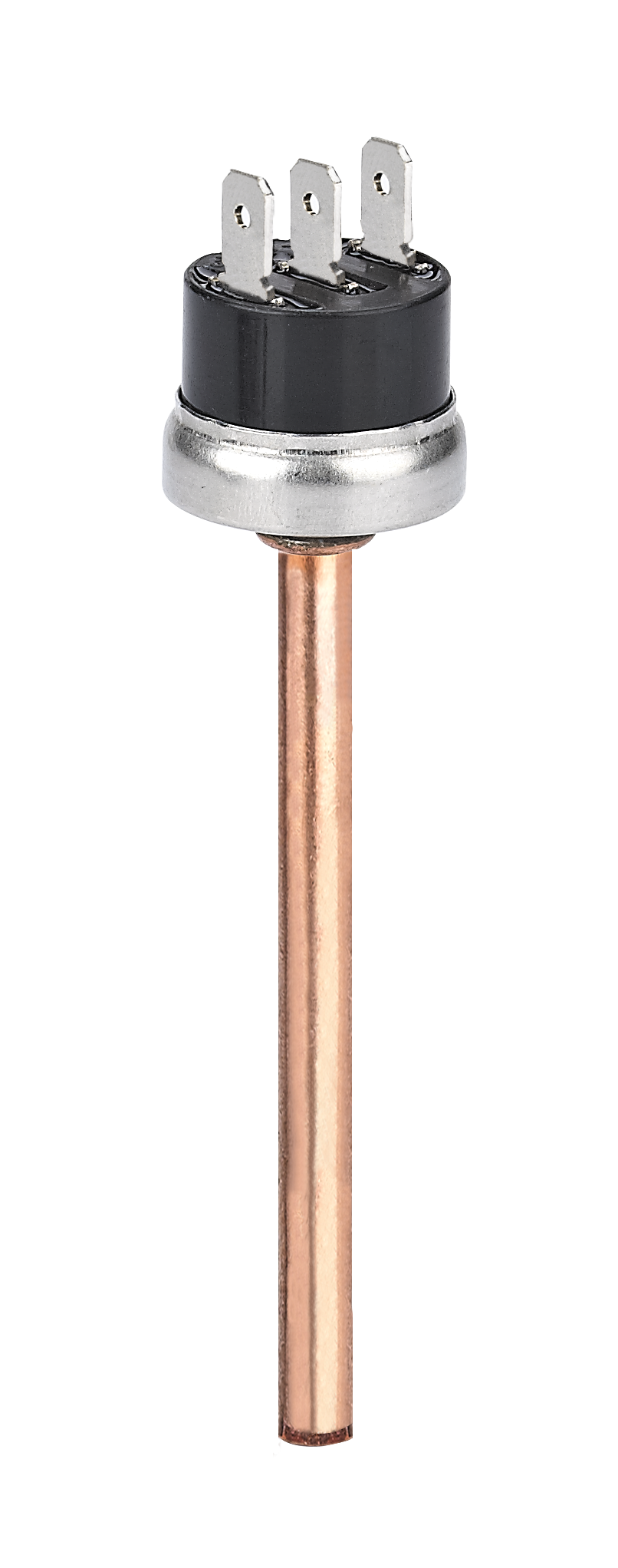

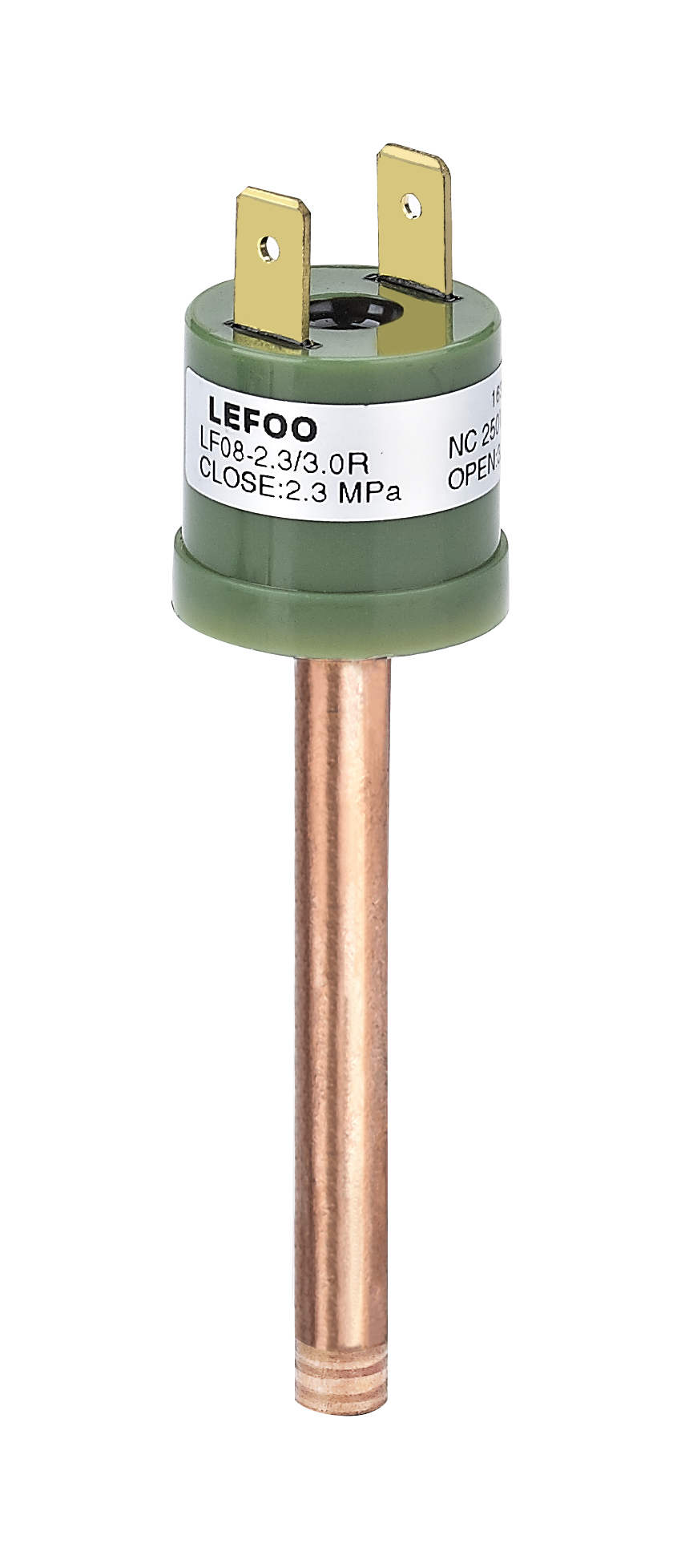

7 | / | / | 1/4 copper pipe | / |
8 | / | / | 7/16UNF male | / |
9 | / | / | 7/16UNF Female | / |
10 | / | / | 7/16UNF internal thread with deflector | / |
Specification
Model | LF08 | ||||
media | Air, water, motor, oil, transmission oil, hydrocarbon medium, refrigerant | ||||
pressure range/ tolerant/ withstand voltage | pressure range | tolerant | withstand voltage | ||
0.2~6bar (low pressure) | ±0.5bar | 15 bar | |||
6~10bar | ±0.7bar | 35 bar | |||
11~20bar | ±1bar | 45 bar | |||
21~30bar | ±1.5bar | ||||
31~45bar | ±1.5bar | ||||
burst pressure | 5000psi | ||||
range of working temperature | Ambient temperature: low pressure: -30~65℃, high pressure: -35~120℃ Medium temperature: -50~120℃ | ||||
switch type | SPST (NC or NO); SPDT | ||||
electrical rating | 120Vac 6FLA,40.2LRA;240Vac 4FLA,26LRA 120/240Vac 375VA;36Vdc 3A | ||||
endurance | 100000 | ||||
connect | Please see the selection table (customizable) | ||||
Electrical connections | 6.35*0.8 ; 4.8*0.8 : wire connection (customized length and electrical plug available) | ||||
Conversion: 1bar=14.5psi 1MPa=10bar
