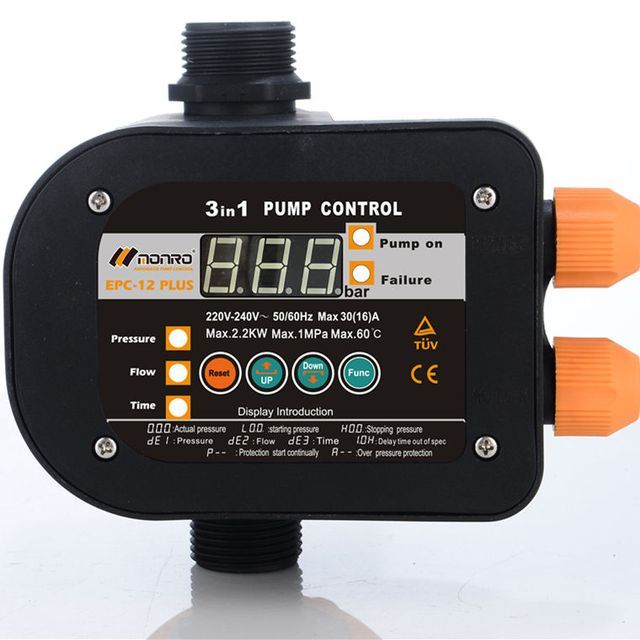

0819 New Design Manufacturer Zhejiang Monro EPC-12P 30A Digital Display 3 in 1 Electric Water Level Pressure Pump Control
- $10.00 / >=504 pieces
- 504 pieces
- Zhejiang Monro M&E Co., Ltd.
- Zhejiang, China
- Ms Candy Jiang
Product Detail
| port: | Ningbo or Shanghai | Protection class: | IP65 |
| color: | According to customer's request | product name: | adjustable pressure switch |
| Origin: | Zhejiang, China | Packaging Details: | Neutral packing; 12 pcs per carton Packing size: 52*44*28cm 12 pcs Carton gross weight: 15kgs |
| maximum. current: | 30A | Is it smart: | Yes |
| Maximum working temperature: | 60℃ | Supply capacity: | 50000pcs pressure pump control per month |
| maximum. Voltage: | 110-240V | maximum. Work pressure: | common |
| frequency: | 50/60 Hz | model: | EPC-12P Pressure Pump Control |
| Connection thread: | G1" | Activation pressure setting: | 0.8bar to 6.7bar |
| Maximum power: | 1.1KW / 0.55KW | Maximum current: | 30A |
| brand: | MONRO pressure pump control | payment terms: | L/C, T/T |
| Rated voltage: | 110V-240V | Certification: | CE;ISO9001;TUV |

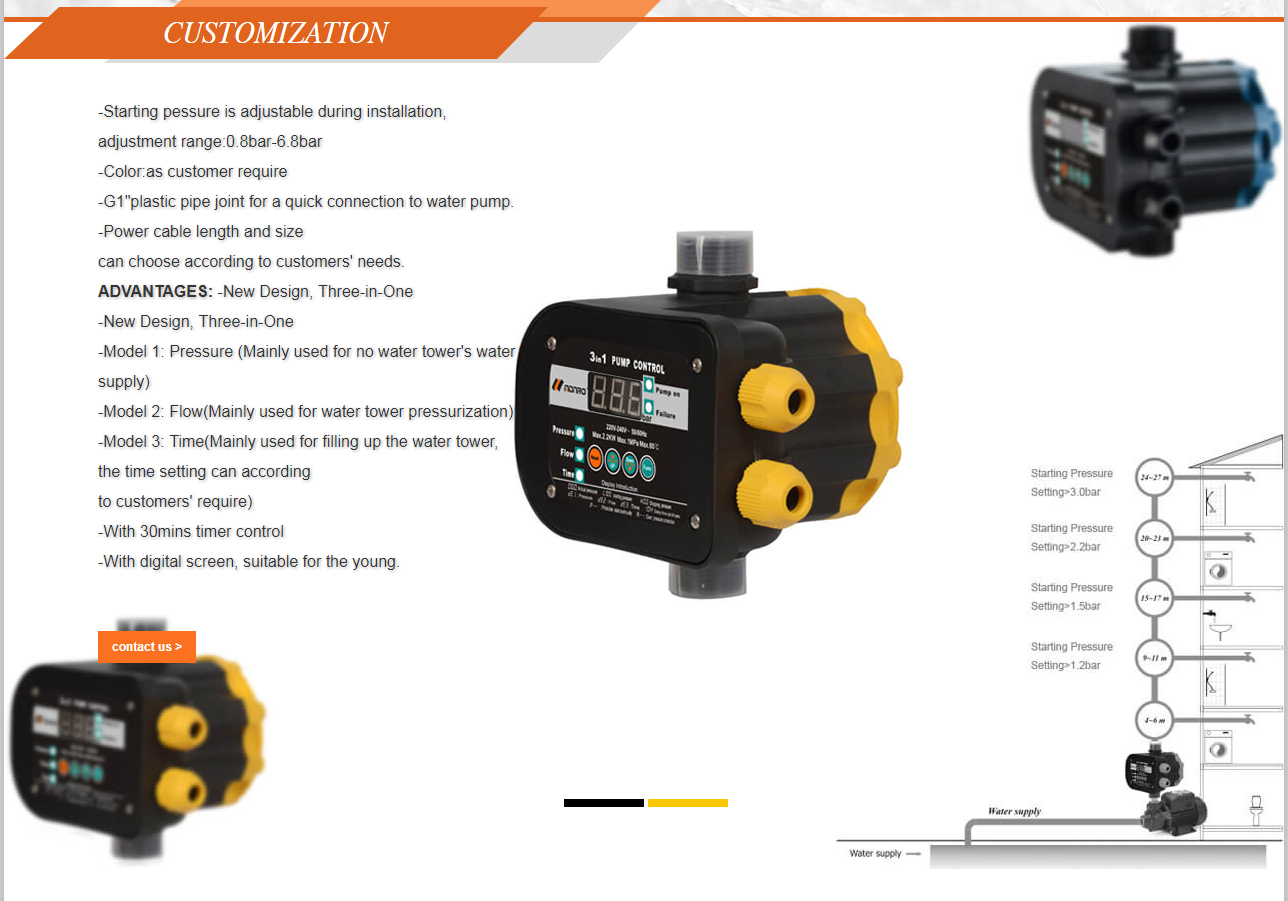

customized

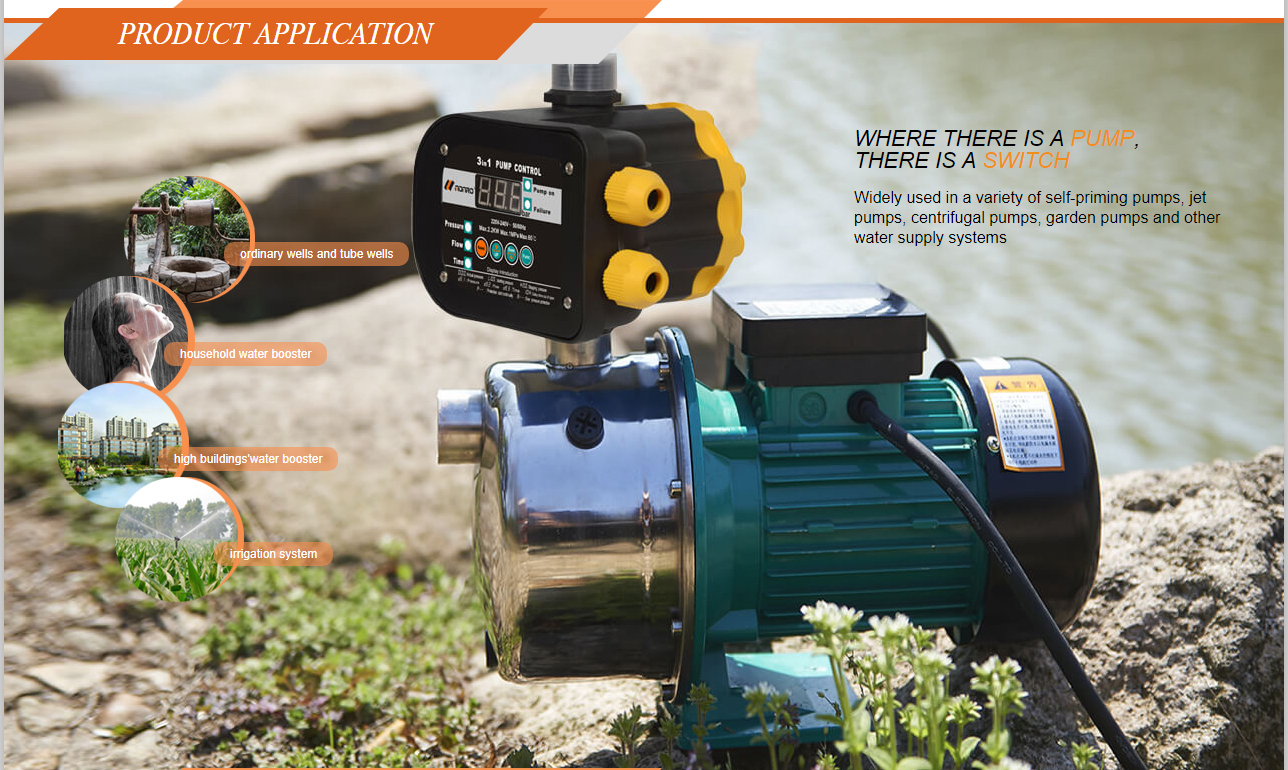

Applications

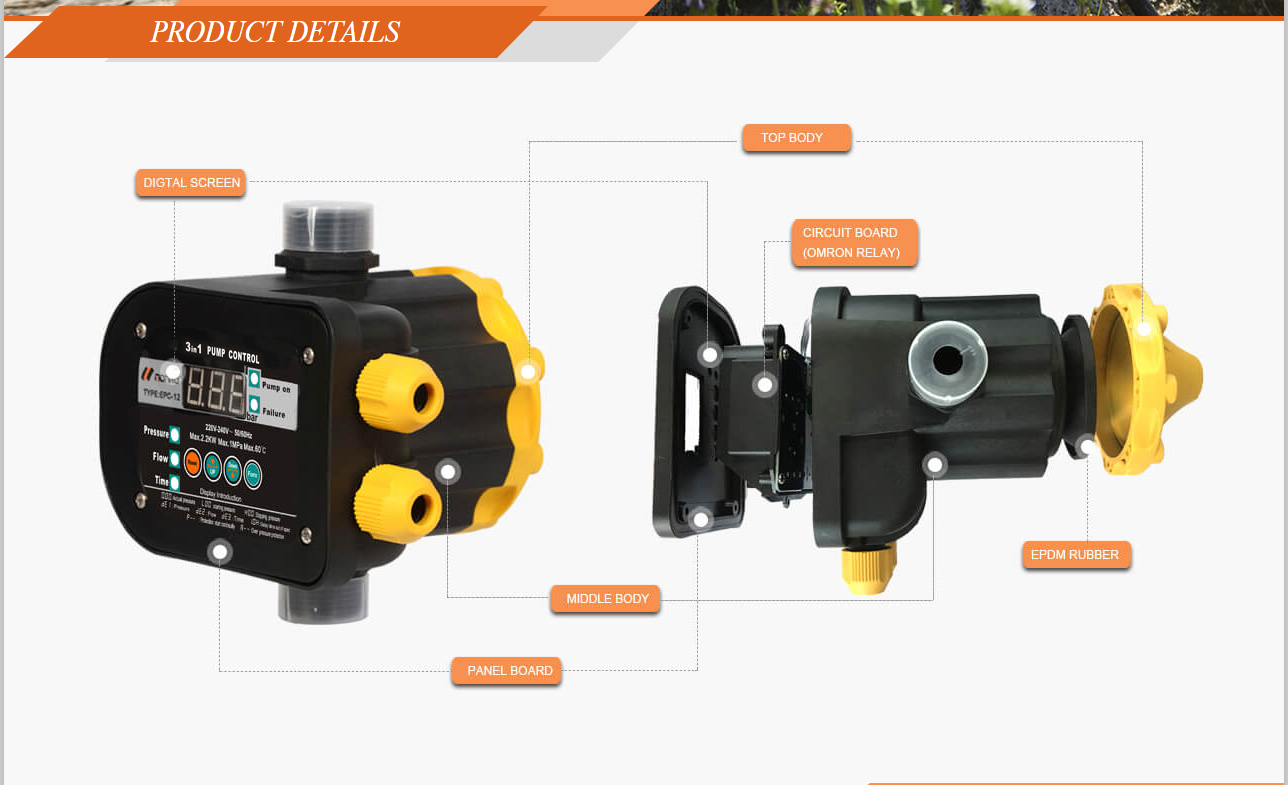

Product Details
Product parameters
Rated voltage | 220-240V | 110-120V | 110-240V |
power frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Maximum use current | 30A | 30A | 30A |
Maximum power | 2.2kw | 1.1 kW | 2.2kw |
Start pressure setting | 0.8bar-6.7bar | 0.8bar-6.7bar | 0.8bar-6.bar |
Connection thread | G1" | G1" | G1" |
degree of protection | IP65 | IP65 | IP65 |
working temperature | 60℃ | 60℃ | 60℃ |
Option: automatic control and water pump
| S. No. | Automatic controller start pressure | Pump head (m) | Distance between valve and automatic controller (m) |
1 | 1.2 bar | >22m | ＜12m |
2 | 1.5 bar | >25m | ＜15m |
3 | 2.2 bar | >35m | ＜22m |

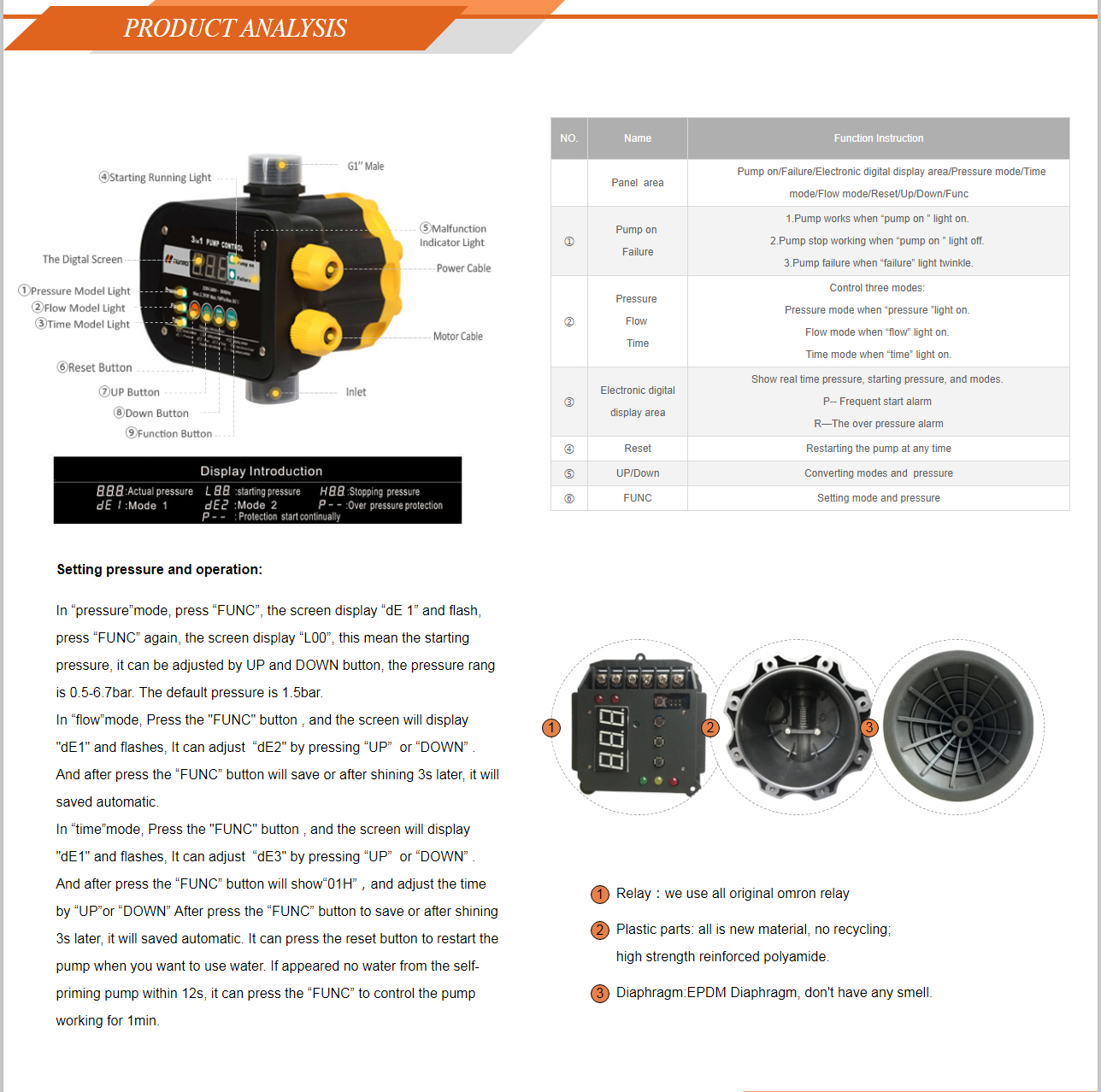

product analysis

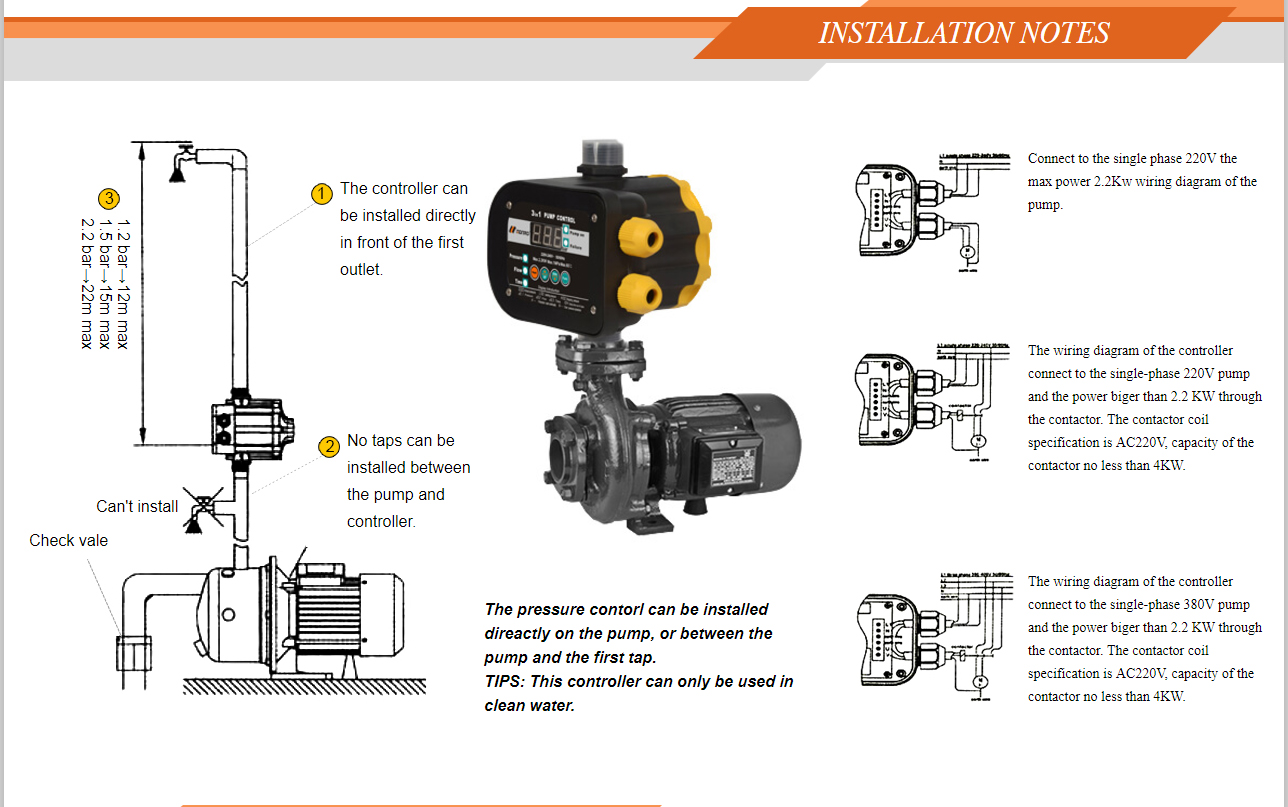

Installation Notes

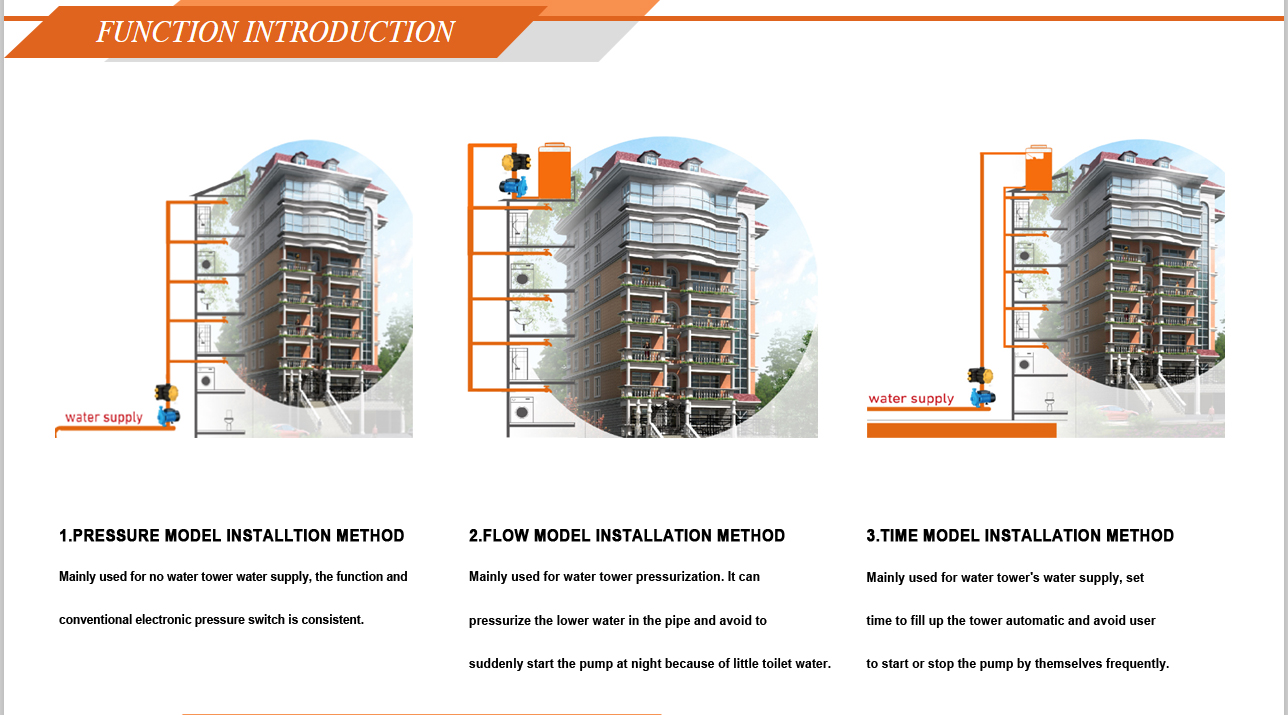

Features
VIEW MORE
