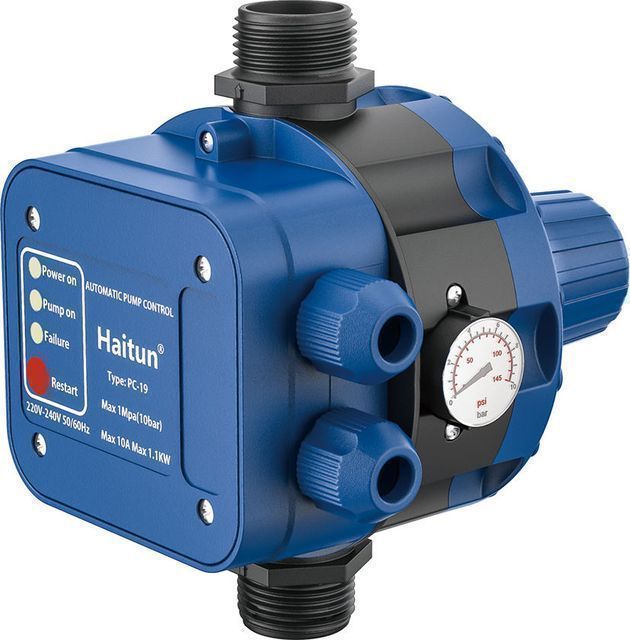

Haitun automatic water pump pressure control switch
-
$10.88 / 120 - 599 pieces
$10.50 / >=600 pieces - 120 pieces
- Zhejiang Shenneng Technology Co., Ltd.
- Zhejiang, China
- Ms Kelly Liu
Product Detail
| Packaging Details: | 12pcs/box | Is it smart: | Do not |
| connect: | G1" | model: | PC-19 |
| maximum. Voltage: | 220V | color: | customer request |
| Certification: | CE certification | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| maximum. Work pressure: | 10 bar | application: | pump system |
| Activation pressure setting: | 1.5bar 2.2bar | brand: | Haitun |
| Rated voltage: | 220V/110V | Warranty: | 1 year |
| Supply capacity: | 1000 pieces per day | delivery time: | 15~30 days |
| place of origin; place of origin: | Zhejiang, China | port: | Ningbo or Shanghai |
| maximum. current: | 10A |
Product overview
Technical data
1. Starting pressure: 1.5bar or 2.2bar
2. Maximum rated current: 10A
3. Maximum allowable pressure: 10bar
4. Rated voltage: 110V-120V or 220V-240V
5. Frequency: 50/60HZ
6. Maximum ambient temperature: 60°C
7. Protection level: IP65
2. Maximum rated current: 10A
3. Maximum allowable pressure: 10bar
4. Rated voltage: 110V-120V or 220V-240V
5. Frequency: 50/60HZ
6. Maximum ambient temperature: 60°C
7. Protection level: IP65
illustrate
1. The water system adopts electric switch.
2. Automatically start the electric pump when the pressure drops (the tap is opened), and stop the electric pump when the fluid flow is interrupted
The maximum pressure level of the electric pump (with the tap closed).
3. Connecting screw: G1" external thread.
4. Completely replace the traditional pump control system consisting of pressure switch, pressure tank, check valve, etc.
5. Stop the water pump when there is a shortage of water.
6. Customize settings.
2. Automatically start the electric pump when the pressure drops (the tap is opened), and stop the electric pump when the fluid flow is interrupted
The maximum pressure level of the electric pump (with the tap closed).
3. Connecting screw: G1" external thread.
4. Completely replace the traditional pump control system consisting of pressure switch, pressure tank, check valve, etc.
5. Stop the water pump when there is a shortage of water.
6. Customize settings.
options
1. Color.
2. G1" plastic pipe connector for quick connection to the water pump.
3. The length of the power cord can be selected by the customer.
2. G1" plastic pipe connector for quick connection to the water pump.
3. The length of the power cord can be selected by the customer.
