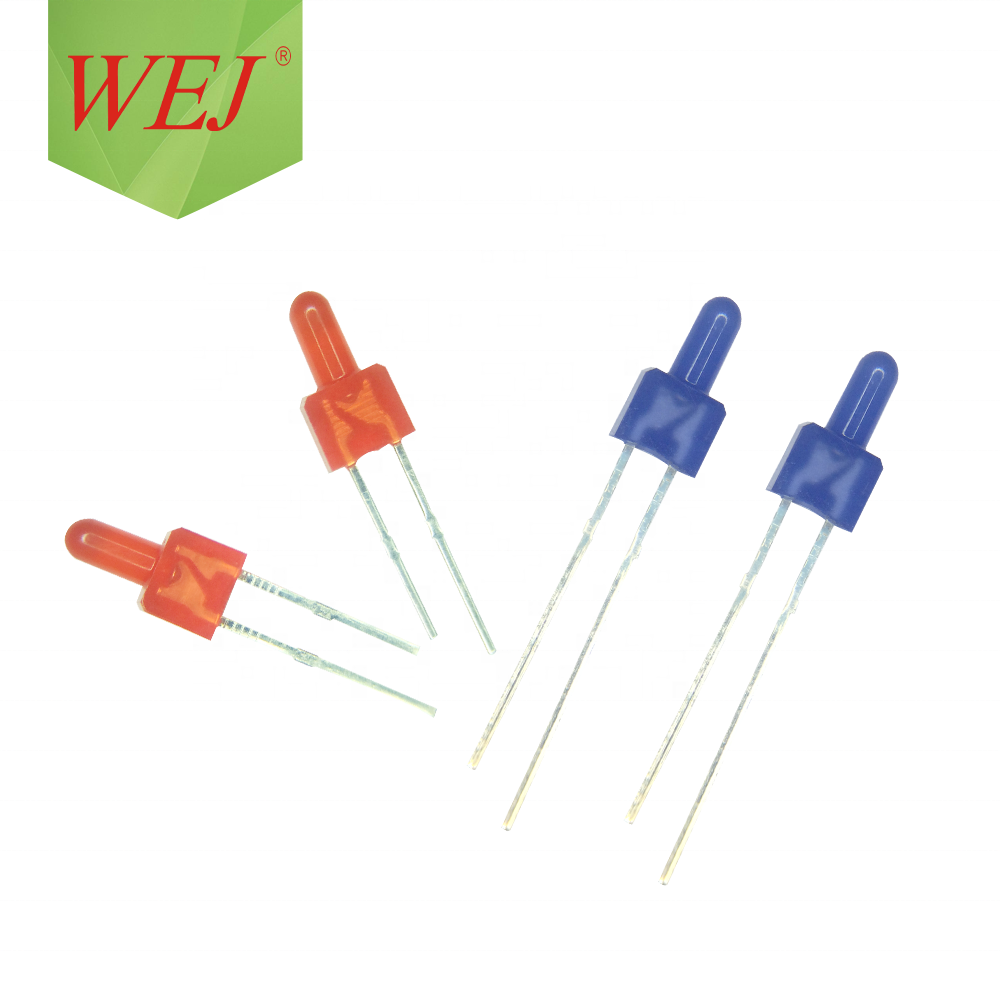

2mm Through Hole LED Monochrome Red, Blue, Yellow, Green Nipple LED 2mm 3V LED Diode
- $0.02 / >=1000 pieces
- 1000 pieces
- Shenzhen Yongerjia Industry Co., Ltd.
- Guangdong, China
- Ms Alice Zhong
Product Detail
| Packaging details: | 2mm pacifier LED rectangular LED 1000 pieces/bag Inner packaging: anti-static bag Outer packaging: carton | Luminous flux(lm): | .. |
| Working hours (hours): | 30000 | Color rendering index (Ra): | 0 |
| product name: | 2mm pacifier LED rectangular LED for electronic toys | Working temperature (℃): | -25-80 |
| Lamp luminous efficiency (lm/w): | 100 | light intensity: | 10-100mcd |
| Support dimmer: | Yes | Viewing angle: | 120 degrees |
| Color temperature (correlated color temperature): | .. | Viewing angle (°): | 120 |
| Glow color: | Red | Storage temperature (℃): | -45-85 |
| wavelength: | 620-630nm | Sales unit: | Single product |
| Chip material: | Yinggen | Glow color: | Red |
| Color temperature: | 0 | Input voltage (V): | 1.8 |
| Single piece packaging size: | 24X21X12cm | Gross weight of single piece: | 0.002kg |
| Luminous efficiency (lm/w): | 0 | Warranty period (years): | 2 years |
| Place of origin: | Guangdong, China | Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, LitePro DLX layout, Agi32 layout, automatic CAD layout, on-site metrology, project installation |
| brand: | WEJ | strength: | 0.06W |
| Power consumption: | 72 | Lifespan (hours): | 50000 |
| Light attenuation (%): | 5 | Package preview: | |
| Certification: | Restriction of Hazardous Substances Directive | light intensity: | 10-100mcd |
| type: | Lamp LED |
Product Description
part number | Glow color | Wavelength (nm)/color temperature (k) | Forward voltage (V) if=20mA | luminescent Strength(mcd) if=20mA | watch angle 2θ1/2(Spend) | |||
brightness | WEJ503RD-853 | Red | red diffusion | 630-640 | 1.8-2.4 | 90-210 | 60 | |
WEJ503RD-851 | Red | red diffusion | 620-630 | 1.8-2.4 | 350-780 | 30 | ||
WEJ503HD | green | green diffusion | 565-575 | 1.8-2.4 | 20-70 | 40 | ||
WEJ503HD-723 | green | green diffusion | 565-575 | 1.8-2.4 | 45-120 | 40 | ||
WEJ503HD-983 | green | green diffusion | 565-575 | 1.8-2.4 | 90-460 | 40 | ||
WEJ503YD-852 | yellow | yellow diffusion | 585-595 | 1.8-2.4 | 270-600 | 40 | ||
WEJ504GD-8K4 | emerald | green diffusion | 520-530 | 2.8-3.4 | 2900-6500 | 40 | ||
WEJ504BD-8K4 | blue | blue diffusion | 460-470 | 2.8-3.4 | 780-1300 | 40 | ||
High brightness | WEJ503RC-853 | Red | water clear | 630-640 | 1.8-2.4 | 1300-2900 | 15 | |
WEJ503RC-881 | Red | water clear | 620-630 | 1.8-2.4 | 2900-6500 | 15 | ||
WEJ503RC-9A1 | Red | water clear | 620-630 | 1.8-2.4 | 5000-14000 | 15 | ||
WEJ503HC-833 | green | water clear | 565-575 | 1.8-2.4 | 460-1000 | 15 | ||
WEJ503YC-853 | yellow | water clear | 585-595 | 1.8-2.4 | 1800-3500 | 15 | ||
WEJ504GC-8K4 | emerald | water clear | 520-530 | 2.8-3.4 | 11000-23000 | 15 | ||
WEJ503BC-8K4 | blue | water clear | 460-470 | 2.8-3.4 | 6500-14000 | 15 | ||
feature | Application areas |
√ Low current drive. √ Low power consumption. √ High temperature resistant epoxy resin. √ Famous brand chips. √ 99.9% pure gold wire. √ Long service life. | Indoor and outdoor commercial lighting architectural lighting general lighting traffic light Car lights, headlights Mood lighting, LED modules LCD TV/monitor backlight LED display, reading light, LED flashlight more…… |
