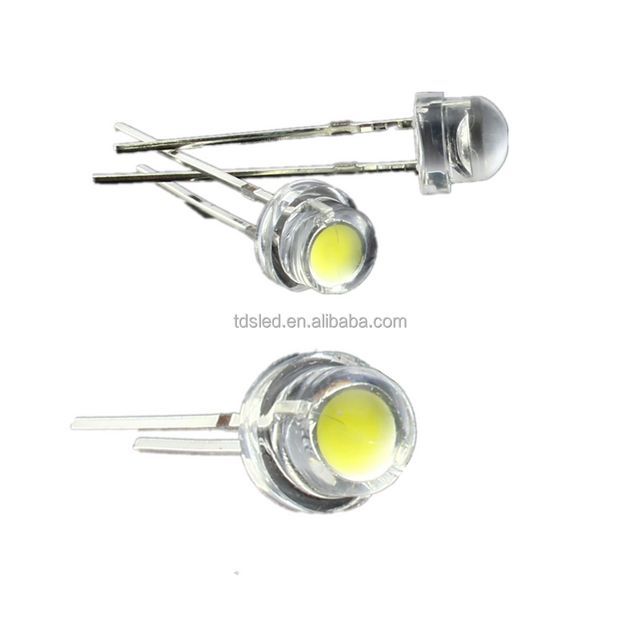

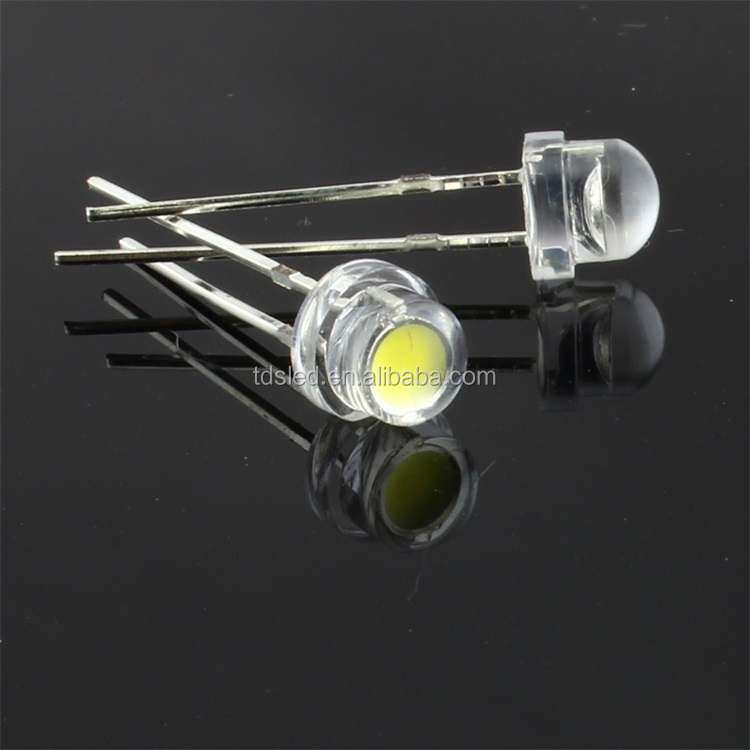

Straw hat 0.2W 5mm LED light 120 - 160 degrees beam angle

Product Detail

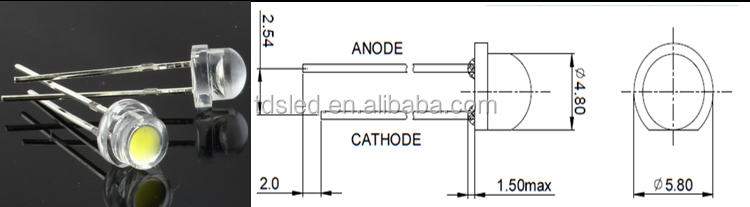

Pin length:13mm (short needle)Beam angle:120-160 degrees
Color rendering index (Ra):75Shipping Details:Shipped within 3 days after payment
Lens Color:clear water/diffuseWorking temperature(℃):-20 - 80
Luminous flux (lm):7-8-9lm / 20-25lmport:Shanghai
Warranty:5 yearschip:Epistar/Hu Jia
Supply capacity:5,000,000 pieces per monthStorage temperature(℃):-30 - 70
Viewing angle(°):120-160payment terms:T/T, Western Union, MoneyGram, PayPal
model:TDS-5013 serieslight intensity:3000-4000MCD
Origin:Jiangsu, ChinaLuminous color:warm white/pure white/cool white
Light attenuation (%):0.0005Packaging Details:Anti-static bag/tap packaging/1 bag=500pcs or 1000pcs/5000pcs=1kg
current:20mA (0.06W) 60mA (0.2W)Power Consumption:0.001
Certification:CE, RoHSbrand:TDS
strength:0.06W, 0.06W 0.2Wsample:free sample
brightness:8-9lm(0.06W) 22-25lm(0.02)Chip material:Ingen

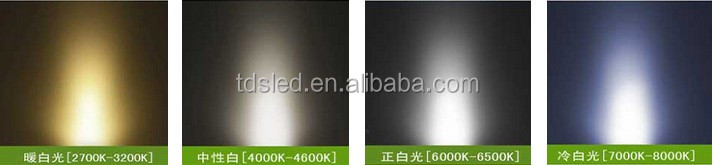

Color temperature:2000-25000K
Product Description

Part Numberchip materialλD(nm) color temperature
typical value.
strengthIIV(mcd)@mef=20mAVf(5) @我f=20mAViewing angle
2θ½
minutemaximum.minutemaximum.
TDS-5013LW4CNInGaN2700-20000K0.06W5-6 lumens200022003.03.4120-140
TDS-5013NW4CNInGaN2700-20000K0.06W6-7 lumens240026003.03.4120-140
TDS-5013PW4CNInGaN2700-20000K0.06W7-8 lumens280030003.03.4120-140
TDS-5013LW4CNInGaN2700-20000K0.06W8-9 lumens320035003.03.4120-140
TDS-5013HR2CNInGaN620-630 nautical miles0.06W4-5 lumens140016001.92.3120-140
TDS-5013AY3CNInGaN580-595 nautical miles0.06W5-6 lumens200030001.92.3120-140
TDS-5013RB2CNInGaN450-465 nautical miles0.06W3-4 lumens120014003.04.0120-140
TDS-5013BG5CNInGaN515-530 nautical miles0.06W5-6 lumens200030003.04.0120-140



Below is the data for a 0.2W 5mm Strawhat LED. (60mA 3-3.2V with bigger reflector)

Part Numberchip materialλD(nm) color temperature
typical value.
strengthIIV(mcd)@mef=60mAVf(5) @我f=20mAViewing angle
2θ½
minutemaximum.minutemaximum.
TDS-5013NW2CNInGaN2000-15000K0.2W19-22LM600080003.03.4140-160
TDS-5013NW3CNInGaN2000-15000K0.2W25-30 lumens600080003.03.4140-160
