F5 round 5mm super bright LED concave diode with pink light
- 1 piece
- Ningbo Junsheng Electronics Co., Ltd.
- Zhejiang, China
- Ms Becky Sun
Product Detail

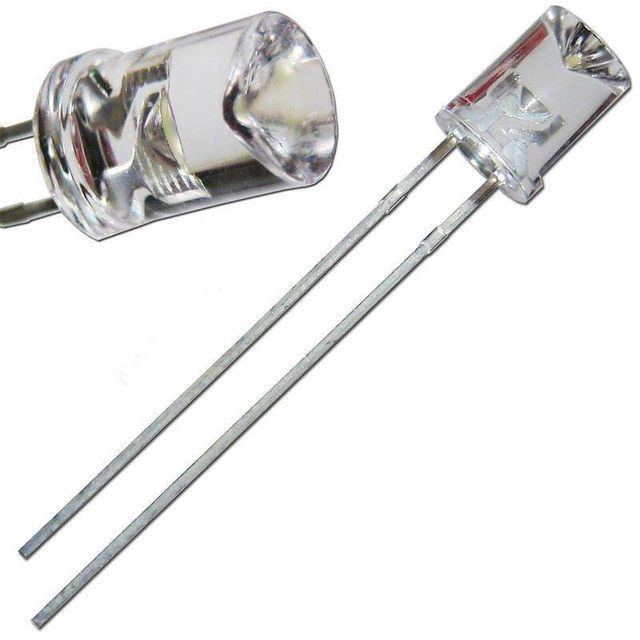

F5 round 5mm super bright LED concave diode with pink light
5mm concave LED diode
Super bright display and logo
Long life solid state reliability
RoHs compliant.
5mm concaveLED diode
Main characteristics of LED diodes
|
part number |
emission color |
Lens color |
wavelength (nanometer) |
IV(mcd)@IF=20mA |
Voltage (five) |
angle (Spend) |
|
JSL-507UPC |
pink |
water color clear |
---- |
500-1000 |
2.8-3.3 |
120 |
LED diode
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, flux LED.
2. Chip material: InGaN. Aluminum gallium indium
3. Luminous colors: white, red, yellow, pure green, yellow-green, blue, amber, orange.
4. Lens color: water clear, color transparent, color diffuse, white diffuse
5. Available wavelengths: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm (peak wavelength measurement error 5.0nm)
6. Available color temperatures: 3300K, 6500K, 7000~8000K
7. Application: lighting, interior decoration, engineering construction, display, traffic lights, etc.
8. Available angles: 20 degrees, 30 degrees, 40 degrees, 45 degrees, 70 degrees, 110 degrees
9. Excellent performance in outdoor/indoor environments
10. Sample delivery time: within 3-5 days; order delivery time: within 7-15 days after payment
dominant wavelength
Red: 640nm to 645nm
Highlight red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Transponder voltage:
Red/yellow/yellow-green: 1.8-2.1V
Blue/pure green/white: 3.0~3.6V
