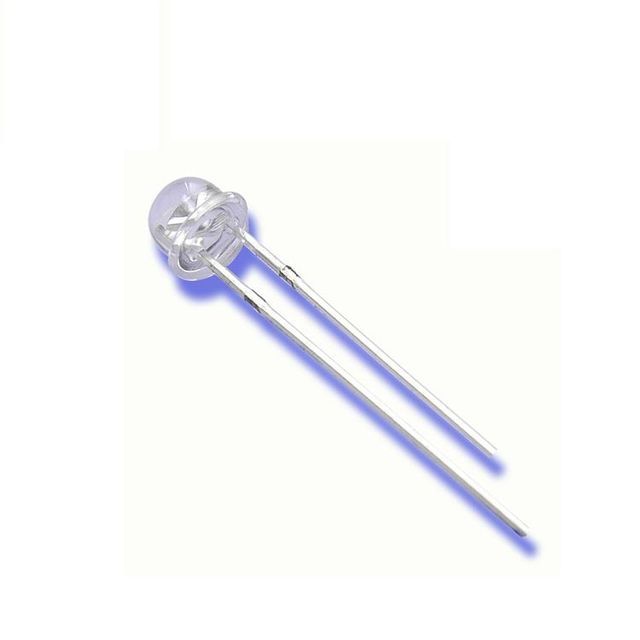

Wholesale Bright 5mm Straw Hat LED Diode/Red Bright 5mm LED Chip

Product Detail

Working hours (hours):50000Input voltage (V):DC 2V
Chip material:AlGaInPstrength:0.044W
port:GuangzhouLight attenuation (%):0.1
Product weight (kg):0.001Color temperature:Red
Warranty period (years):2 yearsPower Consumption:1
Working temperature(℃):-25 - 85payment terms:L/C, Western Union, T/T, MoneyGram, PayPal
Luminous color:RedLighting Solutions Services:Lighting and Circuit Design, DIALux evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Site Metrology, Project Installation
Luminous flux (lm):lumenOrigin:Guangdong, China
light intensity:400-800mcdViewing Angle (°):120
type:light ledCertification:CE, RoHS
Packaging Details:1000pcs/bagSupply capacity:5000 bags per month
brand:red gouchonStorage temperature(℃):-35 - 105
Lifespan (hours):50000



Wholesale Bright 5mm Straw Hat LED Diode/Red Bright 5mm LED Chip
Product Description



Features

• Well-known chip materials

• 99.99% gold wire bonding

• High brightness LED

• More energy efficient than incandescent and most halogen lamps

• Low voltage DC power supply

• Instant light emission (less than 100ns)

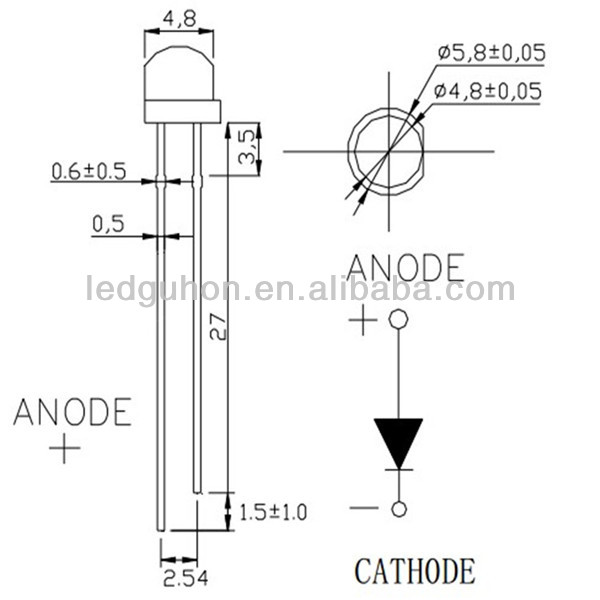

Product Size

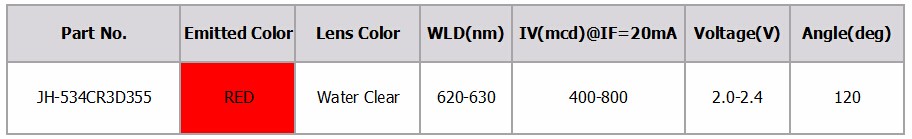

Product Electrical Data

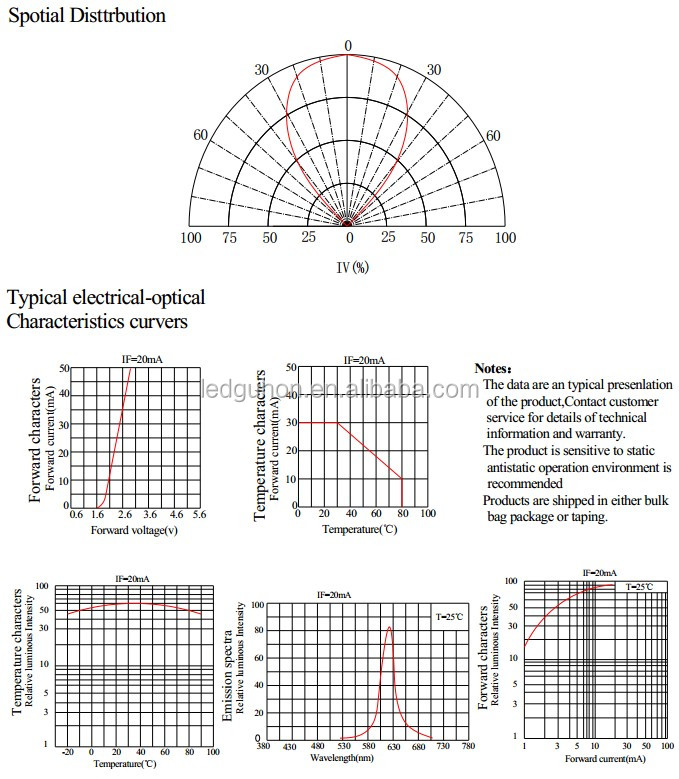

Optical characteristic curve

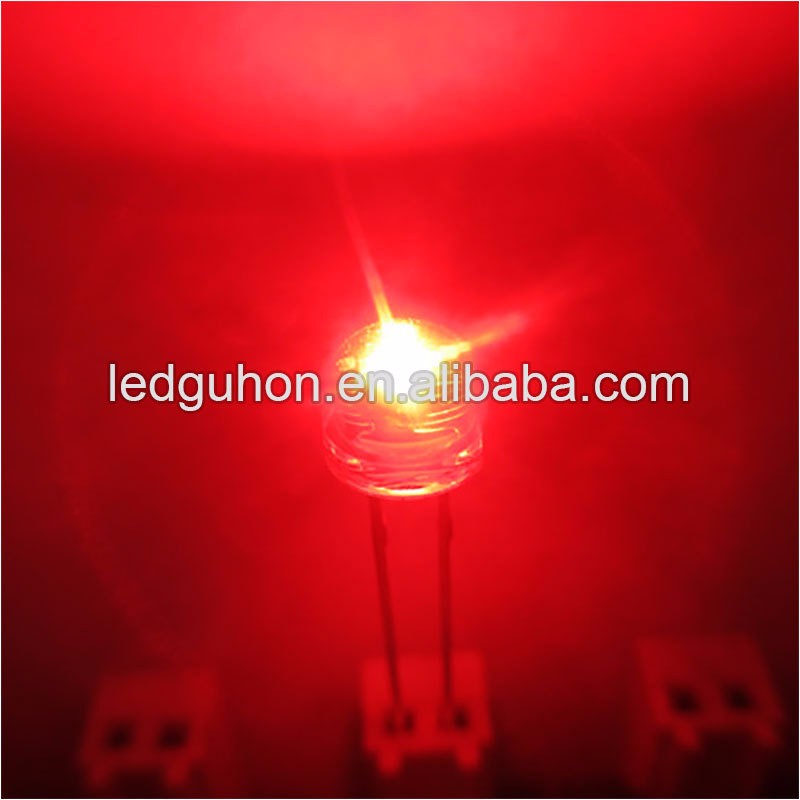

product effect

(for reference only!!~~)







Product Usage



typical application

• LED bulbs, LED tubes, LED strips

• LED display, LED sign

• Decoration/Entertainment: LED Christmas Tree Lights

• Bollards/Security/Garden

• Indoor/outdoor commercial and residential buildings

• Automotive Exterior (Tail-Turn, CHMSL, Side Indicators)

Packaging and Shipping







Production Process



static electricity

• Static electricity or surge voltage can damage high power LEDs. It is recommended to use a wrist strap or anti-static gloves when handling LEDs.

• The tip of the soldering iron is required to be grounded, and an ion generator should be installed where there is a danger of static electricity.

• All installations, equipment and machinery must be properly grounded. It is recommended to take surge voltage measures for equipment installed with high-power LEDs.



fever

• When the LED is emitting light, the operating current should be determined considering the maximum ambient temperature.

• Please consider LED heat generation when designing PCB.

• LEDs must be mounted on a metal core PCB or heat sink or applied thermal pad.







CAUTION: Electrostatic Discharge (ESD) Protection

The symbols shown above are used to describe "electro-optical characteristics". Although AIGaInP and InGaN are safe under low electrostatic discharge, ESD protection of chips based on AIGaInP and InGaN is still necessary. The materials in AIGaInP and InGaN chips are static sensitive devices. ESD protection must be considered and taken at the initial design stage. If manual handling is required, make sure the device has good ESD protection throughout the process.
