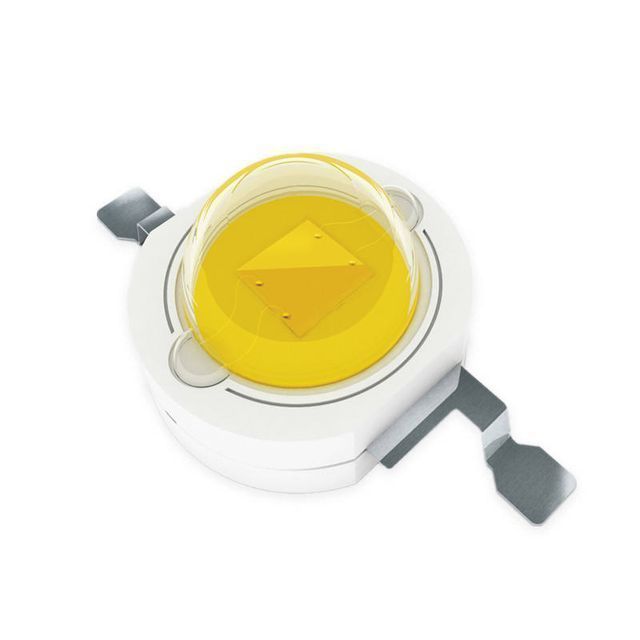

led high power lamp 1W 3W Epistar/Puri chip 80-310LM
- $0.001 /piece
- 1 piece
- Shenzhen Getian Opto-Electronics Co., Ltd.
- Guangdong, China
- Ms Jenny Liao
Product Detail
| Supply capacity: | 8,000,000 pieces per month | payment terms: | T/T, Western Union, PayPal |
| type: | high power LED, high power LED | brand: | Ge Tian |
| Voltage: | 2.8-3.4V | Luminous flux (lm): | 120-140 |
| Working temperature(℃): | -40 - 65 | Viewing angle(°): | 120 |
| Packaging Details: | 50pcs/pallet, 20 pallets/carton or 200 pallets/carton LED high power light 1W 3W with Epistar/Bridgelux chip 80-310LM | Certification: | CE, RoHS |
| place of origin; place of origin: | Guangdong, China | Chip material: | Ingen |
| Junction temperature: | 115 degrees | Color temperature: | 2600-7000K |
| Color rendering index (Ra): | 70 | light intensity: | 120-140 lumens/watt |
| current: | 750mA | LED chips: | Epistar 33 million |
| Color rendering index: | 70Ra / >80Ra | OEM/ODM service: | usable |

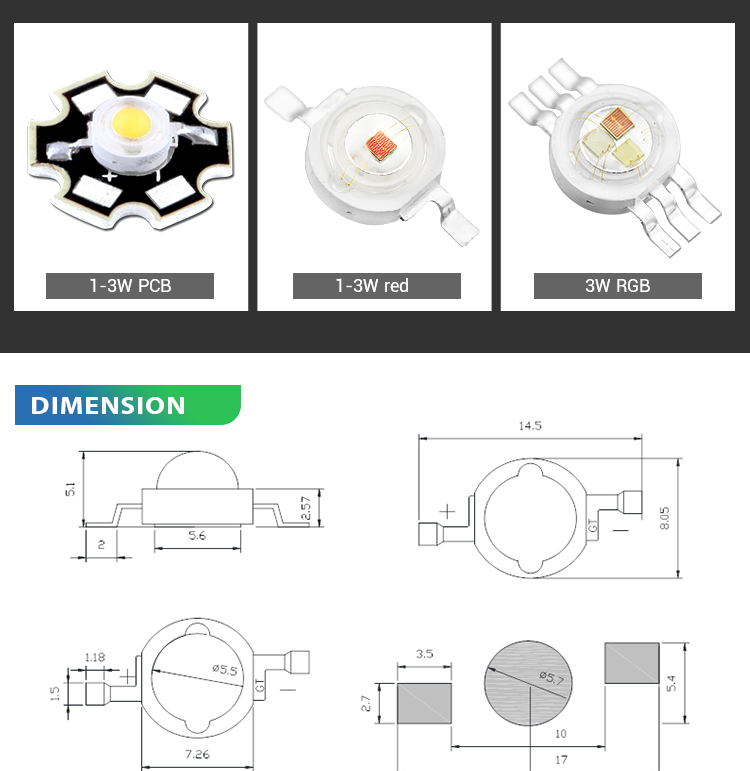

| Luminous area diameter: | 5.5mm | Dimensions Length*Width: | 14.5*8.05mm |
| Luminous color: | Natural White, Warm White/Natural White/Cool White/Cool White | Storage temperature(℃): | -40 - 85 |
| port: | Shenzhen | Power Consumption: | 1 |
| strength: | 1-3W | Light attenuation (%): | 3 |
Product Description
led high power lamp 1W 3W Epistar/Puri chip 80-310LM
Getian K2 white light high-power LED series (passed LM-80 certification in 2013) is specially designed for outdoor high-power lighting, with the ultimate cost performance. Getian's unique and perfect combination of raw materials and strict reliability tests (such as: temperature shock test; high temperature aging test, etc.) ensure its stability and excellent performance in terms of thermal conductivity, CCT uniformity, light quality and ultra-high light output. Widely used in street lamps, spotlights, wall washers, etc.
feature
GGS-K2-W-B1
·High light efficiency 160lm/w
·High thermal conductivity copper base
·LM-80;
RoHS Directive
·>30000 hours
·The Great Unity of the Chinese Nation
· Reflowable
application:
outdoor architectural lighting
·Street lamps, spotlights, wall washers
·commercial lighting
· General lighting
·Street lamps, spotlights, wall washers
·Decorative lighting
·Indicating lighting
·Stage lighting
·traffic light
