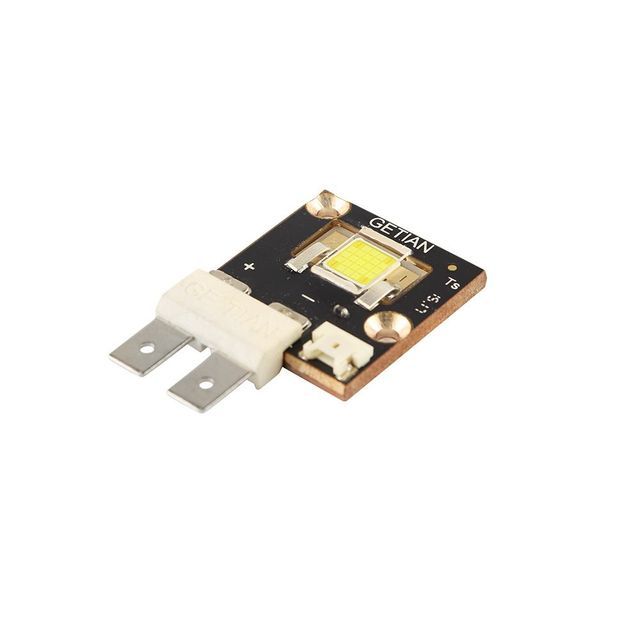

Factory New Product High Illumination Density 90w 100w 150w Chip led High Power Stage Lighting Lamp Beads

Product Detail

strength:otherStorage temperature(℃):0 - 80
Supply capacity:100000 pieces per monthLuminous color:Cold white
Certification:RoHS DirectiveForward Voltage:15-19V
Color rendering index (Ra):otherPower Consumption:other
life:>50000 hoursbrand:other
port:Shenzhen, GuangdongWarranty:3-5 years old
Luminous flux (lm):otherColor temperature (CCT):5000-7000K/8000-9000K
Origin:Guangdong, ChinaViewing angle(°):other
product name:GT-FC90X3-1.1payment terms:T/T, Western Union

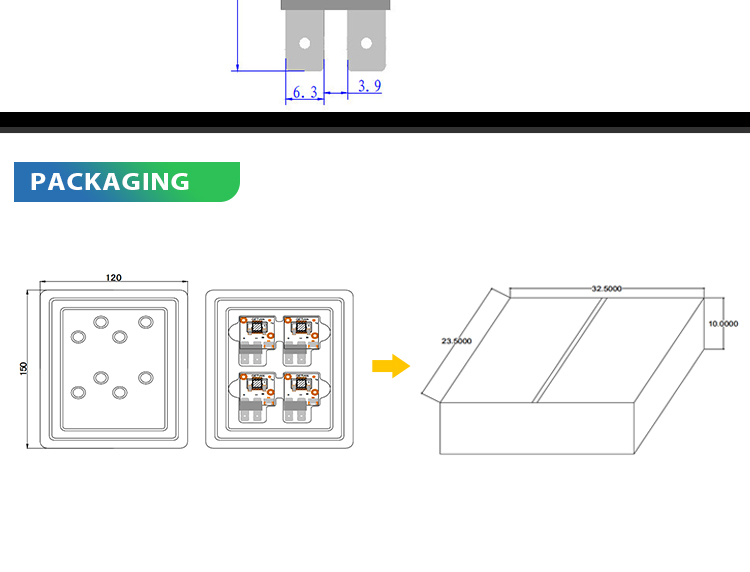

Packaging Details:4pcs/trayForward current:5.5A
Working temperature(℃):-40 - 60Chip material:Ingen
technology:Flip chip, no gold wireapplication:Stage lighting engineering; follow the spot; ETC
Color temperature:otherLight attenuation (%):other
type:high power LED, high power LED

Factory New Product High Illumination Density 90w 100w 150w Chip led High Power Stage Lighting Lamp Beads

Product Description

Features:



1) Gold wireless: no gold wire, led failure rate drops by 90%, high stability.

2) Alloy welding method, the possibility of dead light is reduced by 90%.

3) The aluminum nitride substrate replaces the copper substrate, and the heat conduction and conduction are separated

and higher thermal conductivity.

4) The luminous area is small and the luminous density is high.

5) Patented phosphor formula, stable color temperature, no drift.

6) Equipped with a temperature sensor for precise temperature control.

7) Straight plug is easy to install.

8) Dust-proof design, easy to keep the lighting surface clean.



Development concept:



Chip-on-board (COB) light sources have a small light-emitting surface (LES) and large luminous flux, so they are often used in directional lighting fixtures. However, keeping the COB small is extremely challenging because the compact arrangement accelerates heat buildup and impairs performance. Therefore, when designing COBs, improving luminous flux and reliability while controlling LES has always been the focus.



Based on this principle, GETIANLEDS high lumen density COB was developed.

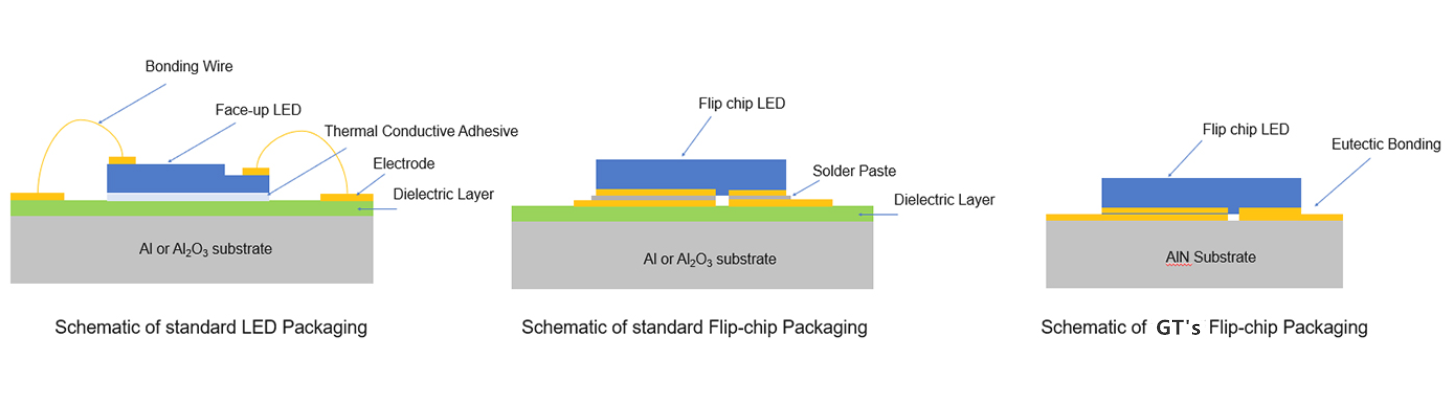

GETIANLEDS flip chip COB package features:



1. Compared with standard front-mount LED packaging technology, GETIAN LEDS flip-chip packaging technology avoids wire bonding, so there is no risk of gold wire breakage.



2. Compared with standard flip-chip packaging technology, the eutectic bonding between LED chip and substrate in GETIANLEDS flip-chip packaging technology makes the whole device have excellent thermal conductivity.



3. For high-power COBs, the culprit of reliability degradation is heat:

The heat transfer efficiency of the AlN substrate of COB is as high as about 300W/(m•K), which is twice that of the Al substrate and six times that of the Al2O3 substrate.



Why is the Light Emitting Surface (LES) small?



1. Manufacturing cost:

Easier optical design: Smaller LES means easier secondary optical design, enabling more compact and portable luminaires.



2. Higher mobility:

Lower Manufacturing Costs: More compact luminaires should use less BOM and lower manufacturing costs.



Not only is it small, but it also achieves excellent performance



* High color rendering index



With reliable phosphor performance, proper mixing ratio and unique packaging process technology, the COB has a color rendering index (Ra) as high as 95 even at a CCT of 5600K.



* High reliability



The initial lumen flux maintenance rate of the high lumen density COB is greater than 98% after continuous lighting for 9000 hours at a driving current of 12 amps.



* Minimal color shift



The high lumen density COB shows a color temperature shift of less than +/-50K after 9000 hours and a chromaticity shift of less than +/-0.001 on the black body curve.

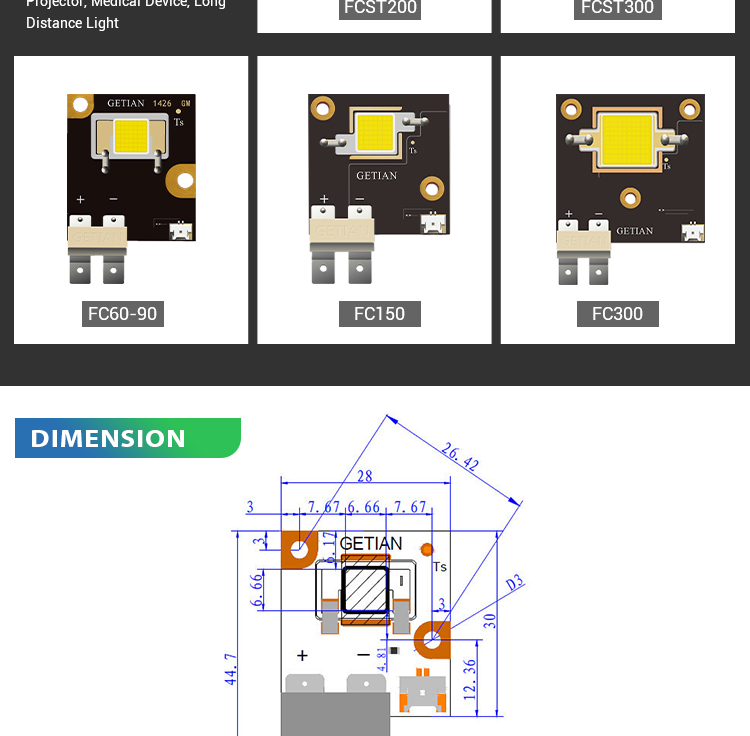

Specification:



Product Category Shooting angle(mm) color temperature(K) Color rendering index Lumen (lm) VF@IF strength
GT-FC60X3-1.1 6.66*6.66 8000-8500K 70 normal
80/90/95
Color temperature<6500K
4500-5000 15-19V @ 3.75A 60W
GT-FC90X3-1.1 6.66*6.66 8000-8500K 6300-7200 [email protected] 90w
GT-FC150X3-1.1 9.64*9.64 8000-8500K 10000-12000 21-25V @ 6.7A 150w
GT-FC300X3-1.1 13.48*13.48 8000-8500K 20000-22000 30-36V@10A 300w
GT-FC500X3-3.0 12.84*12.84 8000-8500K 30000-35000 30-36V@15A 500w
GT-FCST150X3-1.0 7.44*7.44 8000-9000K 70 10000-12000 24-30V @ 6A 150w
GT-FCST260X3-1.0 9.96*9.96 8000-9000K 18000-20000 38-45V @ 6A 260w
GT-PST150X3-1.0 6.71*6.71 8000-9000K 10000-12000 10-14V@12A 150w
GT-PST300X3-1.0 10.4*10.4 8000-9000K 24000-28000 36-42V @ 7A 300w
GT-PST600X3-1.0 14.5*14.5 5000-6000K
8000-9000K
45000-50000 36-42V*2 @ 7.5A*2 600w
