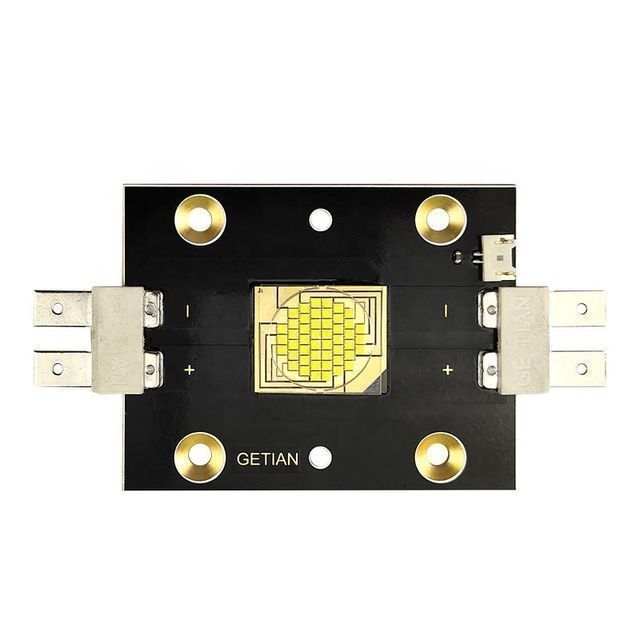

Getian integrated high power 200W 300W 400W 600W 3200K 5600K is suitable for stage lighting, studio lighting

Product Detail

Certification:RoHS DirectiveKey words:Integrated COB
Luminous color:Cold whitetype:high power light emitting diode
Origin:Guangdong, ChinaChip material:Ingen
brand:Ge TianWarranty (year):5 years
application:stage lighting, studio lightingViewing angle(°):120
Supply capacity:100000000 pieces per monthpayment terms:credit card
Luminous efficacy (lm/w):70Packaging Details:4 pieces/pallet. Cartons full of bubble bags.
Working temperature(℃):-40 - 65strength:200W, 300W, 400W, 600W, 3
port:ShenzhenLighting Solutions Services:Lighting and Circuit Design
Light attenuation (%):3product name:Getian integrated LED 200W 300W 400W 600W
life:50000 hoursColor rendering index (Ra):70/80/90
Color temperature:8000-9000KVoltage:12-14V/34-40V/28-34V/36-42V
Storage temperature(℃):-40 - 65

Getian integrated high power 200W 300W 400W 600W 3200K 5600K is suitable for stage lighting, studio lighting

Product Description
Features
1. Eutectic welding copper base
2. Rounde & Small LES for centralized lighting applications such as stage lights and projectors.
3. Using Orsram Vertical Chips & Strong directional lux
4. Equipped with thermistor and temperature sensor
5. High power and lux density with ultimate reliability

Part Number strength Voltage current CCT Color rendering index lumen
GT-PST200X3-1.0-4444A 200W 12-14V 15A Cold white 8000-8500K Ra75 14000-16000
Warm White 2900-3200K Ra85 12000-14000
GT-PST300X3-1.0-4444A 300W 12-14V 22A Cold white 8000-8500K Ra75 14000-16000
Warm White 2900-3200K Ra85 12000-14000
GT-PST300X3-2.0-4545A 300W 36-42V 7.5A Cold white 8000-8500K Ra75 20000-24000
Warm White 2900-3200K Ra90 18000-21000
GT-PST300X3-3.0-4545A 300W 28-34V 10A Cold white 8000-8500K Ra75 26000-28000
Warm White 2900-3200K Ra90 20000-24000
GT-PST300X3-2.0-5266A 300W 36-42V 3.8A*2 Cold white 8000-8500K Ra75 20000-24000
Warm White 2900-3200K Ra90 18000-21000
double white 5600K&3200K Ra80/Ra90 10000-12000
GT-PST400X3-2.0-4545A 400W 30-36V 12A Cold white 8000-8500K Ra75 30000-33000
Warm White 2900-3200K Ra90 20000-24000
GT-PST600X3-2.0-5266A 600W 36-42V 7.5A*2 Cold white 8000-8500K Ra75 45000-50000
Warm White 2900-3200K Ra90 40000-45000
double white 5600K&3200K Ra80/Ra90 15000-20000



Warranty: 3-5 years.

Working life: at least 50000 hours

Shipping: by express/by sea.

Payment method: Trade Assurance/T/T/Westen Union/Credit Card.

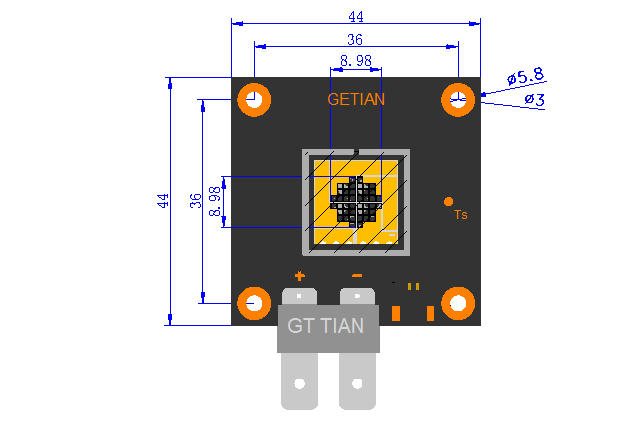

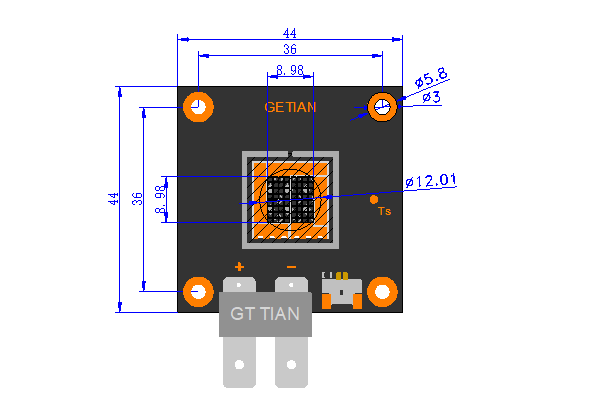

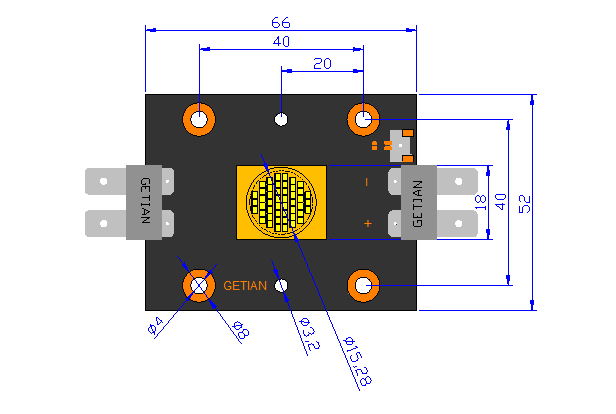

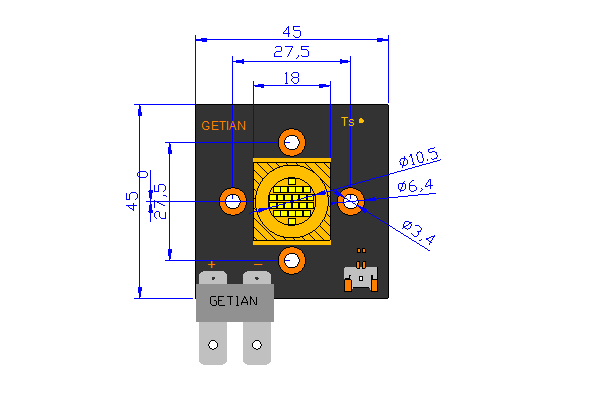

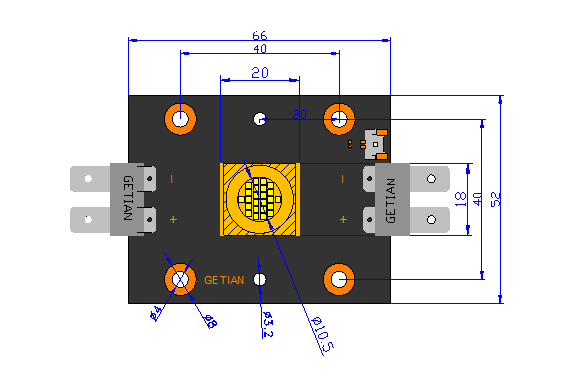

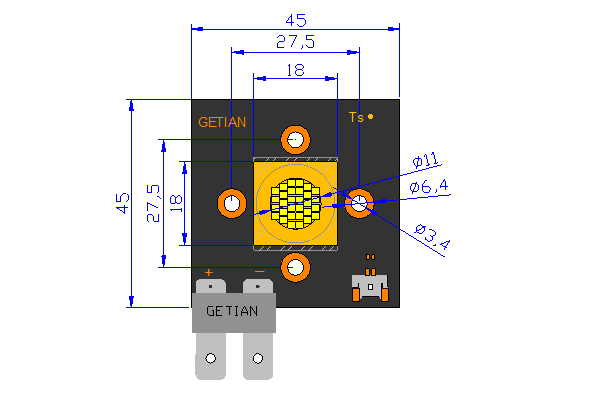

Dimensions (mm):

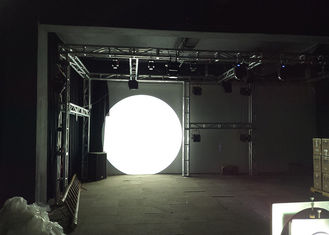

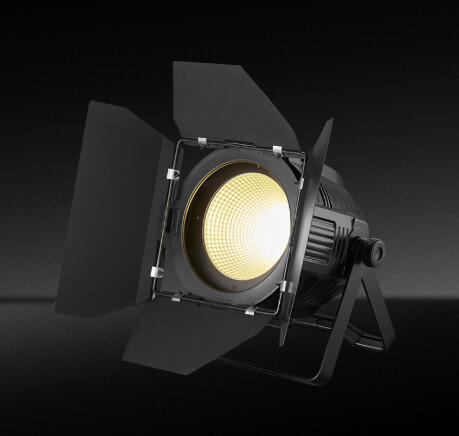

Applications



our service

Getian is a well-known Top10 LED manufacturer and supplier

High Power LED Light Source & Full Spectrum LED SMD Diode

Strong research and development force
* A strong R&D team composed of more than 40 experienced engineers.
* CNAS accredited laboratory.
* Seasonal launch of highly competitive new products.
* Revolutionary launch of a full range of high-power and highly integrated ceramic flip-chip LEDs.

Extensive application experience and quality commitment
* Strictly control the selection of raw materials.
* 5 years warranty;
* Reliable long life; LM-80 certification for 1-300W high power LEDs.
* More than 10 years of experience in outdoor lighting applications at home and abroad.
* Supports many government lighting projects.

excellent service level
*Professional sales team support experienced engineers.
* Best quality, best price and best service.
*Customization and OEM service available.



Welcome to contact us>>>>>>>>>>> WWW.GETIANGROUP.COM
