High Power LED Stage Lights Getian LED light source FC150 rotating chip 150w 200w cob led
-
$26.15 / 1 - 49 pieces
$24.65 / 50 - 499 pieces
$22.00 / >=500 pieces - 1 piece
- Shenzhen Getian Opto-Electronics Co., Ltd.
- Guangdong, China
- Ms Jenny Liao
Product Detail
Origin: | China, Guangdong, China | Warranty (year): | 5 years |
payment terms: | T/T, Western Union, Credit Card | Storage temperature(℃): | -40 - 80 |
Color temperature: | 8000-8500K | port: | Hong Kong/Shenzhen |
Lighting Solutions Services: | Lighting and Circuit Design | life: | >50000 hours |
application: | stage lights; projection lights; beam lights; | Working temperature(℃): | -40 - 60 |
Maximum power: | 200W | Color rendering index (Ra): | 70 |
Viewing angle(°): | 120 | Luminous flux (lm): | 10000-12000lm |
Forward Voltage/Current: | 21-25V/6.7A | Luminous color: | white |
Certification: | RoHS Directive | Chip material: | flip chip |
type: | high power light emitting diode | Supply capacity: | 100000000 pieces per month |
brand: | Ge Tian |

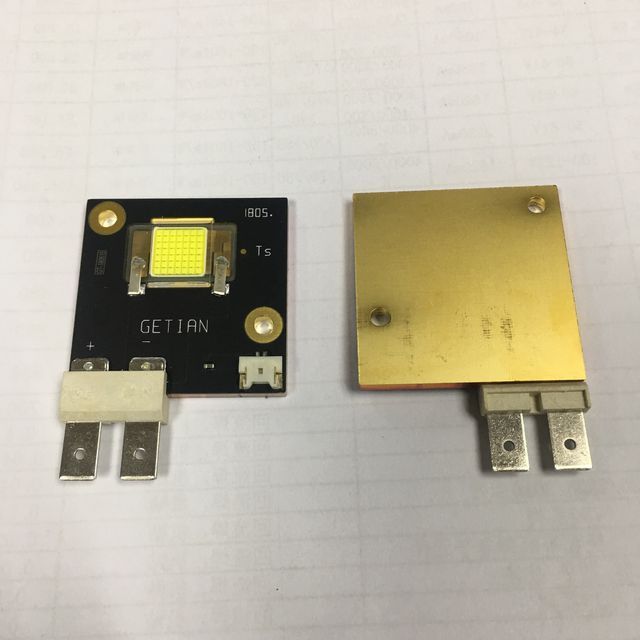

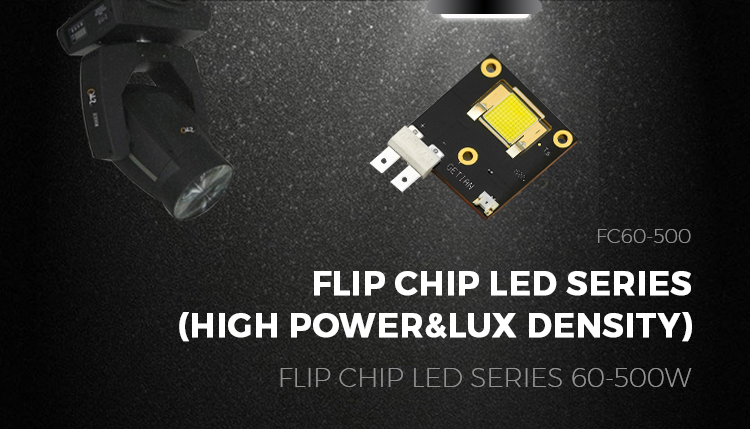

Stage sharp lamp LED light source Getian FC150 flip chip 150w 200w cob led
feature:
1. High brightness and high luminous density
2. No gold wire packaging, high reliability
3. Low thermal resistance: 0.12℃/W
4. Unpackaged Die with Thin Protective Window Optimizes Optical Coupling in Spread-Limited Applications
5. Light source input plug design, free of welding
6. RoHS Compliant
advantage:
Flip COB is the latest trend in LED manufacturing and packaging. The LED has better thermal performance and allows higher power than standard SMD packages.
1. Thermal attenuation is a natural characteristic of LEDs because light output decreases as the LED junction temperature rises. Therefore, as the LED junction temperature rises, the lighting efficiency will decrease. To minimize thermal degradation, reducing thermal resistance is critical to maintain or reduce LED junction temperature while requiring more light output by increasing drive current.
2. Due to the small thermal resistance of the flip-chip COB chip, it can work under high current, which is very important for the automotive LED industry. Although the LED light bulb has a high wattage, it can fit more cars, and the computer will not report an error.
3. Traditional COB chips are connected to circuit electrodes through two bonding wires, which may break during packaging or use. Flip-chip COB chips do not require these bonding wires, eliminating potential risks and reducing the rate of defective products.
application:
1. Entertainment lighting;
2. Architectural lighting;
3. Decorative lighting;
4. Medical lighting;
5. Stage lights, projection lights, follow spot lights, beam lights;
6. Fiber-optic coupling lighting;
7. Focus point light or direct facing to a prism or light guide for multiple uses in imaging applications, such as projectors, microscopes, astronomy, etc.
Specification:

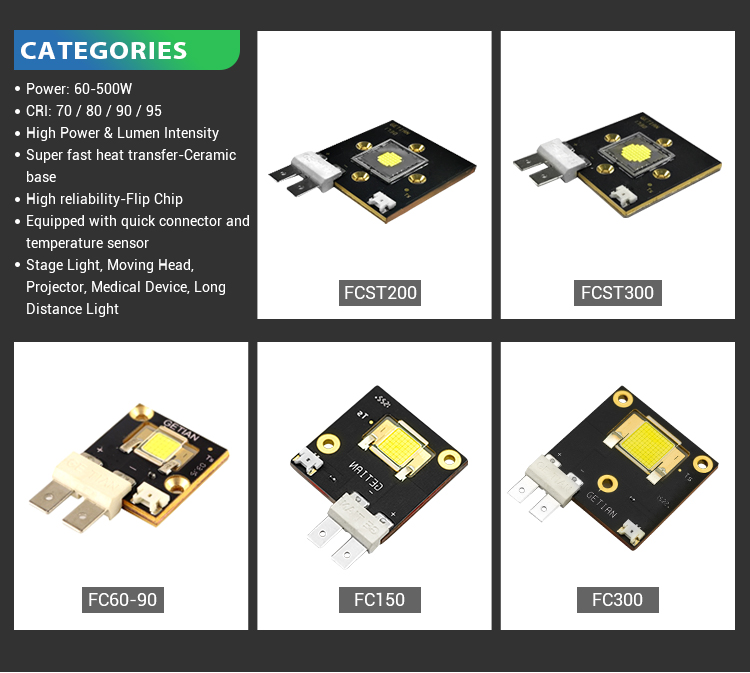

GT-FC90X3-1.1 | 6.66*6.66 | 8000-8500K | 6300-7200 | [email protected] | 90w |
GT-FC150X3-1.1 | 9.64*9.64 | 8000-8500K | 10000-12000 | 21-25V @ 6.7A | 150w |
GT-FC300X3-1.1 | 13.48*13.48 | 8000-8500K | 20000-22000 | 30-36V@10A | 300w |
Q: What is your product range?
A: Our main products include:
·COB LED 2-400W
·Compact SMD LED 0.06W-5W
·Integrated flip chip LED module 60-500W
·High power LED 1-5W
·RGB LED or RGB/RGBW LED 1-100W
·LED driver
·UFO/Linear High Bay Light
Q: Can you provide for freesampleSecond?
A: Yes, we will provide free samples for P02 LED (1W high power LED, 6-pin 3W RGB LED), 3030 SMD LED, 5050 SMD LED, 3535 RGB LED, 3535 RGBW LED, etc.
Q: Are you manufacturingrOr a trading company?
A: We are an experienced and professional LED manufacturer since 2005.
Q: What payment methods do you accept?
A: We more accept T/T, PayPal, Western Union, etc. as customers' requirements.
Q: What about the delivery time?
A: It depends on the order quantity. Generally speaking, the delivery time is about 5-7 working days. For samples, delivery can be as fast as the same day.
Q: How can I get your quotation?
A: Please leave us a message with your needs, including the product and quantity, and our professional team will reply you soon (mainly within a few hours).
Q: What technical support can I get after purchasing?
A: Data sheet and operation manual will be provided to dear you. Our sales engineers are always on hand to answer your questions.
Q: How can you support if there is a LED failure?
A: Customers provide pictures of unqualified products or rejected samples, and engineers will analyze the failure and find out the reason. For failures caused by product quality reasons, we will give qualified replacements!
Payment method: Trade Assurance/T/T/Westen Union/Credit Card.
