Led 3030 3535 Uv-c 222 nm 250 nm 254 nm 255 nm 260 nm 1w 3w Customized light board
- $0.07 / >=1000 pieces
- 1000 pieces
- Guangzhou Baicheng Technology Co., Ltd.
- Guangdong, China
- Mr bocheng ji
Product Detail
| Color temperature (CCT): | 3000-4000-6000K | Lifespan (hours): | 50000 |
| Viewing angle(°): | 60/90/120/140 | Lighting Solutions Services: | Lighting and circuit design, automatic CAD layout |
| Light attenuation (%): | 0.3 | Warranty (year): | 2 years |
| Color rendering index (Ra): | 80 | Product weight (kg): | 0.3 |
| Supported dimmers: | No | Service 2: | Support sample service |
| light intensity: | 120-140lm/240-260lm | Storage temperature(℃): | -20 - 80 |
| port: | Shenzhen/Guangzhou/Shanghai | strength: | 1-3W |
| payment terms: | Western Union, T/T | Chip material: | copper bracket |
| Packaging Details: | LED 3030 3535 Uv-c 222nm 250nm 254nm 255nm 260nm 1w 3w custom light board | type: | high power light emitting diode |
| Input voltage (V): | 2-3.2V | Luminous flux (lm): | 35-160 |
| Working temperature(℃): | -40 - 120 | Color temperature: | 3000-4000-6000K |
| Luminous color: | warm white red green blue pink purple | Power Consumption: | 1 |
| Working hours (hours): | 50000 | Origin: | Guangdong, China |
| Supply capacity: | 1,000,000 pieces per month | Luminous efficacy (lm/w): | 120 |
| Service 1: | Support customized service | brand: | Juxin (Sanxin) |
video description
LED 3030 3535 Uv-c 222nm 250nm 254nm 255nm 260nm 1w 3w custom light board
Specification
model | information | Brightness (LM) | electricity | Voltage |
1W 3030 sticker (including bottom plate) | red light | 80-90 | 300mA | 2.0-2.2V |
green | 80-90 | 300mA | 3.0-3.2V | |
blue | 80-90 | 300mA | 3.0-3.2V | |
3000-4000-6000K | 300mA | 3.0-3.2V | ||
warm + blue light | 300mA | 3.0-3.2V | ||
Warm color + green light | 300mA | 3.0-3.2V | ||
warm color + red light | 300mA | 3.0-3.2V | ||
warm + pink light | 300mA | 3.0-3.2V |
model | information | Brightness (LM) | electricity | Voltage |
1-3W 3535 patch (including bottom plate) | 3000-4000-6000K | 120-130 | 750mA | 3.0-3.2V |
model | Color temperature (CCT) | Brightness (LM) | electricity | Voltage |
1W(30miL) | 3000-4000-6000K | 100-110 | 300mA | 3.0-3.4V |
1W(35miL) | 3000-4000-6000K | 130-140 | 350mA | 3.0-3.2V |
1-3W (45miL) | 3000-4000-6000K | 150-160 | 700mAh | 3.0-3.2V |
1W red (30miL) | Red light 620-625 | 35-45 | 300mA | 2.0-2.2V |
1W Green (30miL) | Green Light 520-525 | 70-80 | 300mA | 3.0-3.2V |
1W blue (35miL) | Blu-ray 460-465 | 40-50 | 350mA | 3.0-3.2V |
1W pink (35miL) | some pink | 80-90 | 350mA | 3.0-3.2V |
1W purple (35miL) | point purple | 80-90 | 350mA | 3.0-3.2V |
1-3W red (42miL) | Red light 620-625 | 50-60 | 300mA | 2.0-2.2V |
1-3W Green (42miL) | Green Light 520-525 | 90-100 | 300mA | 3.0-3.2V |
1-3W blue (45miL) | Blu-ray 460-465 | 50-60 | 350mA | 3.0-3.2V |
model | information | |

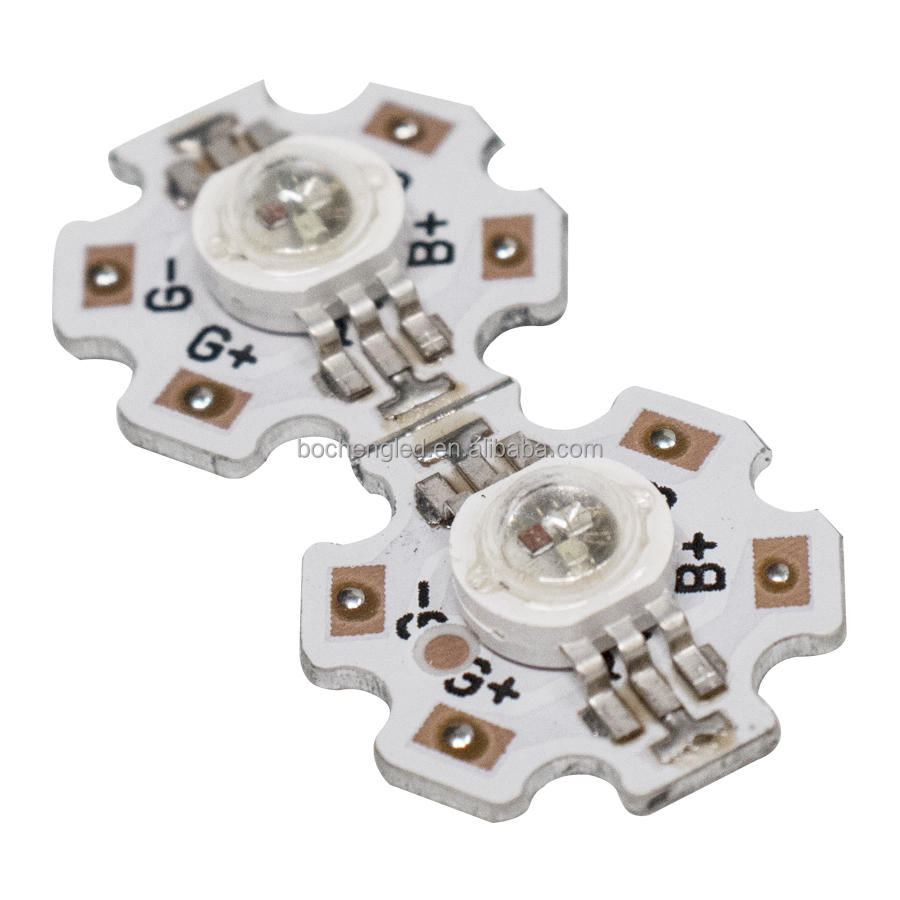

6-pin RGB 3*1W | Red 620-625 Green 520-525 Blue 460-465 | |
8-pin RGB 4*1W | Red 620-625 Green 520-525 Blue 460-465 | |
8-pin RGB 4*2W | Red 620-625 Green 520-525 Blue 460-465 |
COB LED chips use a large number of series-parallel chips to achieve the effects of high brightness, high lumens, and high color rendering index. Chips are directly bonded and packaged on the entire substrate, that is, N chips are inherited and integrated on the internal substrate for packaging.
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, and long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, and long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
