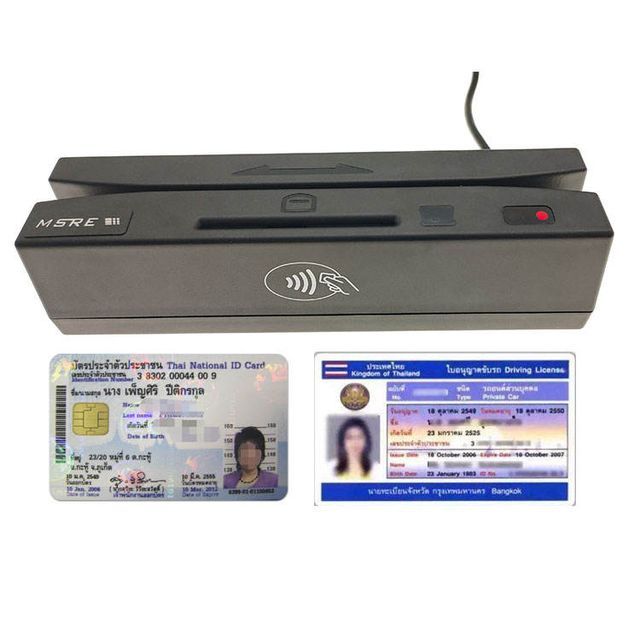

Thailand Thai National ID Card Chip Card and Magnetic Driver License Card Reader F730
-
$35.00 / 1 - 9 units
$32.00 / 10 - 99 units
$30.00 / 100 - 499 units
$27.00 / >=500 units - 1 unit
- Shenzhen Prova Tech Co., Ltd.
- Guangdong, China
- Mr Ryan Tsao
Product Detail
| Supply capacity: | 10000 pieces per month | payment terms: | wire transfer |
| Origin: | Guangdong, China | power supply: | DC 5V |
| Card Standard: | ISO/IEC7811/AAMVA、ISO7816 | Package preview: | |
| Function: | Read Thai Driver's License Card, National ID Card | Model: | F730 |
| port: | Shenzhen | aspect: | 171mm x 43.5mm x 42mm |
| Packaging Details: | 50pcs/carton, 11.5kg/carton | interface: | USB / RS232 optional |
| product name: | Thailand Drivers License Card and ID Chip Reader | brand: | Prova |
| color: | Black |
Product Usage
Connect GPS for driver authentication;
Read the magnetic data of Thai driver's license card (ISO & AAMVA);Automatically read the chip field of the Thai ID card just by inserting it;
Product Description
Overview:
F730 is a multi-functional four-in-one card reader, which supports magnetic cards and contact IC cards, and can choose contactless and PSAM cards. It is developed under the ARM Cortex M1 platform, with fast card reading speed, high efficiency and easy to use.
F730 complies with ISO/IEC7811, ISO/IEC7816 standards and EMV2000 standards.
F730 complies with ISO/IEC7811, ISO/IEC7816 standards and EMV2000 standards.
F730 can automatically read Thai ID card. It can be widely used in traffic management, Thai ID card recognition, driver's license card recognition and other fields. It can be connected to PC, tablet, GPS and other terminals.
project | Specification | |
interface: | RS232: Baud rate 9600/115200 bps, (9600/115200, 8, none, 1) | |
USB: The chip card is CCID (USB-PC/SC) mode; Magnetic card supports HID keyboard mode and HID compatible mode | ||
power supply: | RS232: External power supply can support DC 5V~24V ±10%, 100mA; 12V, 24V optional, suitable for buses and trucks; | |
USB: USB 5V power supply, 100mA | ||
cable length: | 1.5m | |
working environment: | 0℃～50℃, Humidity: 15%～85% | |
Dimensions (length x width x height): | 171mm x 43.5mm x 42mm | |
Magnetic card module (Support customized output of Thai driver's license card) | ||
standard: | International Organization for Standardization/IEC7811 | |
Swipe speed: | 10cm/s～120cm/s | |
Swipe times: | > 600,000 swipes | |
Magnetic stripe data standard: | Compatible with IBM/ISO/AAMVA | |
Data Density: | Track 2 75BPI/210BPI, Track 3 210BPI | |
contact chip card module (Support customized reading of Thai national ID card) | ||
Supported card types: | Logic encryption card and CPU card conform to ISO/IEC7816 standard; T=0, T=1 CPU chip card conforms to EMV2000, PBOC2.0 standard | |
Chip card supply voltage: | 5V/3V/1.8V, current <50mA | |
Baud rate: | 9600bps~38400bps | |
Chip card contactor: | 8 contactors, support short circuit protection, contact force 0.4N±0.1N | |
Contactor life: | >300,000 plugs | |
detailed picture
Choice of multiple connectors for different terminals (GPS).
Connectors can also be customized by customers according to different projects.
Support 2 SAM card slots
Wider housing accommodates full-size chip card slots
