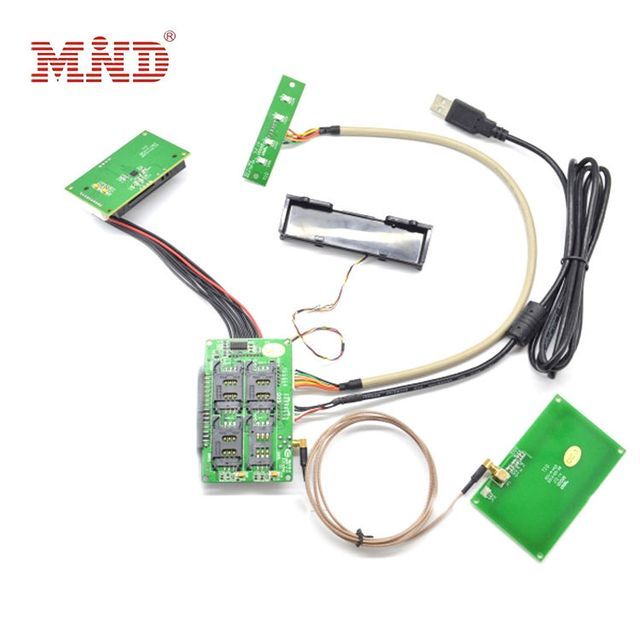

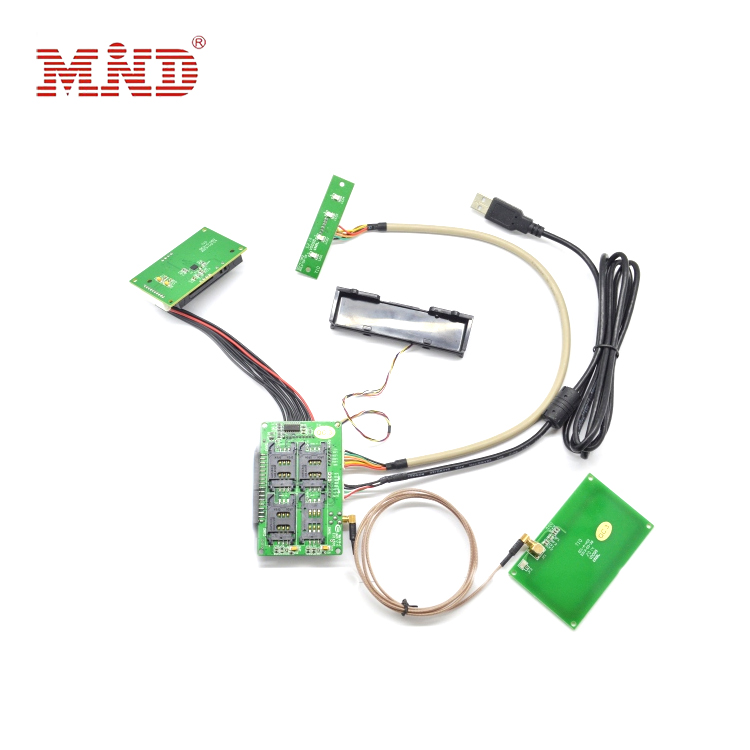

Integrated smart card reader module supports ISO7816 contact/contactless/magnetic card
-
$34.30 / 1 - 99 pieces
$32.00 / 100 - 999 pieces
$30.00 / 1000 - 4999 pieces
$27.00 / >=5000 pieces - 1 piece
- CHENGDU MIND GOLDEN CARD SYSTEM CO.,LTD
- Sichuan, China
- Mr Cn mind
Product Detail
| module: | Elective | Certification: | ISO/IEC 7816 |
| card: | contact/non-contact/magnetic | brand: | mind |
| protocol: | custom made | port: | Chengdu/Shenzhen/Shanghai |
| frequency: | custom made | Origin: | Sichuan Province, China |
| Supply capacity: | 30000 sets of all-in-one smart card readers per month | Warranty: | one year |
| Packaging Details: | All-in-one smart card reader module supports ISO7816 contact/contactless/magnetic card according to customer order quantity | thing: | smart card reader |
| support: | OEM/ODM | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
Integrated smart card reader module supports ISO7816 contact/contactless/magnetic card
| feature | USB 2.0 full speed: HID compliance, firmware upgradeable |
| RS232 interface | |
| 4 LED indicators | |
| Support buzzer | |
| Contact smart card interface: ISO7816 T=0 CPU card, ISO7816 T=1 CPU card | |
| Contactless Smart Card Interface: ISO14443 Part 1-4 Compliant, Type A, Type B, Read/Write | |
| 4 SAM card slots | |
| Magnetic stripe reader: support 1/2/3 track reading, bi-directional | |
| Operating system support: Windows XP/7/8/10, Linux | |
| typical application | Electronic medical |
| E-government | |
| Electronic Banking and Electronic Payments | |
| transportation | |
| cyber security | |
| Physical Specifications |
|
| aspect | Motherboard: 82.5mm (L) x 50.2mm (W) x 13.7mm (H) |
| Antenna Board: 82.5mm (L) x 50.2mm (W) x 9.2mm (H) | |
| LED Board: 70mm (L) x 16mm (W) x 8.5mm (H) | |
| Contact plate: 70mm (L) x 16mm (W) x 9.1mm (H) | |
| MSR board: 90.3mm (L) x 21.1mm (W) x 24mm (H) | |
| weight | Motherboard: 28 grams |
| Antenna board: 14.8g | |
| LED board: 4.6g | |
| Contact plate: 22.8g | |
| MSR board: 19.6 grams | |
| strength | |
| energy source | USB |
| voltage | 5 VDC |
| supply current | 500mA max |
| connectivity | |
| RS232 | 3-wire RxD, TxD and GND, no flow control |
| USB | USB 2.0 full speed: HID compliance, firmware upgradeable |
| contact smart card interface | |
| Number of slots | 1 ID-1 slot |
| standard | ISO/IEC 7816 Class A, B, C (5V, 3V, 1.8V) |
| protocol | T=0; T=1; memory card support |
| supply current | maximum. 50mA |
| Short circuit protection | (+5) V/GND on all pins |
| Card Connector Type | ICC Slot 0: Landing |
| Clock frequency | 4 MHz |
| Smart Card Read/Write Speed | 9,600-115,200 bps |
| Card Insertion Cycle | minute. 200,000 |
| Contactless Smart Card Interface | |
| standard | ISO-14443 A and B Parts 1-4 |
| Smart Card Read/Write Speed | 106kbps |
| Operating distance | up to 50 mm |
| Operating frequency 13.56MHz | 13.56 MHz |
| SAM card interface | |
| Number of slots | 4 ID-000 slots |
| Card Connector Type | touch |
| standard | ISO/IEC 7816 Class B (3V) |
| protocol | T=0; T=1 |
| Smart Card Read/Write Speed | 9,600-115,200 bps |
| Magnetic stripe card interface | |
| standard | ISO 7811 |
| Track 1/2/3, bi-directional | |
| read | supported |
| built-in peripherals | |
| buzzer | monotonous |
| LED status indicators | 4 LEDs for status indication (from leftmost: blue, yellow, green, red) |
| Operating conditions | |
| temperature | -10°C – 50°C |
| humidity | 5% to 93%, noncondensing |
| Certification/Compliance | ISO/IEC 7816, ISO/IEC 14443, ISO/IEC 7811, Contact PBOC 3.0 L1, Contactless PBOC 3.0 L1, Contact EMV L1, Contactless EMV L1 |
| Supported OS | Windows® 98, Windows® ME, Windows® 2000, Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux |
| Supported card types | |
| SCM card | T10-DC2 works with MCU cards following the following rules: T=0 or T=1 protocol, Class A, B, C (5V, 3V, 1.8V) in accordance with ISO 7816 standard |
|
3.2. Memory-based smart card (T10-DC2 uses memory-based following smart card :) |
Cards following the I2C bus protocol (free memory cards), including: (Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024) |
| Cards with smart 256-byte EEPROM and write protection, including: SLE4432, SLE4442, SLE5532, SLE5542 | |
| Cards with smart 1K byte EEPROM and write protection, including: SLE4418, SLE4428, SLE5518, SLE5528 | |
| Secure storage IC card with password and authentication, including: AT88SC153, AT88SC1608 | |
| Cards with application area security logic, including: AT88SC101, AT88SC102, AT88SC1003 | |
| Contactless Cards (T10-DC2 supports the following contactless cards:) | 1. Compliant with ISO 14443 standard, Class A and Class B, Parts 1 to 4, T=CL protocol |
| 2. MF classic | |
| Magnetic stripe cards | T10-DC2 supports the following magnetic stripe cards: Track 1/2/3 read, bi-directional |
