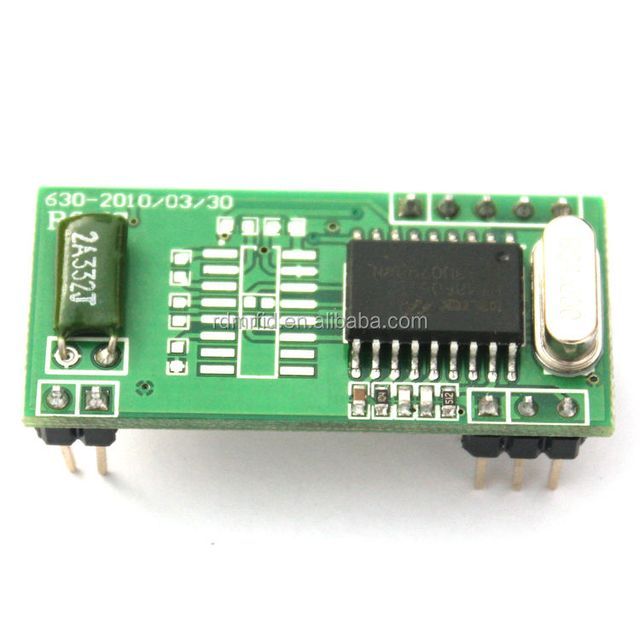

EM4200 rfid rdm630 reader module for arduino
- $3.00 /unit
- 1 unit
- Shenzhen RDM Tag Master Co., Ltd.
- Guangdong, China
- Ms Kerry Chen
Product Detail
| brand: | RDM | size: | 39*19*9mm |
| model: | RDM630 | Maximum reading distance: | >8cm (depending on label) |
| product name: | rfid reader module rdm630 for arduino | Product 2: | em4200 rfid read and write module |
| voltage: | DC 5V or 3.3V | Supply capacity: | 10000 pcs per month rfid reader module rdm630 for arduino |
| Packaging Details: | Neutral carton packaging | interface: | Weigang26, wg34, TTL, RS232 |
| Baud rate: | 9600 | frequency: | 125KHz |
| antenna: | External. Various sizes available | payment terms: | T/T, Western Union |
| Origin: | Guangdong, China | port: | Shenzhen |
| Supported cards: | EM/TK4100, EM/TK4102, EM4200 |
EM4200 rfid reader module rdm630 for arduinoM630
Features and Applications
- Easy to integrate, small size
- High performance, low cost
- Access control
- automated industry
- Attendance management
- Handy & POS terminal equipment
introduce

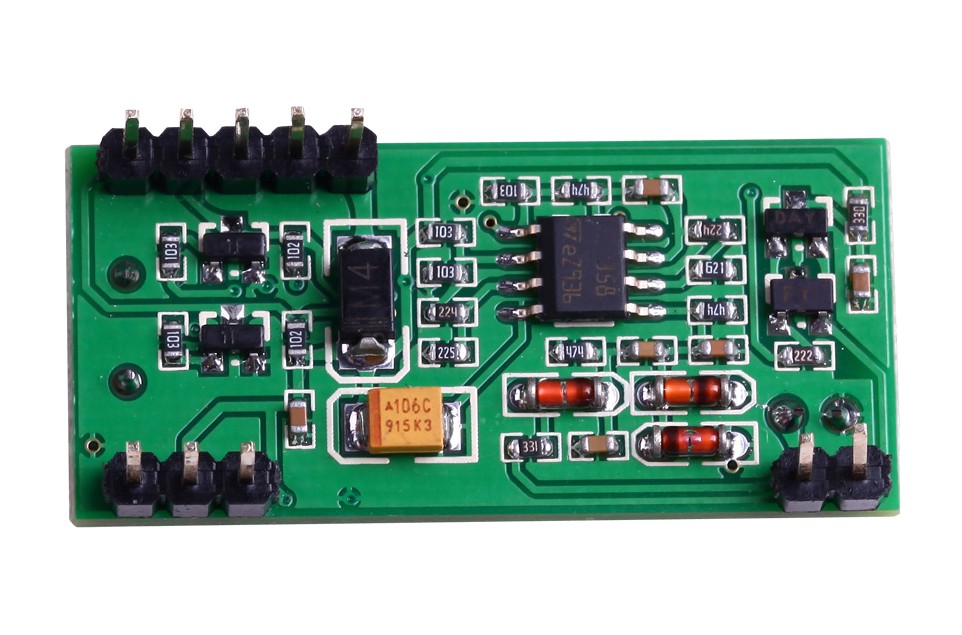

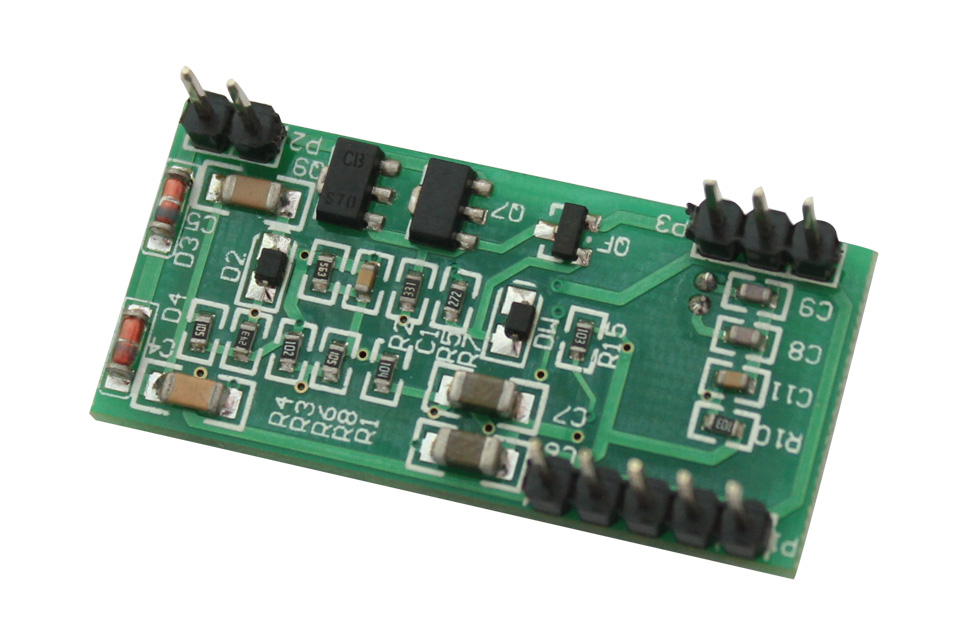

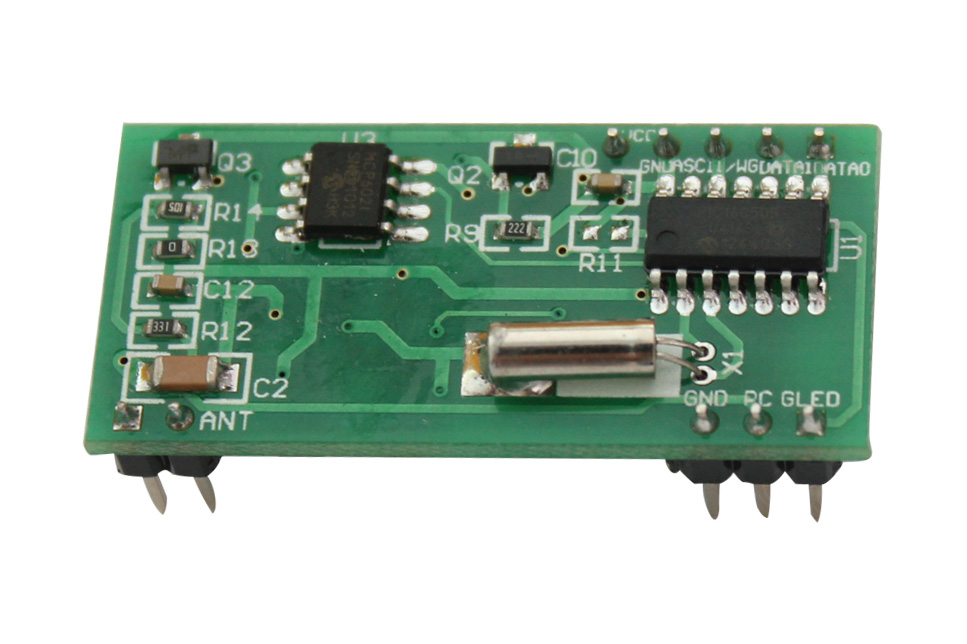

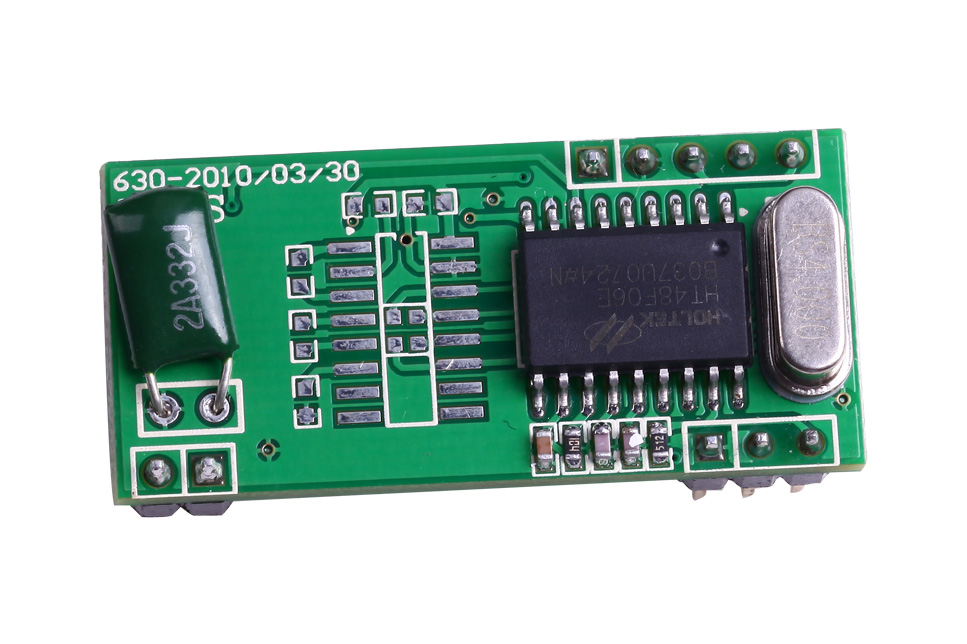

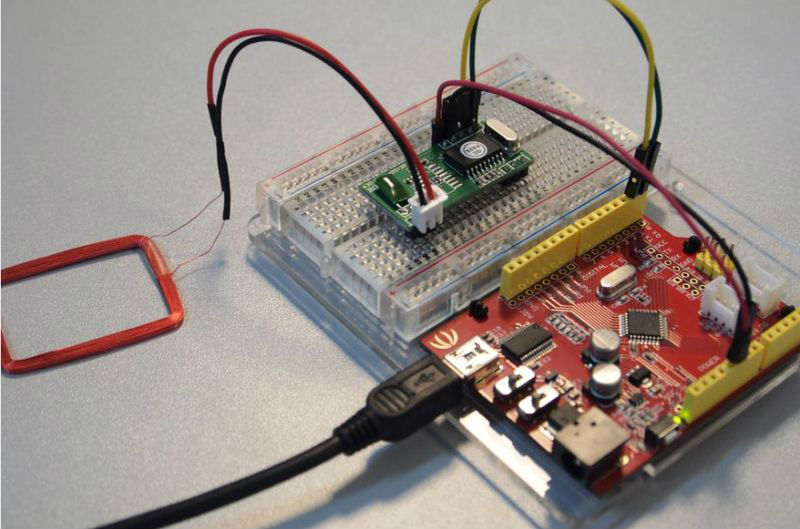

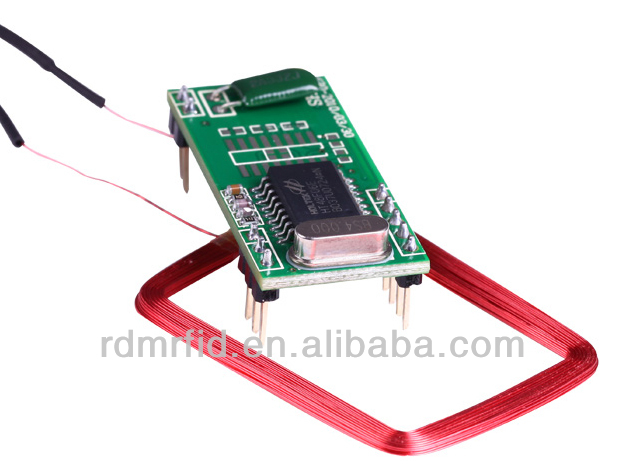

RDM630 is specially designed for 125KHz technology application customized by system integrators. It is a low frequency (LF) 125KHz RFID reader module, suitable for EM4100, TK4100, EM4200 and other ID cards. Optional RS232, Wiegand26, TTL interface, the connection between the module and the control device is simple and convenient.
technical specifications
frequency | 125KHz |
interface | Wiegand 26, TTL, RS232 |
support card | EM/TK4100, EM/TK4102, EM4200. |
baud rate | 9600bps |
power supply | DC 5V or 3.3V |
current | <60mA |
Reading distance | >5cm (depending on label) |
Audio/Visual Instructions | No |
antenna | External. Various sizes available |
Operating temperature | -10°C to +70°C |
Storage temperature | -20°C to +80°C |
humidity | 0~95% |
aspect | 39mm*19mm*9mm |
weight | 6.5 grams |
Ordering Information
To order, please use the exact model number
model | interface | support card |
RDM630-W | Wiegand 26 | EM/TK4100, EM/TK4102, EM4200 Read only |
RDM630-T | TTL | EM/TK4100, EM/TK4102, EM4200 Read only |
RDM630-S | RS232 | EM/TK4100, EM/TK4102, EM4200 Read only |
| RDM630L | all of the above | Low power consumption 3.3V, the above cards are read-only |
LF antenna sizeElective
Model | size(mm) | Model | size(mm) |
L10 | 25.5 x 35.5 x 0.21(475uh) | L15 | 62 x 97 x 0.21 (535uh) |
L11 | 29 x 92 x 0.21 (475uh) | L16 | 71.2 x 82.8 x 0.21 (535uh) |
L12 | 30.5 x 42 x 0.21 (475uh) | L17 | 74.5 x 107 x 0.21 (535uh) |
L13 | 51x 82 x 0.21(375/475uh) | L18 | 80 x 80 x 0.21 (535uh) |
L14 | 54x 62 x 2 (365/680uh) | L19 | 90.6 x 96.7 x 0.21 (475uh) |
RDM630 DC 5V
RDM630L DC 3.3V
packed in carton
We have strong cooperation with DHL, FedEx, UPS, TNT and EMS express.
Shipping usually takes 2-7 daysDepends on your country.
You can also choose your own freight forwarder.
- Any inquiries will be replied within 24 hours.
- OEM production is available.
- After-sales service: one year warranty, free replacement due to product quality problems within 3 months.
- Fast Delivery: Sample order in stock, 1~2 weeks for mass production.
- Payment: You can pay for the order by T/T, Western Union.
- Professional Manufacturer. Welcome to visit our website: www.datarfid.com
Shenzhen RDM Tag Master Co., Ltd. (a subsidiary of OMNIXK Technologies Pte Ltd) was established in 2004 as a manufacturer of RFID modules and readers. In addition to our standard product range, our in-house R&D team is also able to develop custom products to meet customer requirements.
RDM is committed to continuously improving itself by adopting new technologies and increasing investment in research and development to improve product quality.
In order to connect with the world market, RDM will participate in several international exhibitions every year:
Shenzhen RDM Label Master Co., Ltd.
