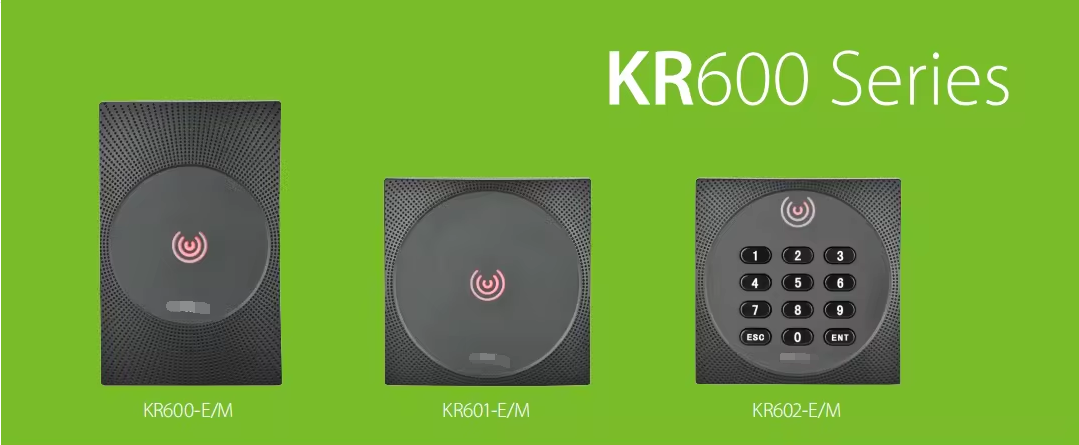

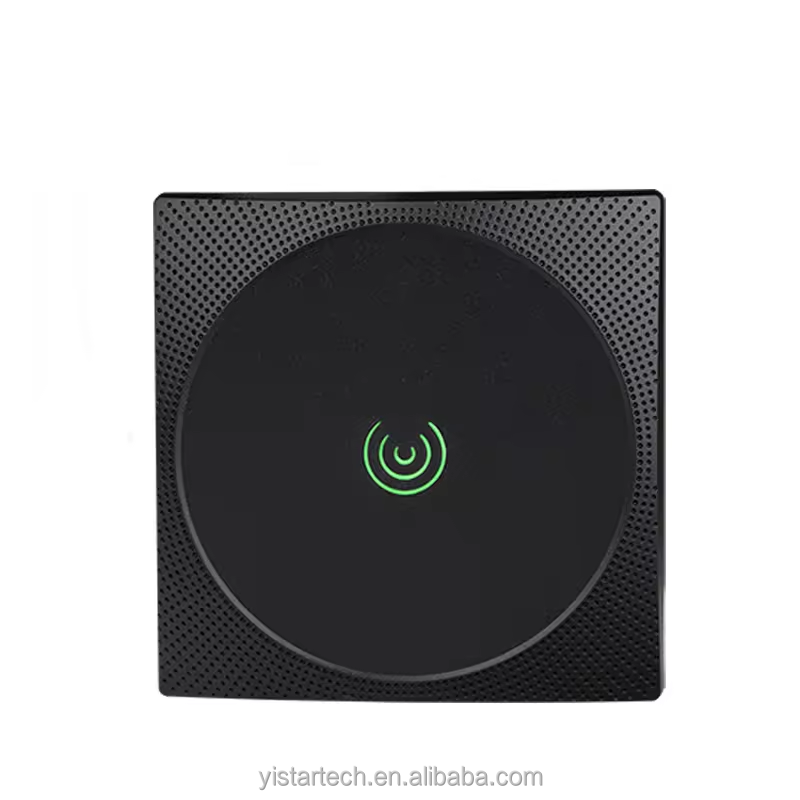

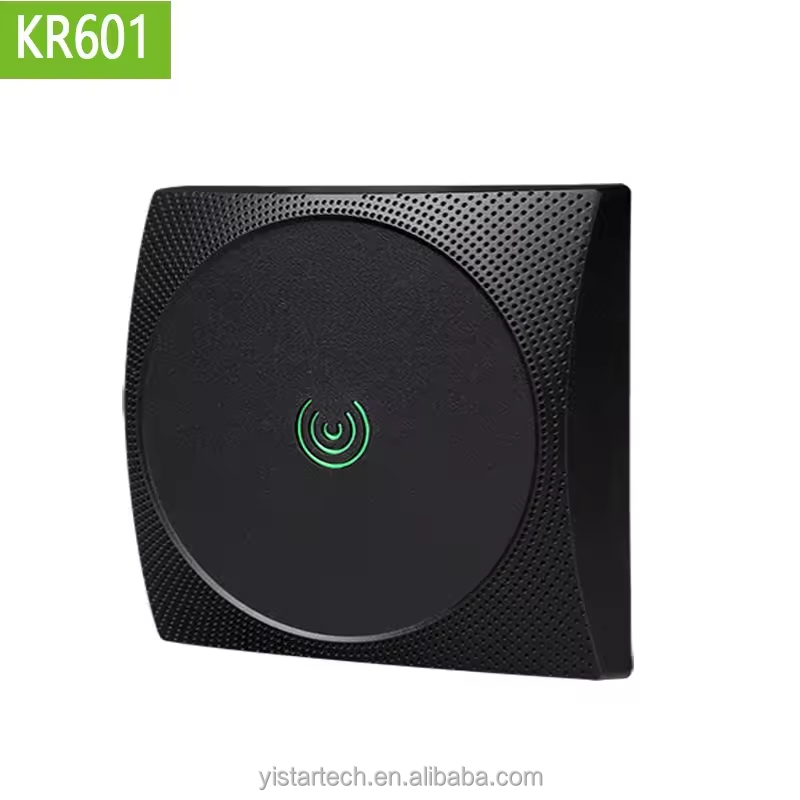

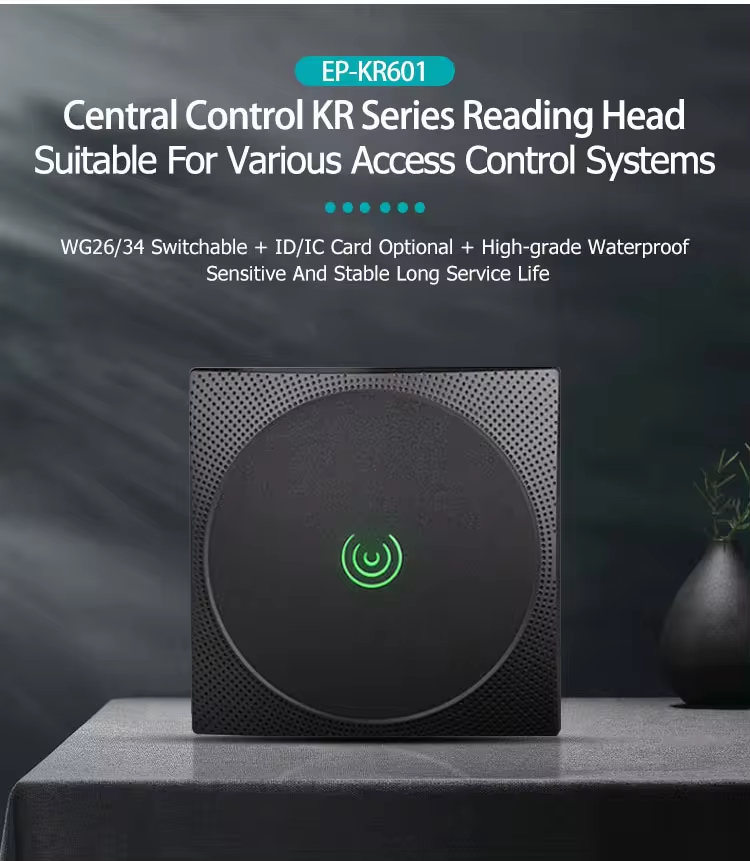

ZK KR601 waterproof card reader ZK Rfid ID card reader is suitable for access control systems waterproof Wiegand card reader
- 1 piece
- Shenzhen Yistar Technology Co., Ltd.
- Guangdong, China
- Ms Vicky Chen
Product Detail
Product Description
Description: This keypad is a single input stand-alone access control unit with integrated keypad and card reader. It is an easy-to-install and operate device designed for 6-wire installation with user-friendly programming capabilities. The compact design makes it ideal for access control. The device is housed in a sturdy metal casing. It supports multiple access control configurations (card only, card only) for up to 1000 users
or PIN code, or card + PIN code). The built-in card reader supports 125KHz EM cards.
Technical parameters:
1. Card type: 125KHz/13.56MHZ proximity card/ID/EM/MF card
or PIN code, or card + PIN code). The built-in card reader supports 125KHz EM cards.
Technical parameters:
1. Card type: 125KHz/13.56MHZ proximity card/ID/EM/MF card
2. Reading range: up to 5-10CM
3. Card reading time <=300ms
4. Power supply/current: DC 6-14V / Max.70mA
4. Power supply/current: DC 6-14V / Max.70mA
5. Input port: 2ea (external LED control, external buzzer control)

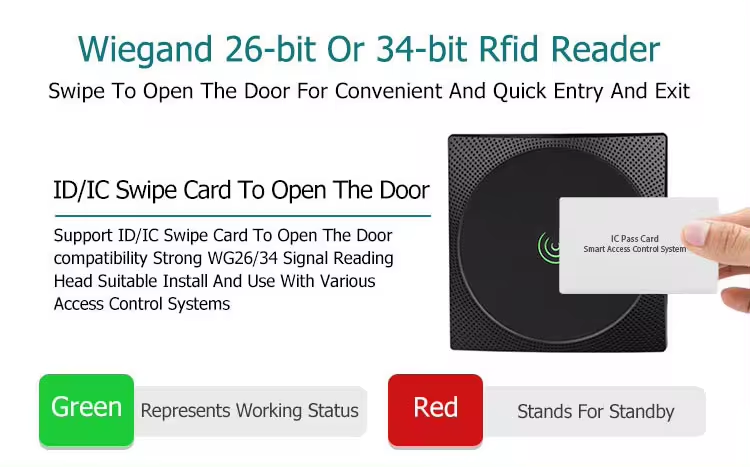

6. Output format: 26-bit Wiegand (default)
7. LED indicator light: 2-color LED indicator light (red, green)

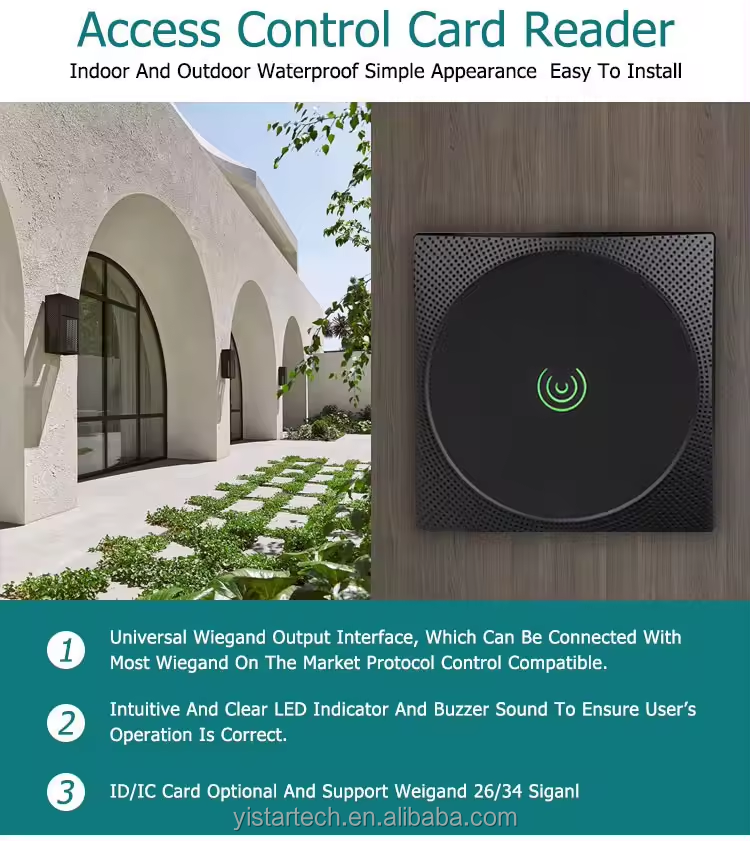

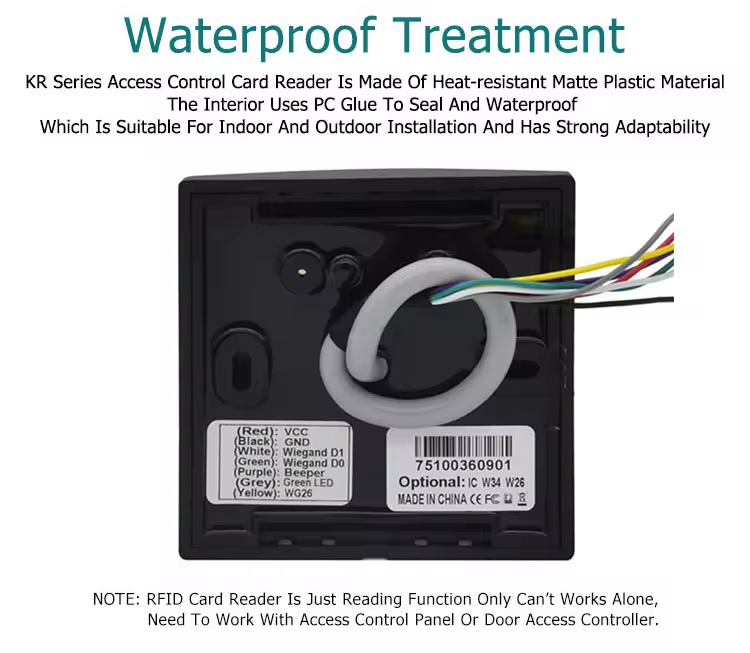

8. IP rating: IP68
9. Working temperature: -10℃ to +70℃
10. Working humidity: 10% to 90% relative humidity, non-condensing
10. Working humidity: 10% to 90% relative humidity, non-condensing
11. Color: black
12. Material: ABS+PC with texture

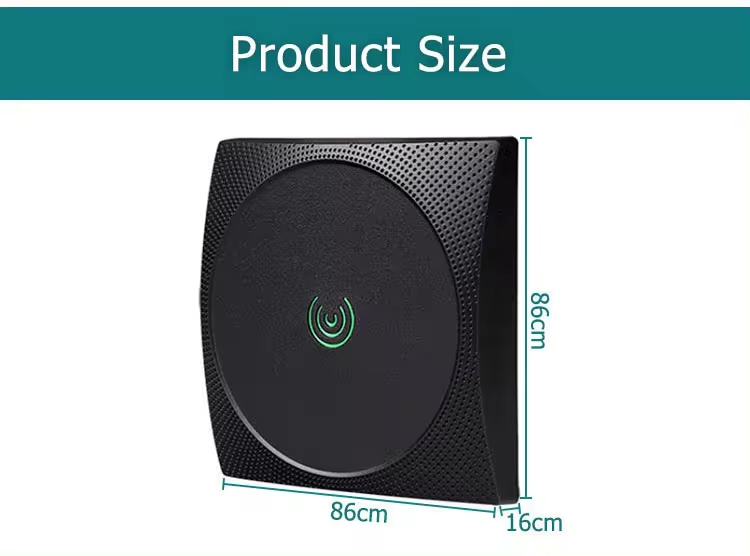

13. Size: 86*86*17mm
14. Weight: 150g
Specification
