High Quality 20-40 Layers TCP/IP Free SDK Software Elevator Access Control Elevator Card Reader Elevator Door Control Board
- $55.00 /set
- 1 set
- Shenzhen Yistar Technology Co., Ltd.
- Guangdong, China
- Ms Vicky Chen
Product Detail
| port: | Shenzhen | place of origin; place of origin: | Guangdong, China |
| Wiegand distance: | ≤80m | Customization support: | Software reengineering, OEM, ODM, online technical support |
| size: | 160*106*16(mm) | Supported reader types: | 26-bit Wiegand, others on request |
| Card capacity: | 30,000 | Record: | 100,000 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | 1 piece per box, 10 pieces per carton. Carton weight: 35KGS. |
| communicate: | Network Protocol / Network Protocol | Supply capacity: | 10000 pieces per month |
| brand: | Yixing | model: | DK20 |
| power supply: | 12V 1.5A | special function: | Attendance, RESET, people statistics, access control |
| type: | access control panel | Data storage options: | cloud |
| software: | support |
Product Description
illustrate
The normal management of access control is "one-to-one", that is, one card reader controls one door. Valid cards can open the door, invalid cards cannot open the door. But we can find that in many fields, a "One for More Controllers" is needed.
feature

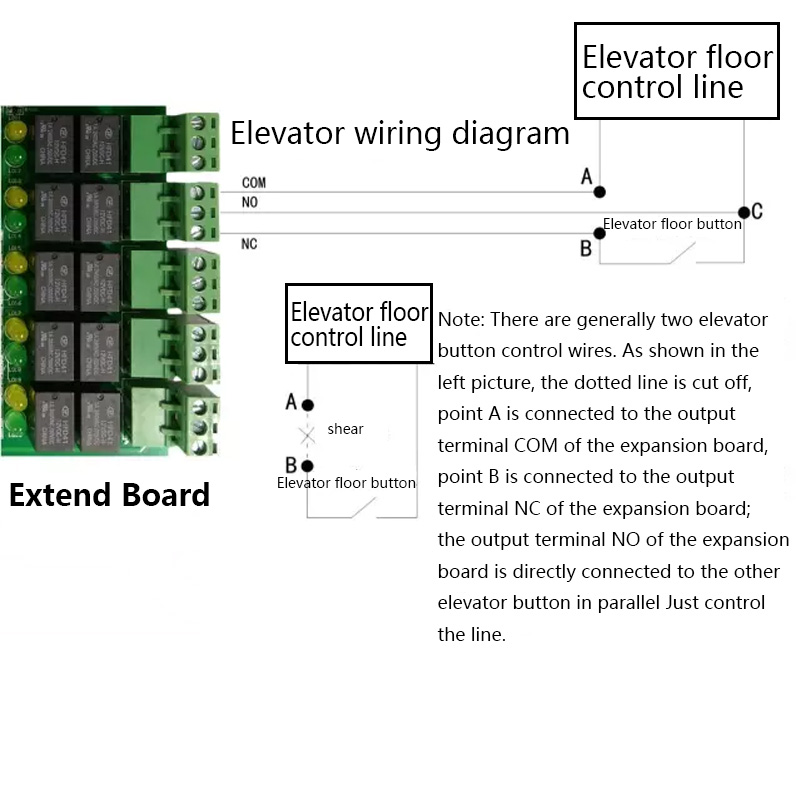

Example 1: Elevator access control management
We usually have ten or more floors in one elevator, but you only need one card reader. The system can distinguish the user's
Perks, then take them to the correct floor.
If the user has multi-level permissions, he can choose the floor he wants to go to this time when swiping his card, and he cannot press other floor buttons. If users are security guards and administrators, they can go to any floor they want according to the permission settings.
Example 2: Cabinet access control
It can be combined with Adroitor software to manage it.
When you swipe your card, the designated cabinet will open.
The administrator can use a PC to open all the doors at once, and do some inspection and management work.
Cleaners can open all doors for cleaning after get off work.
Some customers don't like card readers, they can also use biometric devices, such as: fingerprint reader, face recognition, etc., if they have Wiegand format. Management function can start to use: card + password
We usually have ten or more floors in one elevator, but you only need one card reader. The system can distinguish the user's
Perks, then take them to the correct floor.
If the user has multi-level permissions, he can choose the floor he wants to go to this time when swiping his card, and he cannot press other floor buttons. If users are security guards and administrators, they can go to any floor they want according to the permission settings.
Example 2: Cabinet access control
It can be combined with Adroitor software to manage it.
When you swipe your card, the designated cabinet will open.
The administrator can use a PC to open all the doors at once, and do some inspection and management work.
Cleaners can open all doors for cleaning after get off work.
Some customers don't like card readers, they can also use biometric devices, such as: fingerprint reader, face recognition, etc., if they have Wiegand format. Management function can start to use: card + password

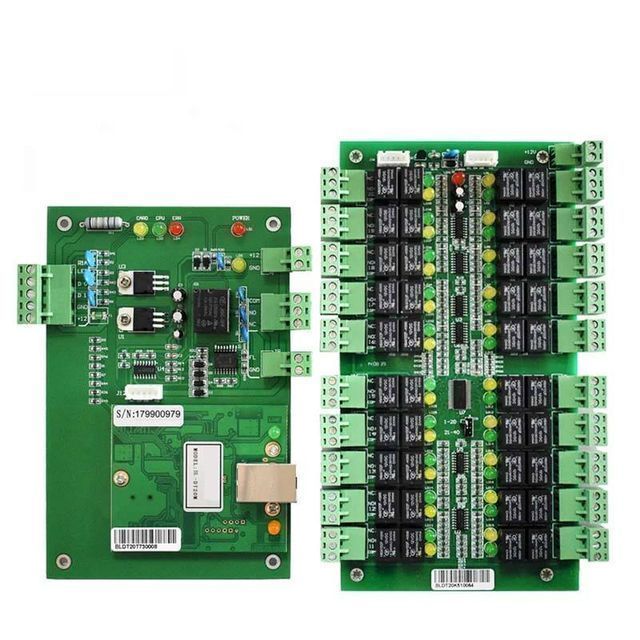

Specification:

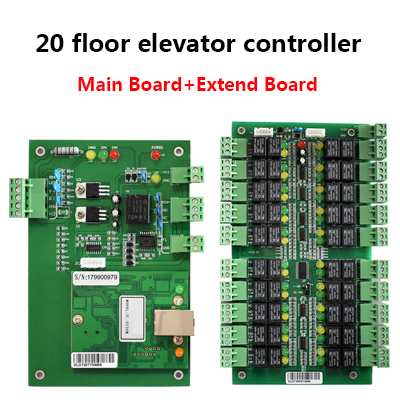

Model: DT20 one-to-many controller
Applicable to: WGaccess management software
Card capacity: 20000
Log capacity: 100000
Communication: TCP/IP
Maximum number of network episodes: unlimited
Input: 1 Wiegand 26-bit (34-bit etc.) format card reader or other biometric device
Packing: Neutral
Board Dimensions: 164 x 106mm
Fire alarm signal input: 1
Power supply: DC 12V

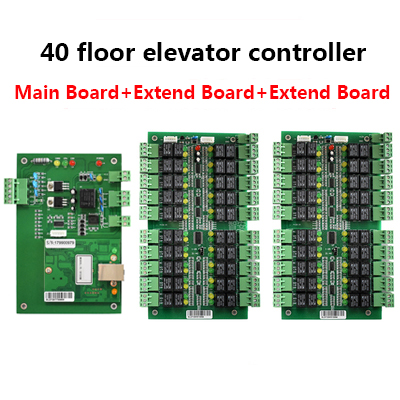

Model: DT20K expansion board

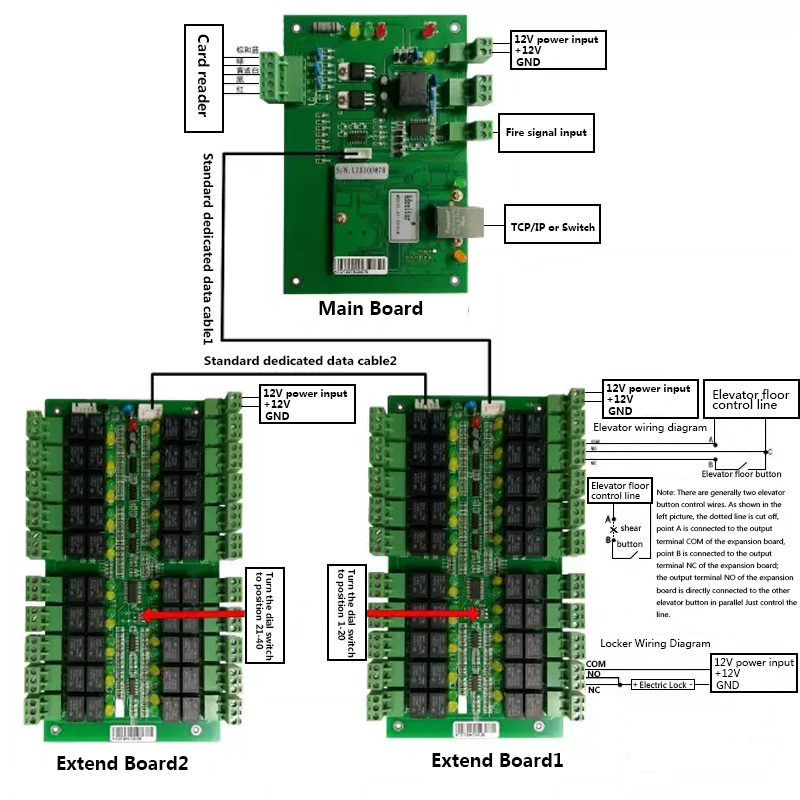

Applicable: It must be used with DT20 one-to-many controller, and one DT20 controller board can be used with two DT20K expansion boards.
Output: 20 ways
Packing: Neutral
Circuit board size: 219*115mm
Applicable to: WGaccess management software
Card capacity: 20000
Log capacity: 100000
Communication: TCP/IP
Maximum number of network episodes: unlimited
Input: 1 Wiegand 26-bit (34-bit etc.) format card reader or other biometric device
Packing: Neutral
Board Dimensions: 164 x 106mm
Fire alarm signal input: 1
Power supply: DC 12V
Model: DT20K expansion board
Applicable: It must be used with DT20 one-to-many controller, and one DT20 controller board can be used with two DT20K expansion boards.
Output: 20 ways
Packing: Neutral
Circuit board size: 219*115mm
detailed drawing
software project
After-sales service
Warranty: 2 years.
Warranty method: no repair, no repair, direct replacement.
Once you have any questions with the seller, please feedback to the sales director.
