MC-5816 series 16-story elevator access control panel

introduce:

MC-5816 series smart card elevator/locker access control controller, also known as smart card elevator access control system. MC-5816 is an elevator access control system product used for elevator hierarchical control and people going up and down. MC-5816 series smart card elevator access control controller can meet the more efficient and safer management needs of building service management companies or managers to access elevators. This system controls the access control of all floors by adding all cardholders to enter the floor.

MC-5816 has different floor permissions for different people. You can specify that a person can only go to a certain floor, a certain floor or all floors. Each floor is managed through authority. Some floors can be reached, and some floors cannot be reached. On some floors, MC-5816 may be authorized based on time management. Enter the floor management area without the authorization of the express elevator access control system, and perform floor control during important periods. The MC-5816 series elevator access control management system supports offline operation. An independent group can store 26,000 data records and 100,000 card readers, so that all staff can access the floors where the data is recorded.

 Specification:

about Us:

Techcrepower is a professional supplier, focusing on access control system for more than 10 years, we have provided hundreds of millions of products, such as access controller, electronic lock, release button, reset switch and so on. in China and worldwide.

We always focus on quality and service first. I believe you will be impressed with our products and services!

We will cherish any opportunity to cooperate with you!

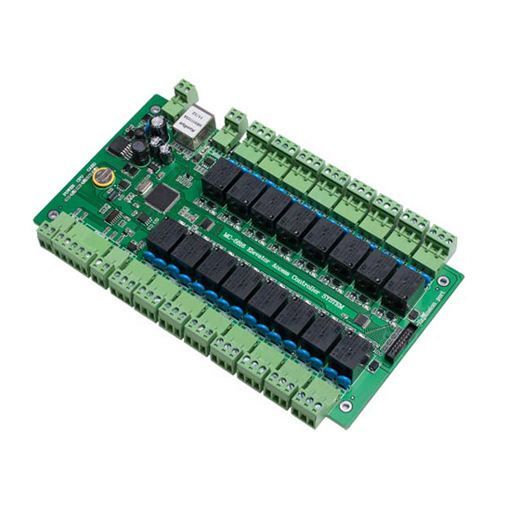

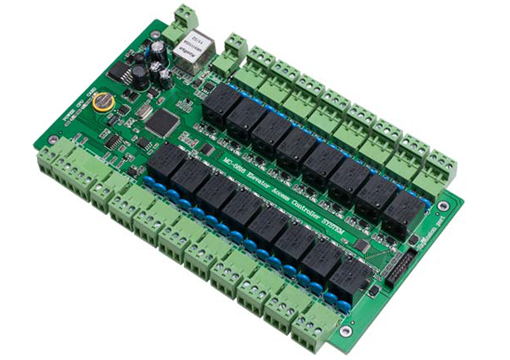

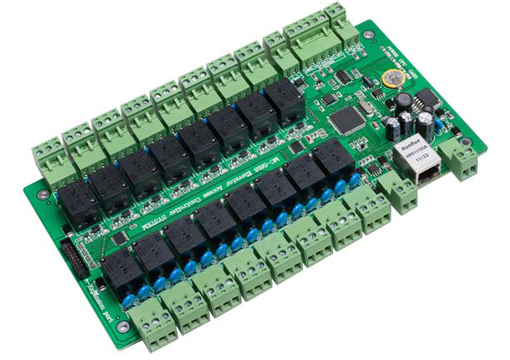

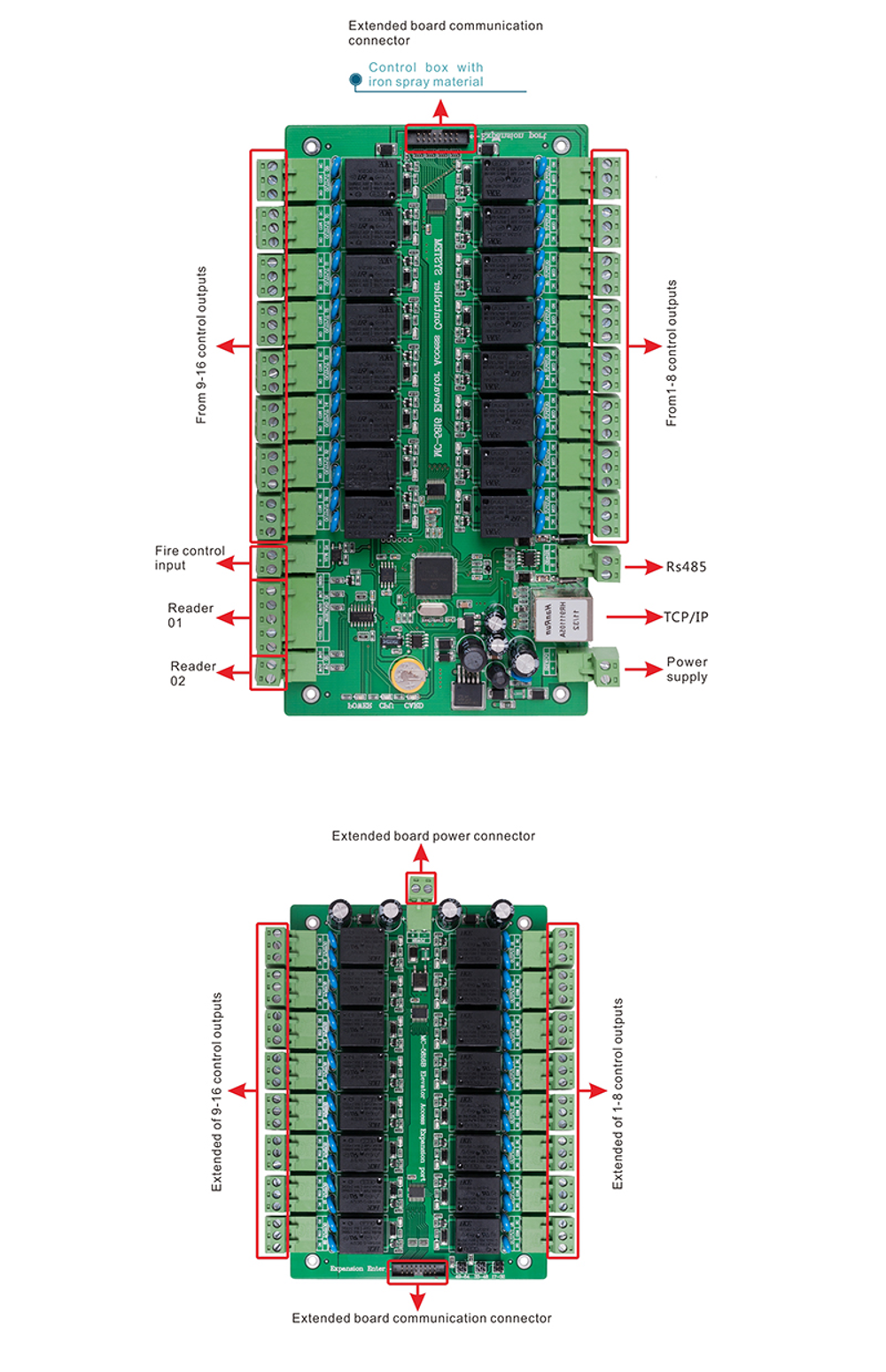

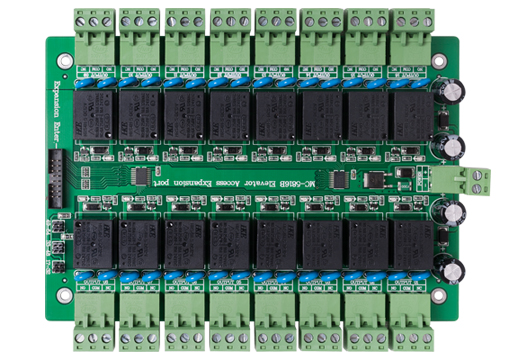

Product Image

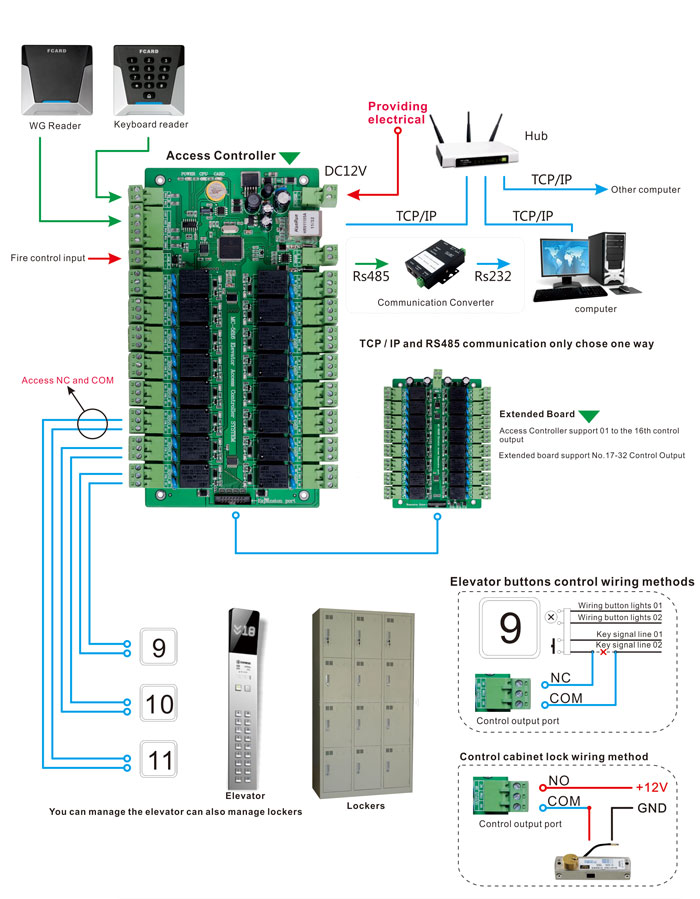

Solution Wiring Diagram
