RFID metal access control for 2000 users
- $5.00 /piece
- 1 piece
- Zhongshan Elock Security Technology Co., Ltd.
- Guangdong, China
- Ms Lisa Lueng
Product Detail
| Operating temperature: | -45~+60℃ | brand: | Eloc Security |
| Origin: | Guangdong, China | weight: | 0.45 kg |
| standard packaging: | 10 | Operating Voltage: | DC 12V±10% |
| Packaging Details: | 10 pieces per carton | Supply capacity: | 100000 pieces per month |
| model: | ES2000ES | Idle current: | 25±5mA |
| Working humidity: | 10%- 90% relative humidity | Active current: | <60mA |
| payment terms: | L/C, T/T, Western Union | User capacity: | 2000 |
| size: | 120×56×18mm | frequency: | 125Khz electromagnetic card |
| port: | zhongshan |
RFID metal access control for 2000 users
feature
1. Robust zinc alloy plating anti-vandal housing
2. Fully programmed from the keypad
3. 2000 times of use, support Card, PIN, Card + PIN
4. Can be used as an independent keyboard
5. Backlit keys
6. Wiegand 26 input for connecting external card reader
7. Wiegand 26 output for connecting controller
8. Adjustable door output time, alarm time, door opening time
9. Very low power consumption (30mA)
10. Fast running speed, <20ms for 2000 users
11. Lock output current short circuit protection
12. Easy to install and program
13. Built-in light dependent resistor (LDR) for anti-tampering
14. Built-in buzzer
15. Red, yellow, green LED display working status
16. Certificate: CE, Rosh, CMA
Specification
product | RFID metal access control |
Model | ES2000ES |
size | 120×56×18mm |
frequency | 125Khz electromagnetic card |
user capacity | 2000 |
Reading distance | 5-15 cm |
Operating Voltage | DC 12V±10% |
active current | <60mA |
idle current | 25±5mA |
Voltage | 12-18VDC |
Lock output load | Max 3A |
Alarm output load | Max 20A |
Operating temperature | -45℃~60℃ |
Working humidity | 10%- 90% relative humidity |
waterproof | No |
Adjustable door relay time | 0-99 seconds |
Adjustable alarm time | 0-3 minutes |
Wiegand interface | Wiegand 26 bit |
Wiring connection | Electric locks, exit buttons, external alarms, external card readers |
weight | about 0.45 kg |
standard packaging | 10 |
Package
Carton size: 40x32x16cm
Quantity/Carton: 10pcs
Net weight: 4.5 kg
Gross weight: 5.5KG

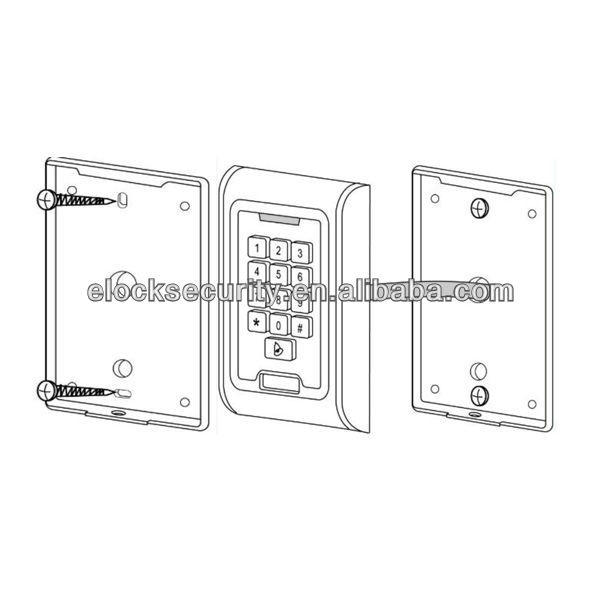

Install

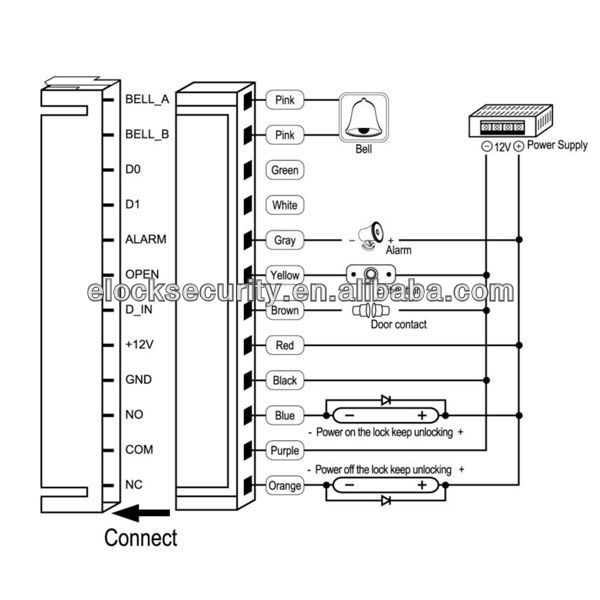

wiring diagram
smallplenty of photos
to pay
We usually accept Western Union or PayPal if the total payment is less than $500. |
For large amounts, we accept bank transfers. |
transportation
Usually we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 business days, depending on the country of delivery. |
Warranty
Two-year warranty for non-artificial damage. |
