EC100 EC10 RFID Card Elevator Access Control Board
- $16.00 /unit
- 1 unit
- Chongqing Huakong Technology Co., Ltd.
- Guangdong, China
- Ms elena he
Product Detail
| Data storage options: | cloud | project name: | elevator control panel |
| Customization support: | Software reengineering, OEM, ODM | type: | Face |
| brand: | Kotech | solve: | 1280×720 |
| application: | indoor | model: | EC100 |
| special function: | Attendance, people counting, one-way audio, others | Origin: | China |
| Certification: | ce | Warranty: | 1 year |
| Packaging Details: | carton |

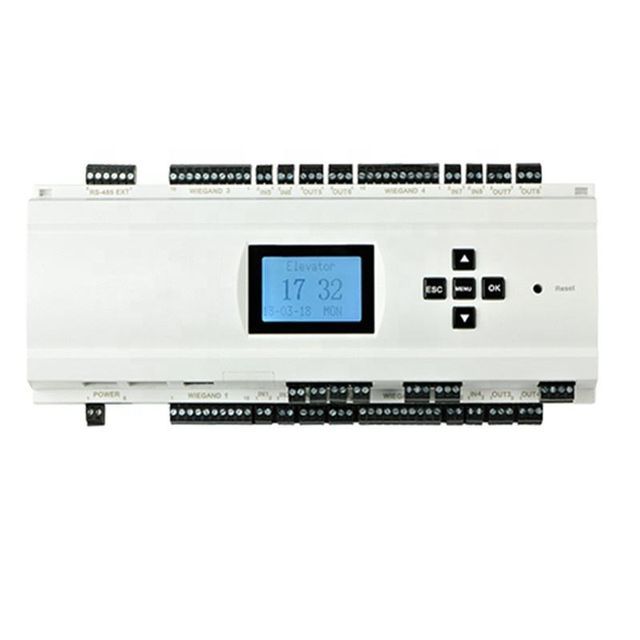

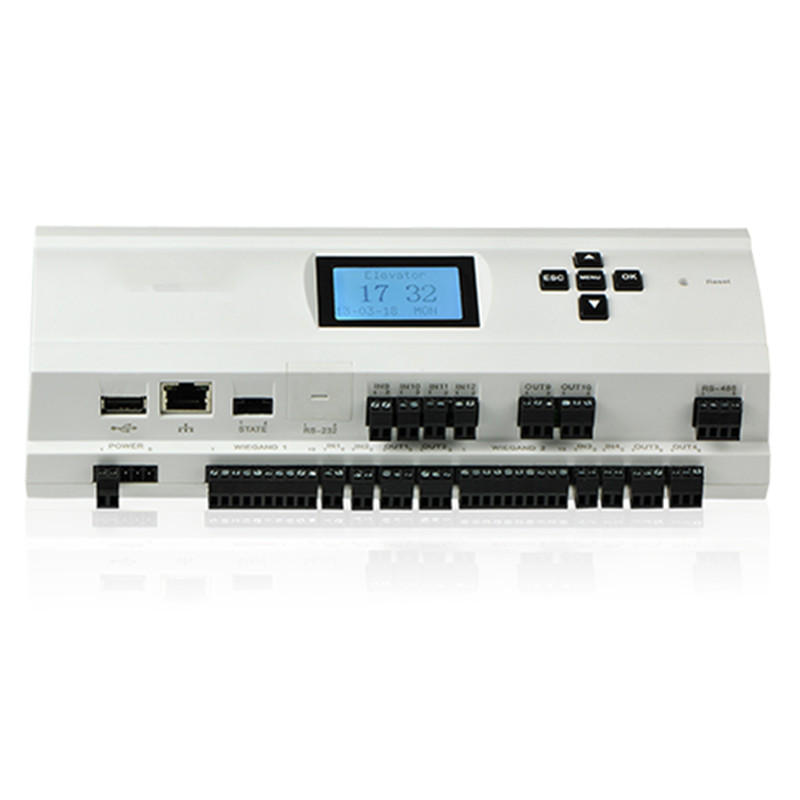

Specially designed for elevator control, EC10 panel and EX16 floor extension
Board provides customers with the most secure, scalable, versatile and affordable access control solutions available today.
Floor access can be restricted based on various user credentials including fingerprints, proximity cards and/or passwords.
Pre-defined schedules are also available to control floor access. Unrestricted floors during normal visiting/working hours
Access can also be allowed (also known as tunnel mode).

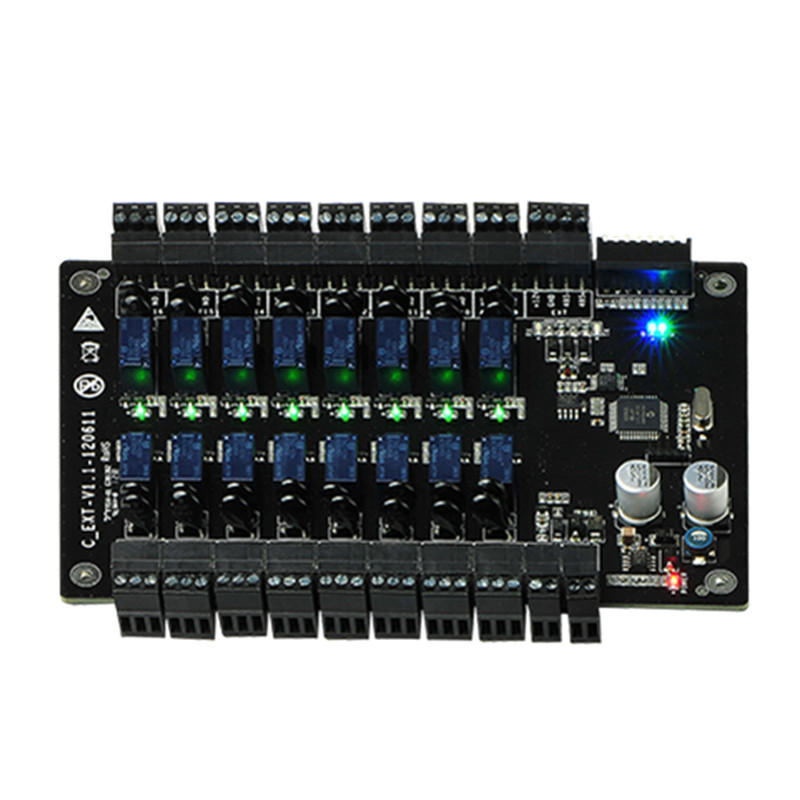

The EC10 elevator control panel can restrict access to up to ten floors. EX16 elevator floor extension board restricts uplink
to another sixteen floors. Each EC10 can support up to three EX16 boards. Taken together, there are fifty-eight (58)
Floors can be controlled by a single EC10 kit. Note that EC10 panels can be daisy-chained together to control as many floors as possible
want.
Our powerful yet easy-to-use software makes elevator control systems very easy to manage. SDK is available for software
Companies looking to integrate with the system.
Board provides customers with the most secure, scalable, versatile and affordable access control solutions available today.
Floor access can be restricted based on various user credentials including fingerprints, proximity cards and/or passwords.
Pre-defined schedules are also available to control floor access. Unrestricted floors during normal visiting/working hours
Access can also be allowed (also known as tunnel mode).
The EC10 elevator control panel can restrict access to up to ten floors. EX16 elevator floor extension board restricts uplink
to another sixteen floors. Each EC10 can support up to three EX16 boards. Taken together, there are fifty-eight (58)
Floors can be controlled by a single EC10 kit. Note that EC10 panels can be daisy-chained together to control as many floors as possible
want.
Our powerful yet easy-to-use software makes elevator control systems very easy to manage. SDK is available for software
Companies looking to integrate with the system.
Product Description
Specification
thing | value |
birthplace | China |
brand | Kotech |
model | EC100 |
Warranty | 1 year |
solve | 1280×720 |
certified | ce |
special function | attendance |
data storage options | cloud |
application | indoor |
Item name | elevator control panel |
technical specifications | ||
Model | EC10 | |
Floor button control relay | 10 | |
Fingerprint capacity | 3000 | |
RFID card capacity | 30,000 | |
active capacity | 100,000 | |
power supply | 12V DC 1A | |
communicate with computer | TCP/IP, RS485 | |
Communication with EX16 | RS485 | |
Number of supported EX16 | 3 | |
Dimensions (length × depth × height) | 242mm×95mm×60mm | |
net weight | 0.8Kg | |
Model | EX16 | |
Floor button control relay | 16 | |
Communication with EC10 | RS485 | |
RS485 address | DIP switch setting | |
power supply | 12V DC 1A | |
Dimensions (length × depth × height) | 160mm×106mm | |
net weight | 1.5KG | |
