Free Sample Newspectrum 4075 6000k 20W 30W 50W 100W 150W Driverless LED COB Chip 4060 5054 2835 110V 220 LED Chip White COB LED
- $0.01 /set
- 1 set
- Shenzhen Colighting Ltd.
- Guangdong, China
- Mr Bon Zhang
Product Detail
| brand: | new spectrum | Lighting Solutions Services: | Lighting and Circuit Design |
| Chip material: | AlGaInP | Luminous color: | cool white/warm white/other |
| Color temperature: | 3000-6500K | Product weight (kg): | 0.03 |
| net weight: | 12 grams | Light attenuation (%): | 2 |
| type: | COB LEDs | product name: | 110V/220V COB LED chip |
| application: | Spotlight/Grow Light/Folding Light | Power factor: | 0.9 |
| Supported dimmers: | Yes | Working temperature(℃): | -20 - 60 |
| Working hours (hours): | 50000 | Luminous efficiency (lm/w): | 100 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Supply capacity: | 1,000,000 pieces per month |
| custom made: | Color/Brightness/Logo | Warranty period (years): | 2 years |
| Package preview: | port: | Shenzhen, China | |
| Viewing Angle (°): | 120 | light intensity: | / |
| Storage temperature(℃): | -20 - 60 | Power Consumption: | 0.01,0 |
| Origin: | Guangdong, China | Lifespan (hours): | 50000 |
| Luminous flux (lm): | 5000 | Certification: | CE, RoHS |
| Input voltage (V): | AC 110V/220V (±10%) | strength: | 20W/30W/50W |
| Color temperature (correlated color temperature): | 1400-6500K | Color rendering index (Ra): | 80 |
feature

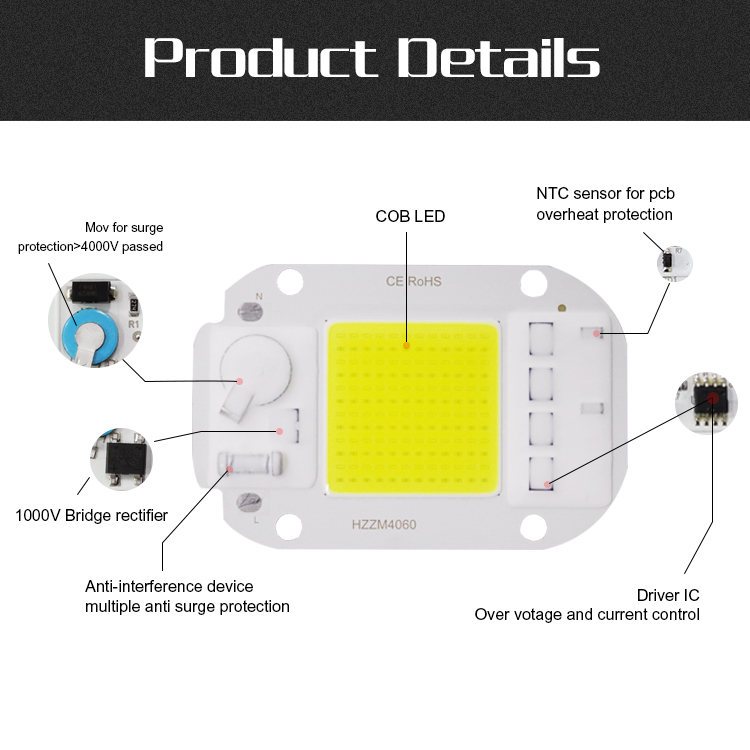

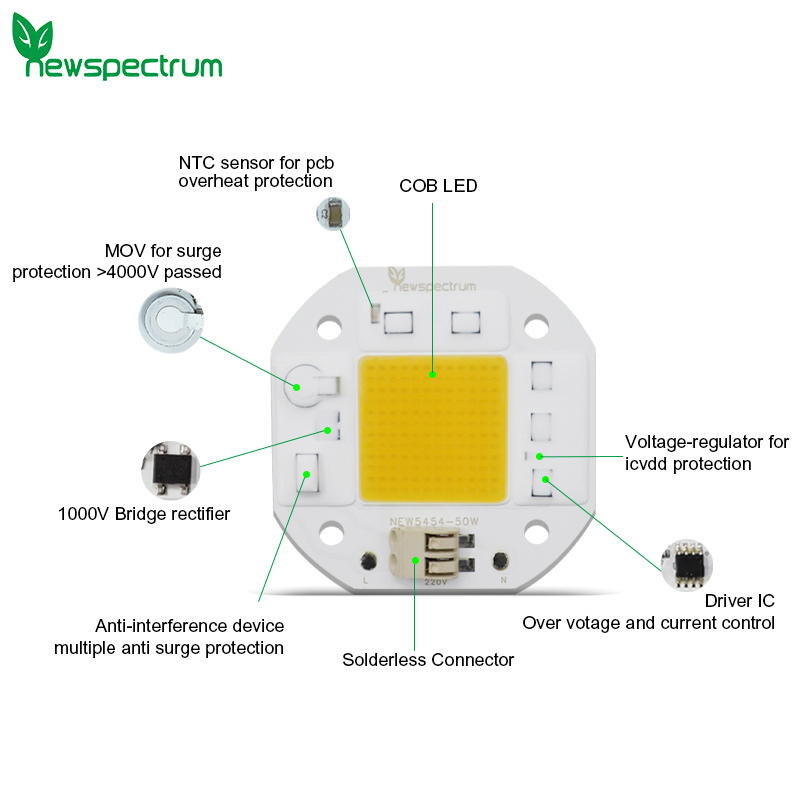

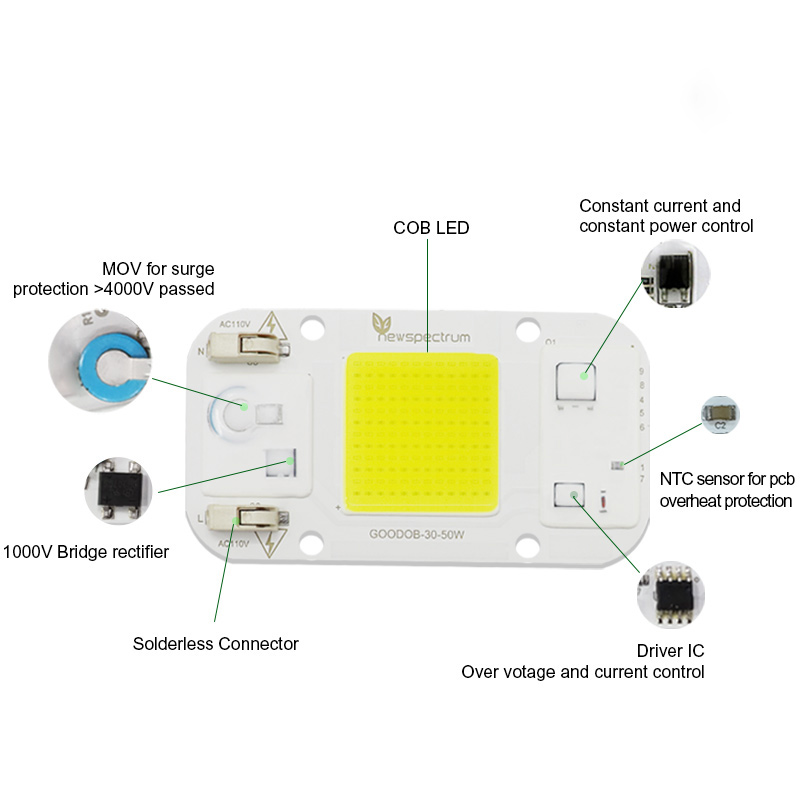

①: LED flip-chip assembly technology. Good cooling effect, higher light output rate, long life②:High brightness, our LED chips are bigger than others③:Smart ICs are suitable for driverless
④:Constant current, constant power control
⑤：NTC sensor for PCB overheating protection
⑥:Voltage regulator for ic vdd protection
⑦:Driver IC, overvoltage, overcurrent control
⑧:Dimmable with LED dimmer or Triac dimmer
⑨:Surge protection MOV>4000V pass⑩:1000V bridge rectifier
Specification
thing | 4075/4060/5454 series | 5054 series | Bulb/Spotlight COB | ||
strength | 20/30/50W | 50/100/150W | 2/3/5/7/9/12/15/200W | ||
Voltage | AC110/220V (50/60Hz) | AC220-240V (50/60Hz) | AC220-240V (50/60Hz) | ||

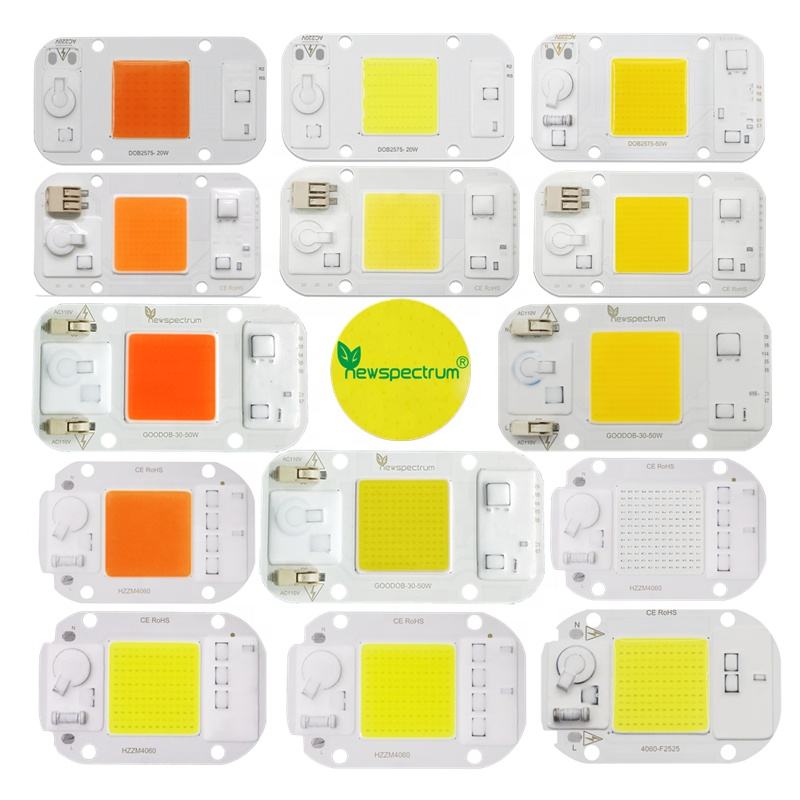

color | Cool/Warm White/Pink | Cool/Warm White/Pink
| Cool/Warm White/Pink
| ||
Color rendering index (Ra) | 80 | 80
| 80
| ||
correlated color temperature | 1400-6500K | 1400-6500K | 1400-6500K | ||
Luminous flux | 100 lumens/watt | 100 lumens/watt | 100 lumens/watt | ||
Board size | 40*75/40*60/54*54mm | image display | image display | ||
Luminous size | 25mm*25mm | image display | image display | ||
Pitch | 3mm*3mm | 3mm*3mm | 3mm*3mm | ||
Operating temperature | -20℃~60℃ | ||||
custom made | Color/Brightness/Logo/Other | ||||

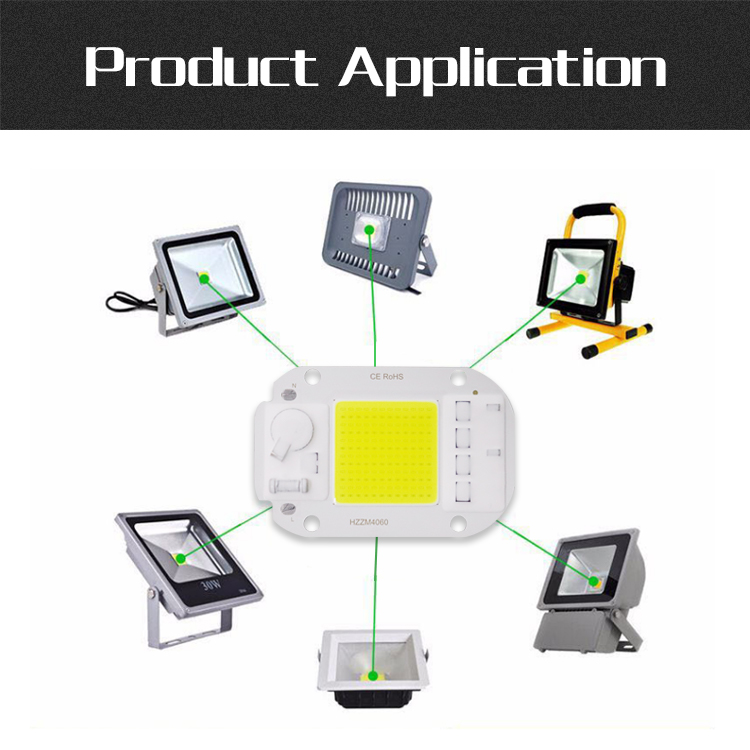

application | Spotlight/Plant Light/Floor Light | ||||
PCB Thickness | 1.6 mm | ||||
Focus on AC/COB10 years

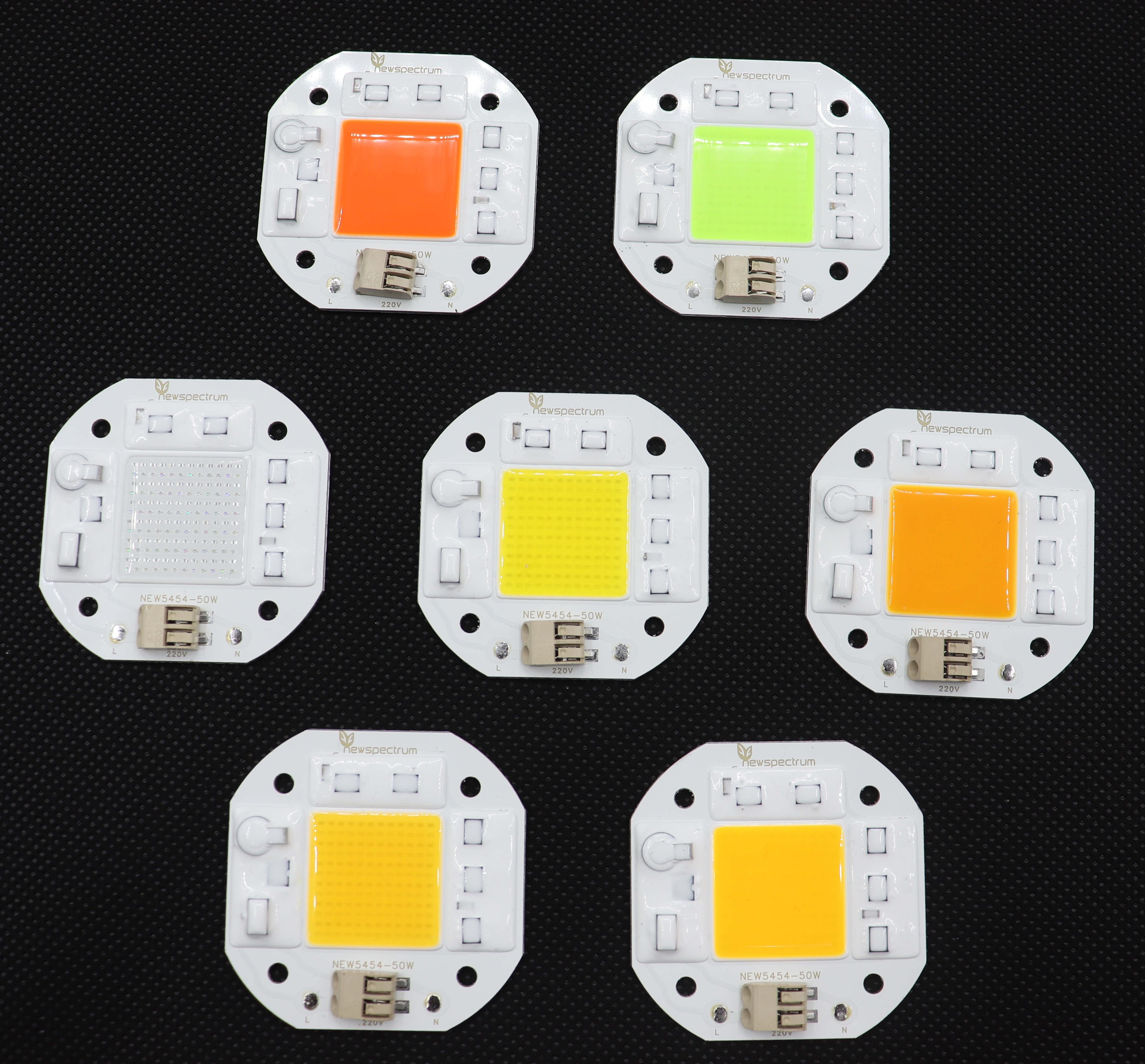

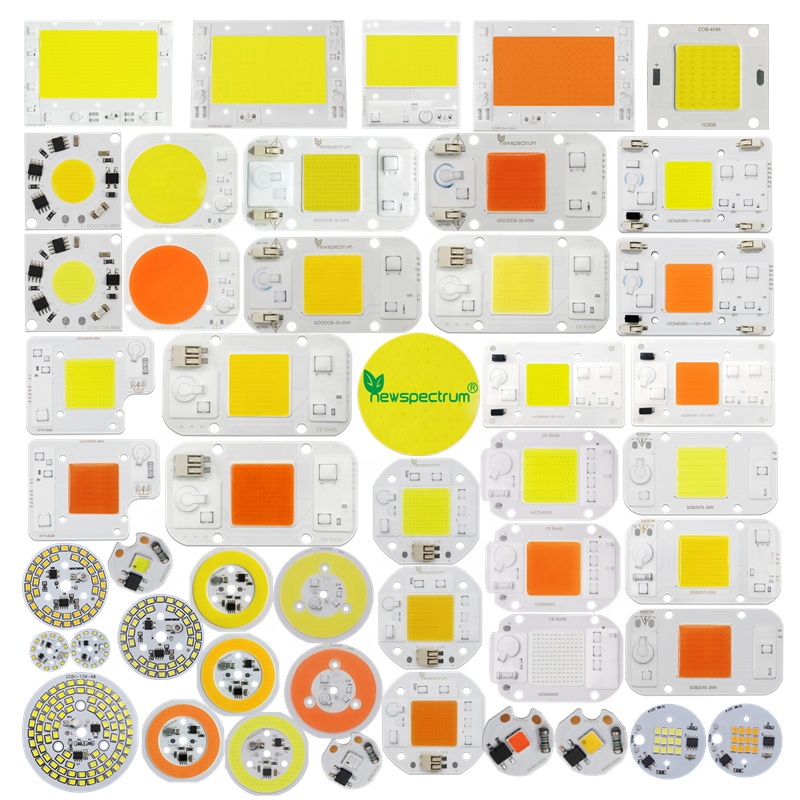

Different colors or spectra serve different purposes.
We have professional testing equipment.

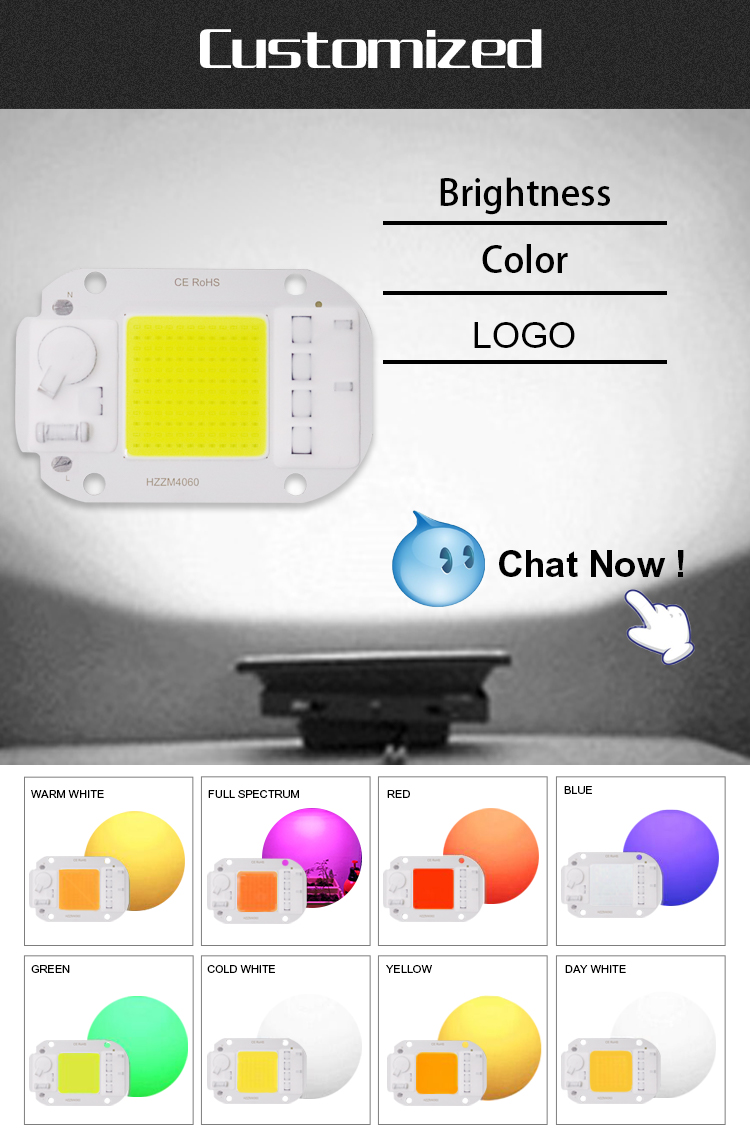

We can customize different brightness and luminous flux to meet your different needs for products.
For customization,
click"Chat Now"please!
