Getian new design LED high power 15w 20w 25w 30w 40w 50w 60w cob led flip chip for sign light projection
- $2.31 /piece
- 1 piece
- Shenzhen Getian Opto-Electronics Co., Ltd.
- Guangdong, China
- Ms Jenny Liao
Product Detail
| Forward Voltage: | 11-13V | aspect: | 20*20mm |
| Packaging Details: | Pallet: 70pcs/tray | brand: | other |
| Light attenuation (%): | other | Warranty: | 5 years |
| current: | 1.5/1.8/2.3/3/3.5/4.5A | life: | >50000 hours |
| Origin: | Guangdong, China | strength: | other |
| Power Consumption: | other | type: | COB LED, COB LED |
| Storage temperature(℃): | -40 - 60 | application: | Projector lights; follow spot lights; logo lights, etc. |
| Working temperature(℃): | -40 - 60 | product name: | GT-FCXX |
| Viewing angle(°): | other | payment terms: | T/T, Western Union |
| Color temperature: | other | Color rendering index (Ra): | other |
| port: | Shenzhen, Guangdong | Chip color temperature (K): | 8000-9000K |
| Key words: | Flip chip LED chip for logo light | Luminous flux (lm): | other |
| Certification: | RoHS Directive | Certificate: | RoHS Directive |
| Chip material: | Ingen | Luminous color: | Cold white |
| Supply capacity: | 100000 pieces per month |
Getian new design LED high power 15w 20w 25w 30w 40w 50w 60w cob led flip chip for sign light projection n
Product Description
feature:
High reliability and stability

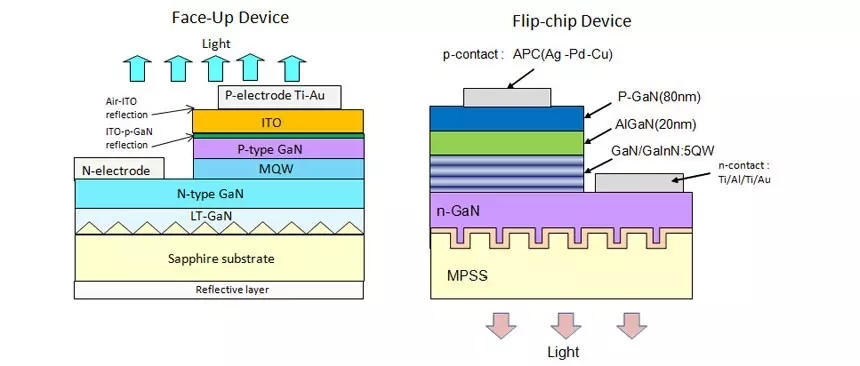

1.Ceramic base with flip chip, no gold wire bonding
2. High thermal conductivity copper substrate
3. High temperature eutectic welding technology
2. High thermal conductivity copper substrate
3. High temperature eutectic welding technology
excellent projection performance
1. High power and lux density, ultra-uniform light distribution
2. The minimum distance between chips to achieve the surface glow effect
3. Ultra-small LES optimized for focused lighting purposes
Specification:
| product name | strength | Voltage | current | CCT | Color rendering index | Luminous flux | technology |
| 20W LED | 20W | 11-13V | 1.6A | 6000-7000K | 70 | 2000-2500 lumens | flip chip |
| (GT-FC20W6-1.0) | |||||||
| 40W LEDs | 40W | 11-13V | 3.2A | 7000-8000K | 70 | 4000-4500 lumens | flip chip |
| (GT-FC40W7-1.0) | |||||||
| 10W LED | 10W | 3.3-4.2V | 2.5A | 6000-7000K | 70 | 700 lumens | vertical chip |
| (GT-P50W661010) | |||||||
| 15W LEDs | 15W | 12-14V | 1.2A | 8000-9000K | 70 | 1400 lumens | flip chip |
| (GT-FC15X3-1.0) | |||||||
| 20W LED | 20W | 12-14V | 1.5A | 8000-9000K | 70 | 1800 lumens | flip chip |
| (GT-FC20X3-1.0) | |||||||
| 25W LEDs | 25W | 1.8A | 2300 lumens | ||||
| (GT-FC25X3-1.0) | |||||||
| 30W LEDs | 30W | 2.3A | 2800 lumens | ||||
| (GT-FC30X3-1.0) | |||||||
| 40W LEDs | 40W | 12-14V | 3.0A | 8000-9000K | 70 | 3300 lumens | flip chip |
| (GT-FC40X3-1.0) | |||||||
| 50W LED | 50W | 3.5A | 4200 lumens | ||||
| (GT-FC50X3-1.0) | |||||||
| 60W LEDs | 60W | 4.5A | 4500 lumens | ||||
| GT-FC60X3-2.0-2020 | |||||||
| 80W LED | 80W | 6A | 5000 lumens | ||||
| GT-PST80X3-1.0 |
application:
Decorative lighting, entertainment lighting, stage lighting, sign projection lighting, etc.
aspect:

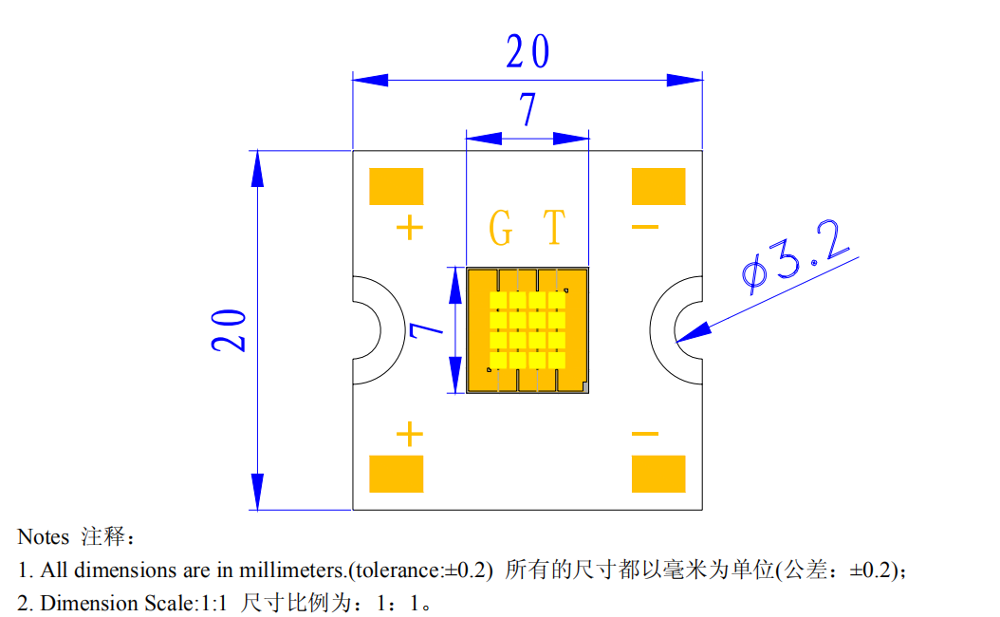

FC15/20/25/30/40/50:

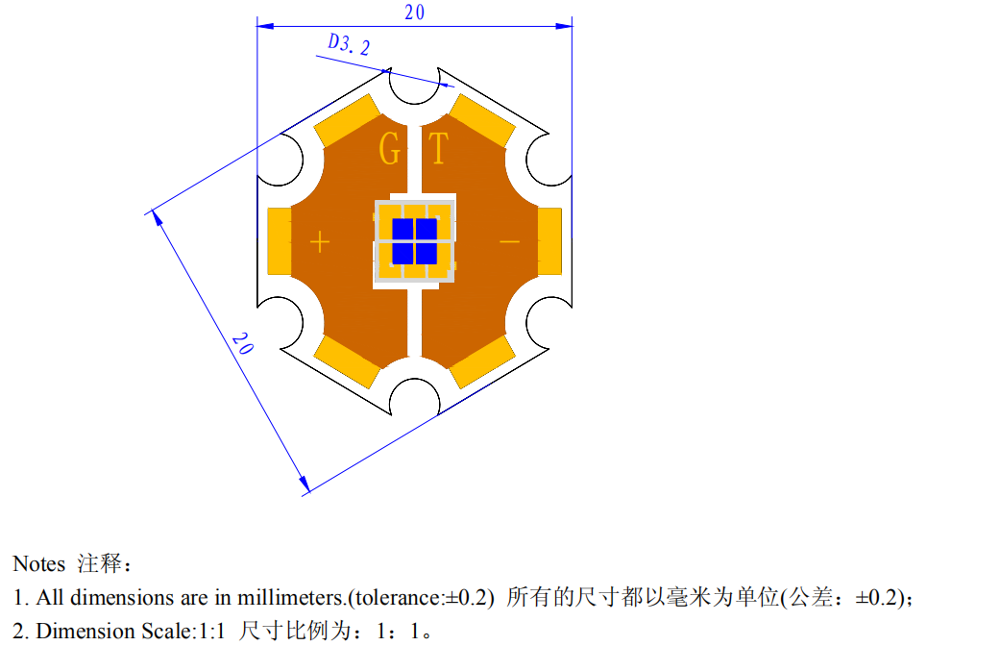

FC60:

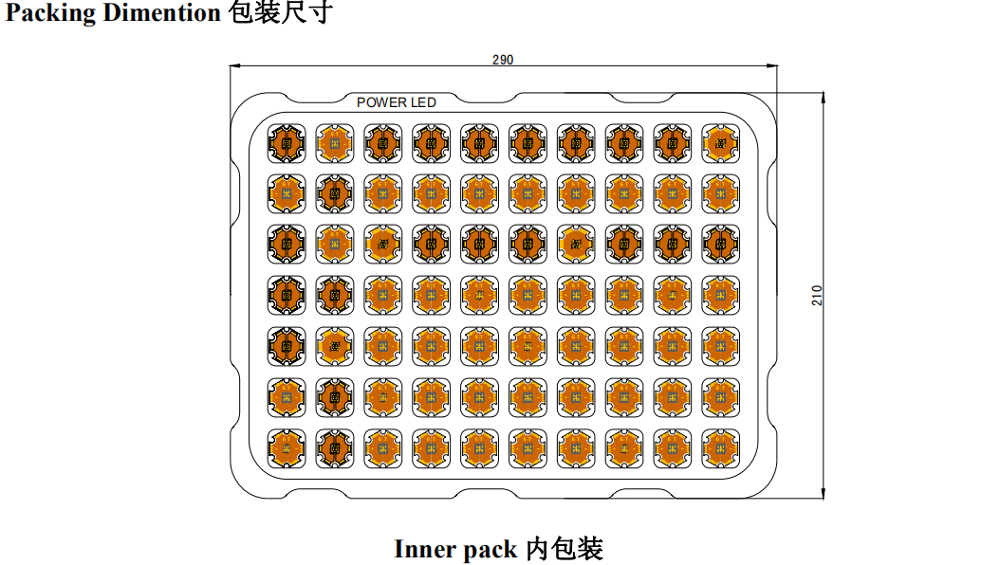

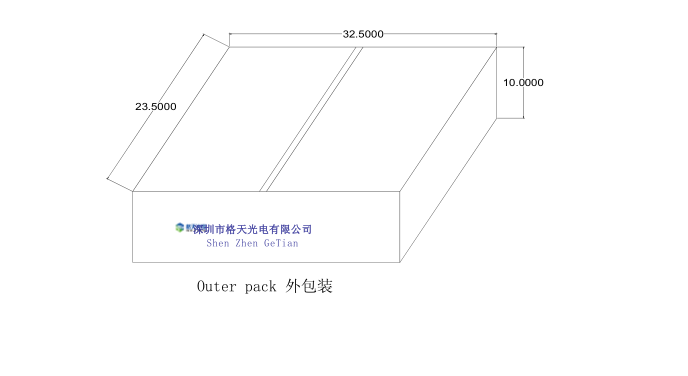

Package Details:
