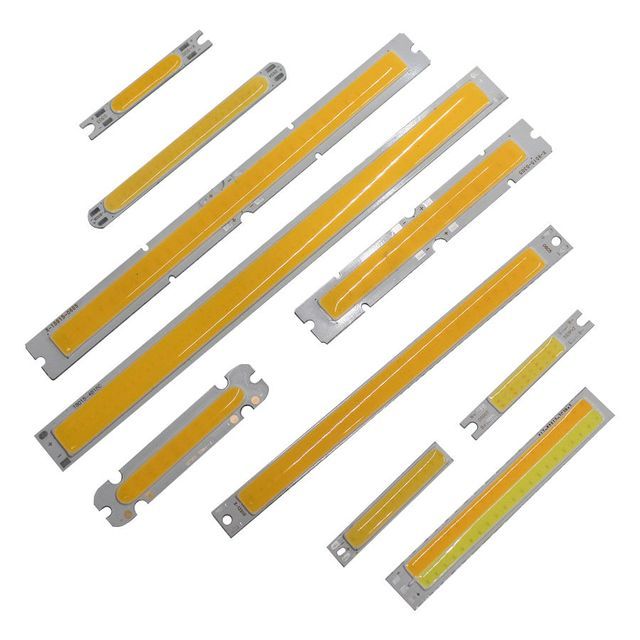

High power custom COB LED light bar panel 1W-50W bulb LED chip light DIY 9V 11V 15V 21V 24V 34V strip COB LED linear chip
-
$2.80 / 1 - 999 pieces
$1.70 / 1000 - 9999 pieces
$0.90 / >=10000 pieces - 1 piece
- Guangzhou Baicheng Technology Co., Ltd.
- Guangdong, China
- Mr bocheng ji
Product Detail
| Product weight (kg): | 0.5 | port: | Shenzhen/Guangzhou/Shanghai |
| Supply capacity: | 1,000,000 pieces per month | Color rendering index (Ra): | 80 |
| Chip material: | AlGaInP | Supported dimmers: | Yes |
| brand: | Juxin (Sanxin) | Input voltage (V): | 9V-153V |
| Luminous flux (lm): | 100-100000LM | Warranty (year): | 2 years |
| Service 2: | Support sample service | Lifespan (hours): | 50000 |
| light intensity: | Bright LED | Lighting Solutions Services: | Lighting and Circuit Design |
| Power Consumption: | 0 | Luminous color: | all colors available |
| Color temperature: | 2800-15000K | type: | Strip COB LED, COB LED |
| Origin: | Guangdong, China | payment terms: | Western Union, T/T |
| OEM production: | support | Working temperature(℃): | -20 - 70 |
| Packaging Details: | Customized COB LED Strip Panel 1W-50W Bulb LED Chip Light DIY 9V 11V 15V 21V 24V 34V Strip COB LED Linear Chip | Light attenuation (%): | 3 |
| Working hours (hours): | 50000 | Viewing angle(°): | 120 |
| Service 1: | Support customized service | strength: | 3-50W |
| Luminous efficacy (lm/w): | 110 | Storage temperature(℃): | 10 - 50 |
| Color temperature (CCT): | 2800-15000K |
video description
Customized COB LED Strip Panel 1W-50W Bulb LED Chip Light DIY 9V 11V 15V 21V 24V 34V Strip COB LED Linear Chip
Specification

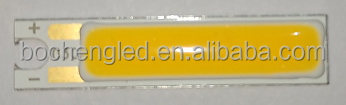

size | strength | electricity | Voltage |

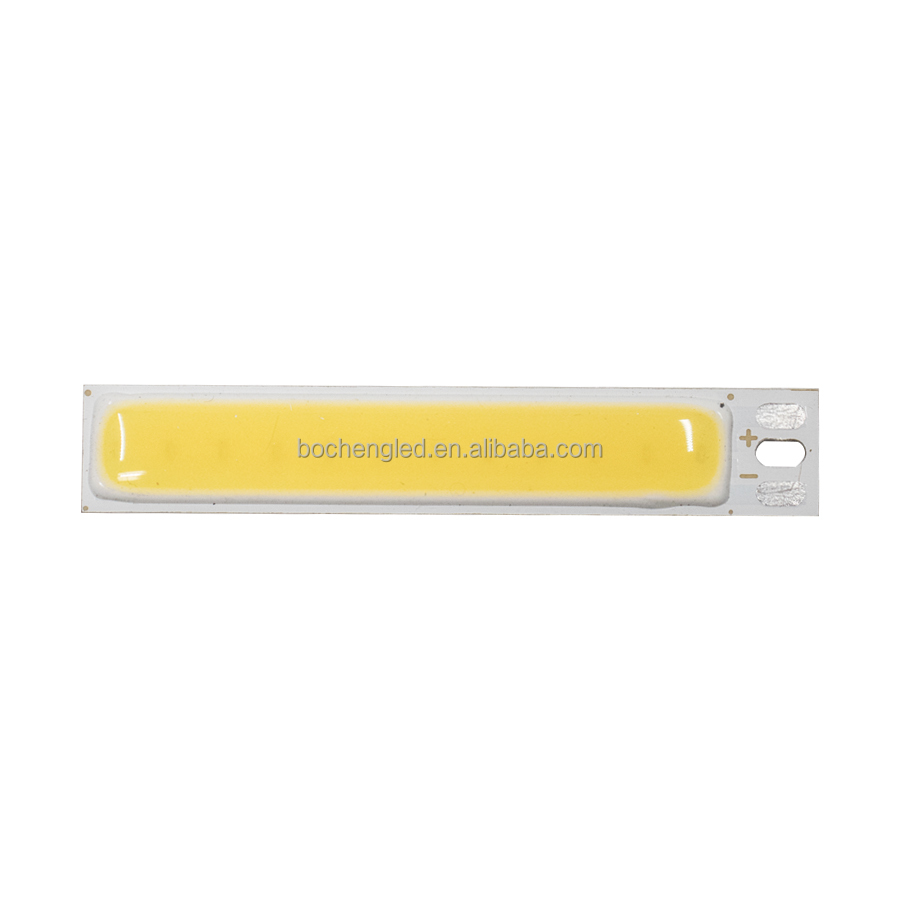

30*07 | 3W | 300mA | 9-11V |
size | strength | electricity | Voltage | Comment |
45*08 | 3W | 300mA | 9-11V | floor lamp |
size | strength | electricity | Voltage | Comment |

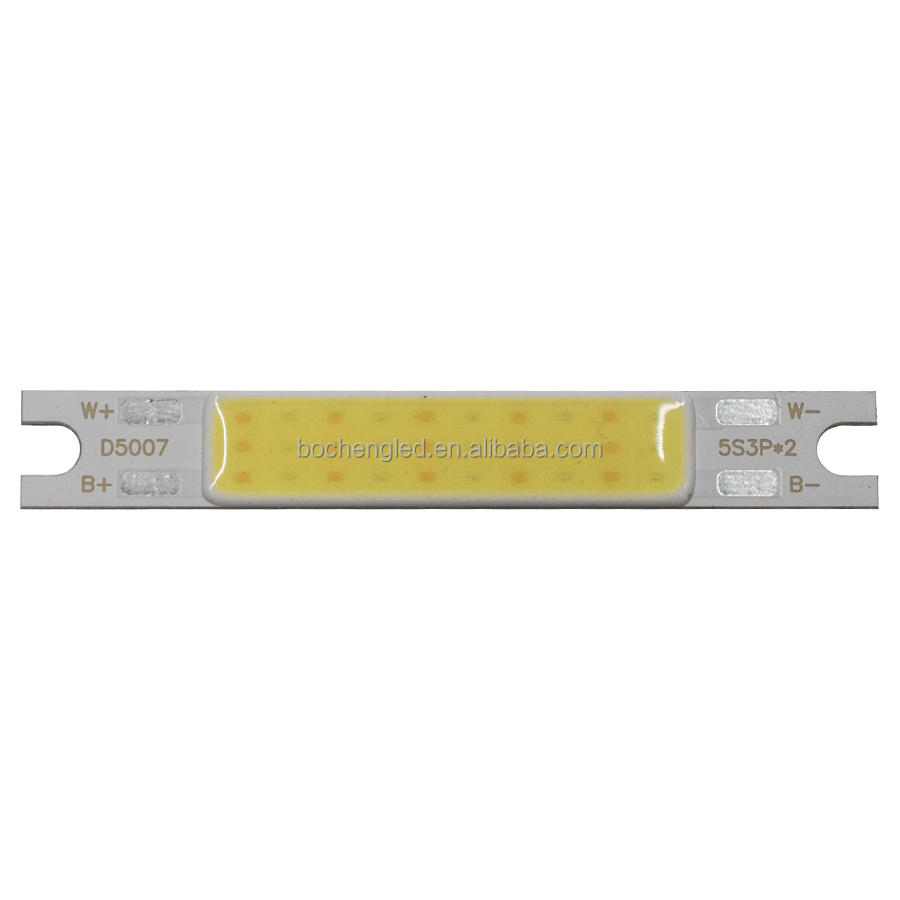

50*07 | 3W | 300mA | 9-11V | flip chip |
3W | 300mA | 9-11V | front | |
5W | 300mA | 15-17V | ||
3W (dual tone) | 300mA | 9-11V | flip chip |
size | strength | electricity | Voltage |
64*12 | 5W | 300mA | 15-17V |
size | strength | electricity | Voltage | Comment |

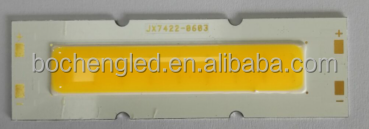

74*22 | 6W | 300mA | 18-21V | Wafer chip |
size | strength | electricity | Voltage |

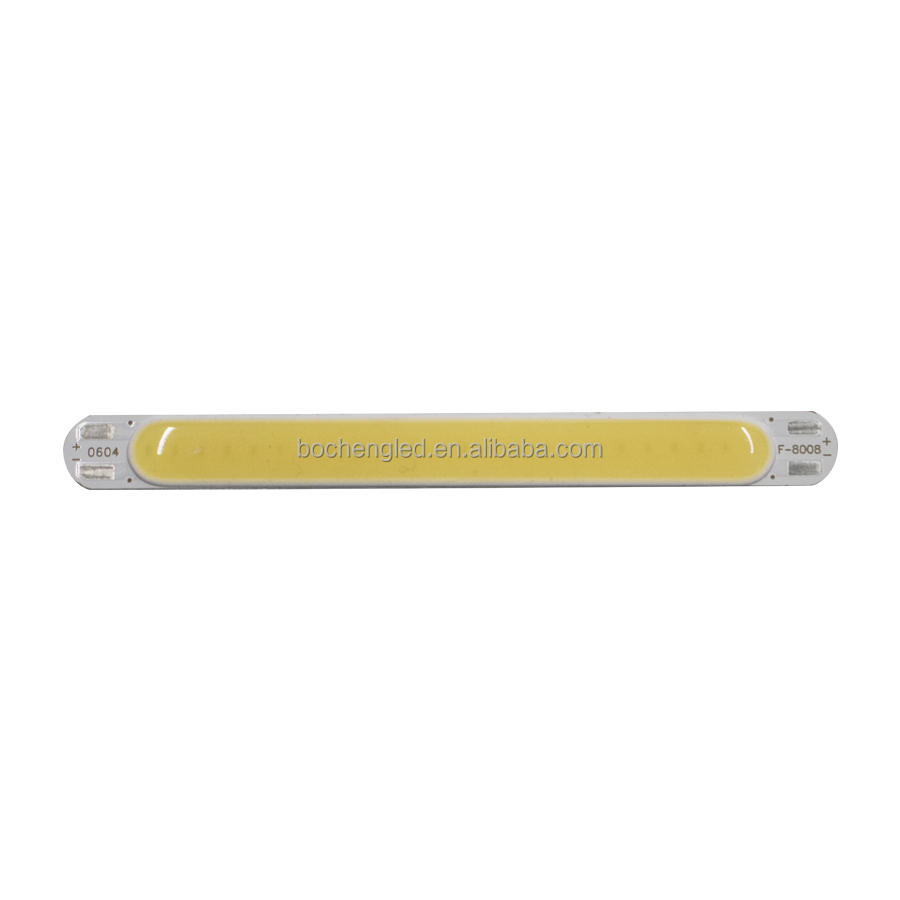

80*08 | 6W | 300mA | 18-21V |
size | strength | electricity | Voltage |

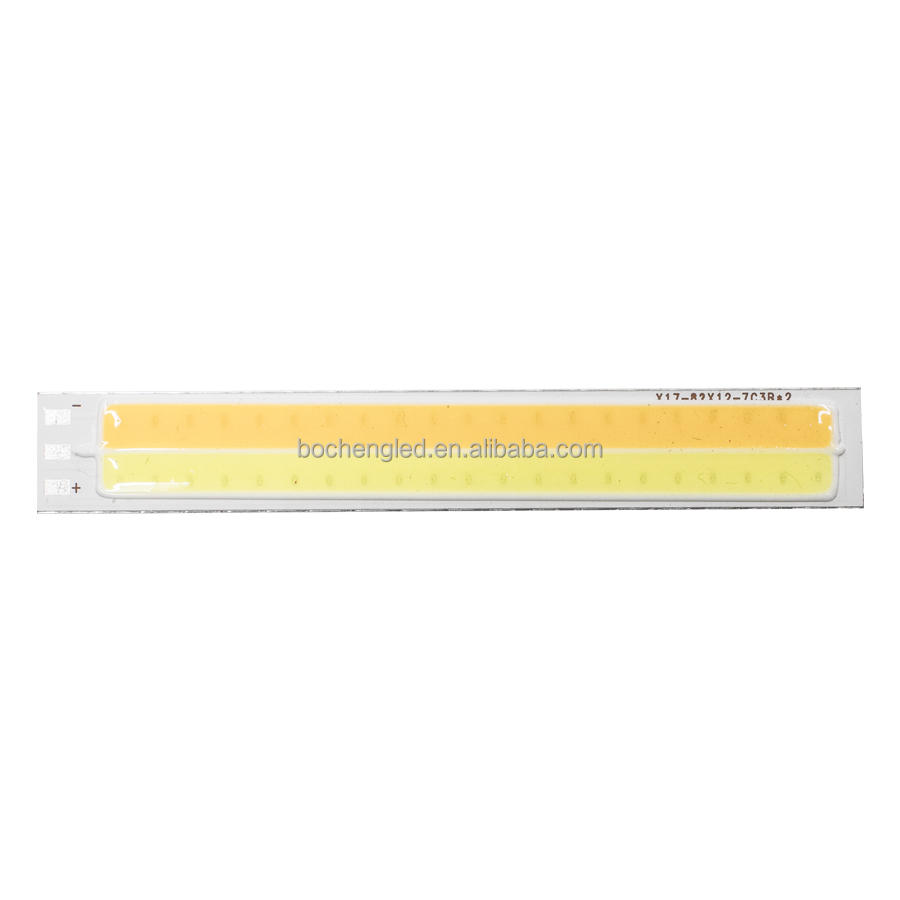

82*12 | 7W (dual tone) | 300mA | 21-24V |
size | strength | electricity | Voltage |

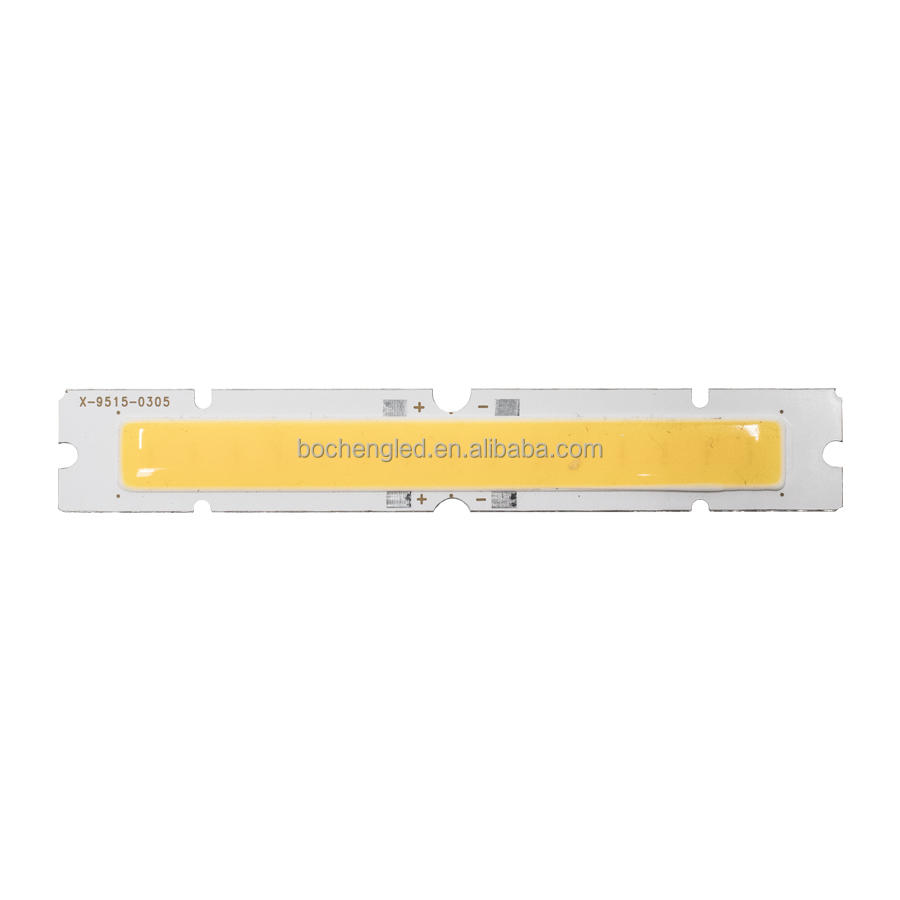

95*15 | 3W | 300mA | 9-11V |
size | strength | electricity | Voltage |
156*15 | 6W | 300mA | 18-21V |
size | strength | electricity | Voltage |

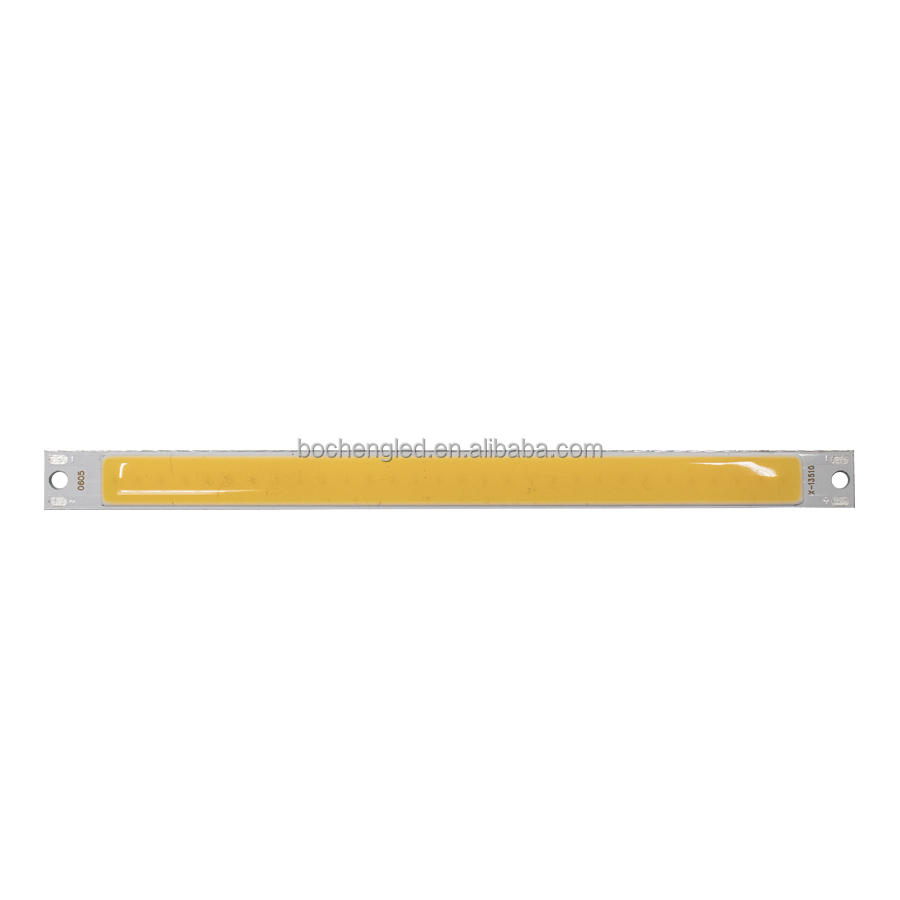

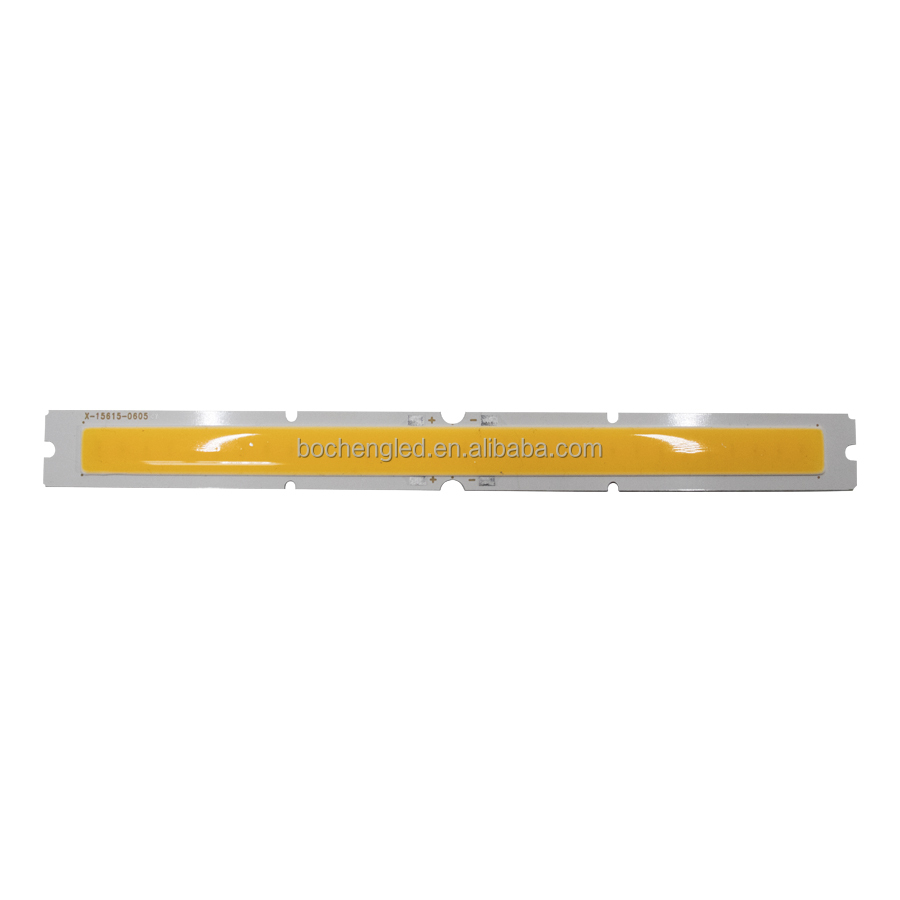

135*10 | 6W | 300mA | 18-21V |
140*10 | 12W | 300mA | 36-39V |
size | strength | electricity | Voltage |
132*18 | 6W | 300mA | 18-21V |
size | strength | electricity | Voltage |
160*10 | 7W | 300mA | 21-24V |
size | strength | electricity | Voltage |

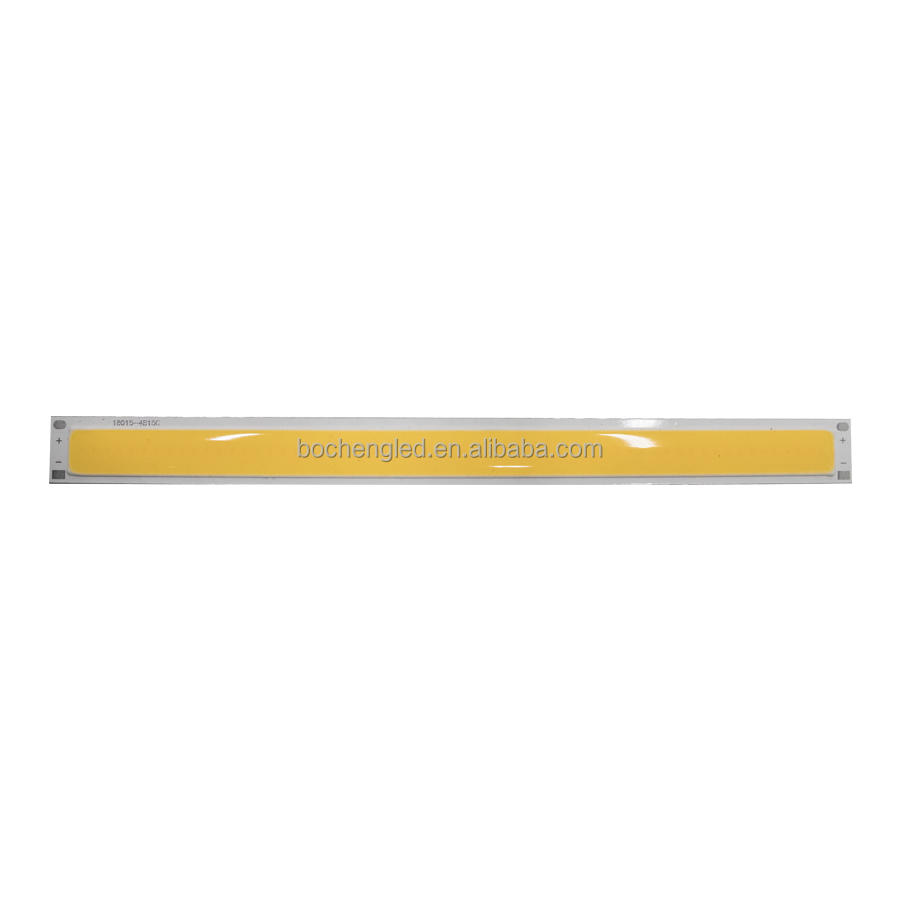

180*15 | 15W | 300mA | 45-47V |
size | strength | electricity | Voltage |

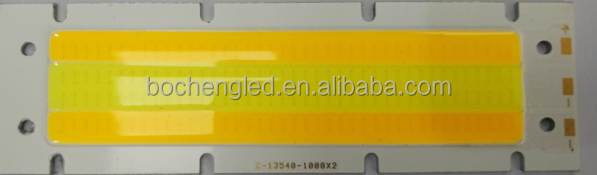

135*40 | 40W | 1200mAh | 30-34V |
size | strength | Voltage |
135*40 | 40W (dual tone) | 30-34V |
size | strength | electricity | Voltage | Comment |

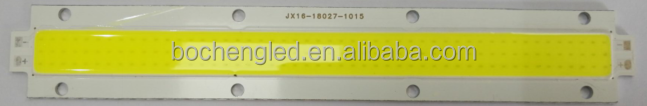

180*27 | 50W | 1500mAh | 30-34V | 15B10C |
300mA | 150-153v | 50C2B |
COB LED chips use a large number of series-parallel chips to achieve the effects of high brightness, high lumens, and high color rendering index. Chips are directly bonded and packaged on the entire substrate, that is, N chips are inherited and integrated on the internal substrate for packaging.
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, ensuring long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
Advantages of COB LED chips:
1. Using substrate thermoelectric distribution, good heat dissipation performance
2. Compact COB achieves high power efficiency and is convenient for customers to use
3. High reliability and high cost performance: low thermal resistance packaging structure, the fastest heat conduction speed, uniform distribution of light surface, ensuring long life of the light source.
4. High power, high lumen, high quality, high CRI and luminous flux
5. Compared with traditional lighting fixtures, it can save energy by 80%
6. Easy to install and use, safe and reliable
